Motor Starter, 70-95 Amp, 480V Coil, 75HP 480V, IEC Size 100
Stock:
In Stock
Complete motor starter sized for Lightly loaded 75HP at 480V. Operating Voltage is 480VAC
Contactor, IEC size 100. Overload Frame size 95. Elimia PN: 70-95-480-100
Complete motor starter sized for a Lightly loaded 75HP at 480V. Operating Voltage is 480VAC.

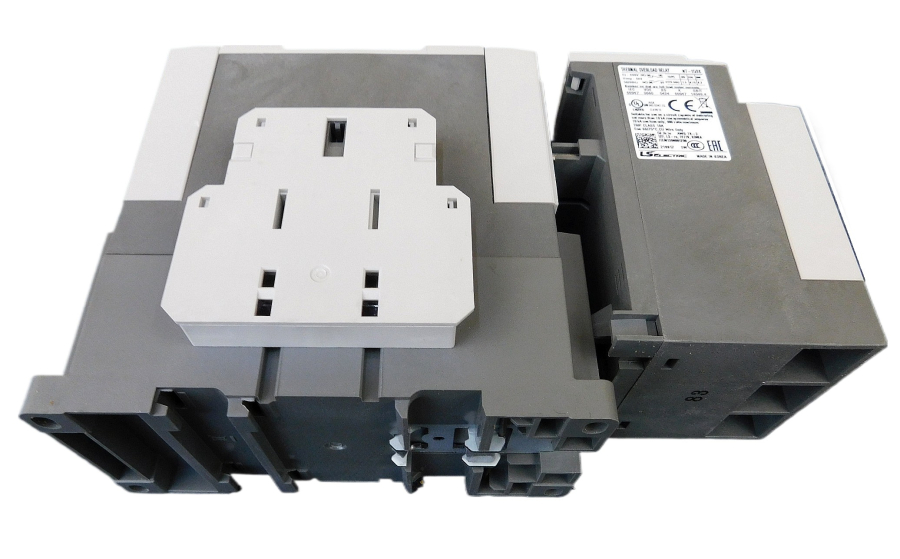

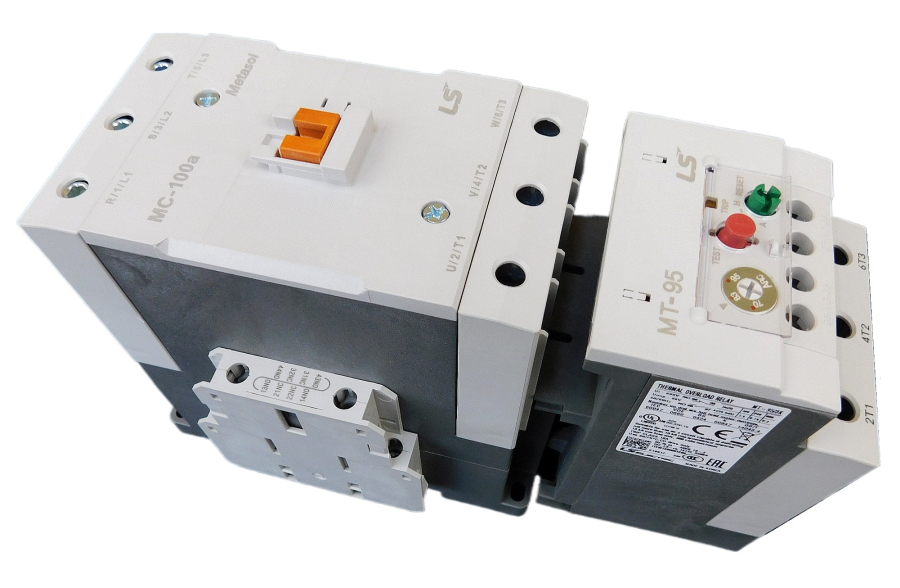

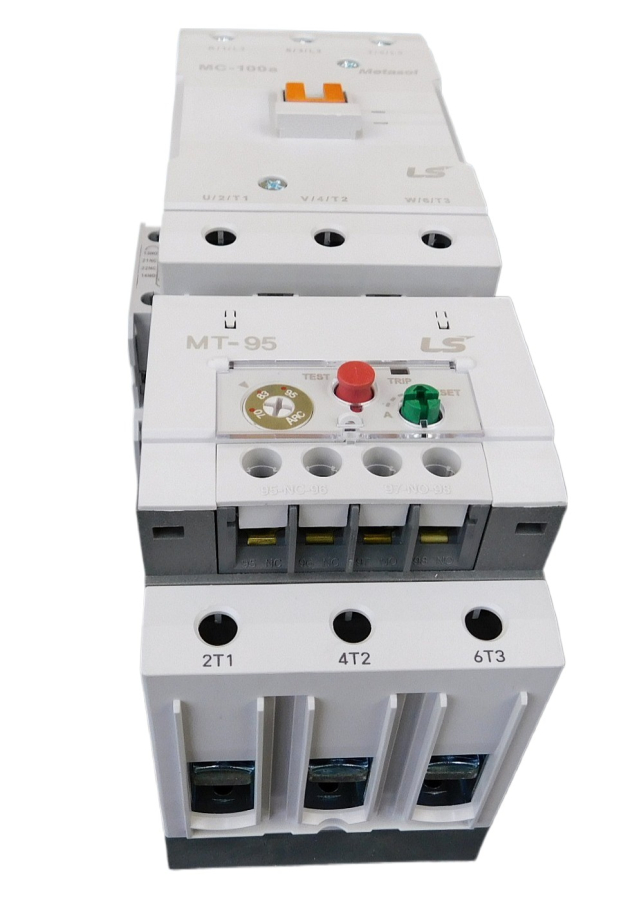

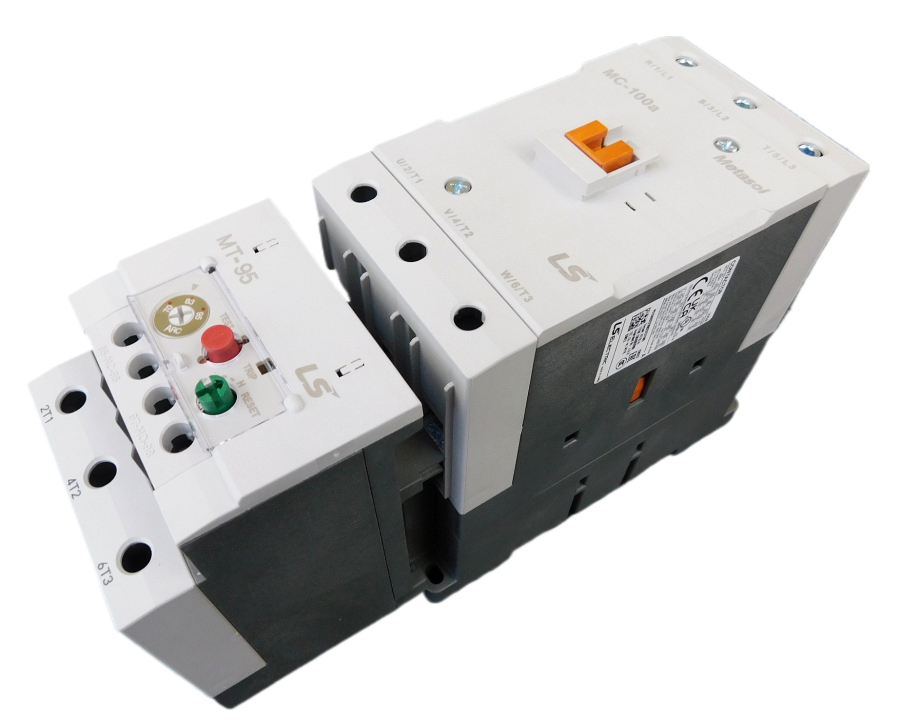

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

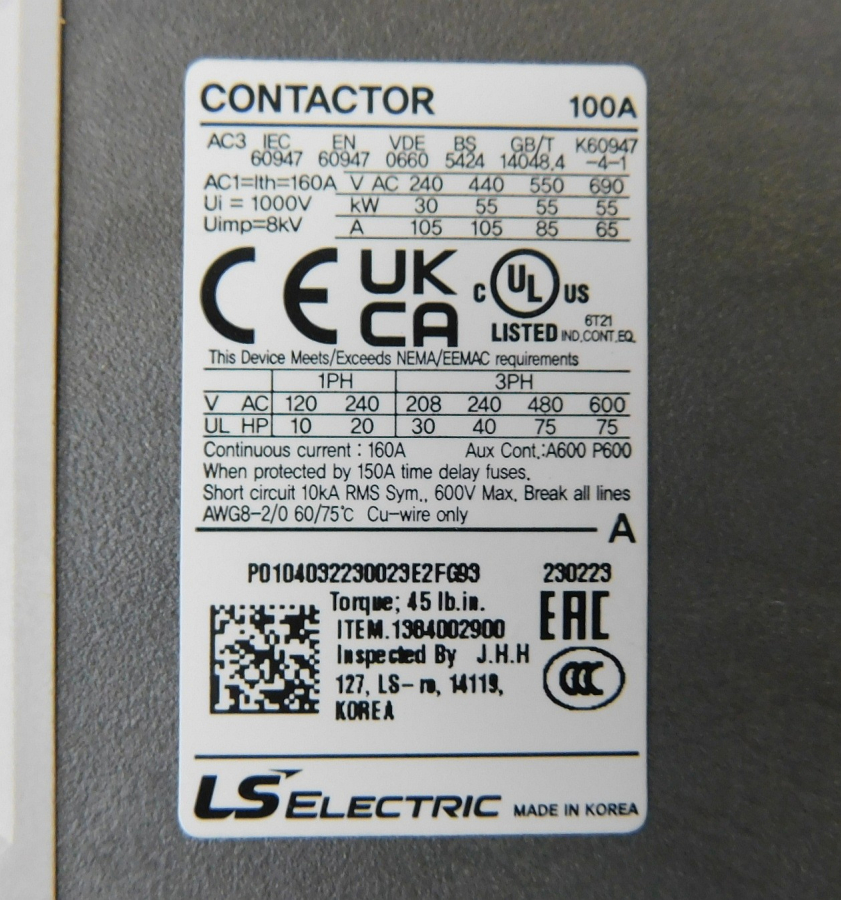

- Contactor - IEC size 100
- Overload - Class 10 differential type, phase failure protection
- Coil - 480V
- Contactor HP rating UL - 75HP @ 480V
- Overload trip range - 70-95 Amps
- Sized for Normal loaded 75 HP motor @ 480V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 95
