Motor Starter, 80-105 Amp, 480V Coil, 75HP 480V, IEC Size 130
Stock:
In Stock
Complete motor starter sized for Normal loaded 75HP at 480V. Operating Voltage is 480VAC.
Contactor, IEC size 130. Overload Frame size 150. Elimia PN: 80-105-480-130
Complete motor starter sized for a Normal loaded 75HP at 480V. Operating Voltage is 480VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

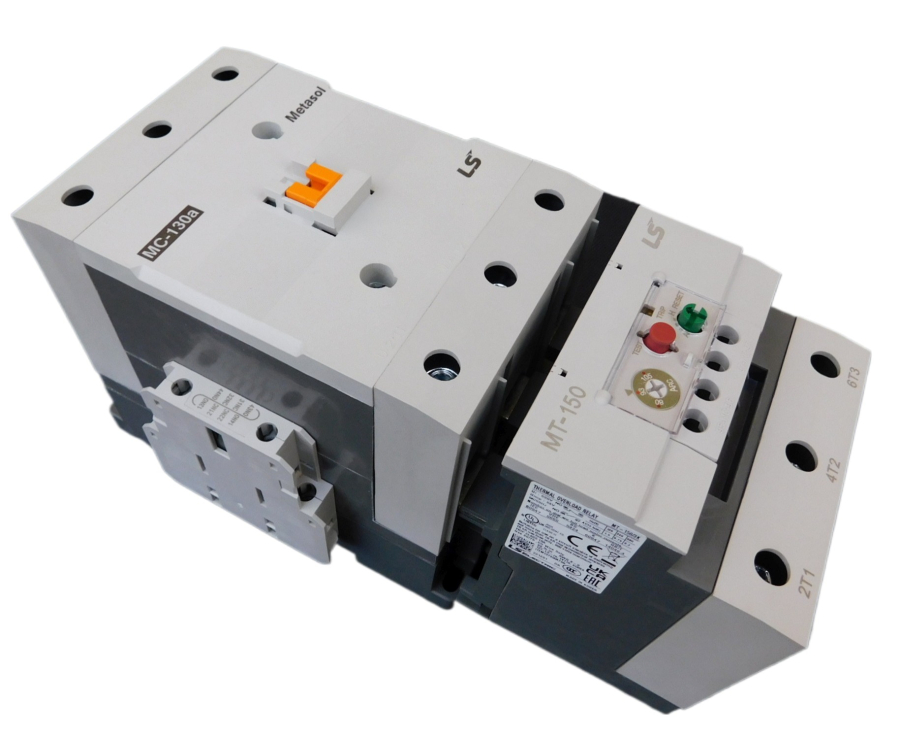

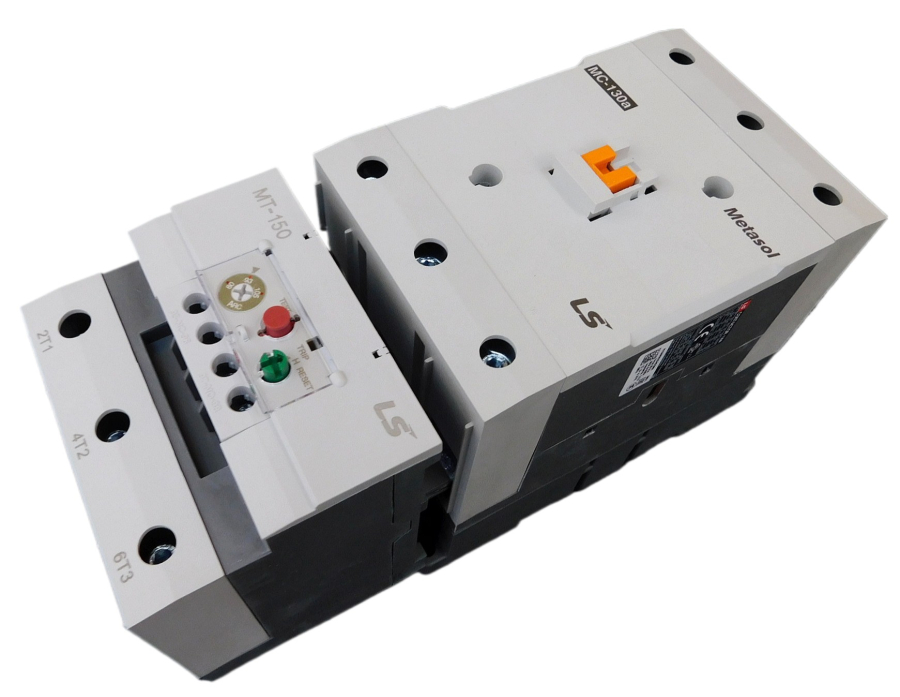

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea
- Contactor - IEC size 130

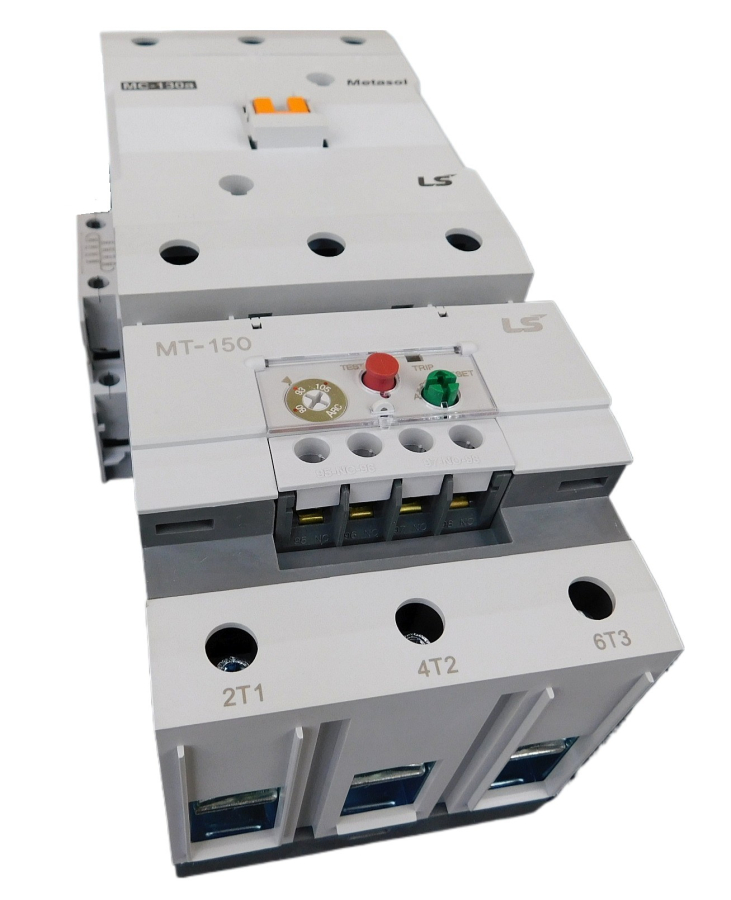

- Overload - Class 10 differential type, phase failure protection
- Coil - 480V

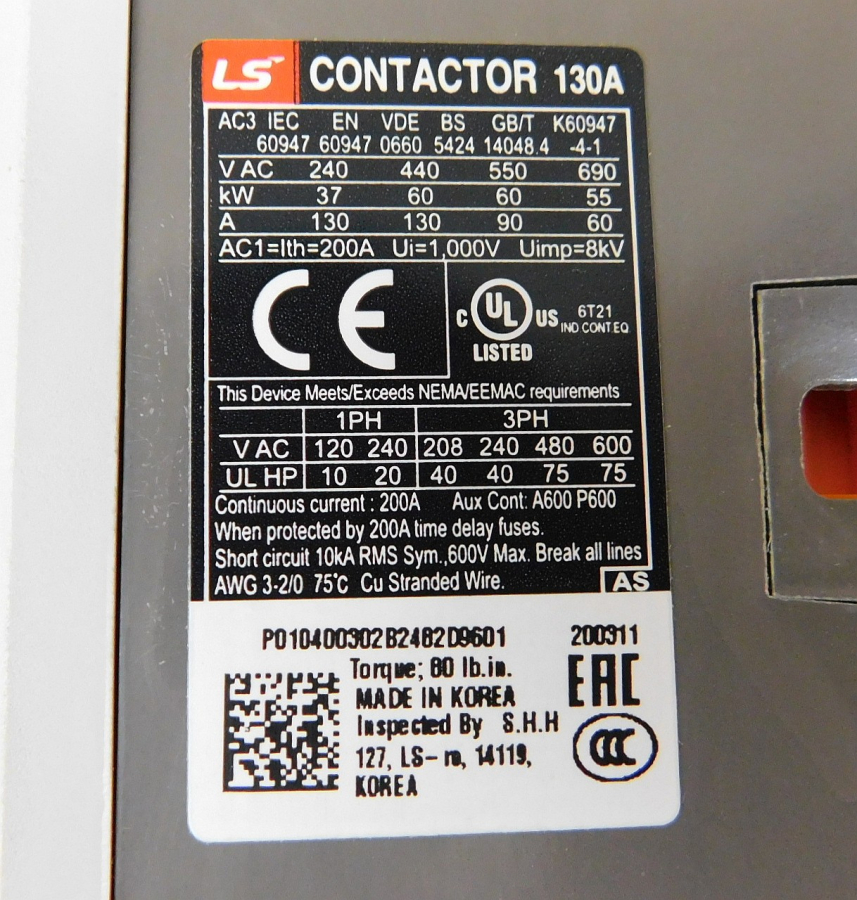

- Contactor HP rating UL - 75HP @ 480V
- Overload trip range - 80-105 Amps
- Sized for Normal loaded 75 HP motor @ 480V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 150
