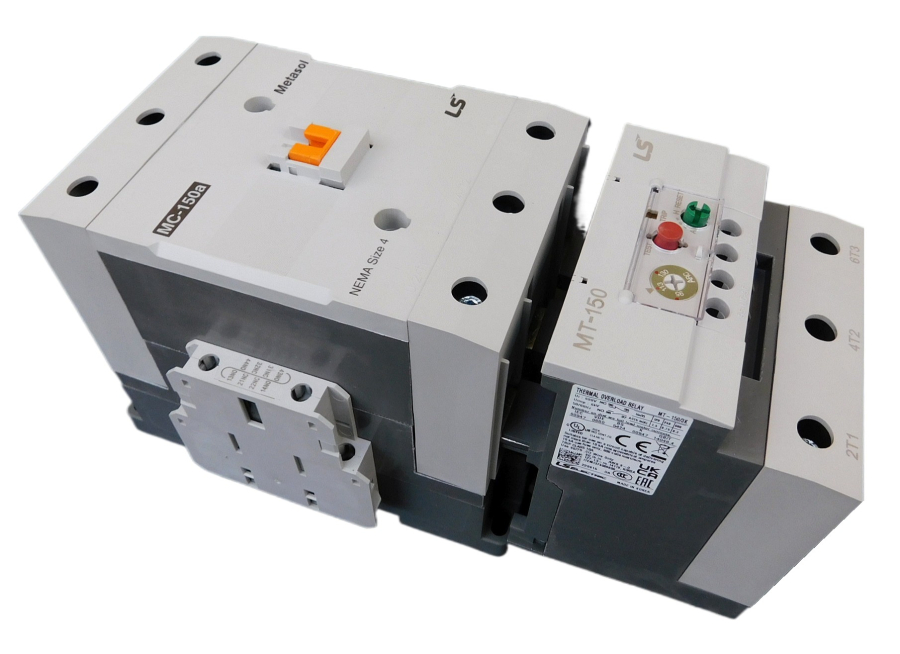

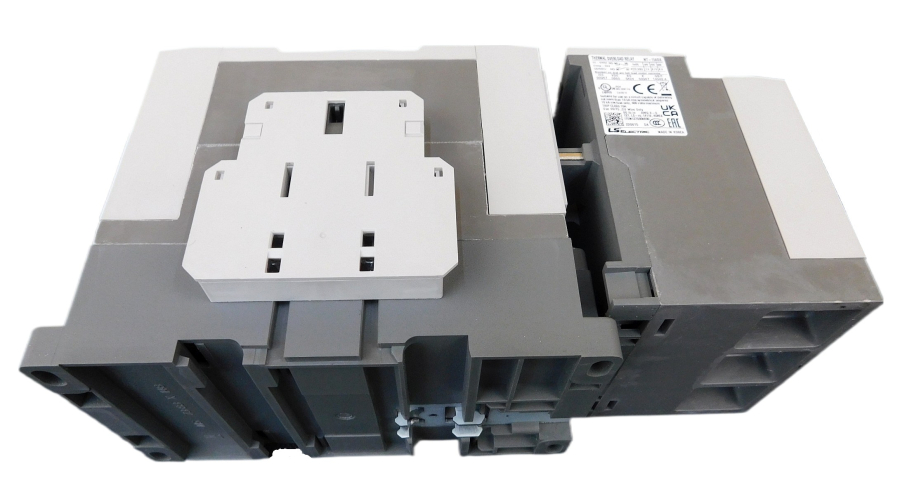

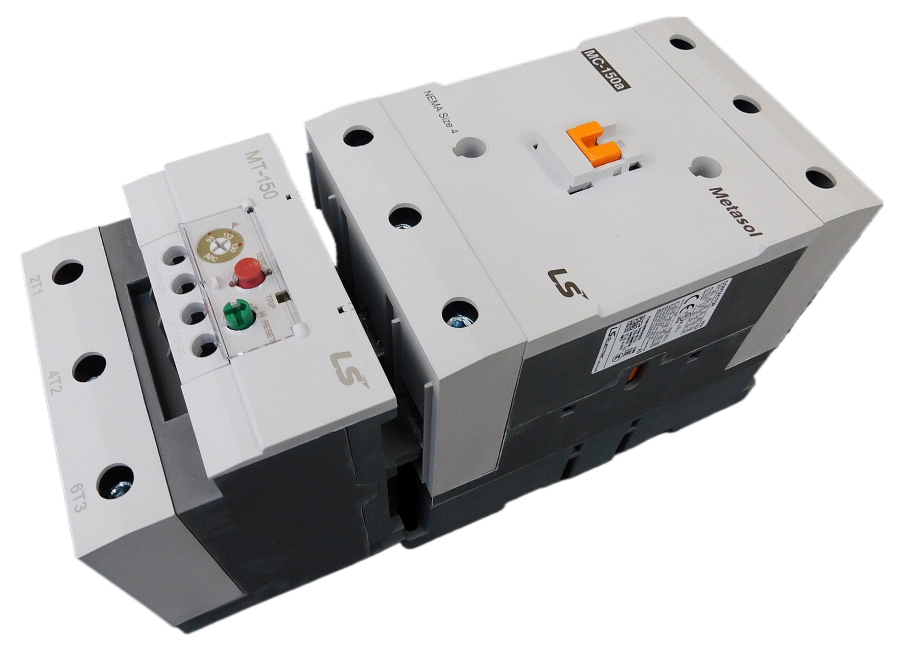

Motor Starter, 80-105 Amp, 480V Coil, 75HP 480V, Nema Size 4, IEC Size 150
Stock:
In Stock
Complete motor starter sized for Normal or Heavy loaded 75HP at 480V. Operating Voltage is 480VAC.
Contactor, Nema size 4, IEC size 150. Overload Frame size 150. Heavy duty set up. Elimia PN: 80-105-480-150
Complete motor starter sized for a Normal or Heavy loaded 75HP at 480V. Operating Voltage is 480VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

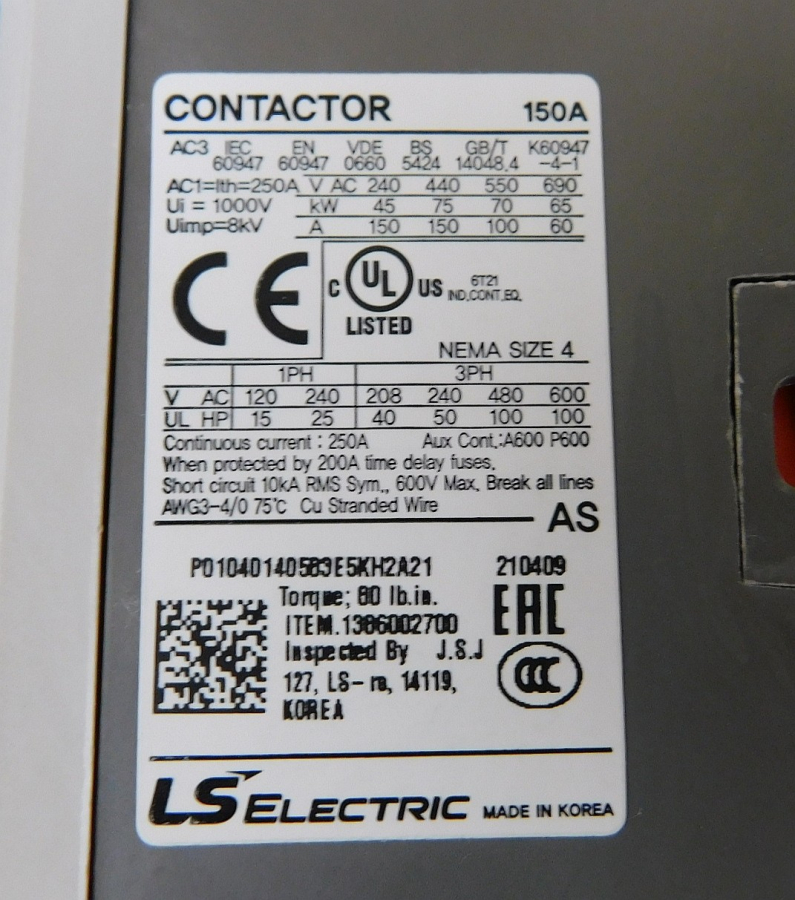

- Contactor - Nema size 4, IEC size 150

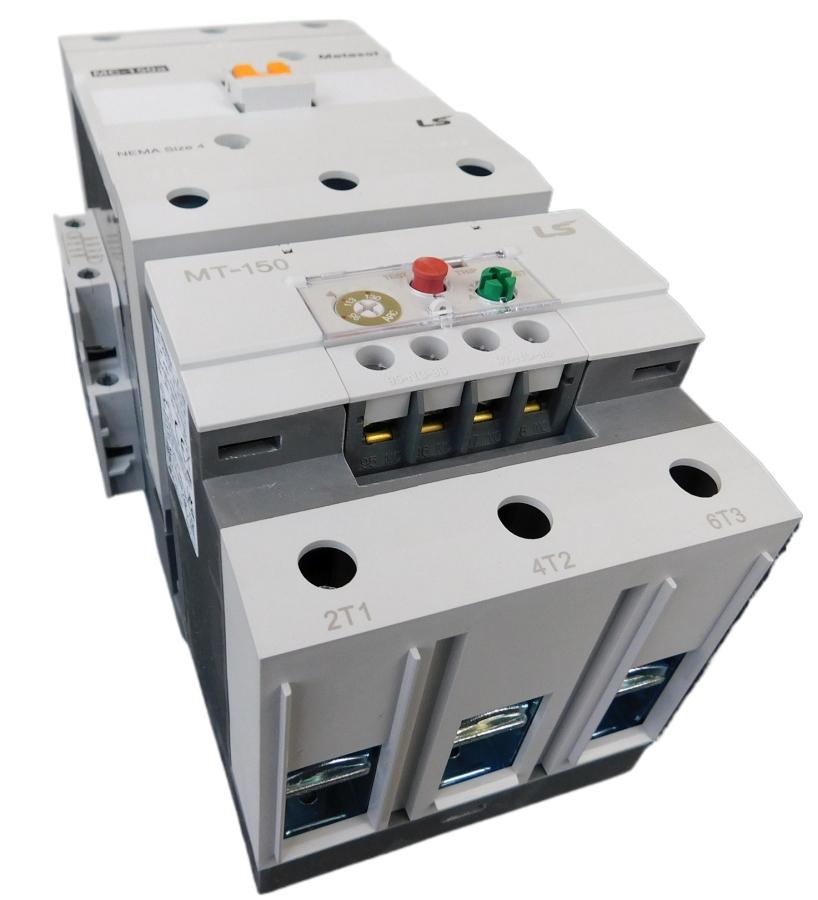

- Overload - Class 10 differential type, phase failure protection
- Coil - 480V
- Contactor HP rating UL - 100HP @ 480V
- Overload trip range - 80-105 Amps
- Sized for Normal or Heavy loaded 75 HP motor @ 480V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 150
