Motor Starter, 95-130 Amp, 480V Coil, 100HP 480V, Nema Size 4, IEC Size 150

Complete motor starter sized for a Lightly or Normal loaded 100HP at 480V. Operating Voltage is 480VAC.

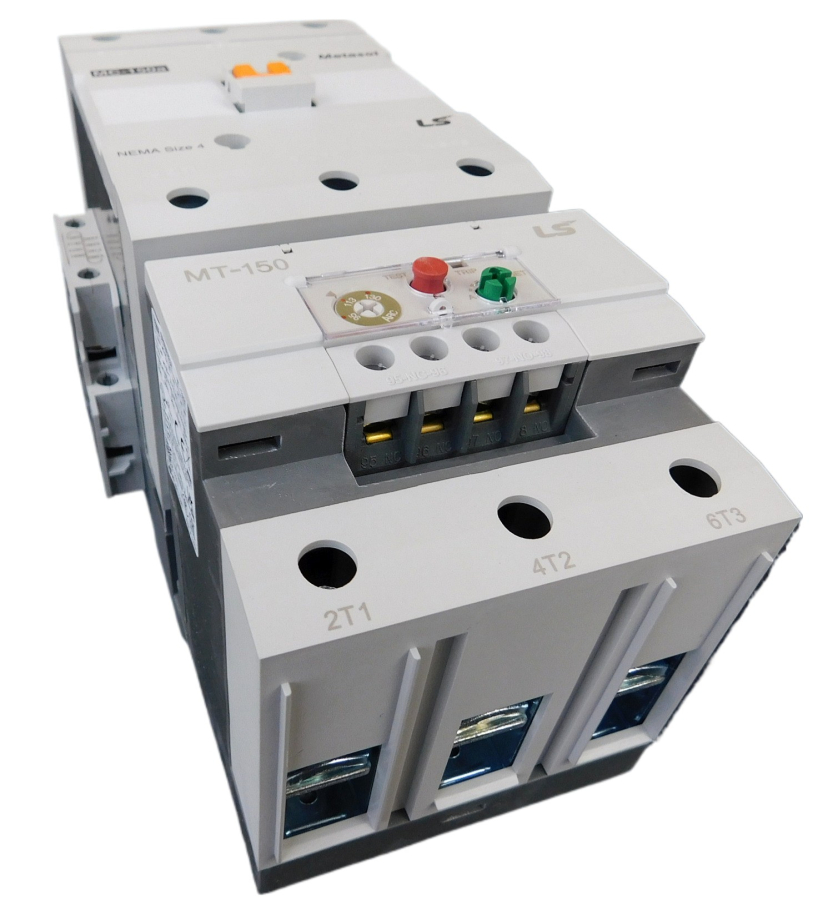

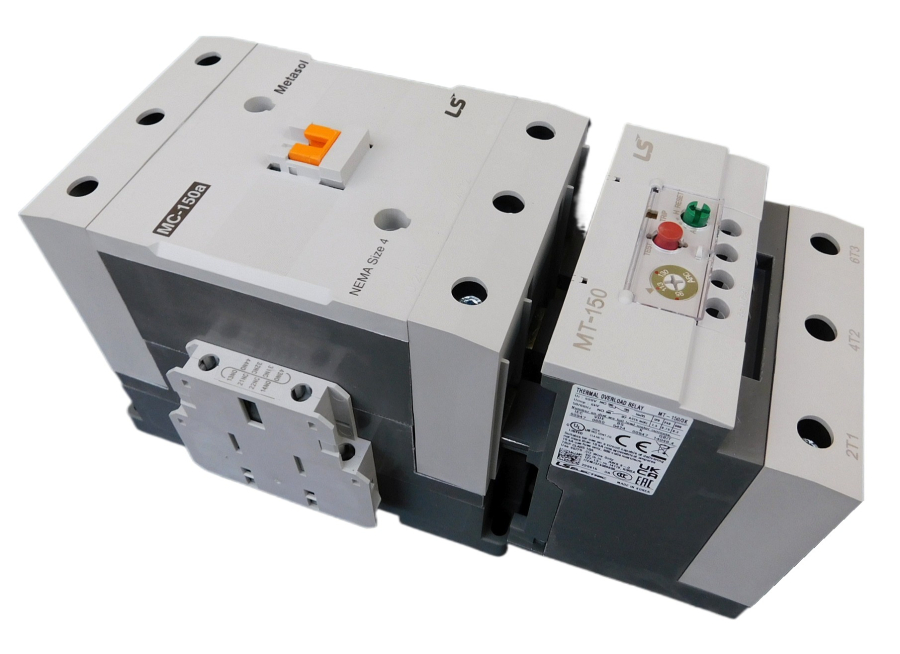

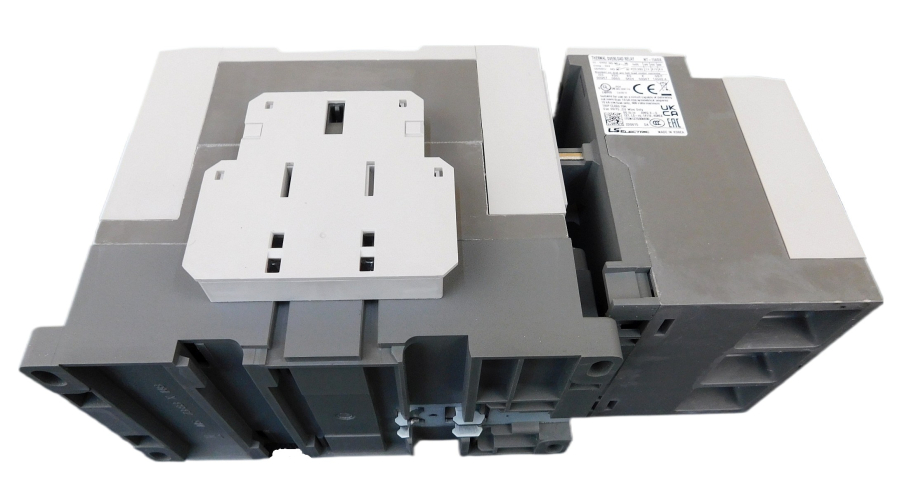

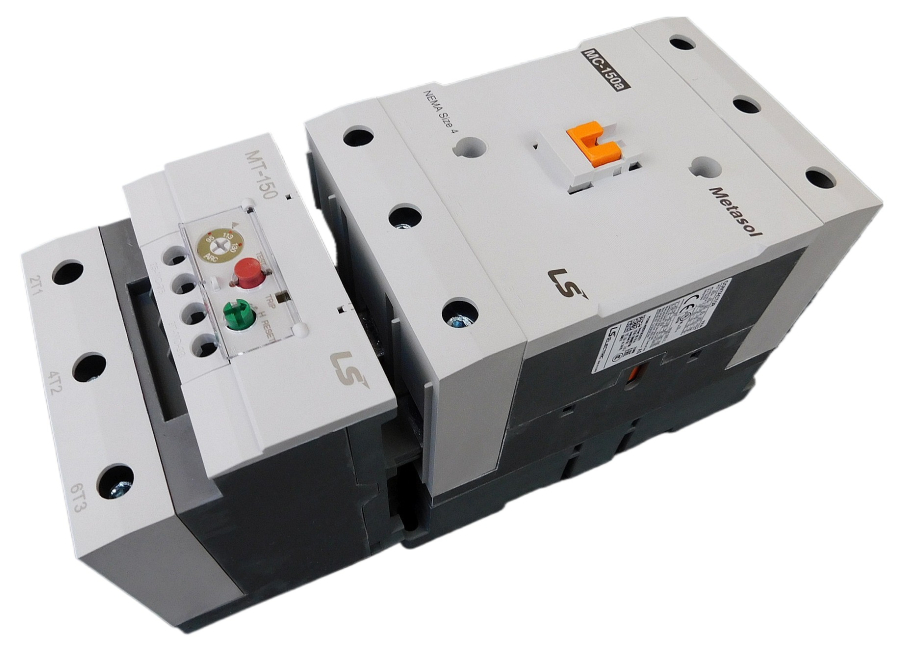

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor - Nema size 4, IEC size 150
• Overload - Class 10 differential type, phase failure protection
• Coil - 480V
• Contactor HP rating UL - 100HP @ 480V
• Overload trip range - 95-130 Amps
• Sized for Lightly or Normal loaded 100 HP motor @ 480V
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 150
