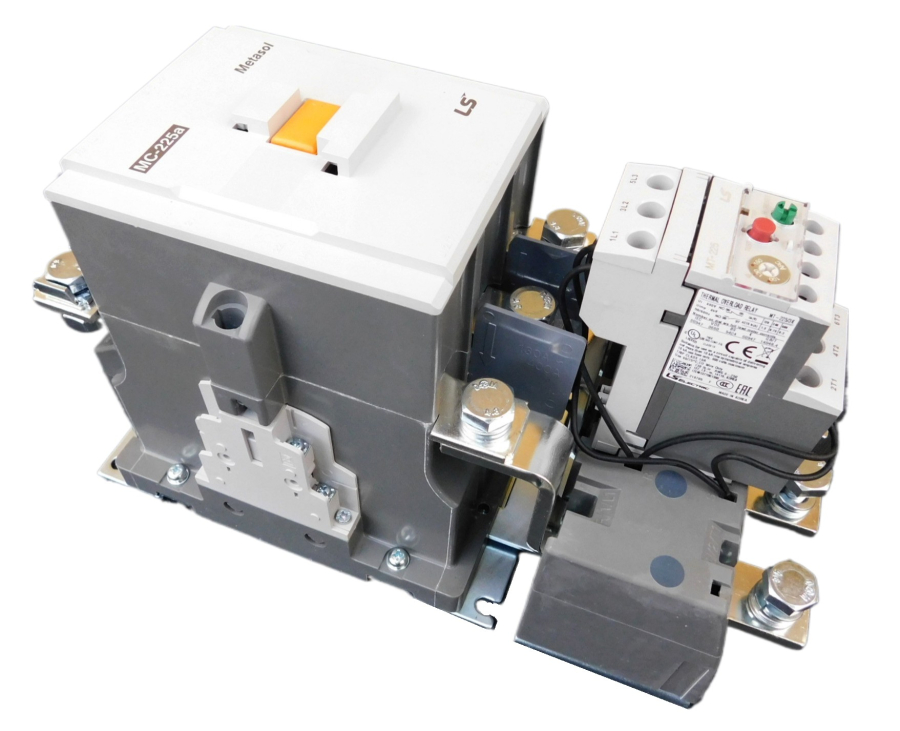

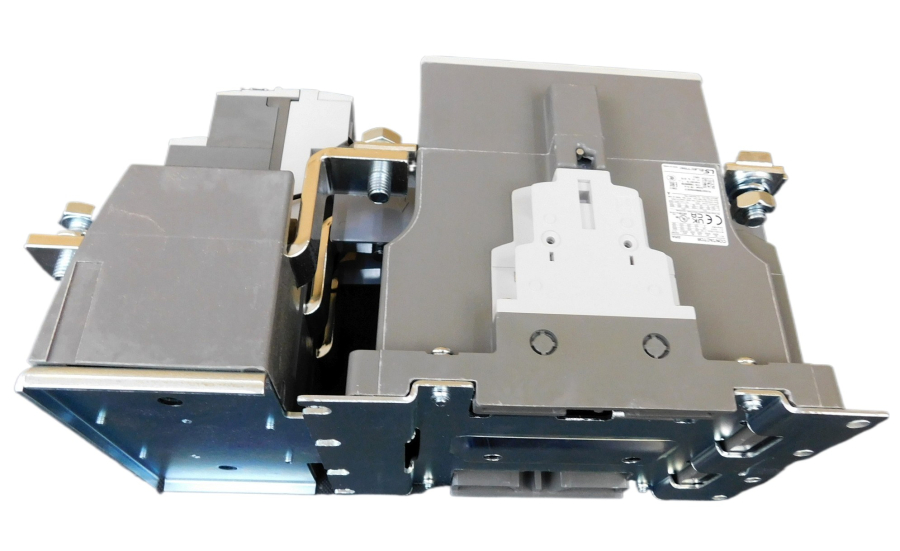

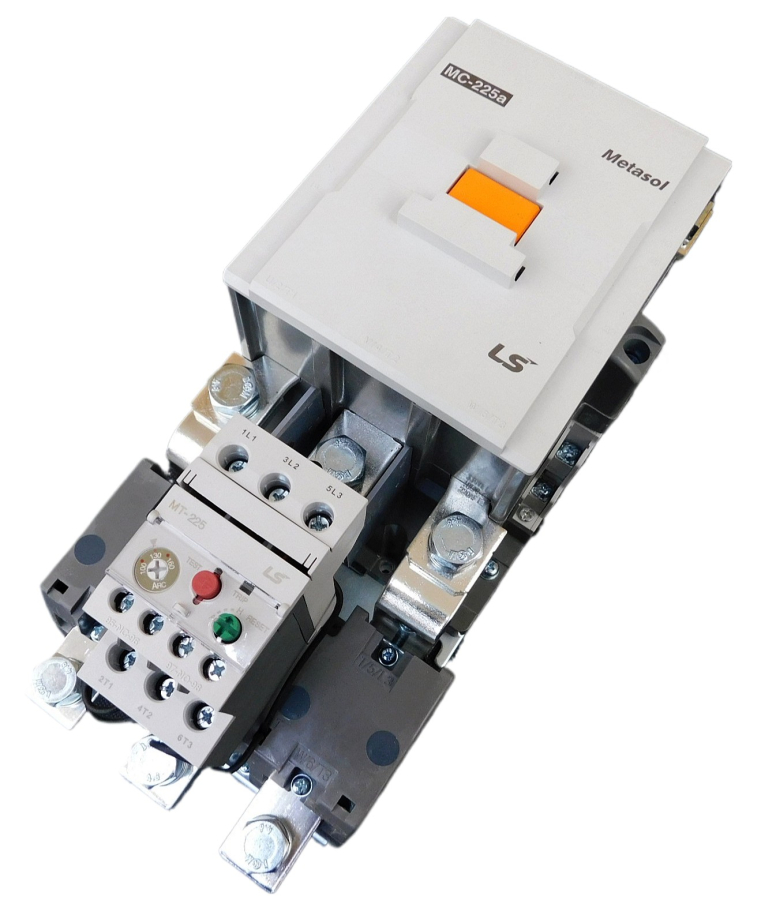

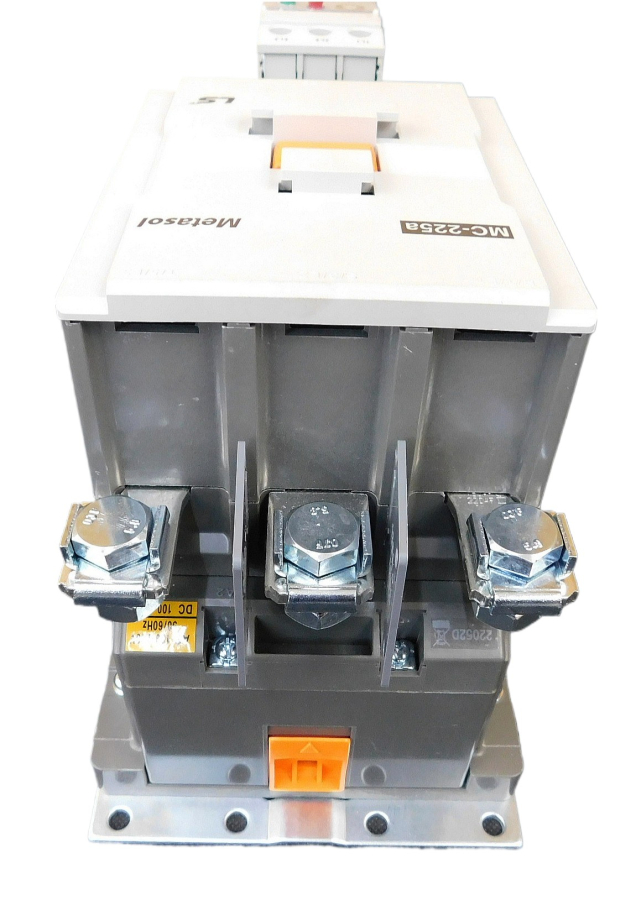

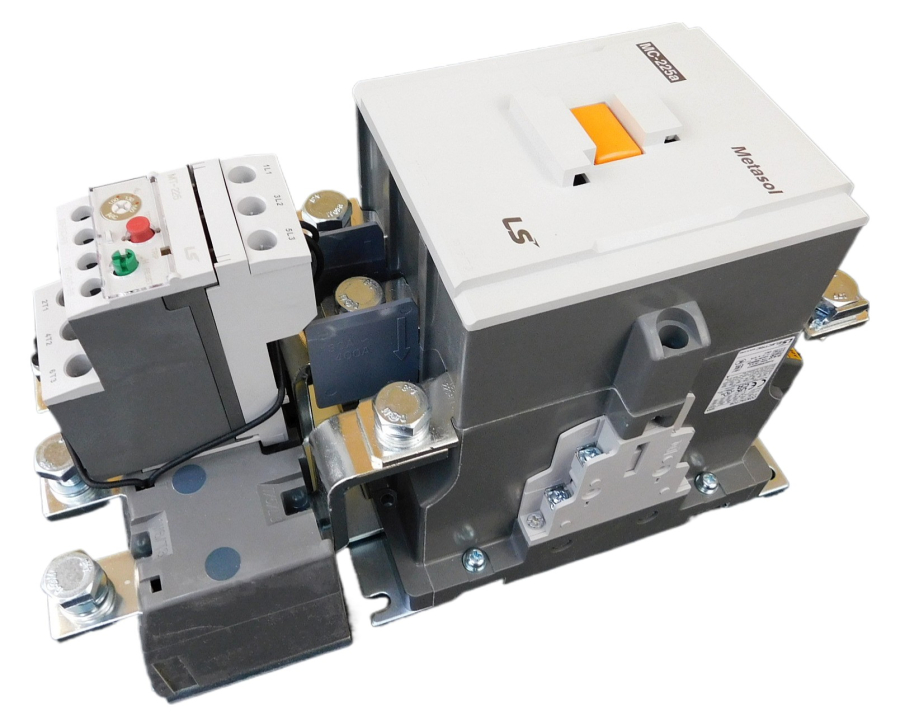

Motor Starter, 100-160 Amp, 480V Coil, 100HP 480V, IEC Size 225

Complete motor starter sized for a Normal or Heavy loaded 100HP at 480V. Operating Voltage is 480VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor - IEC size 225
• Overload - Class 10 differential type, phase failure protection
• Coil - 480V

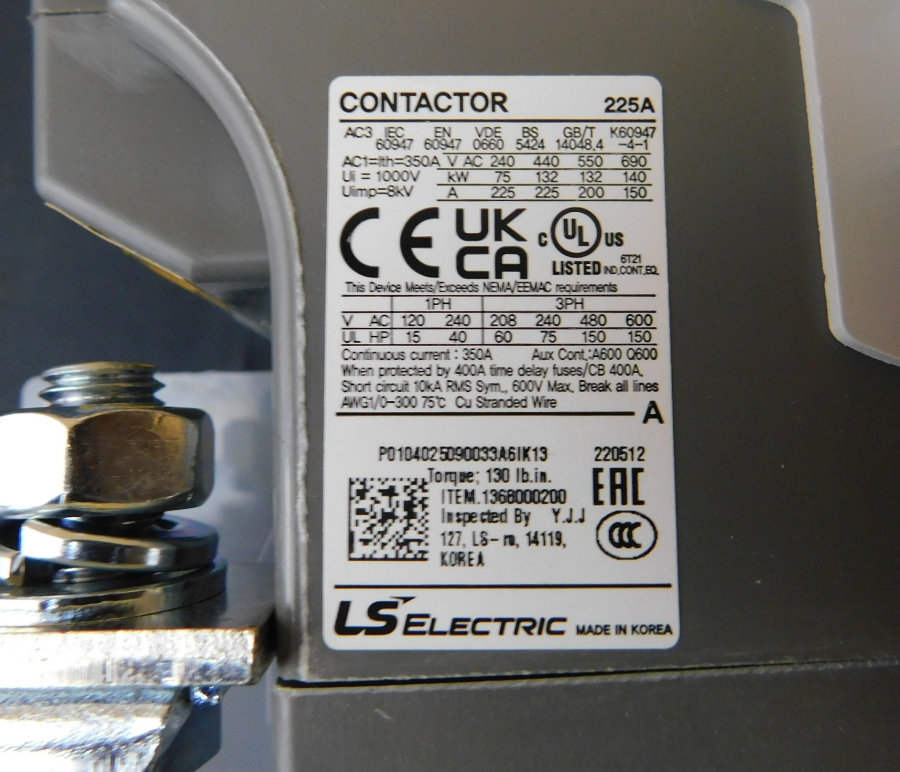

• Contactor HP rating UL - 150HP @ 480V
• Overload trip range - 100-160 Amps
• Sized for Normal or Heavy loaded 100 HP motor @ 480V
• Includes (2) N/O & (2) N/C auxiliary contact
• Overload Frame size 225
