Motor Starter, 120-185 Amp, 480V Coil, 125HP 480V, IEC Size 225
Stock:
In Stock
Complete motor starter sized for Normal or Heavy loaded 125HP at 480V. Operating Voltage is 480VAC.
Contactor, IEC size 225. Overload Frame size 225. Heavy duty set up.
Complete motor starter sized for a Normal or Heavy loaded 125HP at 480V. Operating Voltage is 480VAC.

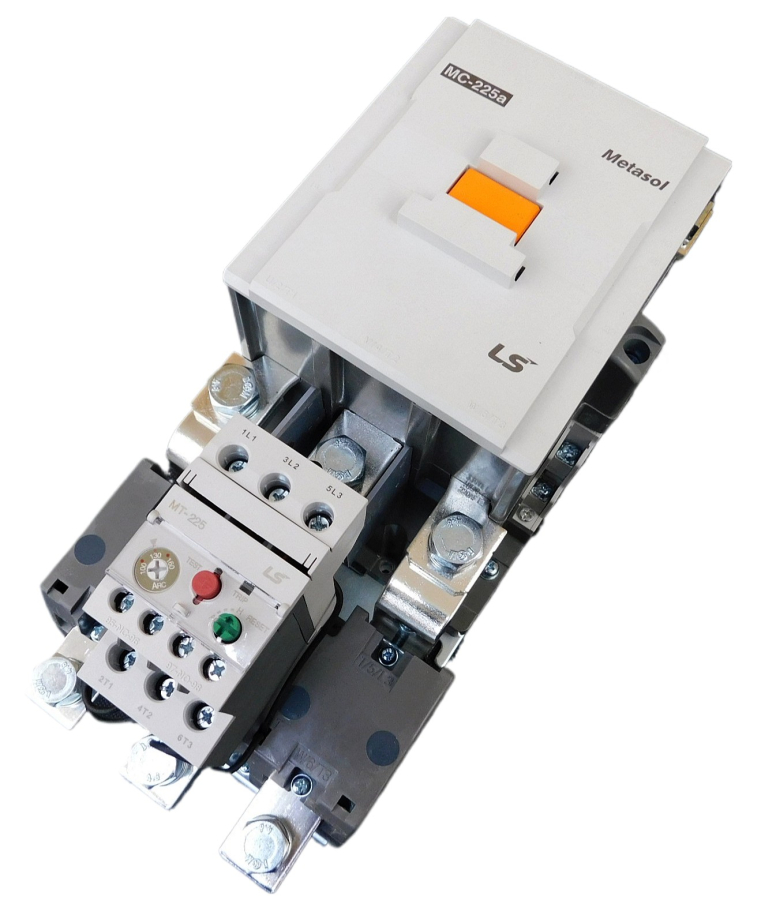

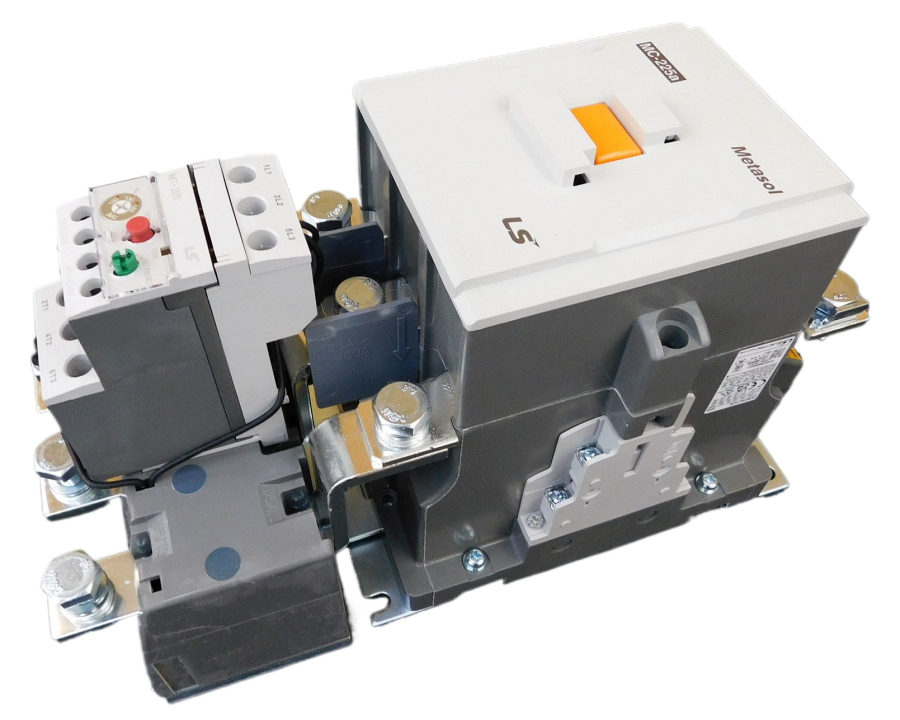

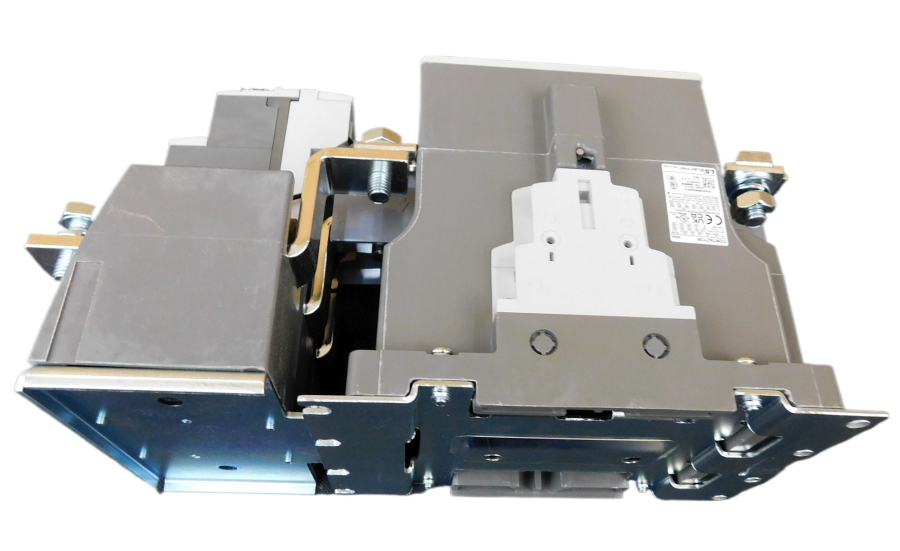

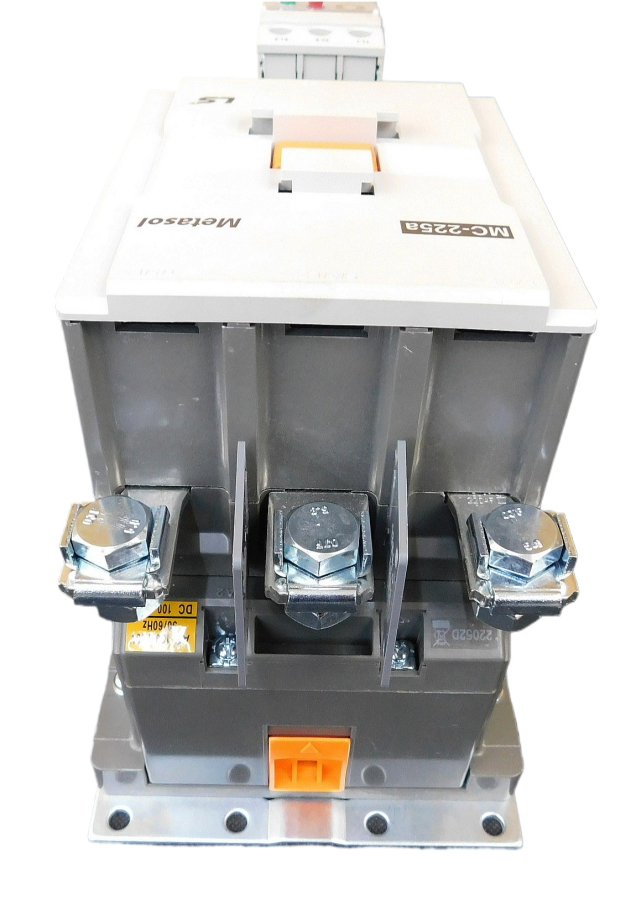

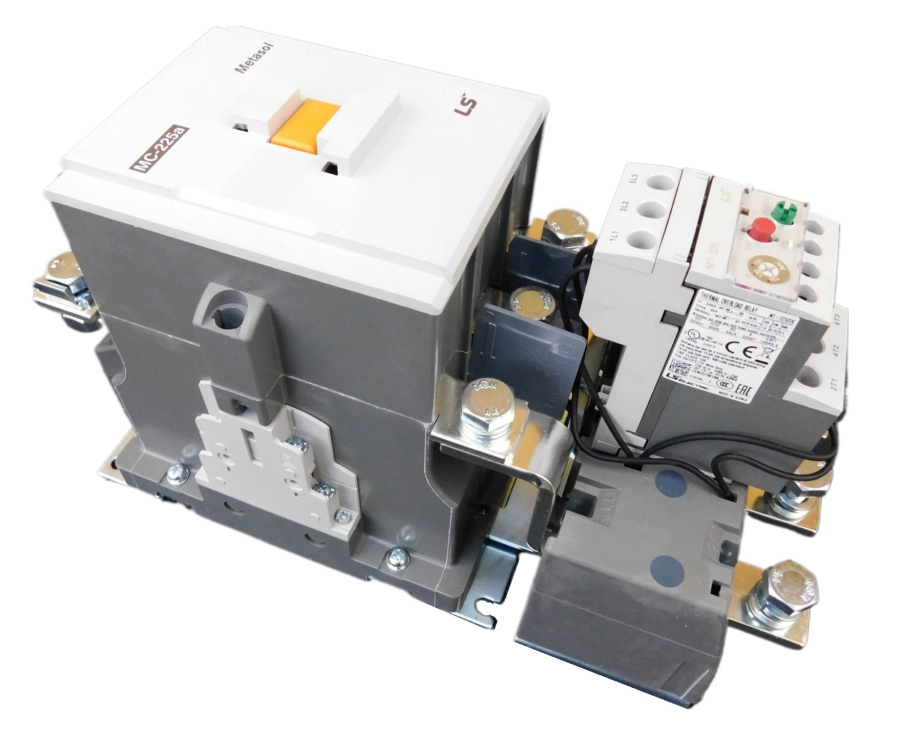

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea
- Contactor - IEC size 225
- Overload - Class 10 differential type, phase failure protection
- Coil - 480V
- Contactor HP rating UL - 150HP @ 480V
- Overload trip range - 120-185 Amps
- Sized for Normal or Heavy loaded 125 HP motor @ 480V
- Includes (2) N/O & (2) N/C auxiliary contact
- Overload Frame size 225
