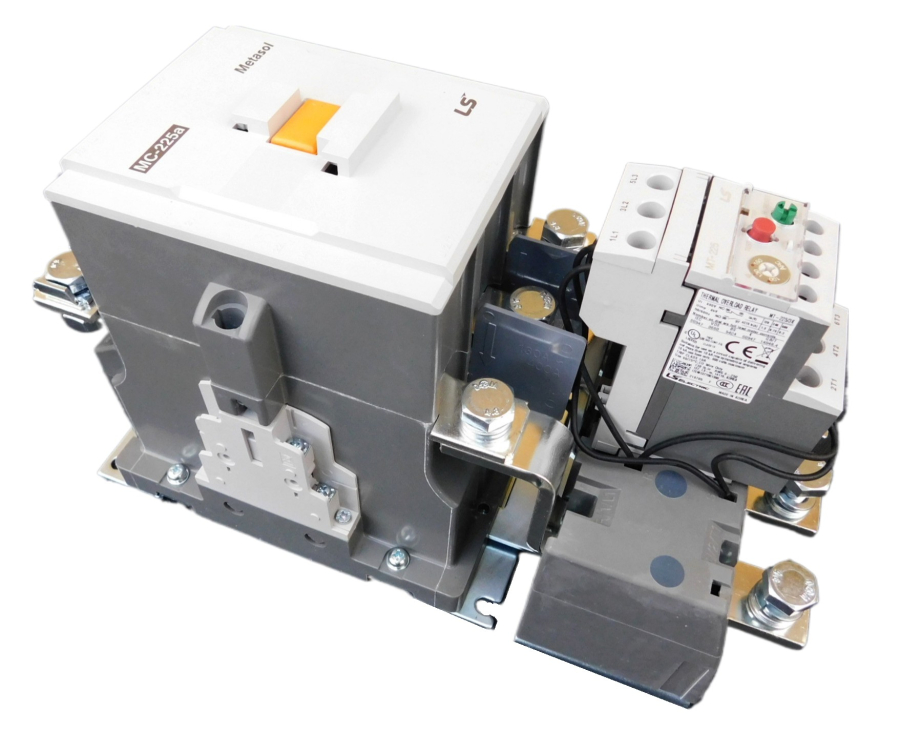

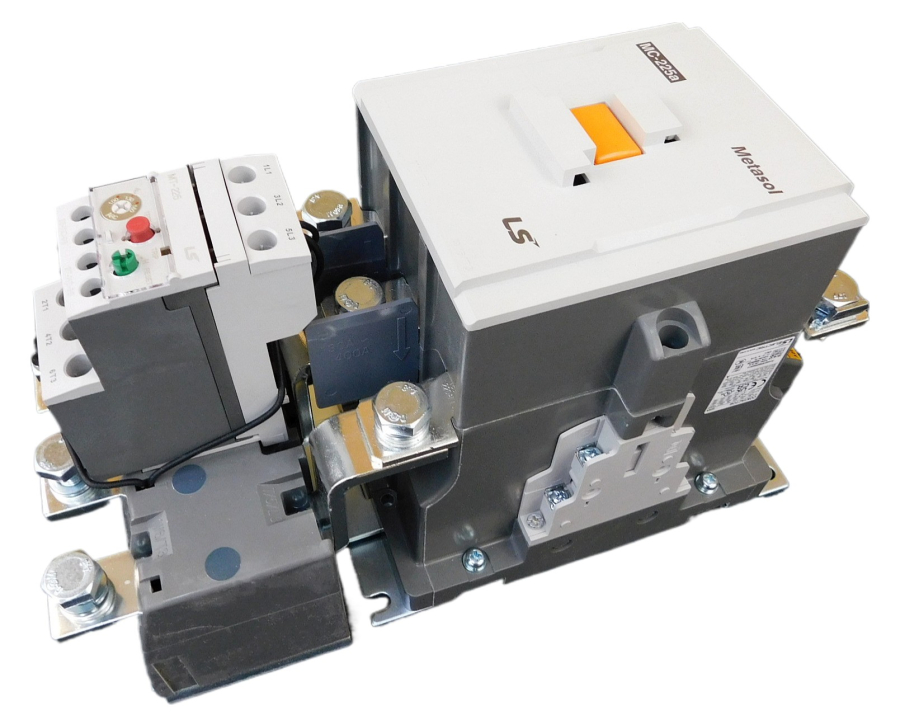

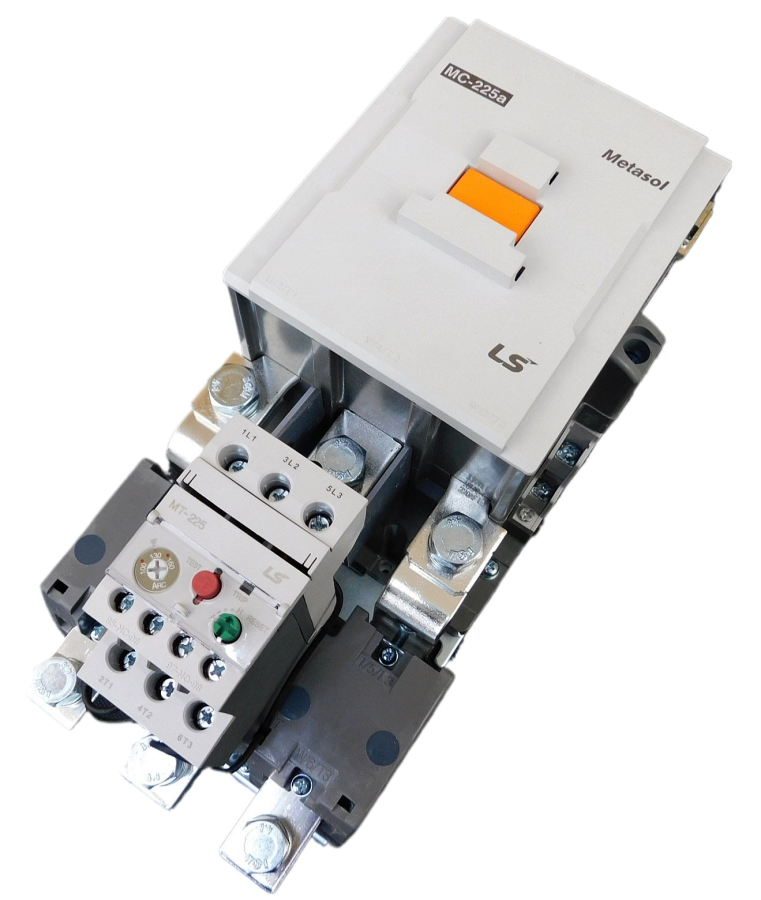

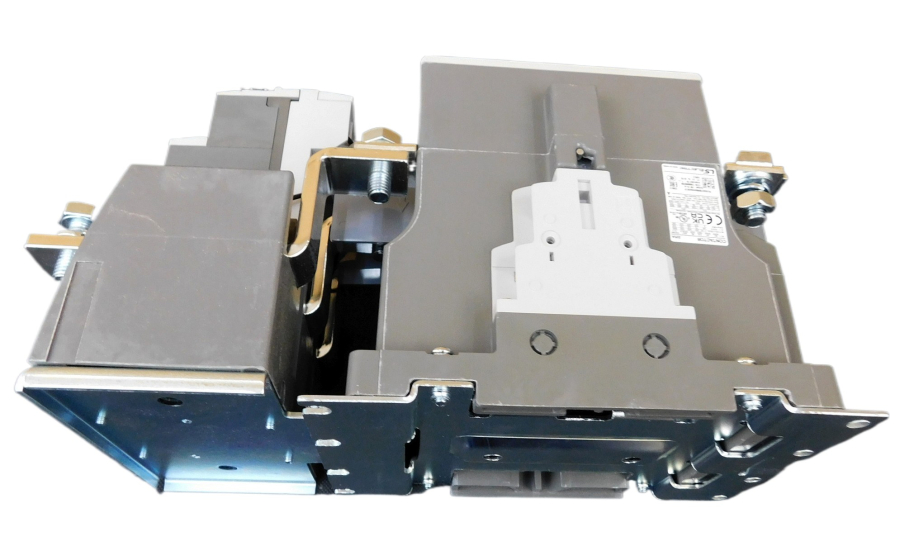

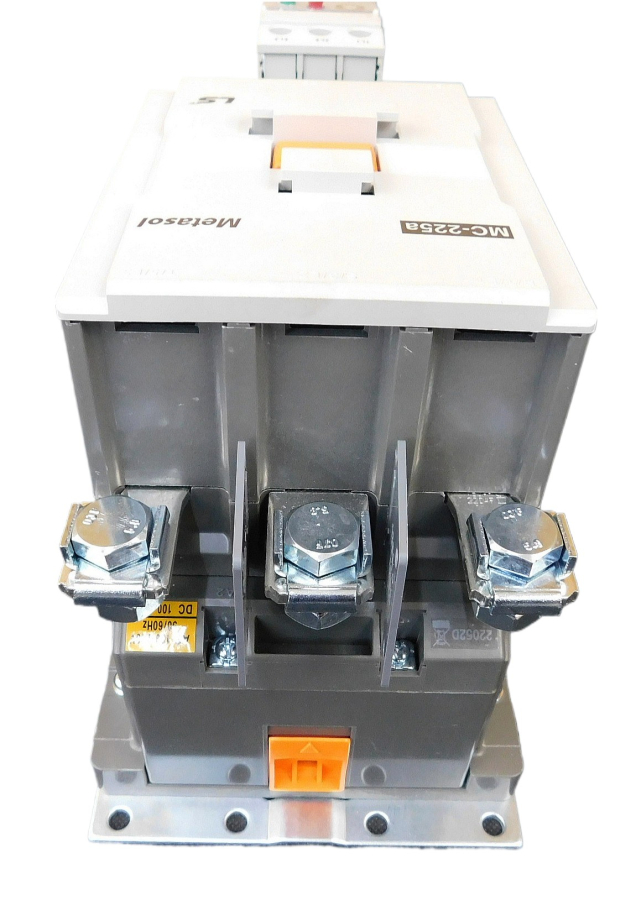

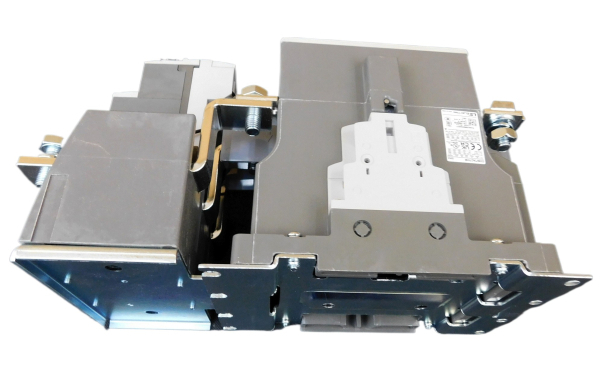

Motor Starter, 160-240 Amp, 480V Coil, 150HP 480V, IEC Size 225

Complete motor starter sized for a Lightly or Normal loaded 150HP at 480V. Operating Voltage is 480VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor - IEC size 225
• Overload - Class 10 differential type, phase failure protection
• Coil - 480V
• Contactor HP rating UL - 150HP @ 480V
• Overload trip range - 160-240 Amps
• Sized for Lightly or Normal loaded 150 HP motor @ 480V
• Includes (2) N/O & (2) N/C auxiliary contact
• Overload Frame size 225
