Mini Motor Starter, 5 - 8 Amp, 120V Coil, 3/4 - 1 HP 240V, 1PH

Complete motor starter sized for 3/4 - 1 HP at 240V 1PH, Single Phase. Operating Voltage is 120VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

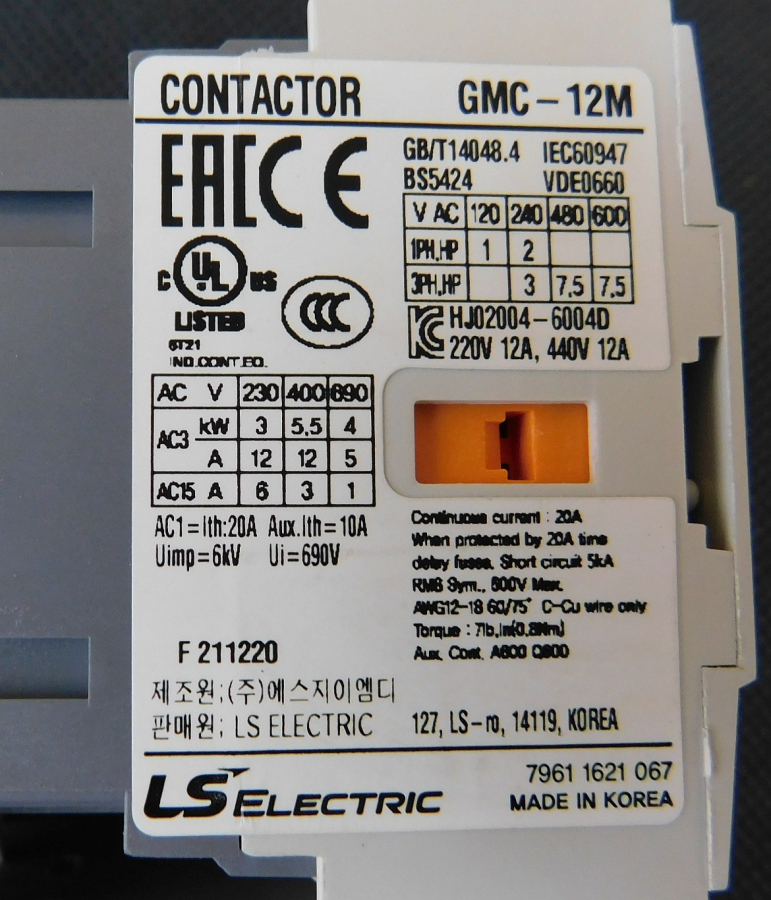

• Contactor - Mini size GMC 12
• Overload - Class 10 differential type, phase failure protection
• Coil - 120V
• Contactor HP rating UL - 2HP @ 240V 1PH-Single Phase
• Overload trip range - 5 - 8 Amps
• Sized for Normal loaded 3/4 - 1 HP at 240V 1PH, Single Phase
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size mini GTK 12
• Screw terminals
• UL Listed
