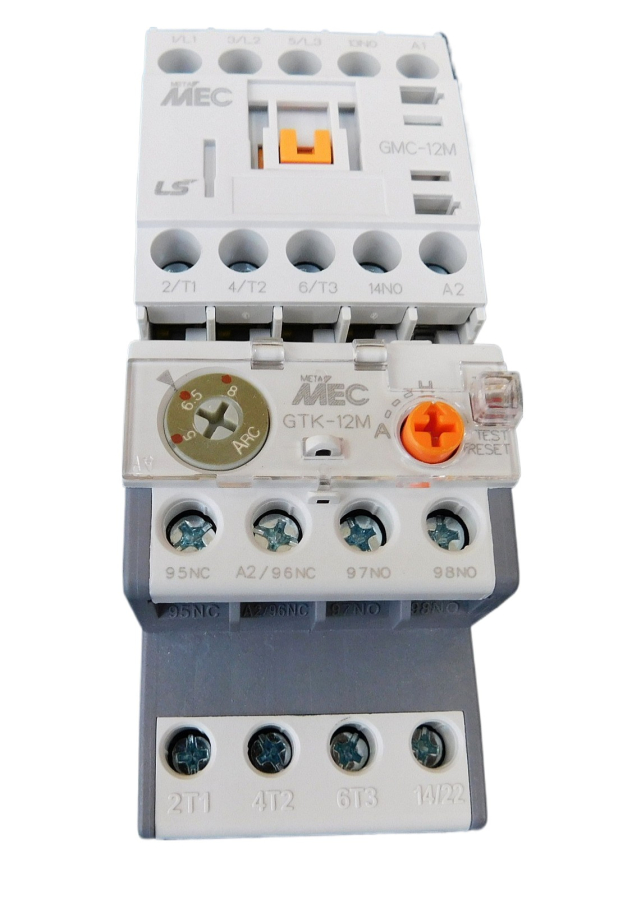

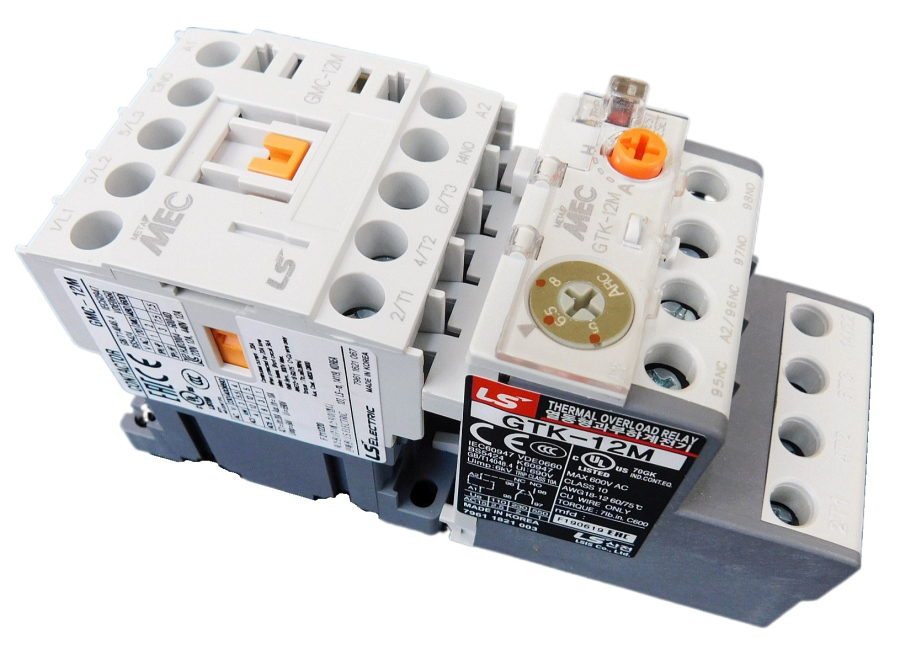

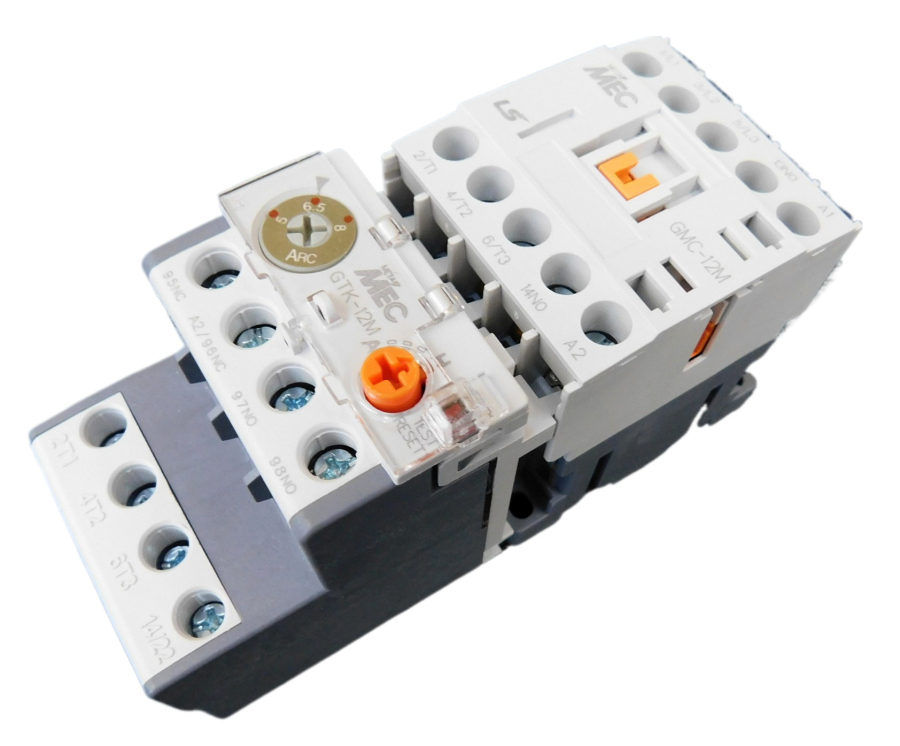

Mini Motor Starter, 9-13 Amp, 120V Coil, 1.5- 2 HP 240V, 1PH

Complete motor starter sized for 1.5 - 2 HP at 240V 1PH, Single Phase. Operating Voltage is 120VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

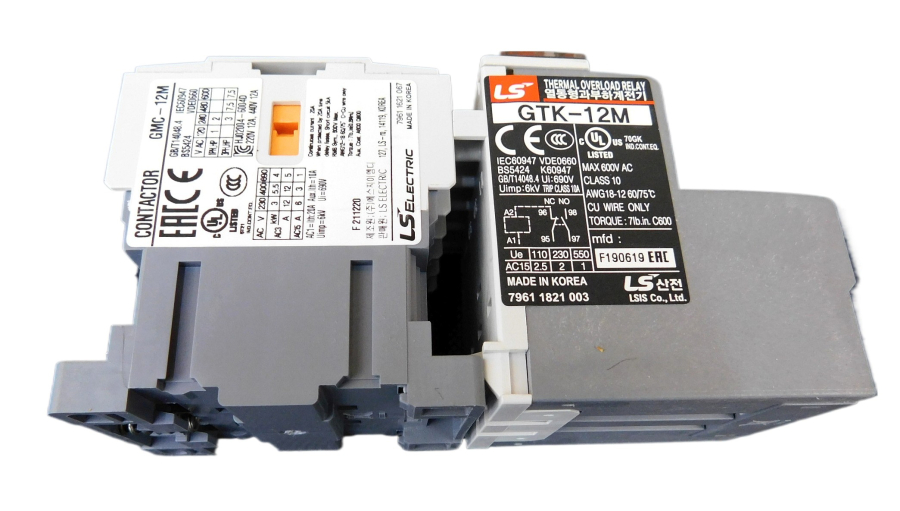

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

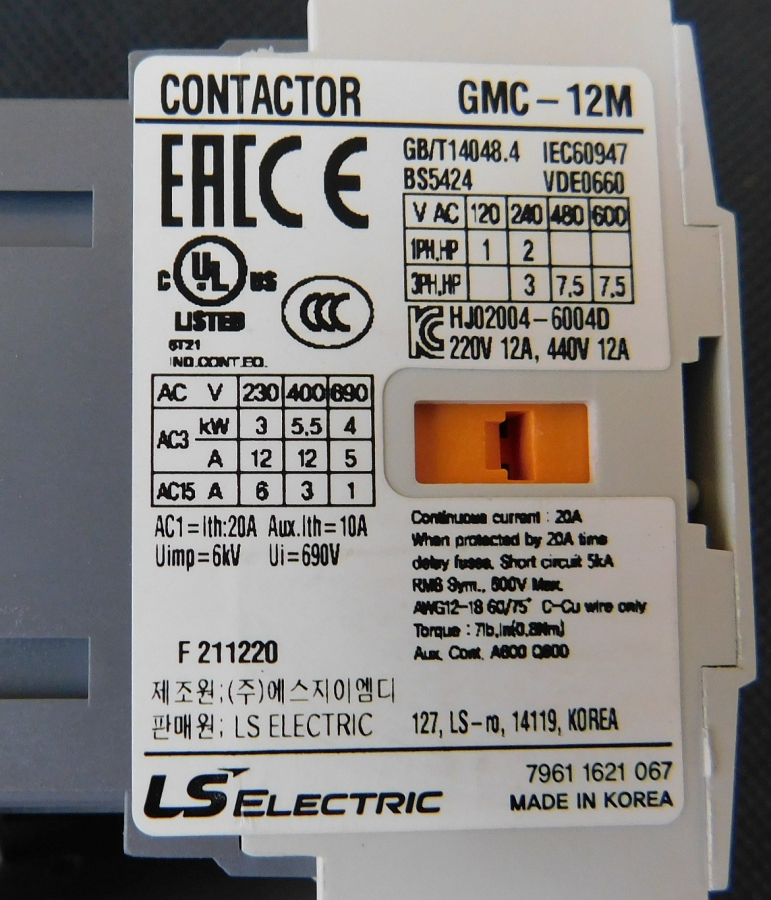

• Contactor - Mini size GMC 12
• Overload - Class 10 differential type, phase failure protection
• Coil - 120V
• Contactor HP rating UL - 2HP @ 240V 1PH-Single Phase
• Overload trip range - 9 - 13 Amps
• Sized for Normal loaded 1.5 - 2 HP at 240V 1PH, Single Phase
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size mini GTK 12
• Screw terminals
• UL Listed
