Motor Starter, 6 - 9 Amp, 120V Coil, 1 HP 240V, 1PH

Complete motor starter sized for 1 HP at 240V, 1PH, Single Phase. Operating Voltage is 120VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

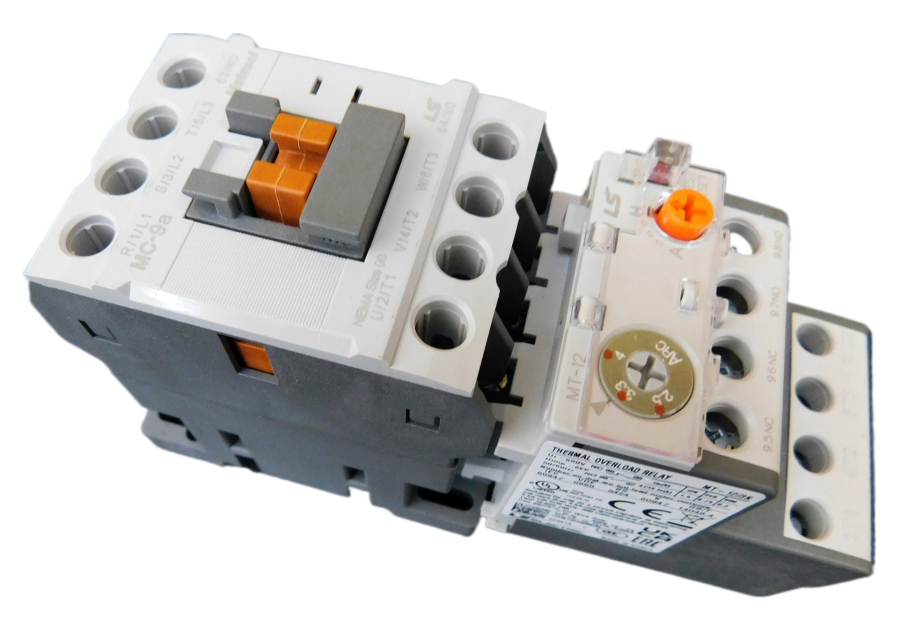

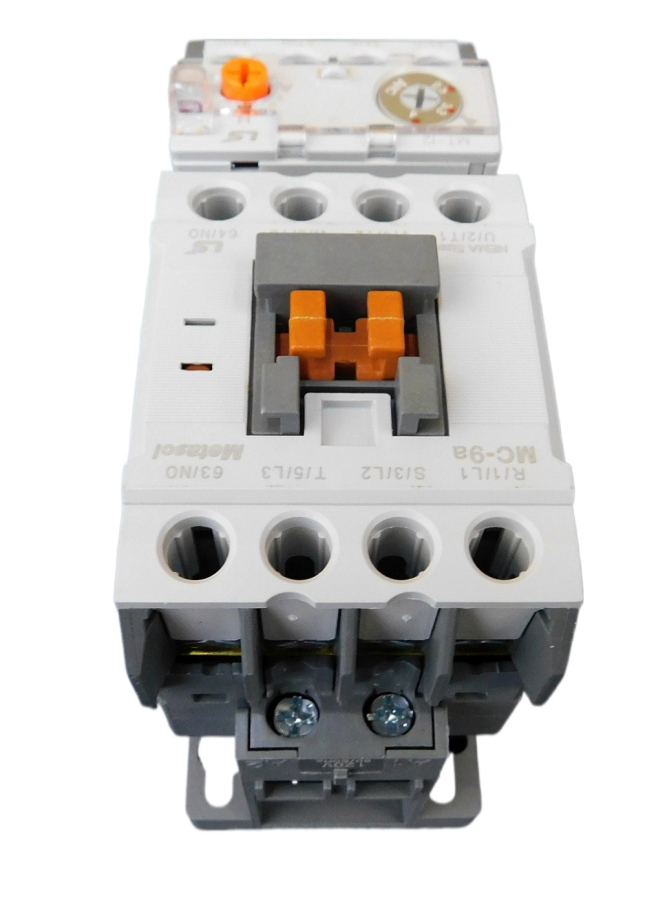

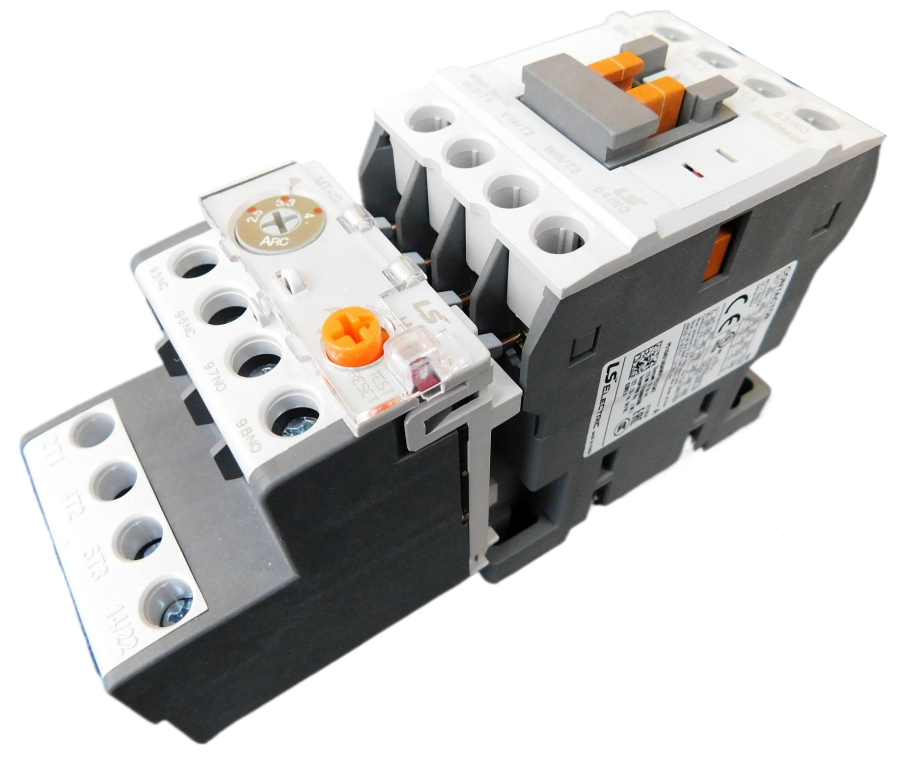

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

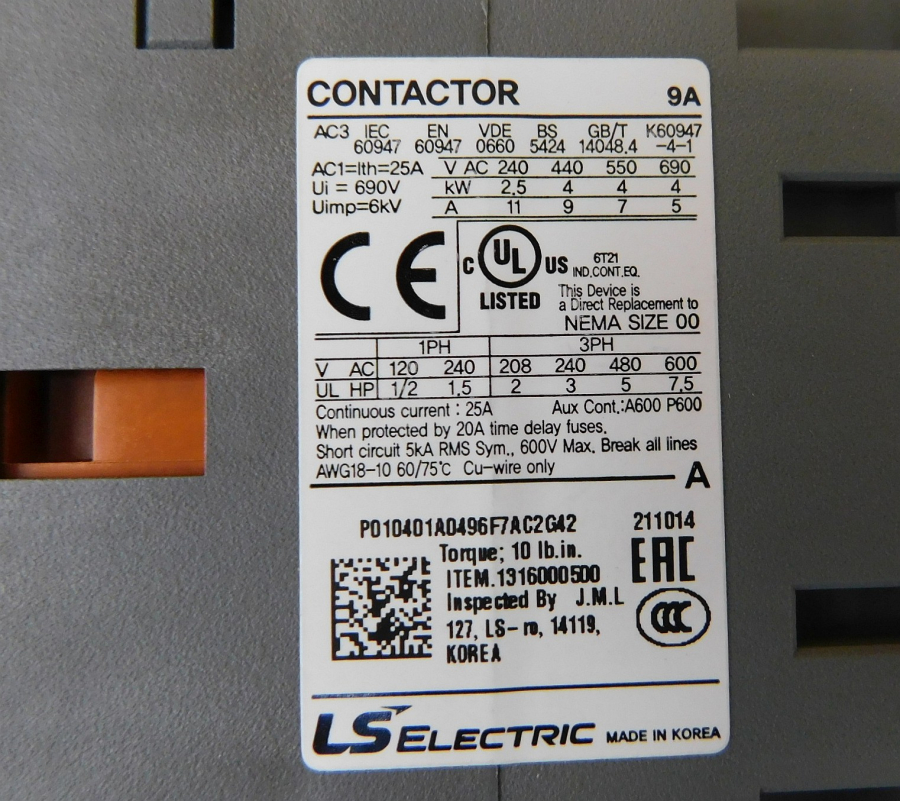

• Contactor - Nema size 00, IEC size 9 (may be subbed with a Nema size 0, IEC size 12)

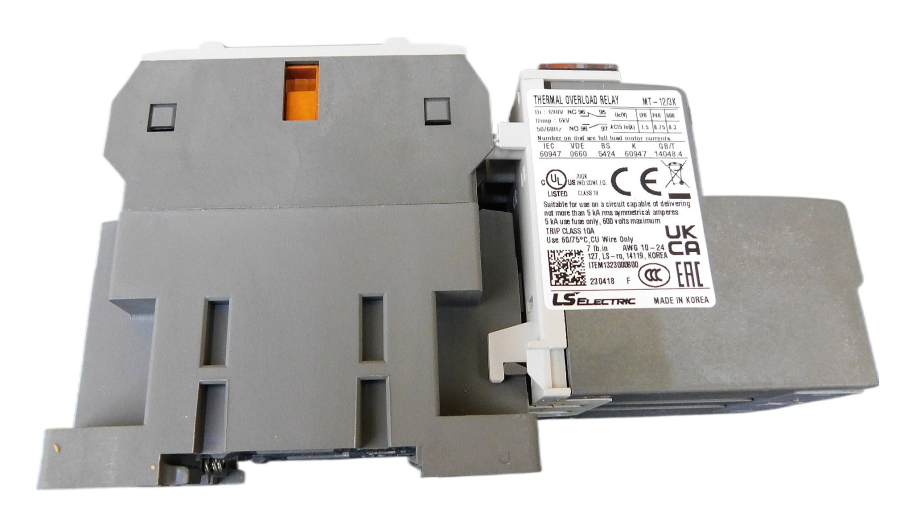

• Overload - Class 10 differential type, phase failure protection
• Coil - 120V
• Contactor HP rating UL - 1.5 HP @ 240V, 1PH, Single Phase
• Overload trip range - 6 - 9 Amps
• Sized for 1 HP at 240V, 1PH, Single Phase
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size 12
