Motor Starter, 12-18 Amp, 120V Coil, 3HP 240V, 1PH, IEC Size 22

Complete motor starter sized for a Normal loaded 3 HP at 240V 1PH, Single Phase. Operating Voltage is 120VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

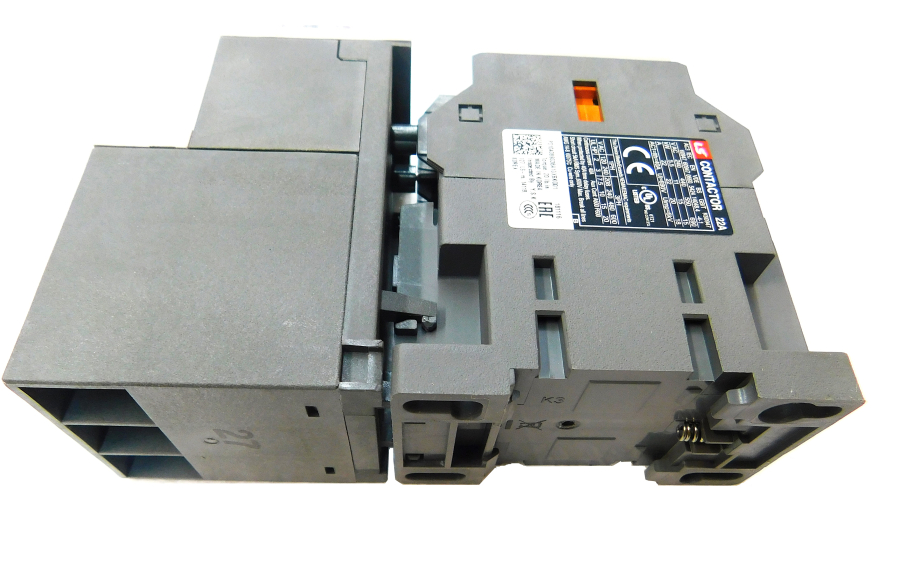

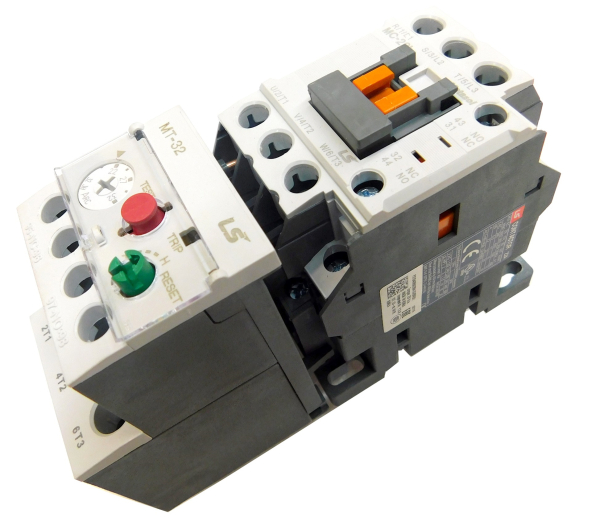

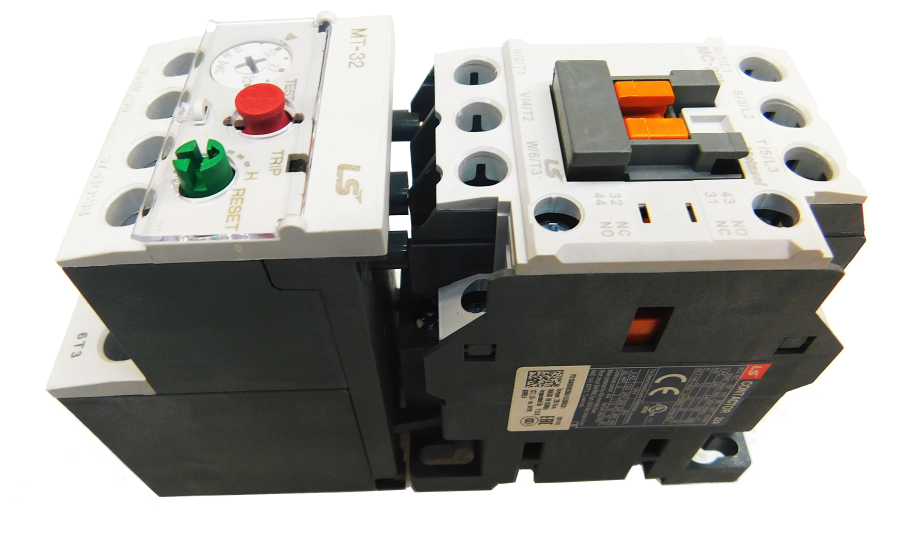

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor IEC size 22

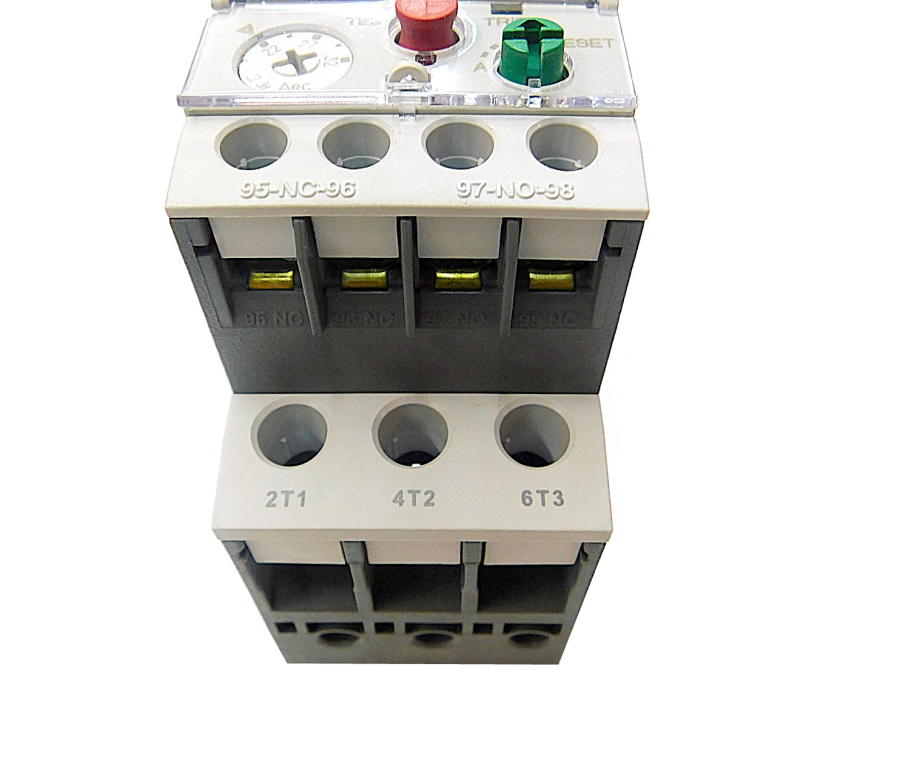

• Overload - Class 10 differential type, phase failure protection
• Coil - 120V

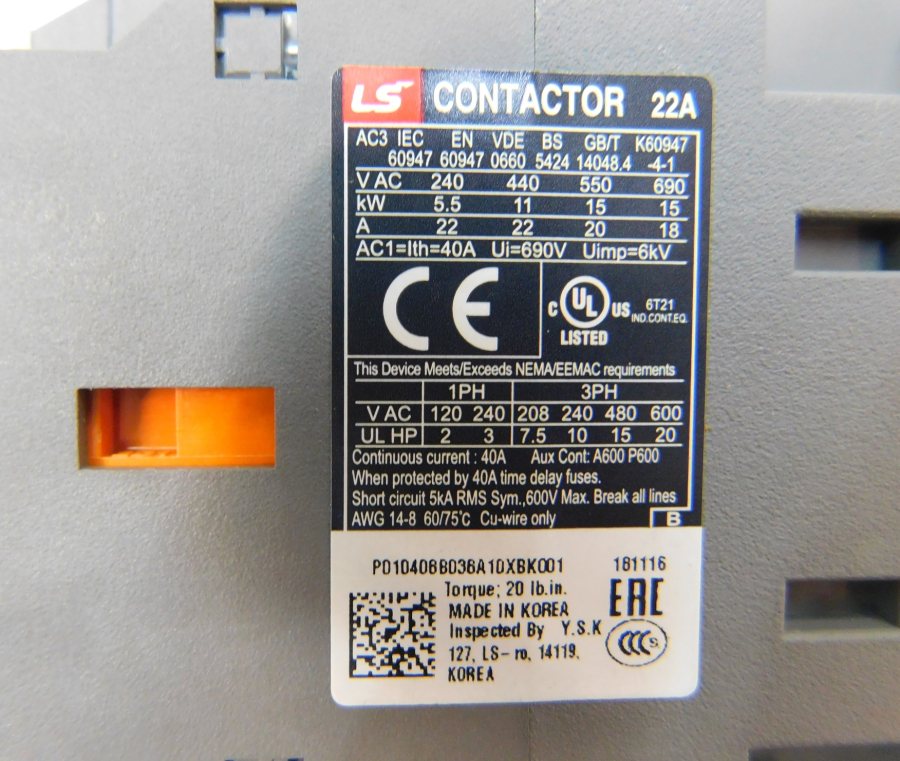

• Contactor HP rating UL - 3 HP @ 240V, 1PH
• Overload trip range - 12 - 18 Amps
• Sized for Normal loaded 3 HP at 240V 1PH, Single Phase
• Includes (1) N/O auxiliary contact built in the contactor
• Overload Frame size 32
