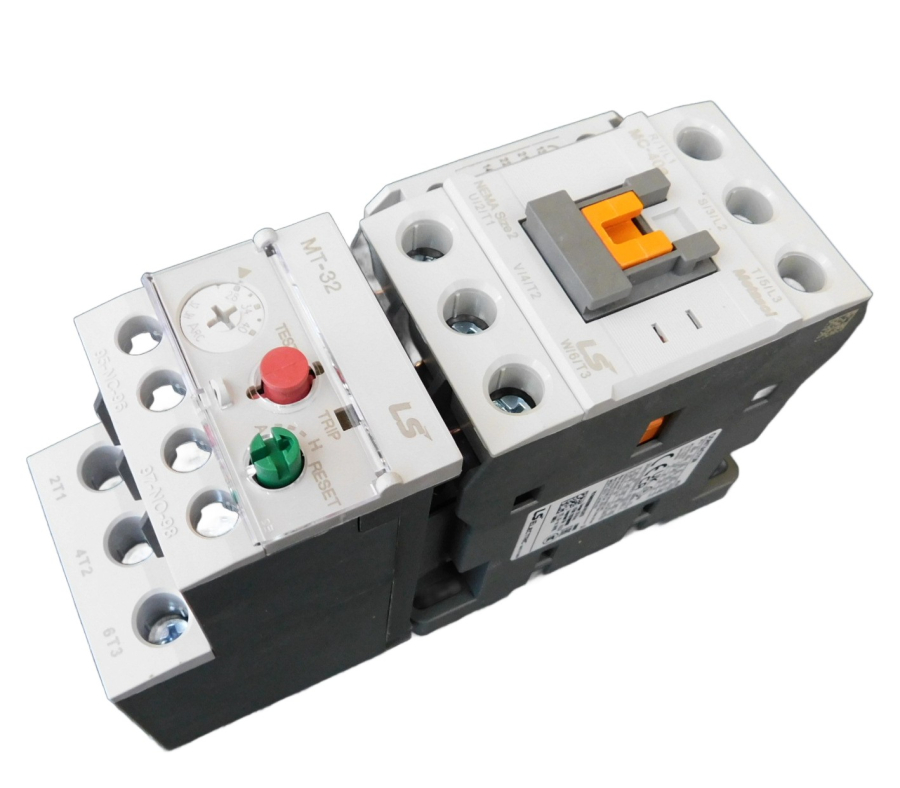

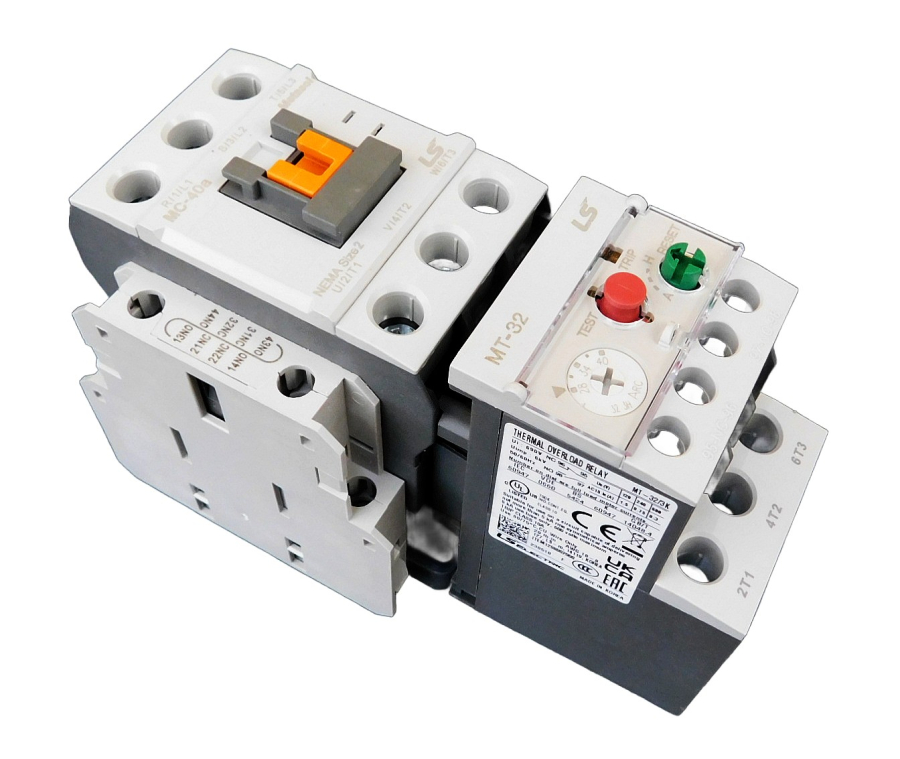

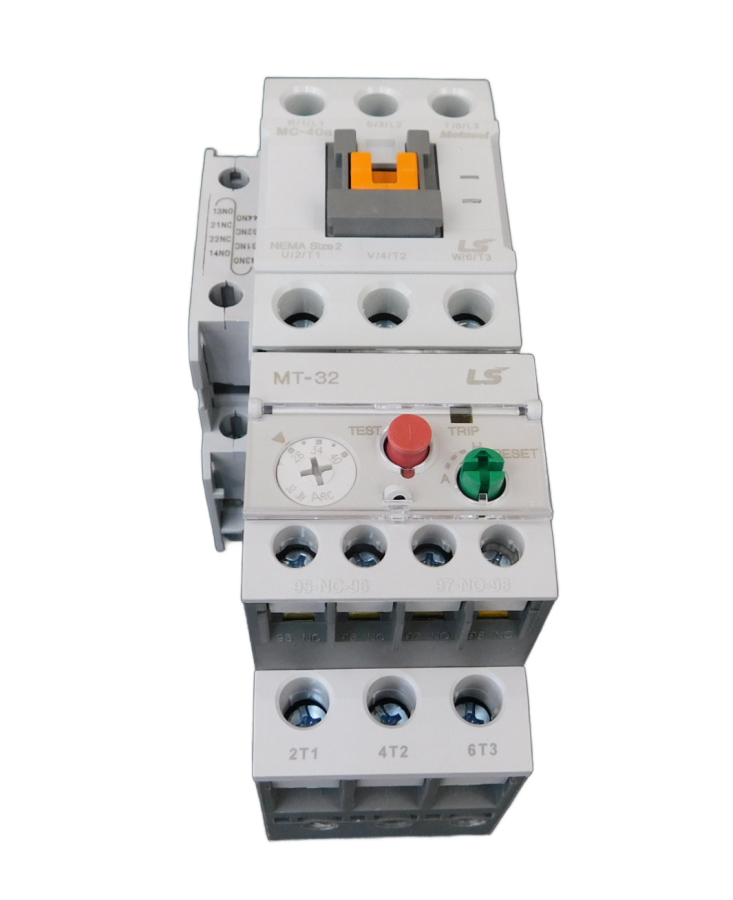

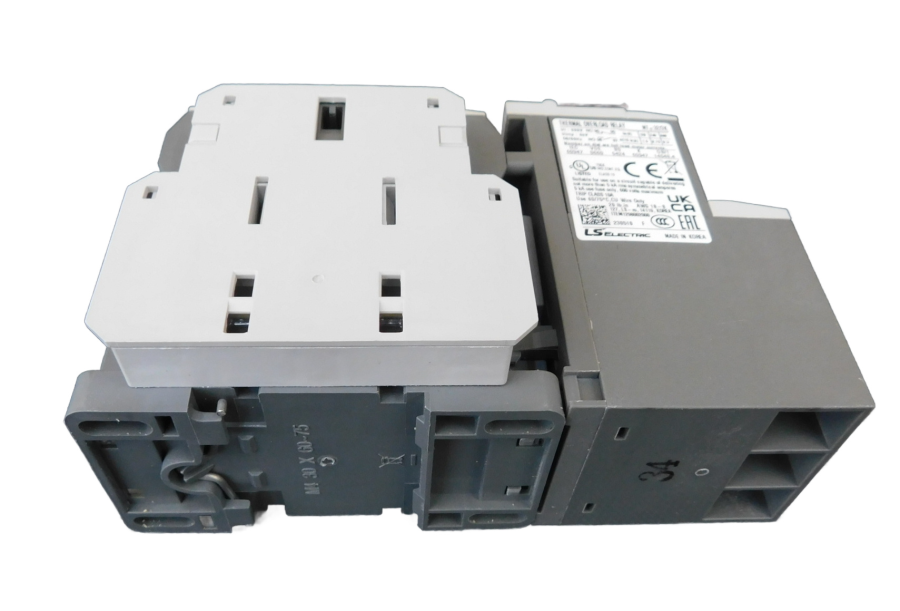

Motor Starter, 28-40 Amp, 120V Coil, 7.5HP 240V, 1PH, Nema Size 2, IEC Size 40

Complete motor starter sized for a Lightly loaded 7.5HP at 240V, 1PH, Single Phase. Operating Voltage is 120VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor Nema Size 2, IEC size 40
• Overload - Class 10 differential type, phase failure protection
• Coil - 120V
• Contactor HP rating UL - 7.5 HP @ 240V, 1PH
• Overload trip range - 28-40 Amps
• Sized for Lightly loaded 7.5HP at 240V, 1PH, Single Phase
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 32
