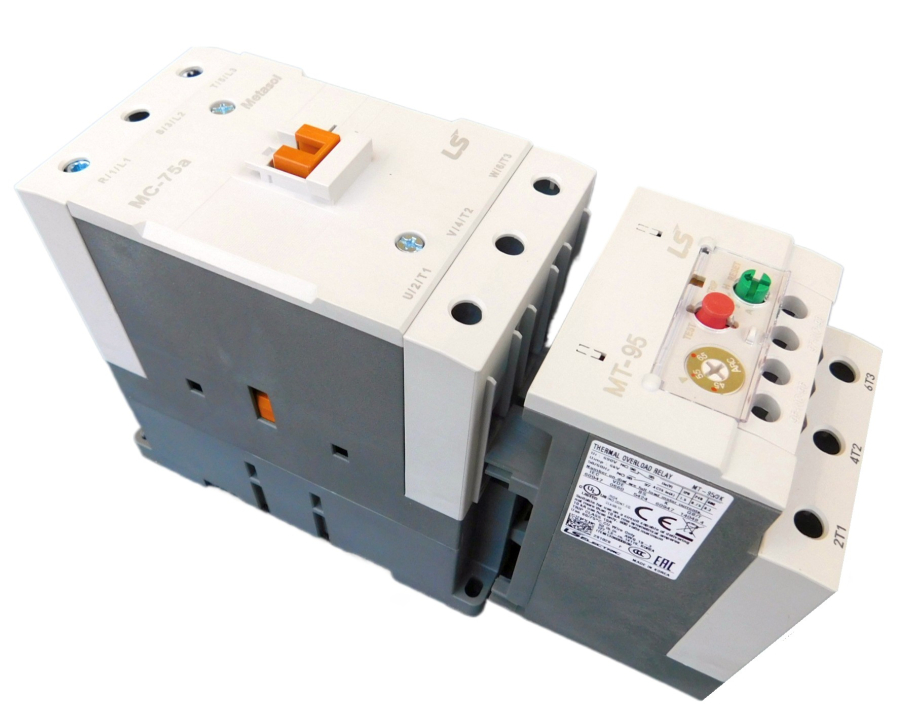

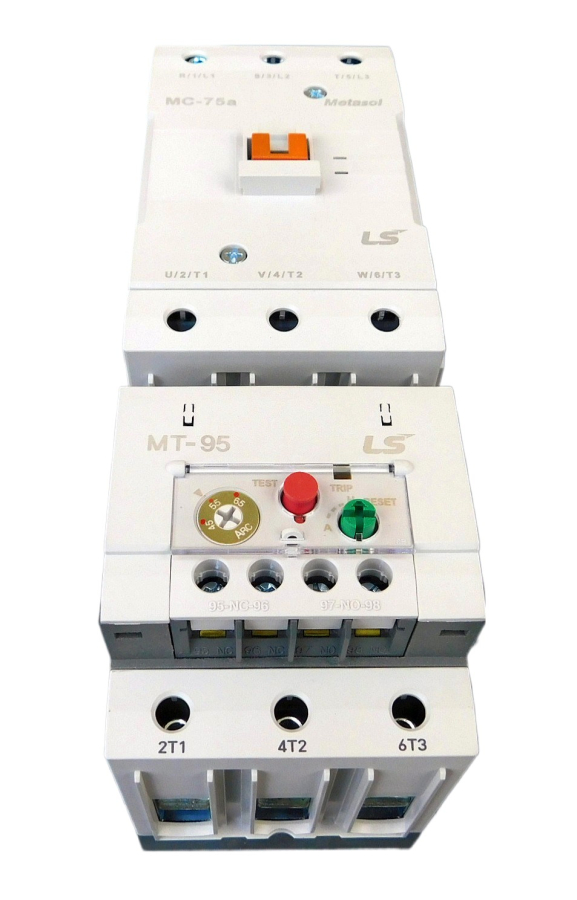

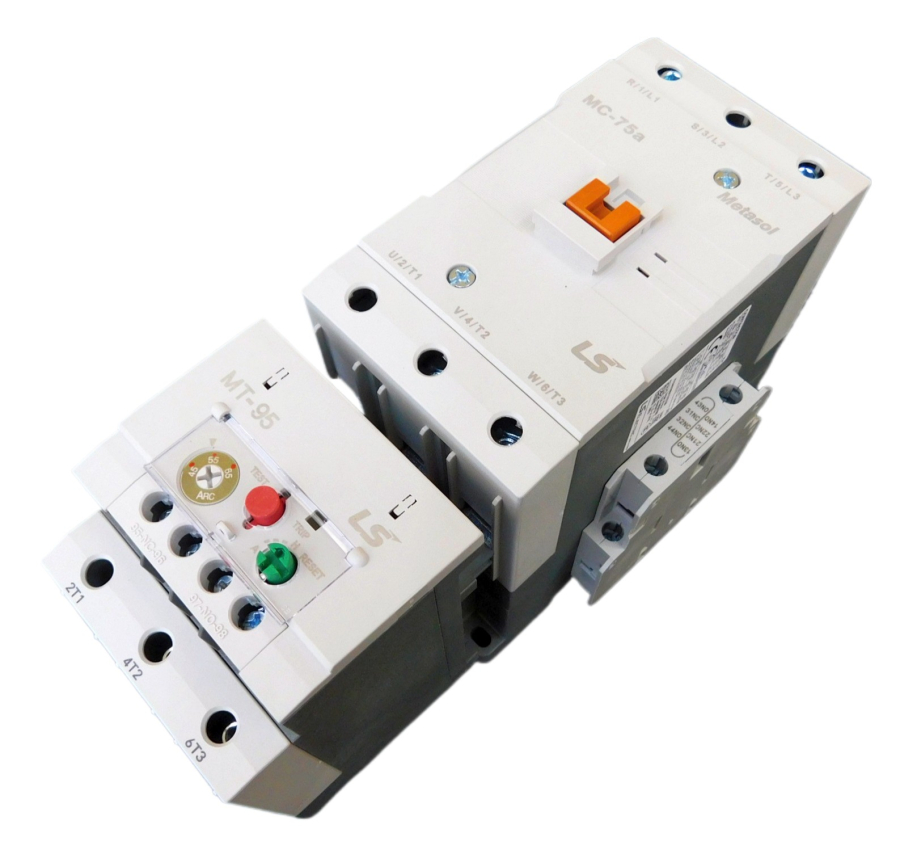

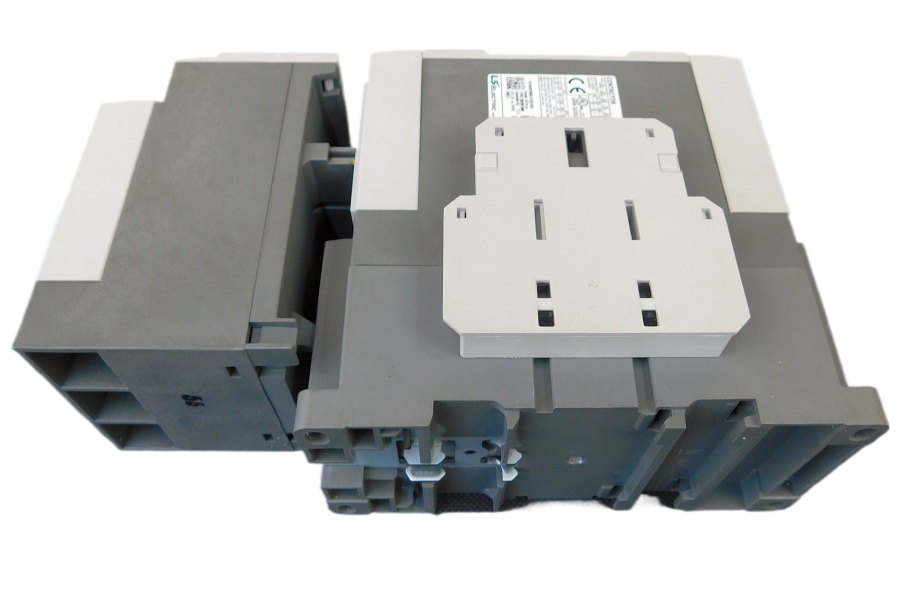

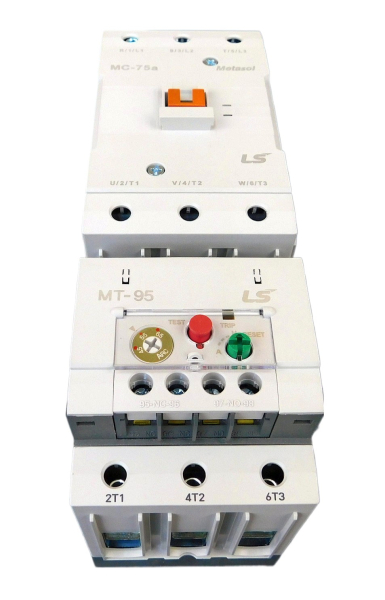

Motor Starter, 45-65 Amp, 120V Coil, 10HP 240V, 1PH, IEC Size 75
Stock:
In Stock
Complete motor starter sized for Heavy loaded 10HP at 240V, 1PH, Single Phase. Operating Voltage is 120VAC

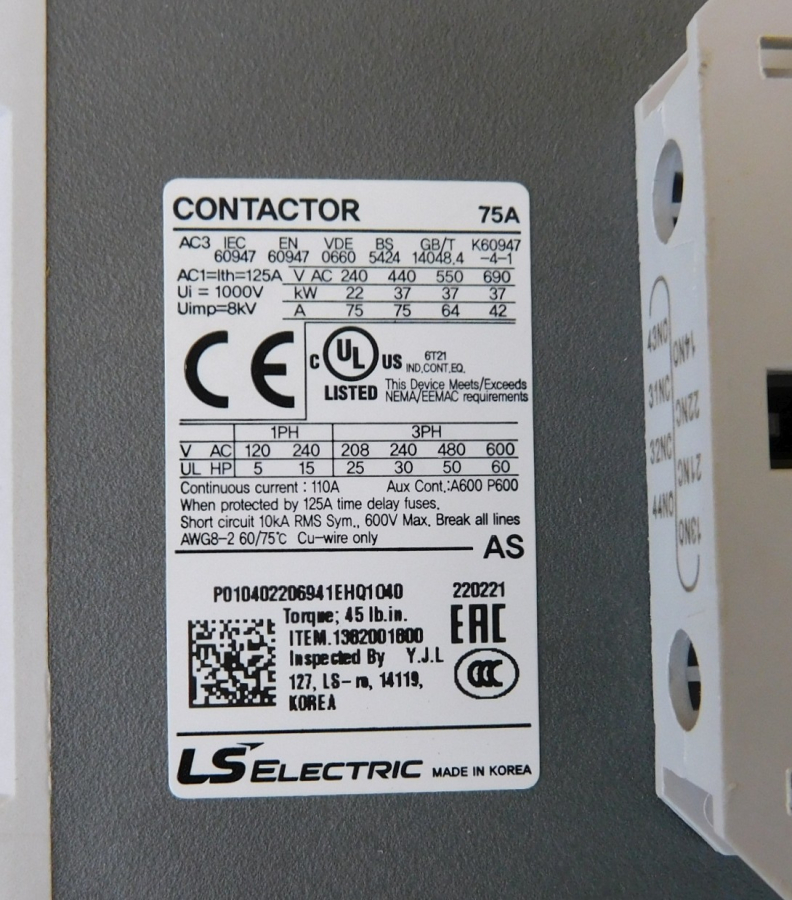

Contactor, IEC Size 75. Overload Frame size 95. Heavy Duty set up.
Complete motor starter sized for a Heavy loaded 10HP at 240V, 1PH, Single Phase. Operating Voltage is 120VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea
- Contactor IEC size 75
- Overload - Class 10 differential type, phase failure protection
- Coil - 120V
- Contactor HP rating UL - 15 HP @ 240V, 1PH
- Overload trip range - 45-65 Amps
- Sized for Heavy loaded 10HP at 240V, 1PH, Single Phase
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 95
