Motor Starter, 54-75 Amp, 120V Coil, 15HP 240V, 1PH, IEC Size 75

Complete motor starter sized for a Normal loaded 15HP at 240V, 1PH, Single Phase. Operating Voltage is 120VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

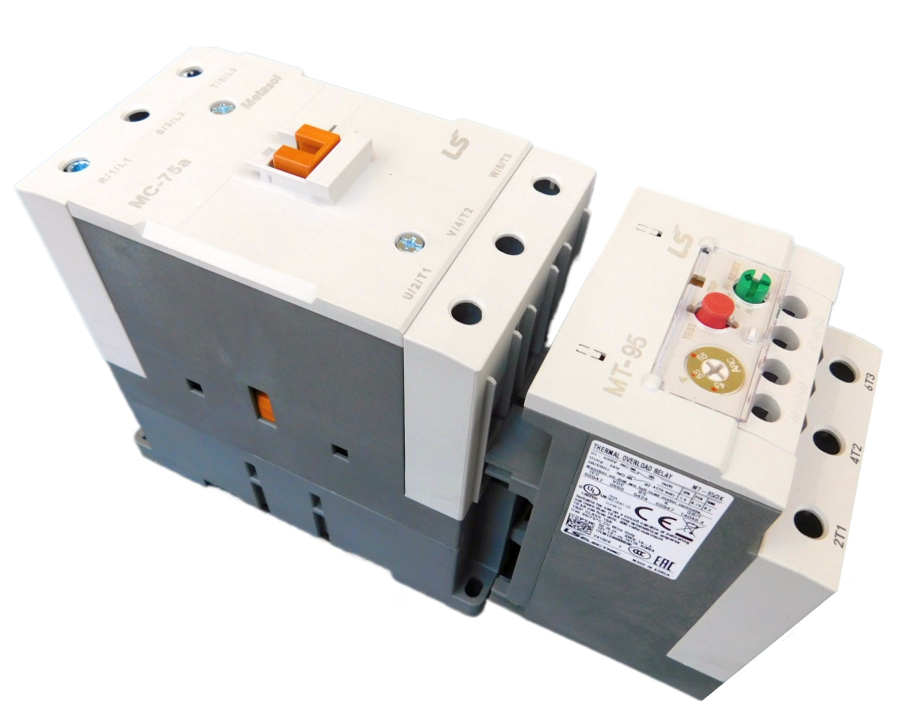

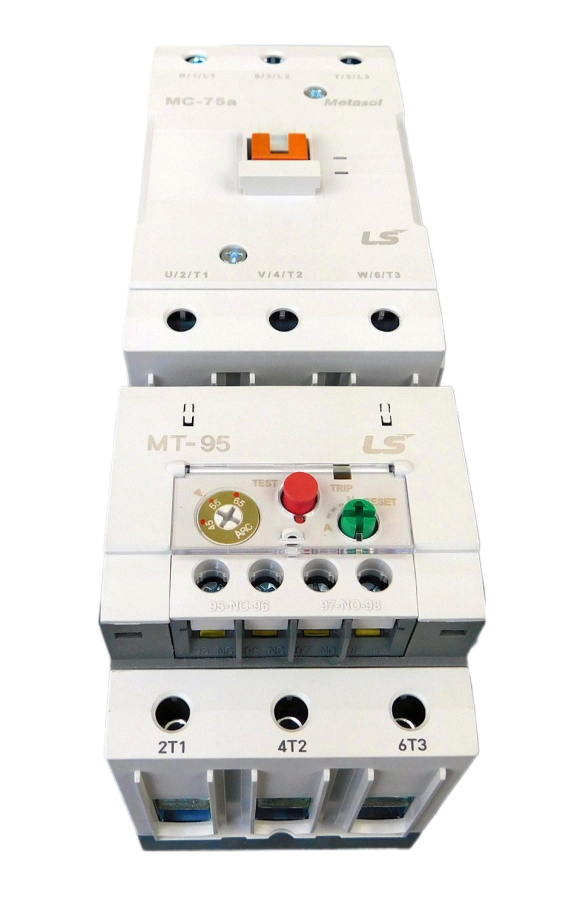

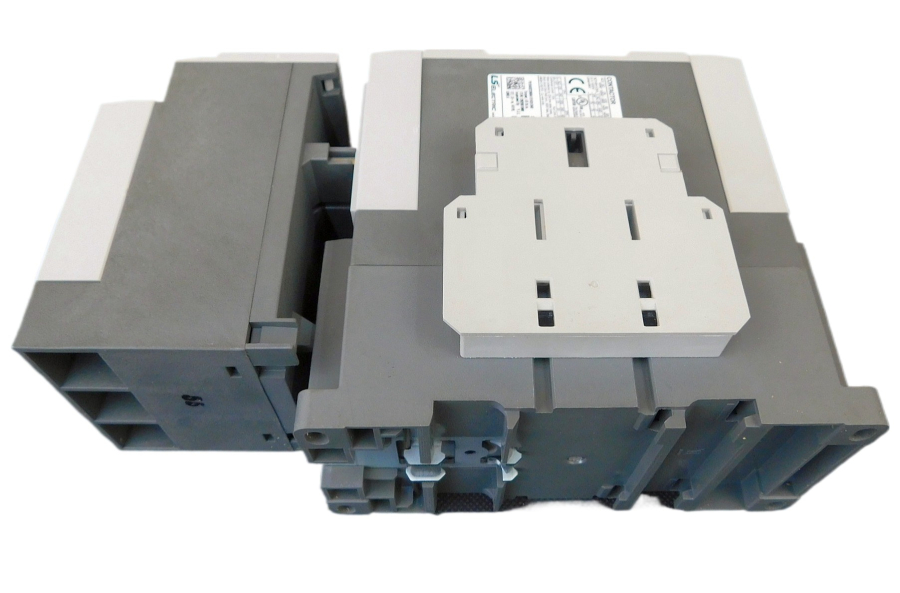

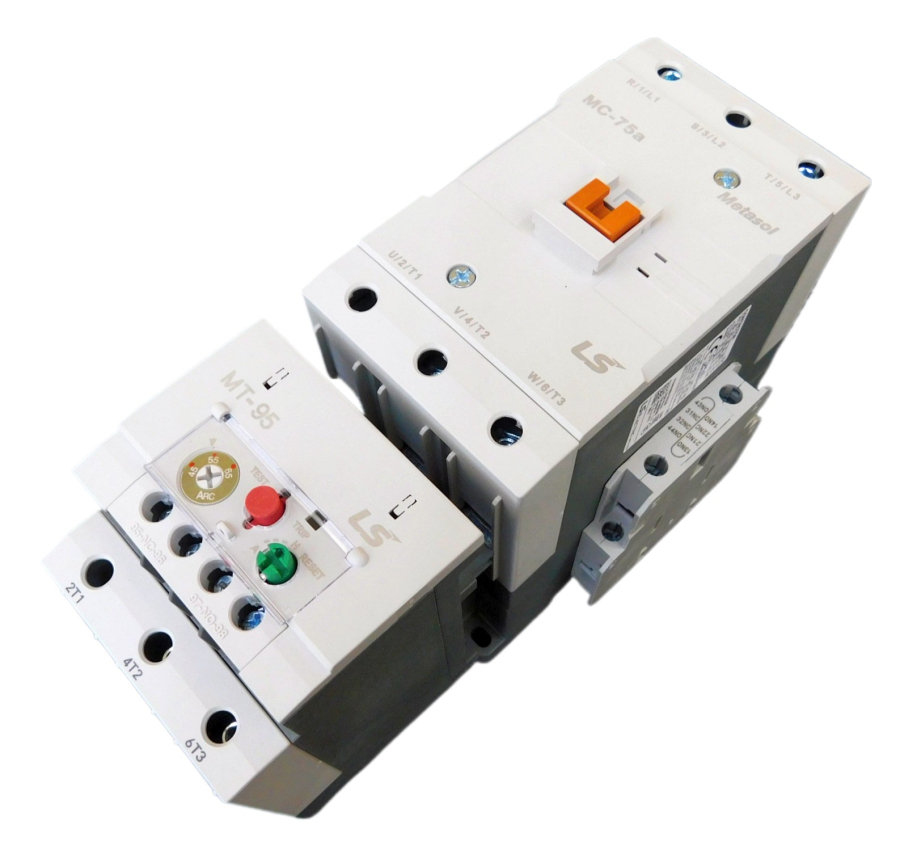

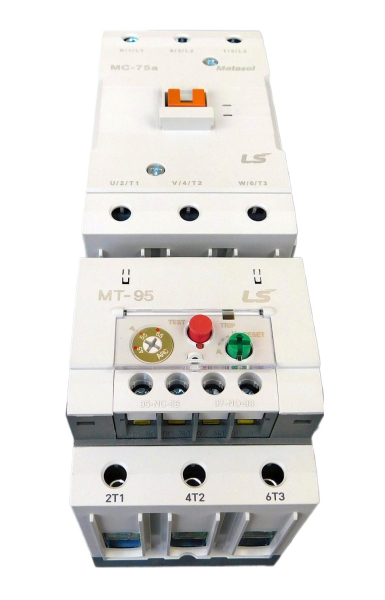

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

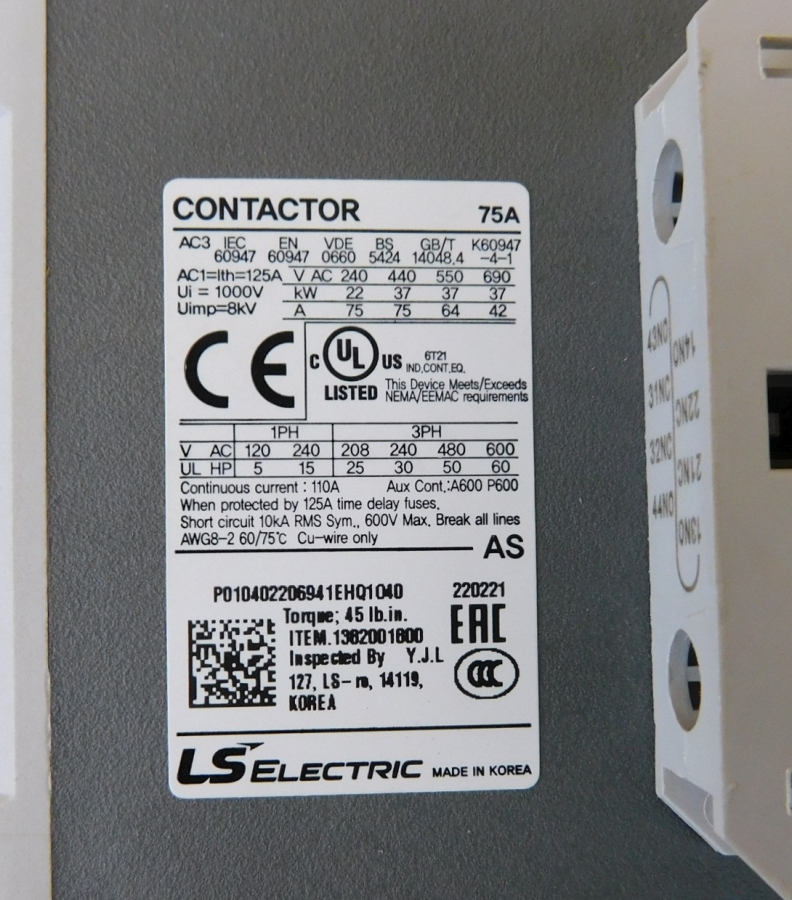

• Contactor IEC size 75
• Overload - Class 10 differential type, phase failure protection
• Coil - 120V
• Contactor HP rating UL - 15 HP @ 240V, 1PH
• Overload trip range - 54-75 Amps
• Sized for Normal loaded 15HP at 240V, 1PH, Single Phase
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 95
