Mini Motor Starter, 1.6-2.5 Amp, 240V Coil, 1/2 HP 208-240V, 3PH

Complete motor starter sized for 1/2 HP at 208-240V 3PH. Operating Voltage is 208-240VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

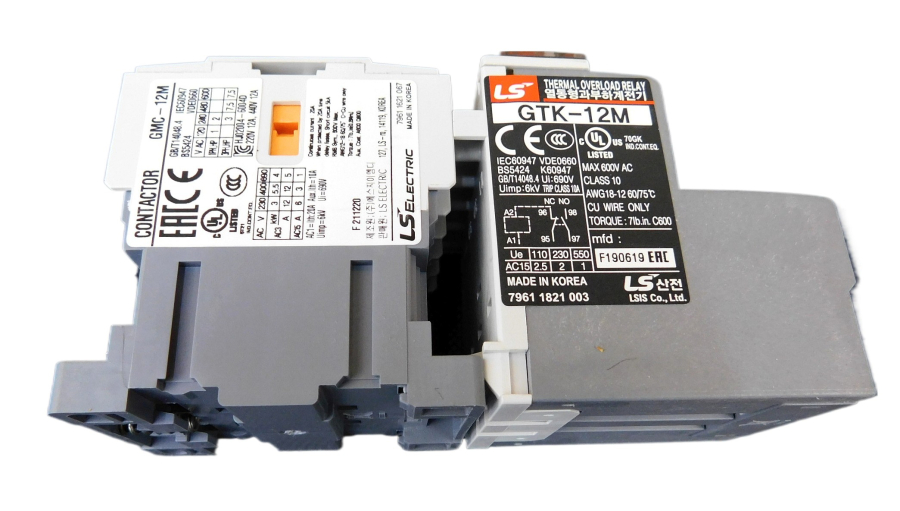

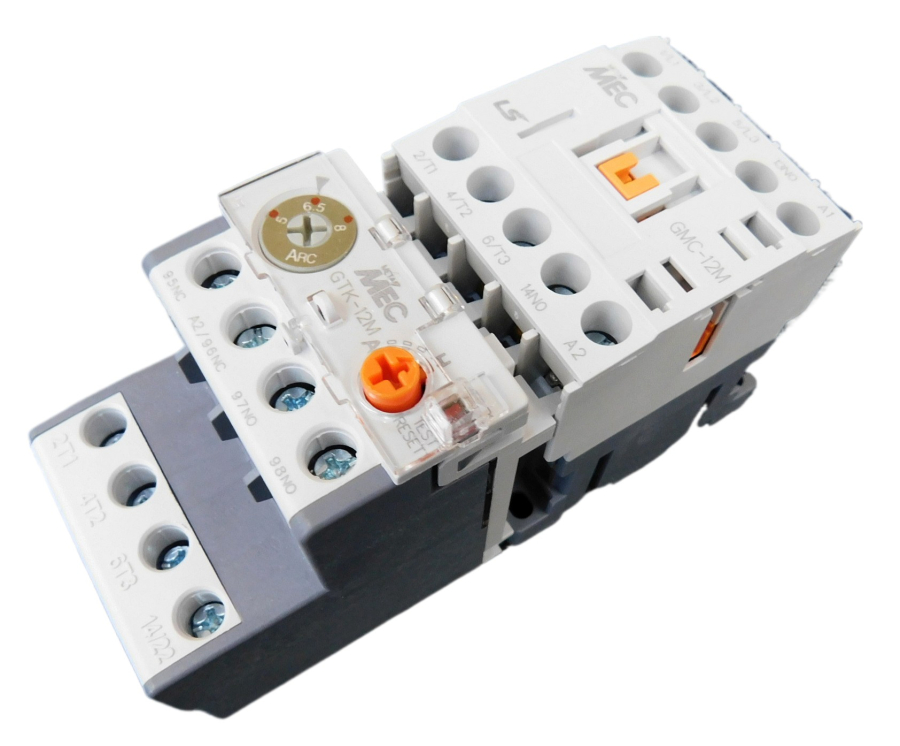

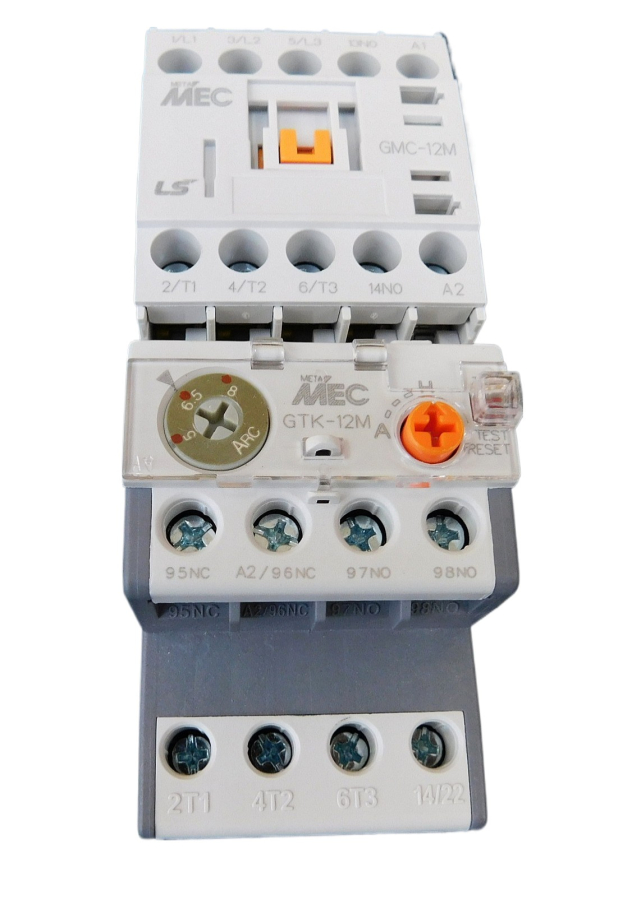

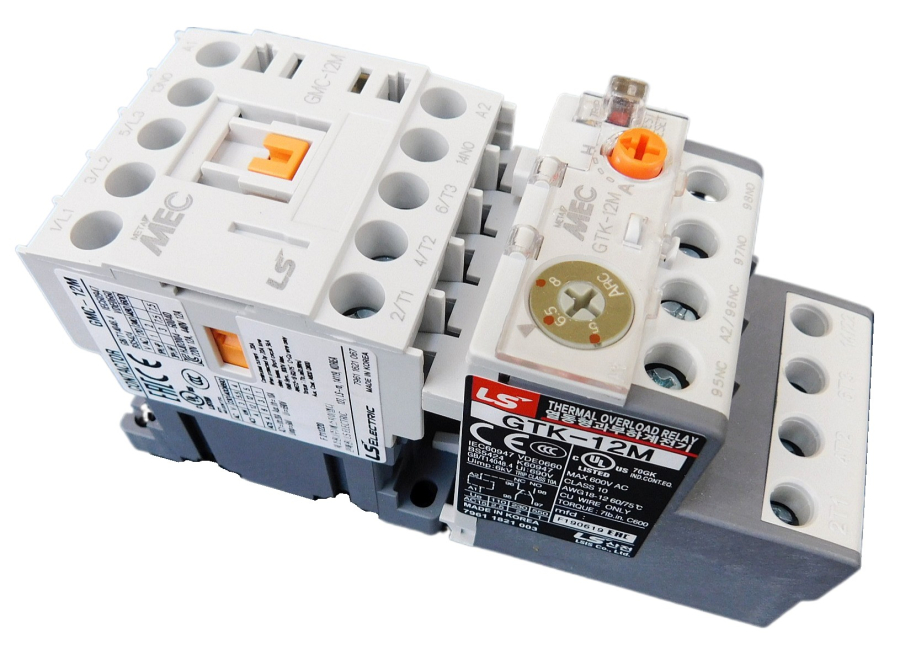

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

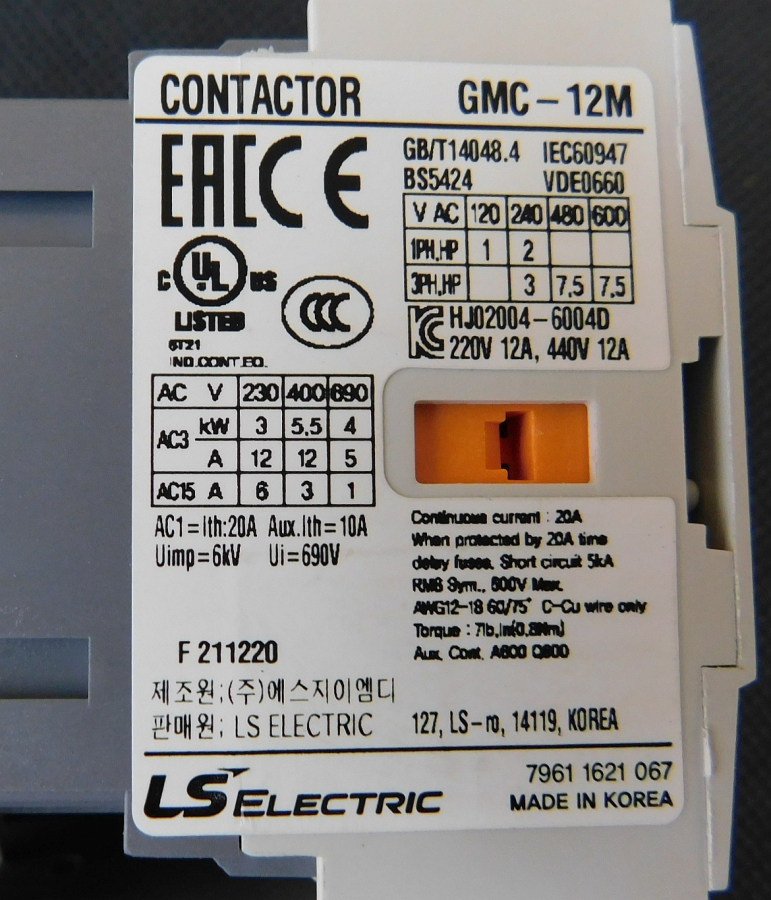

• Contactor - Mini size GMC 12
• Overload - Class 10 differential type, phase failure protection
• Coil - 240V
• Contactor HP rating UL - 3HP @ 240V 3PH
• Overload trip range - 1.6 - 2.5 Amps
• Sized for Normal loaded 1/2 HP motor @ 208-240V 3PH
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size mini GTK 12
• Screw terminals
• UL Listed
