Motor Starter, 12-18 Amp, 230V Coil, 5HP 208-230V, 3PH, IEC Size 22

Complete motor starter sized for a Normal loaded 5 HP at 208-230V, 3PH. Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

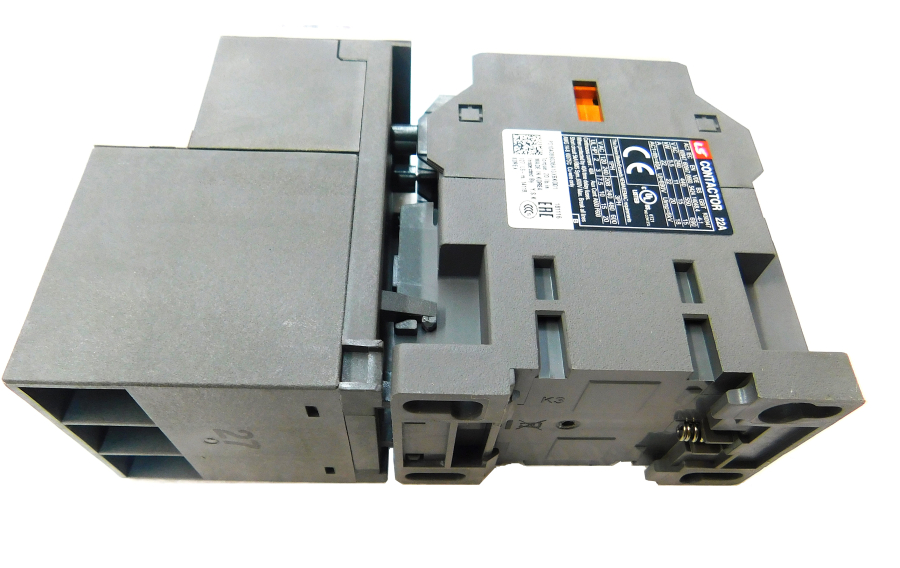

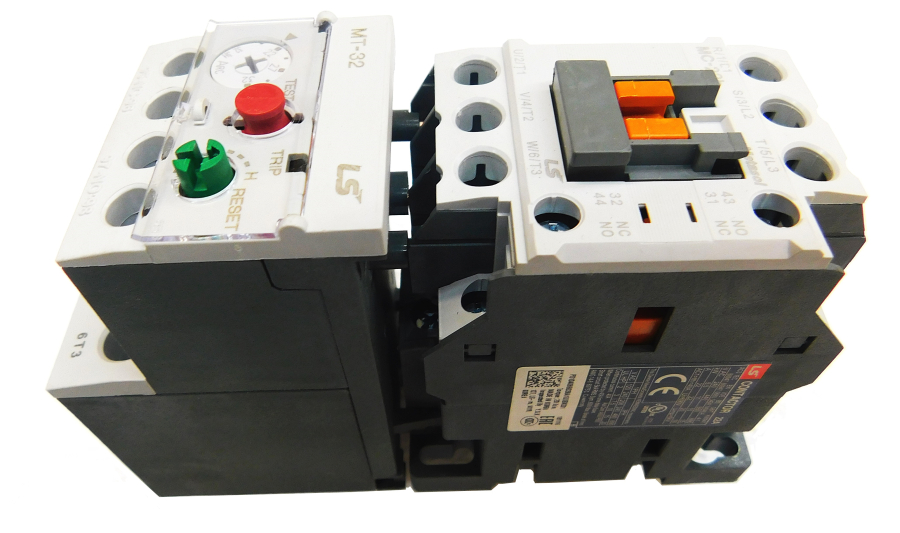

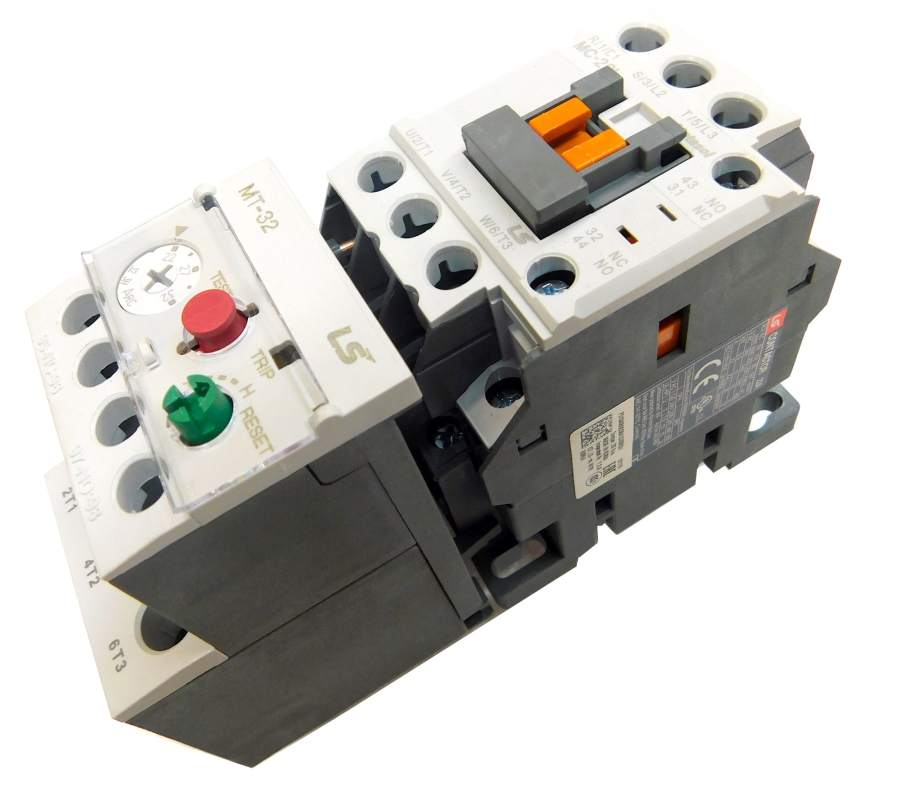

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor IEC size 22

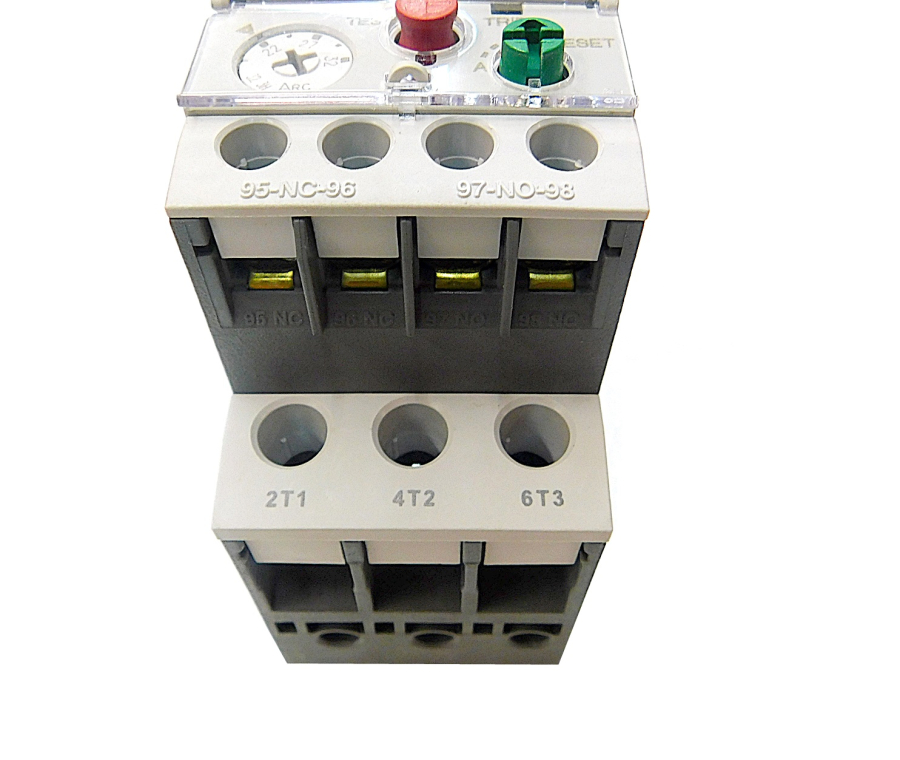

• Overload - Class 10 differential type, phase failure protection
• Coil - 230V

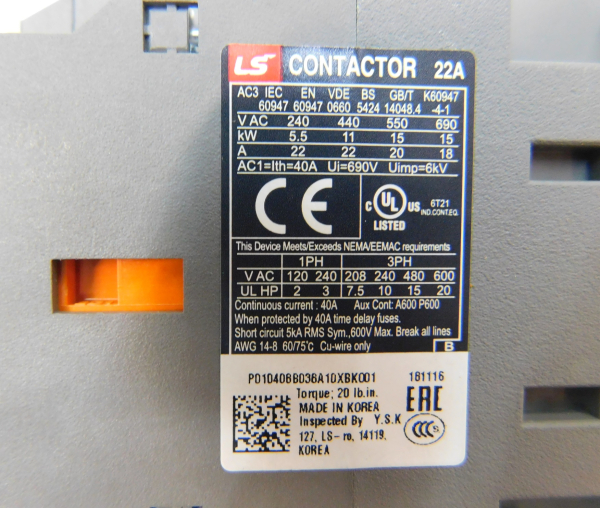

• Contactor HP rating UL - 5HP @ 208V, 7.5HP @ 230V, 3PH
• Overload trip range - 12 - 18 Amps
• Sized for Normal loaded 5HP @ 208-230V, 3PH
• Includes (1) N/O auxiliary contact built in the contactor
• Overload Frame size 32
