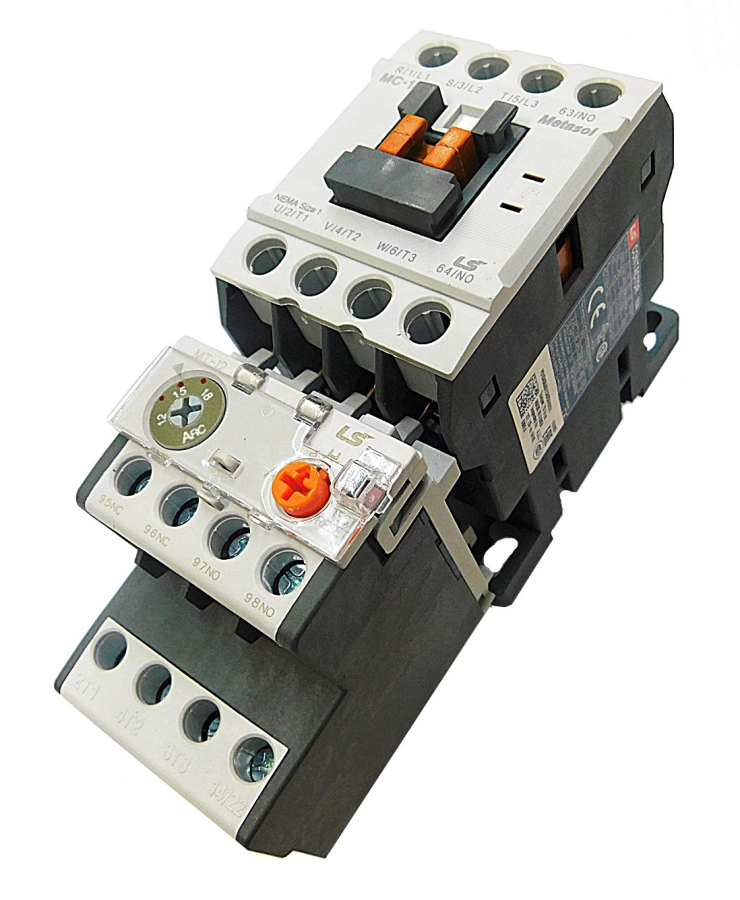

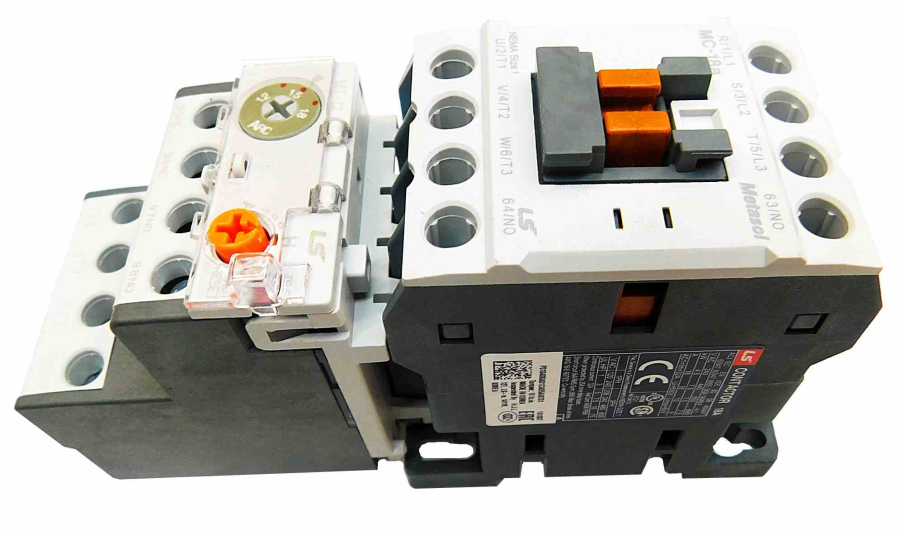

Motor Starter, 12-18 Amp, 230V Coil, 5HP 208V, 230V, 3PH, Nema Size 1
Stock:
In Stock
Complete motor starter sized for Normal loaded 5HP 208V, 230V, 3PH. Operating Voltage is 208-240V.
Contactor is Nema Size 1. Elimia PN: 12-18-230-18
Complete motor starter sized for a Normal loaded 5HP 208V, 230V, 3PH. Operating Voltage is 208-240V.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea
- Contactor - Nema size 1, IEC size 18

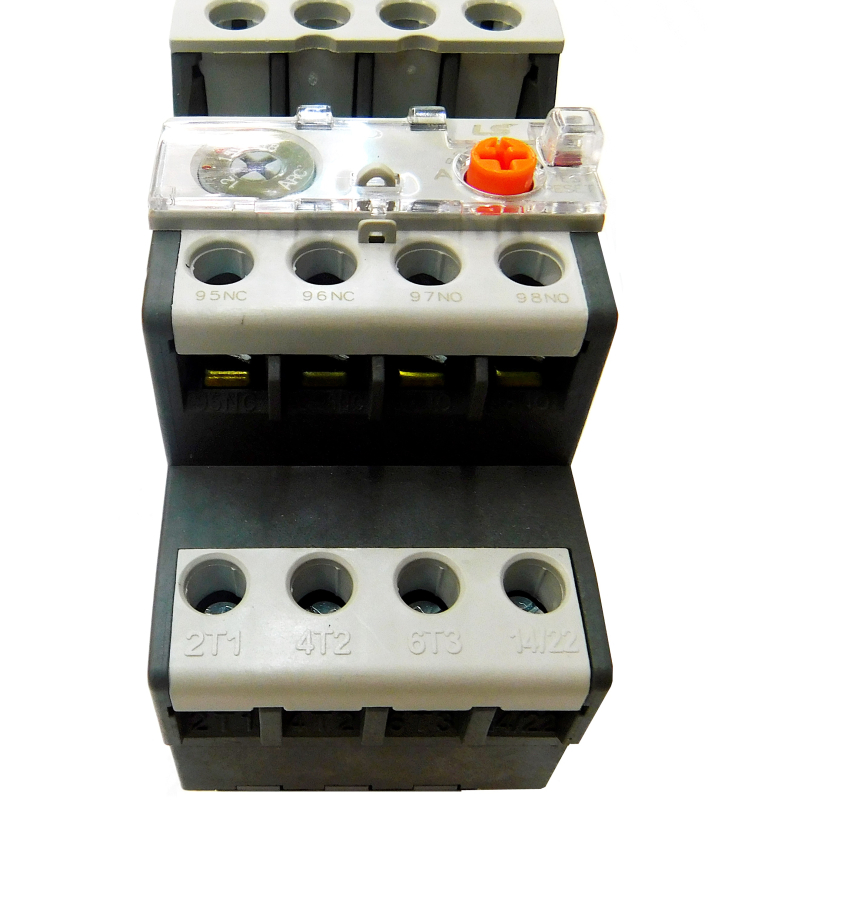

- Overload - Class 10 differential type, phase failure protection

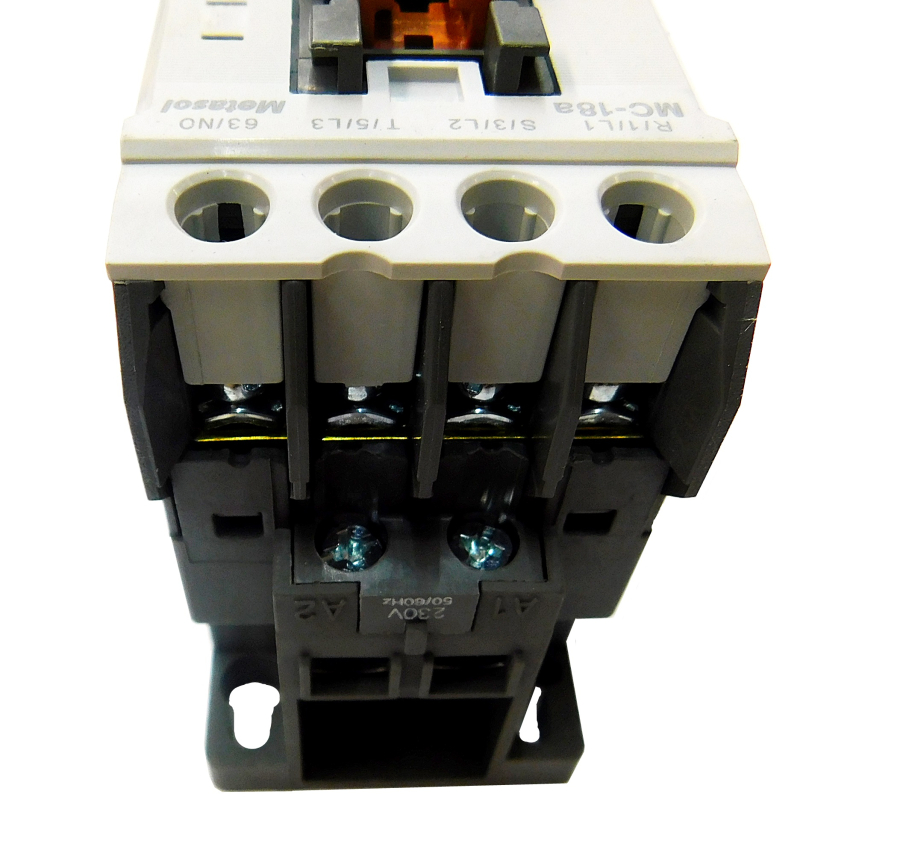

- Coil - 230V

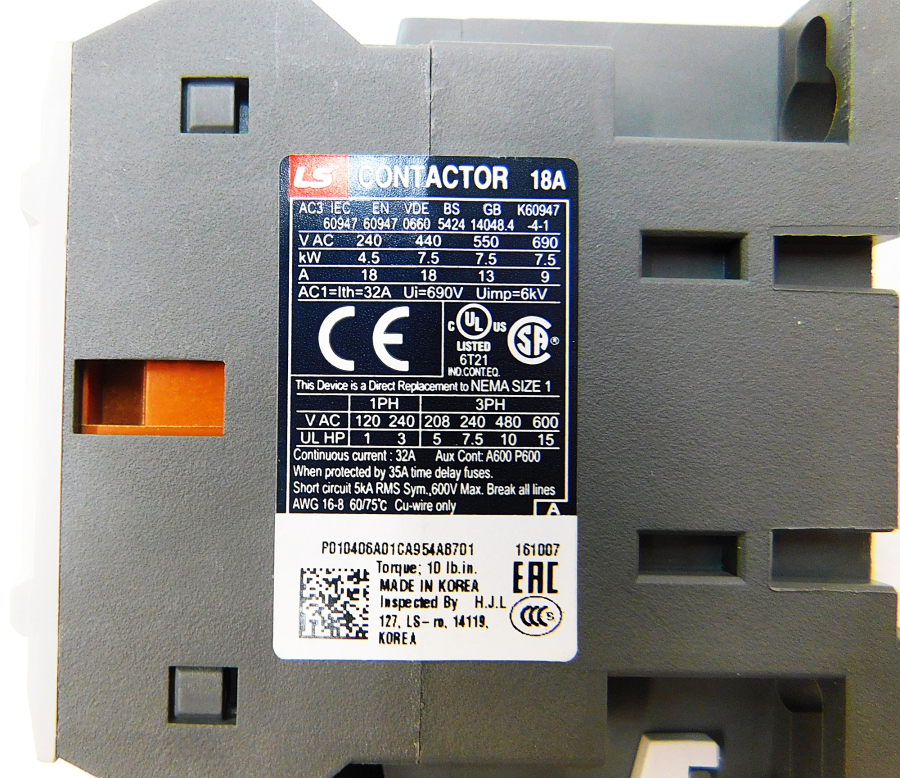

- Contactor HP rating UL - 5HP @ 208V, 7.5HP @ 230V, 3PH
- Overload trip range - 12 - 18 Amps
- Sized for Normal loaded 5 HP motor @ 208V-230V, 3PH
- Includes (1) N/O auxiliary contact built in the contactor
- Overload size 12
