Motor Starter, 120-185 Amp, 230V Coil, 50 - 60HP 208V, 230V, 3PH, IEC Size 225

Complete motor starter sized for a Heavy loaded 50HP at 230V, Normal loaded 50HP at 208V, or Normal loaded 60HP at 230V 3PH. Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

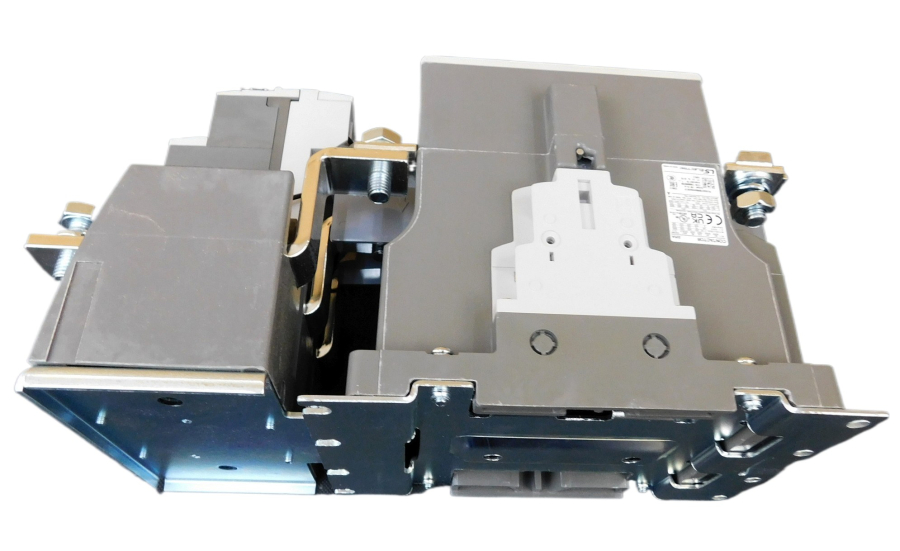

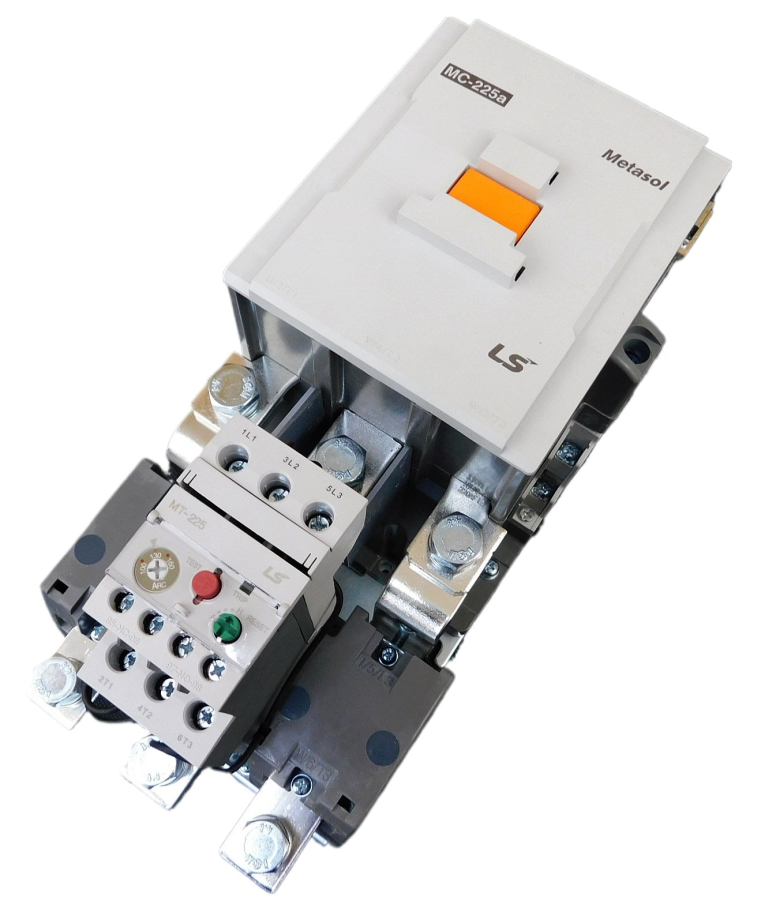

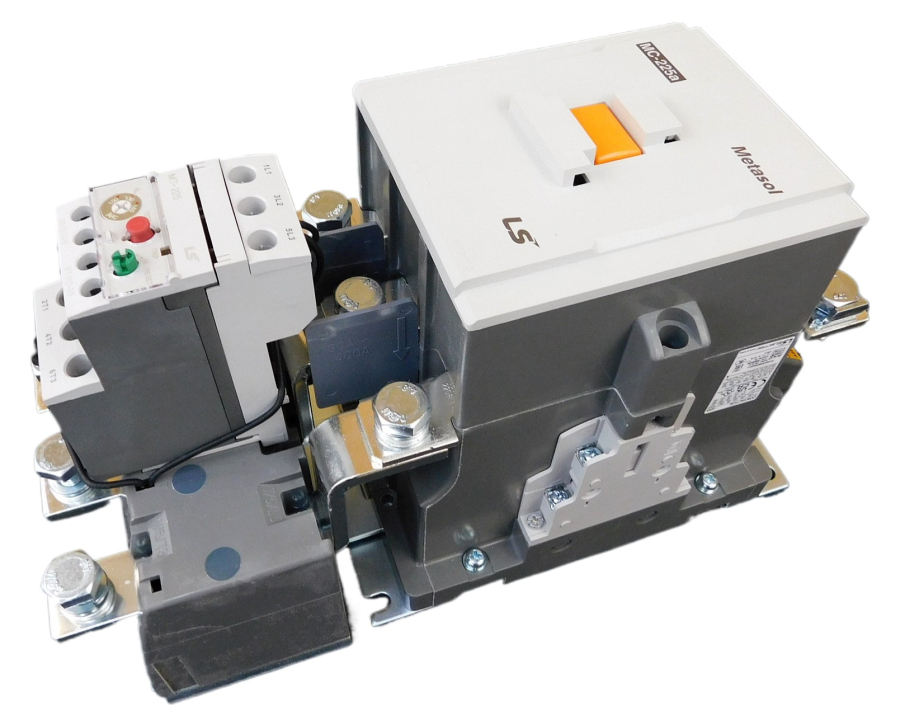

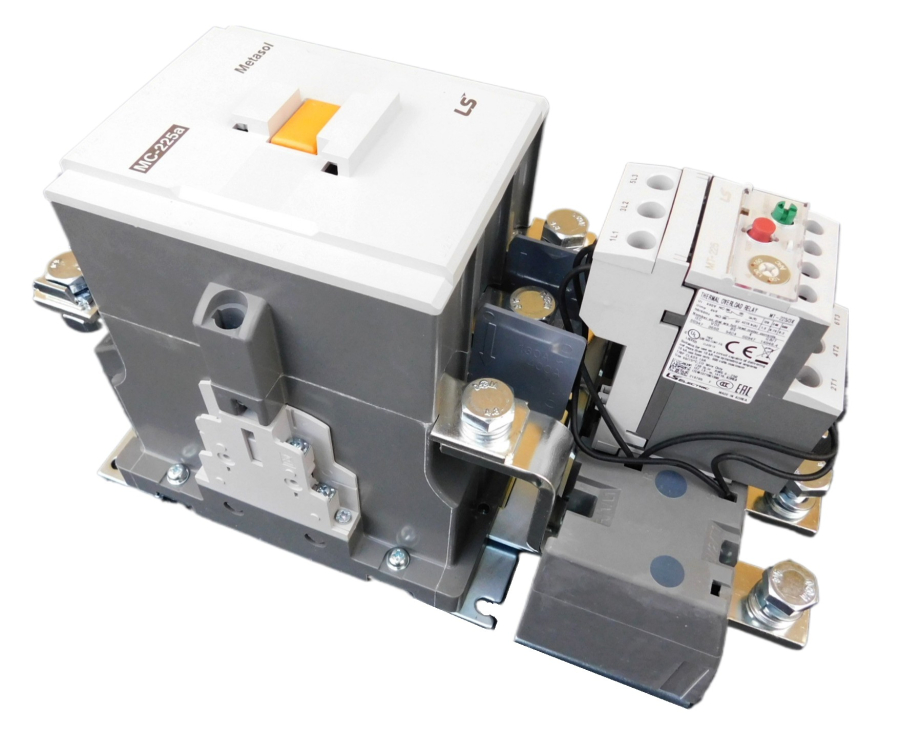

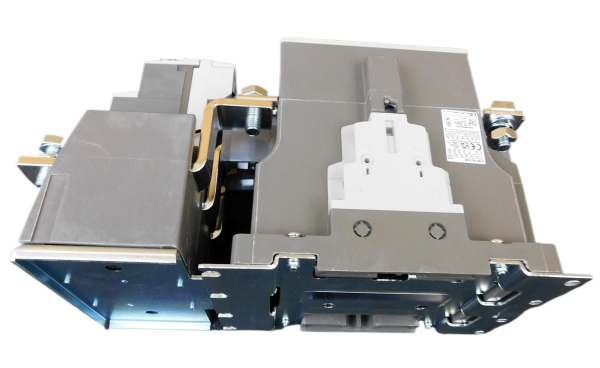

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

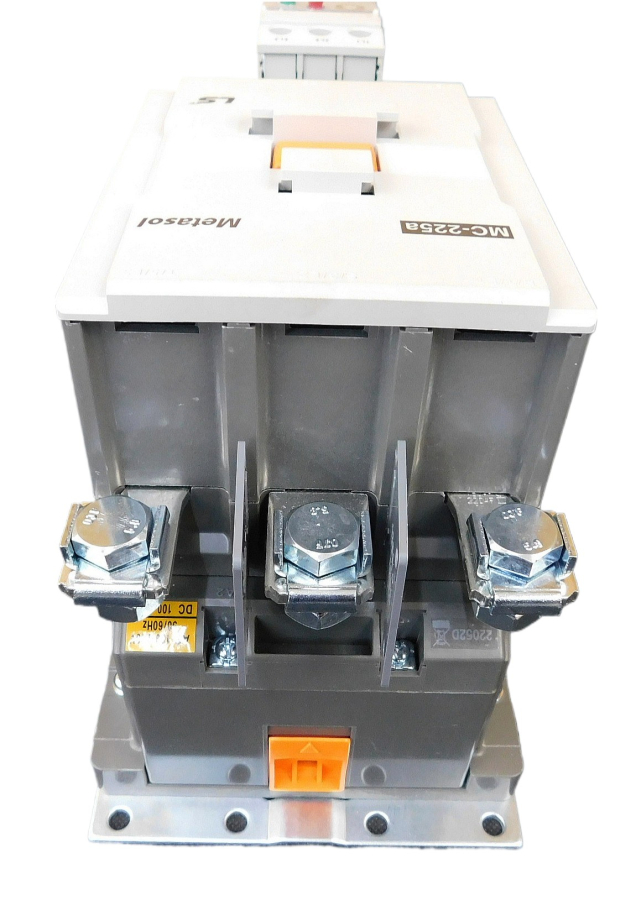

• Contactor - IEC size 225
• Overload - Class 10 differential type, phase failure protection
• Coil - 230V
• Contactor HP rating UL - 60HP @ 208V, 75HP @ 230V, 3PH
• Overload trip range - 120-185 Amps
• Sized for Heavy loaded 50HP at 230V, Normal loaded 50HP at 208V, or Normal loaded 60HP at 230V 3PH
• Includes (2) N/O & (2) N/C auxiliary contact
• Overload Frame size 225
