Motor Starter, 22-32 Amp, 230V Coil, 10HP 230V, 3PH, Nema Size 2, IEC Size 40
Stock:
In Stock
Complete motor starter sized for Normal or Heavy loaded 10HP at 230V, 3PH. Operating Voltage is 208-240V.
Contactor, Nema Size 2, IEC Size 40. Overload Frame size 32. Heavy duty set up. Elimia PN: 22-32-230-40
Complete motor starter sized for a Normal or Heavy loaded 10HP at 230V, 3PH. Operating Voltage is 208-240V.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

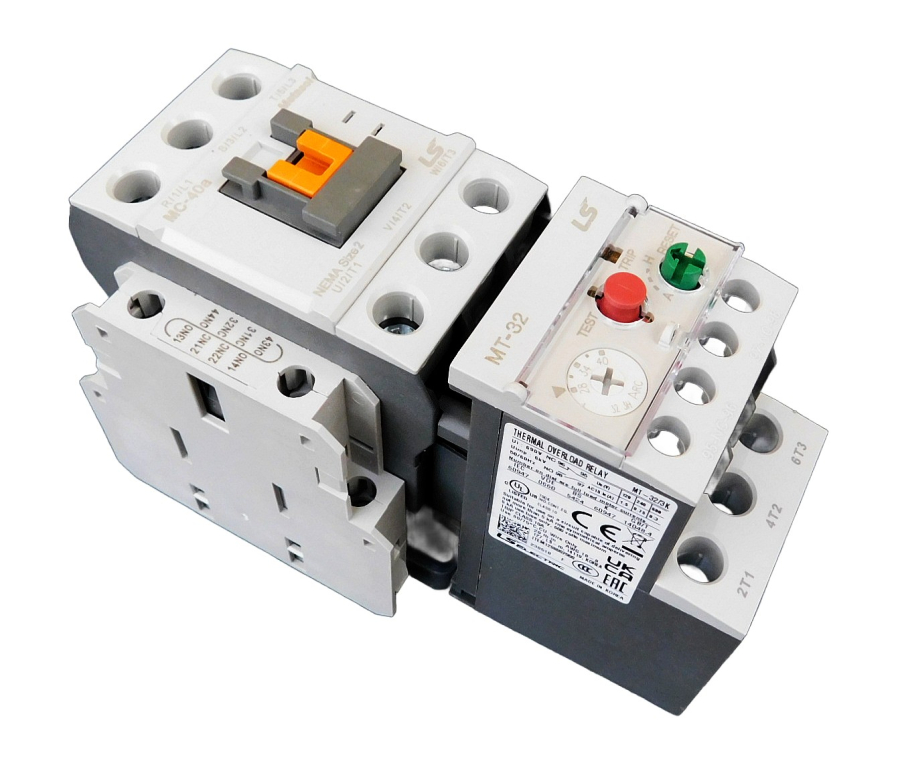

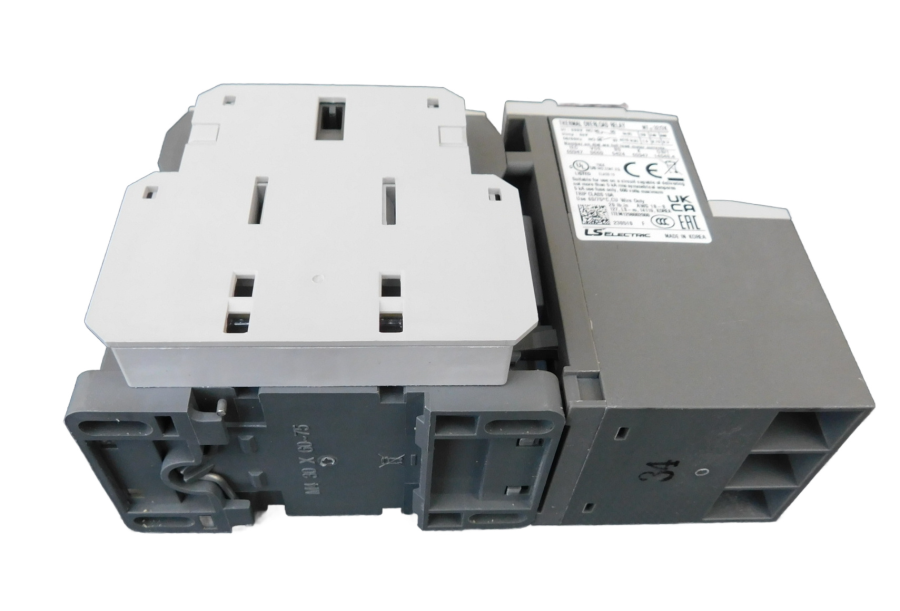

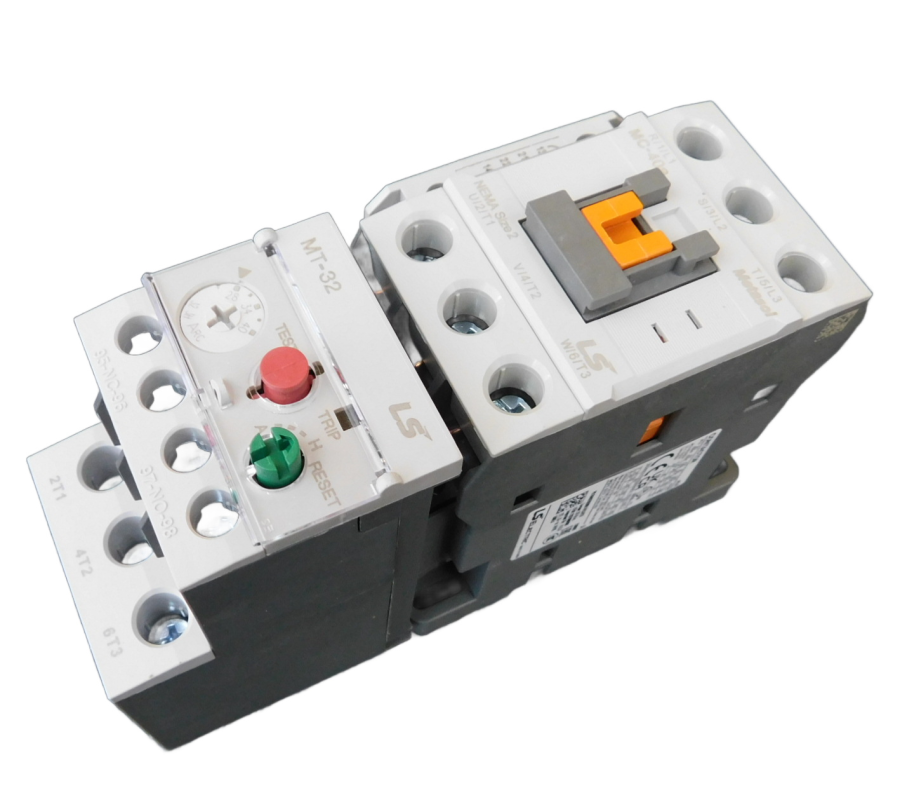

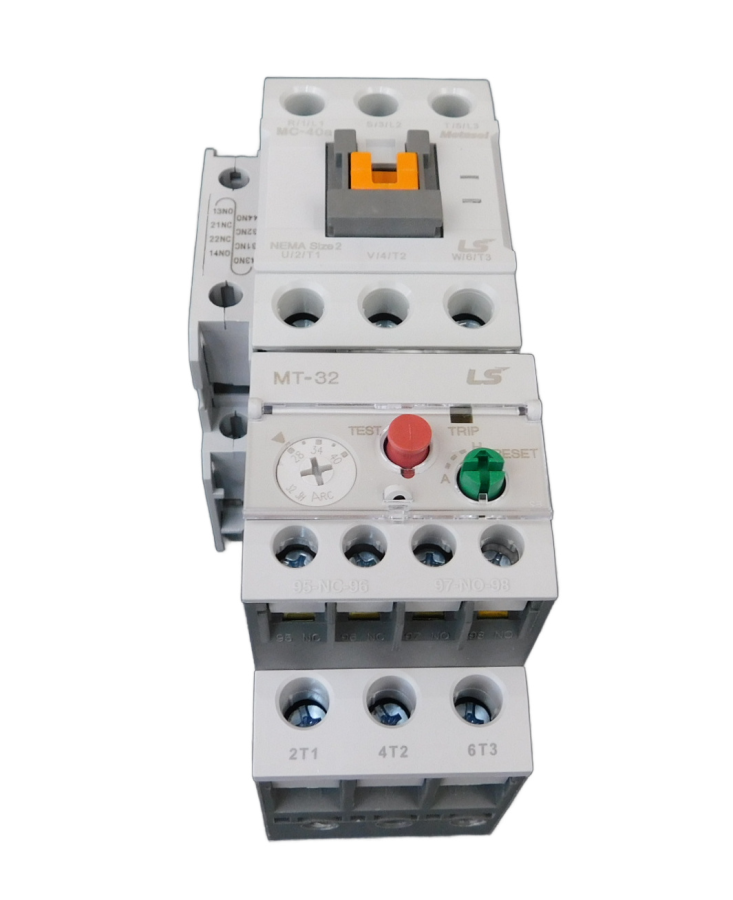

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea
- Contactor - Nema size 2, IEC size 40
- Overload - Class 10 differential type, phase failure protection
- Coil - 230V

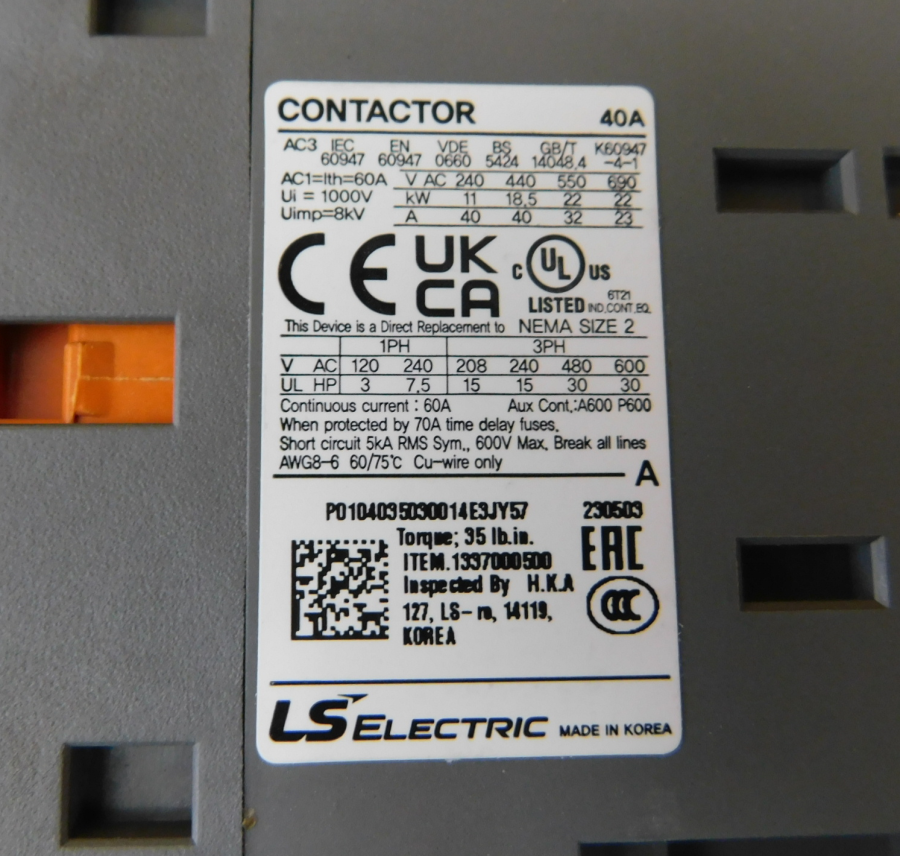

- Contactor HP rating UL - 15HP @ 208V-240V, 3PH
- Overload trip range - 22-32 Amps
- Sized for Normal or Heavy loaded 10HP 230V, 3PH
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 32
