Motor Starter, 28-40 Amp, 230V Coil, 10HP at 208V, 3PH, Nema Size 2, IEC Size 40

Complete motor starter sized for a Normal or Heavy loaded 10HP 208V, 3PH. Operating Voltage is 208-240V..

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

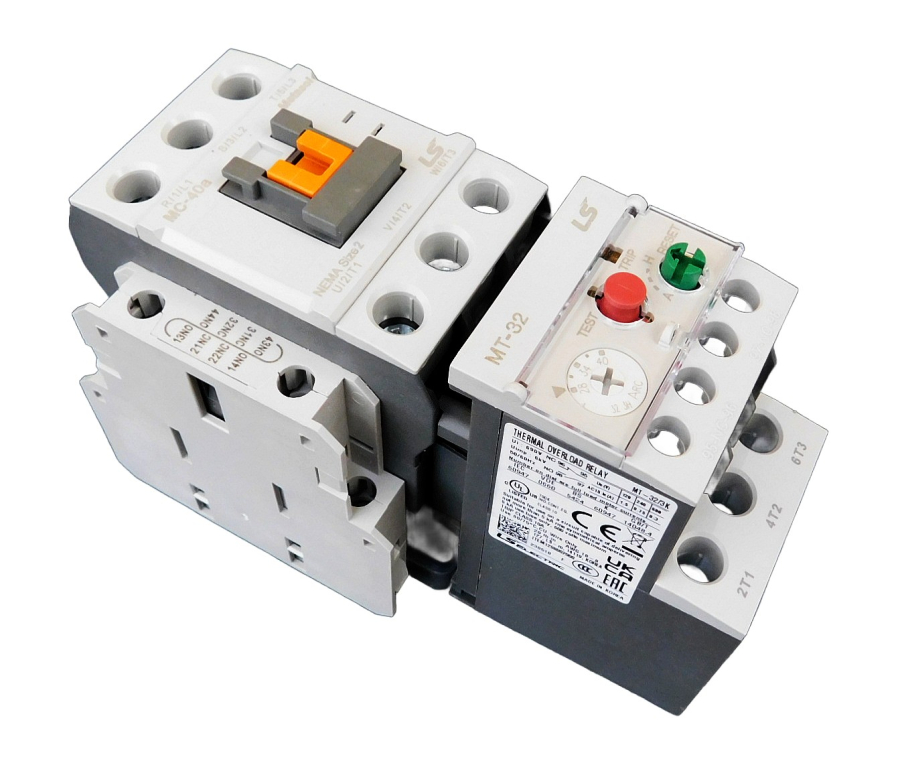

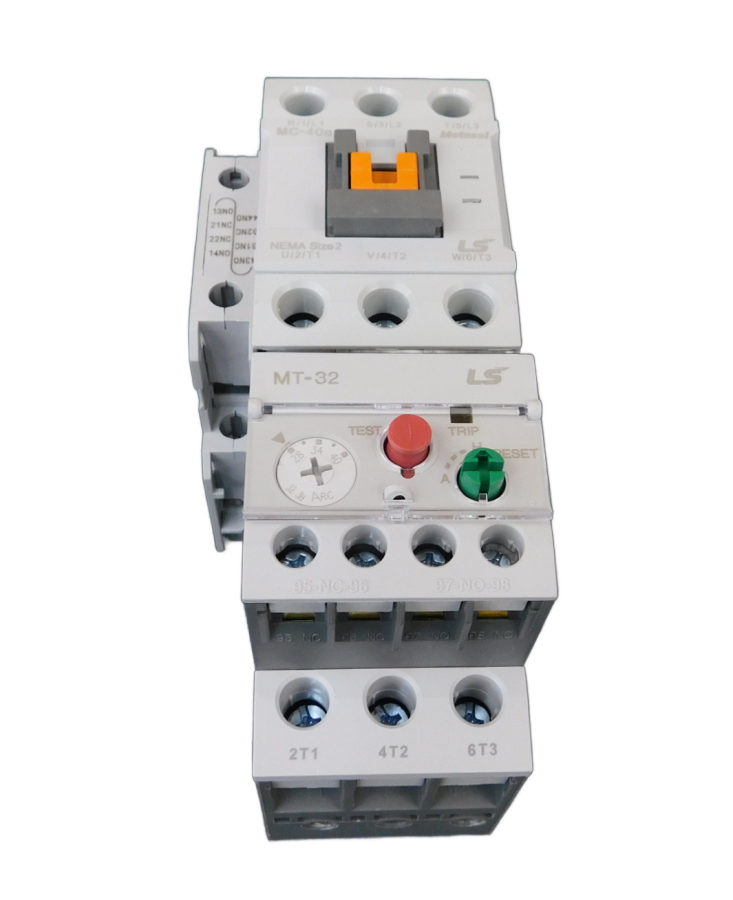

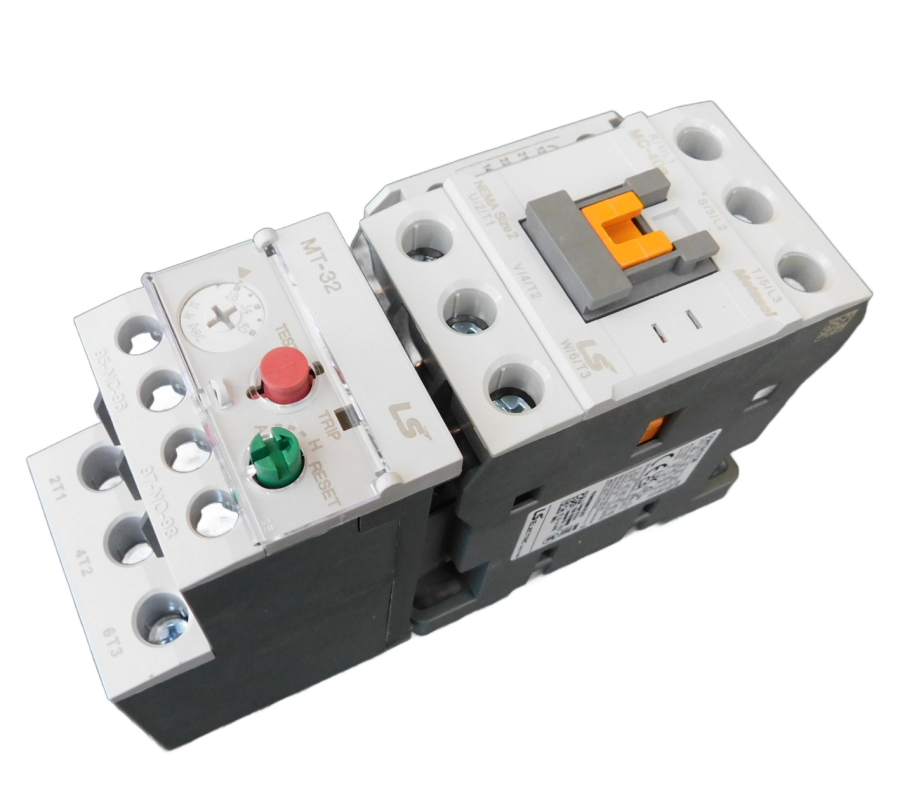

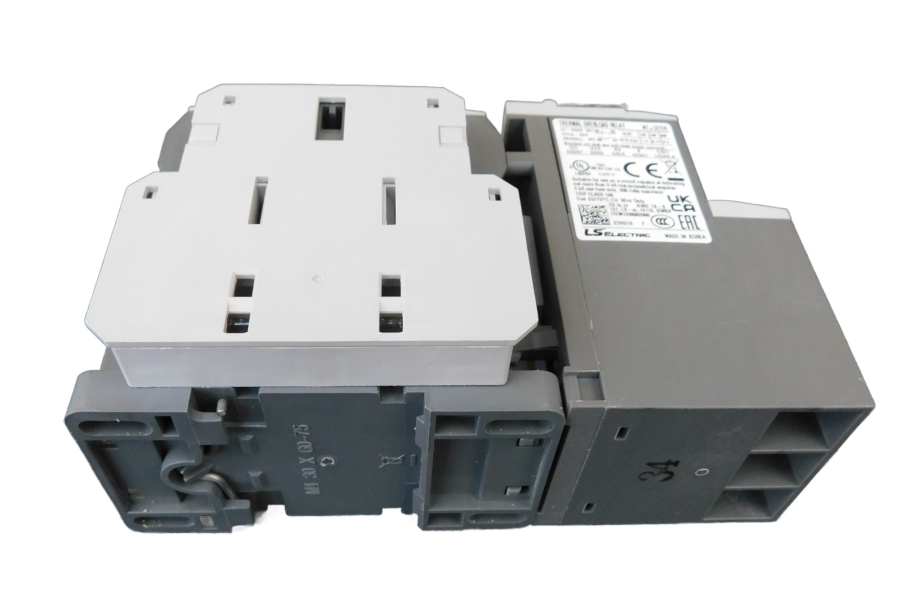

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

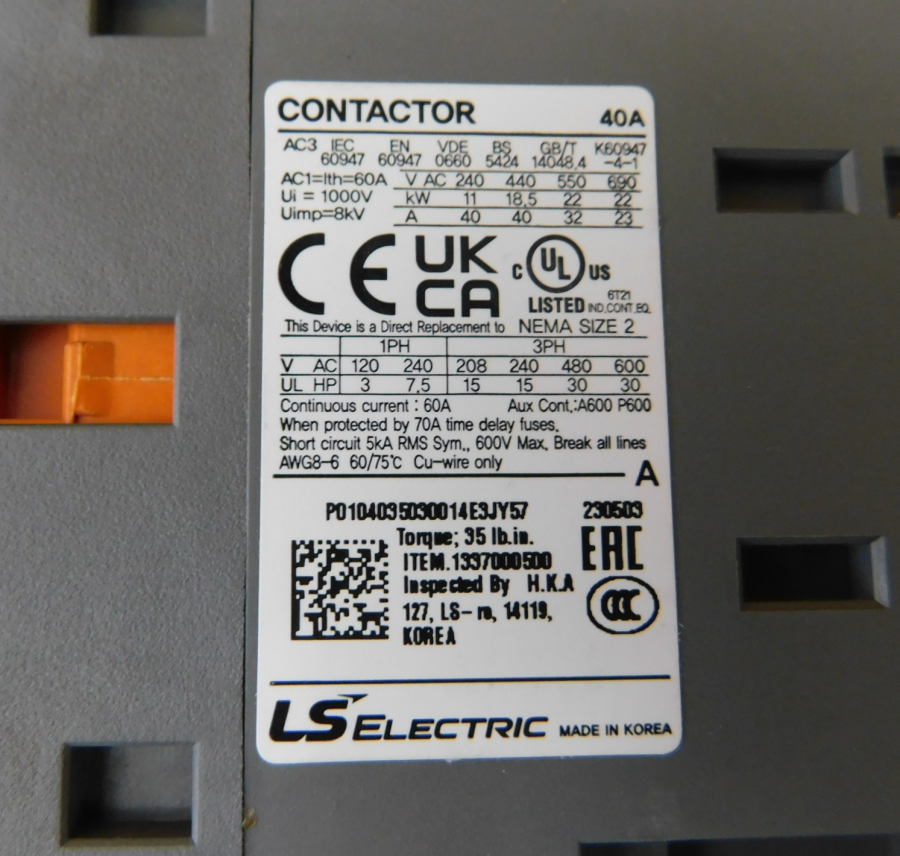

• Contactor - Nema size 2, IEC size 40
• Overload - Class 10 differential type, phase failure protection
• Coil - 230V
• Contactor HP rating UL - 15HP @ 208V-240V, 3PH
• Overload trip range - 28-40 Amps
• Sized for Normal or Heavy loaded 10HP 208V, 3PH
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 32
