Motor Starter, 4-6 Amp, 230V Coil, 1 HP 208-230V, 3PH

Complete motor starter sized for Normal loaded 1 HP, 208-230V, 3PH . Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

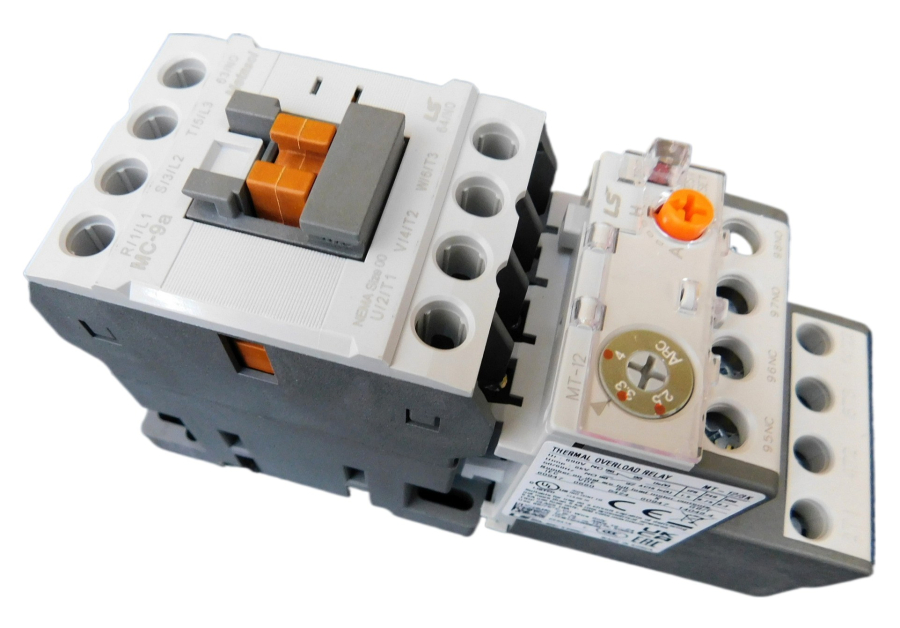

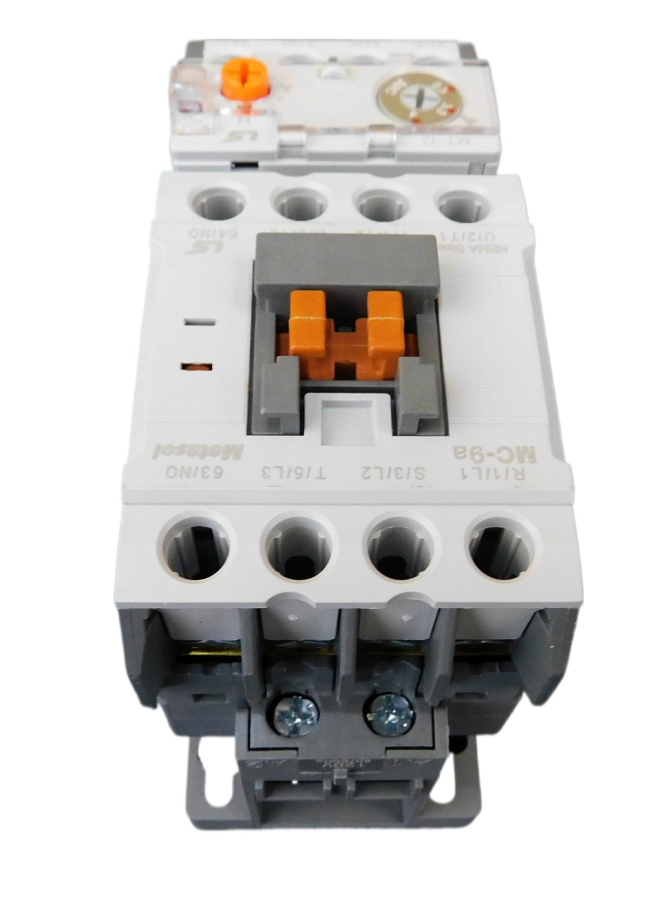

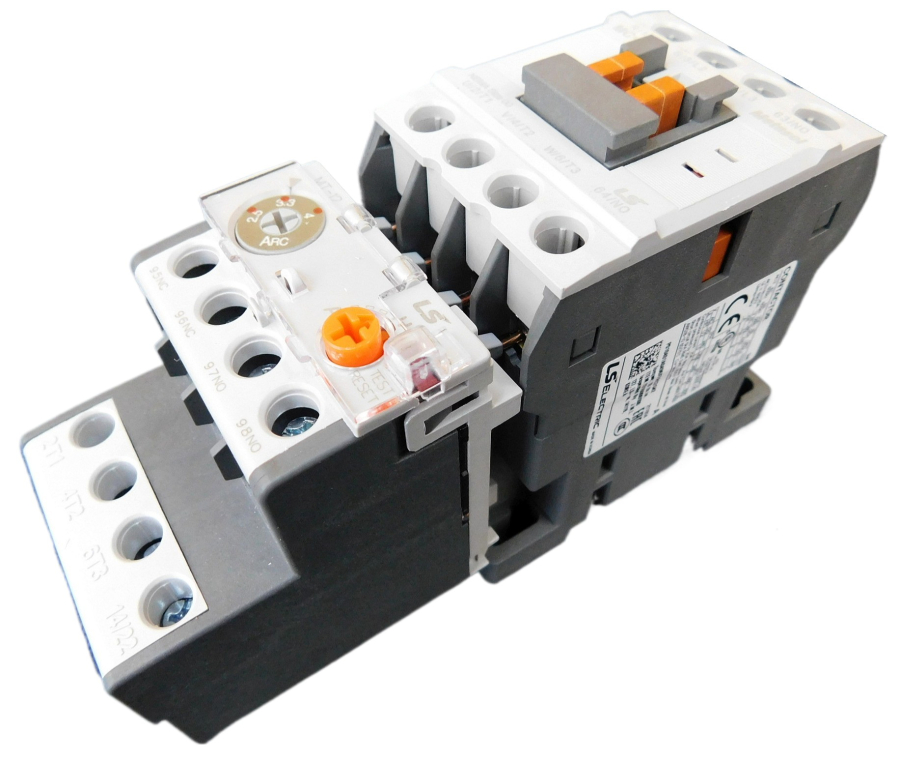

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

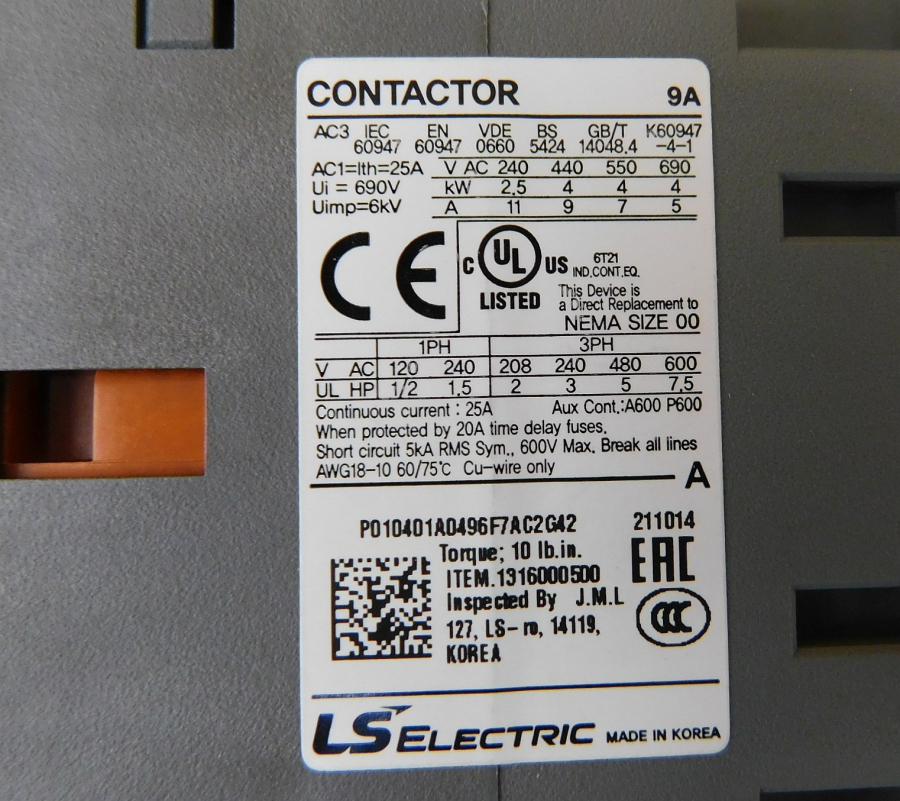

• Contactor - Nema size 00, IEC size 9 (may be subbed with a Nema size 0, IEC size 12)

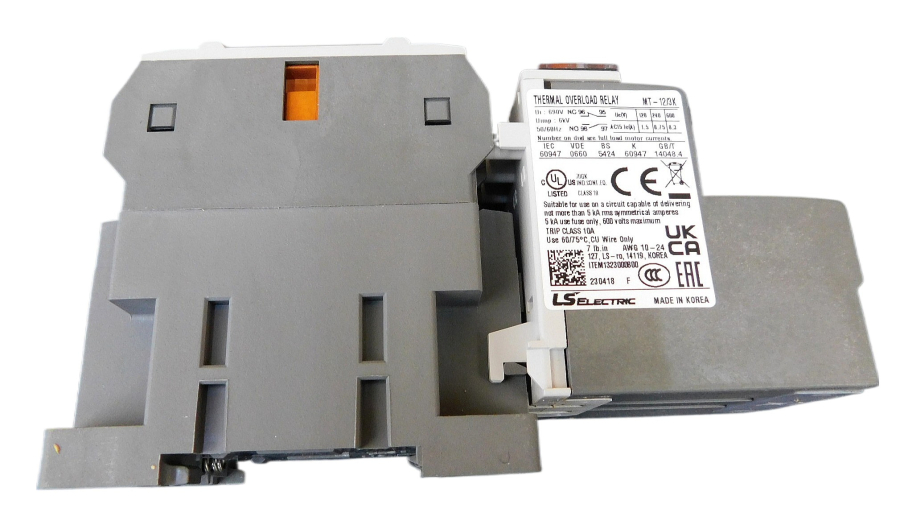

• Overload - Class 10 differential type, phase failure protection
• Coil - 230V
• Contactor HP rating UL - 2HP @ 208V, 3HP @ 230V, 3PH
• Overload trip range - 4 - 6 Amps
• Sized for Normal loaded 1 HP, 208-230V, 3PH
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size 12
