Motor Starter, 45-65 Amp, 230V Coil, 20HP 208-230V, 3PH, Nema Size 3, IEC Size 85
Stock:
In Stock
Complete motor starter sized for Normal or Heavy loaded 20HP at 208-230V, 3PH. Operating Voltage is 208-240V.
Contactor, Nema size 3. Overload Frame size 95. Heavy duty set up. Elimia PN: 45-65-230-85
Complete motor starter sized for a Normal or Heavy loaded 20HP at 208-230V, 3PH. Operating Voltage is 208-240V.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

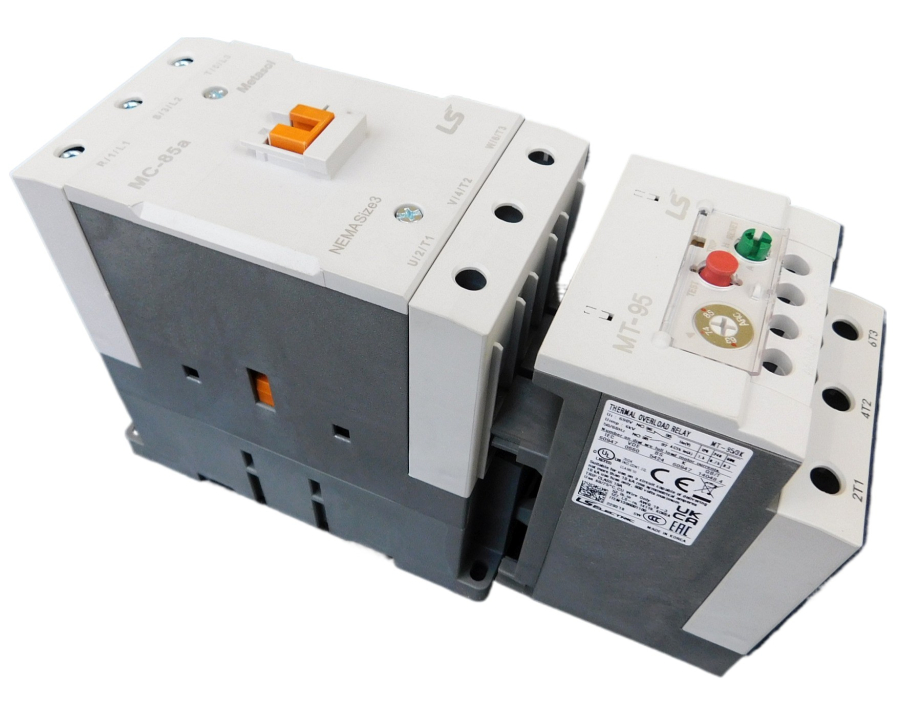

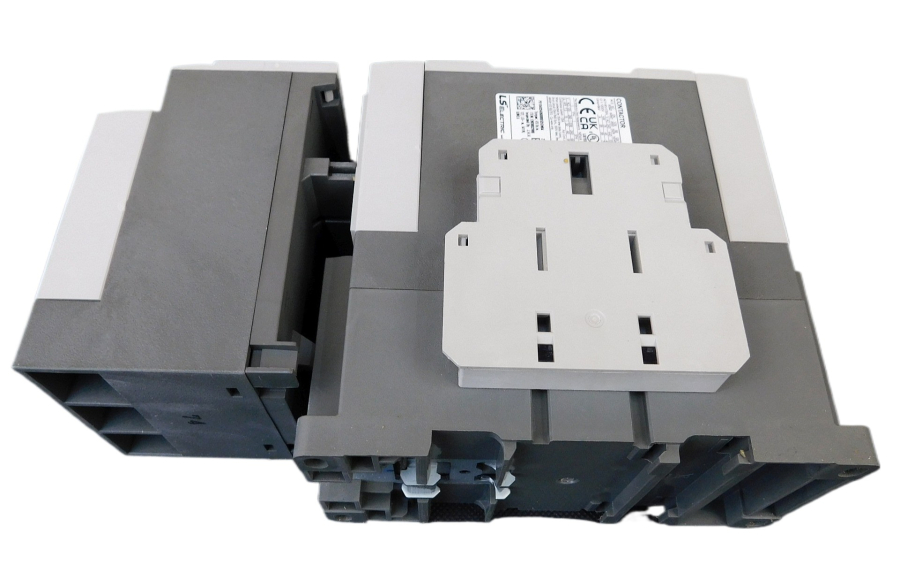

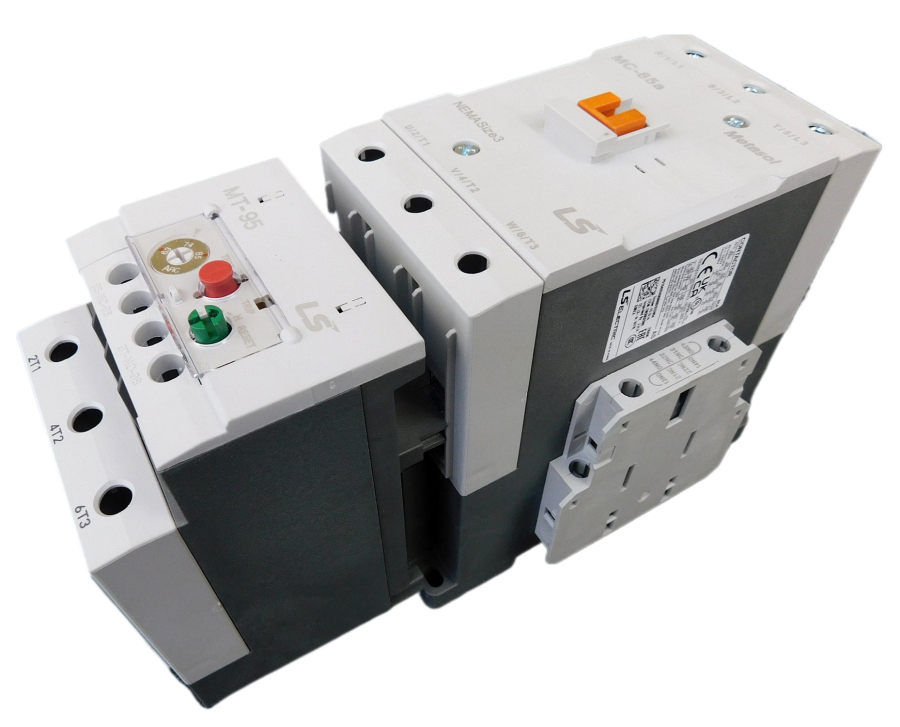

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

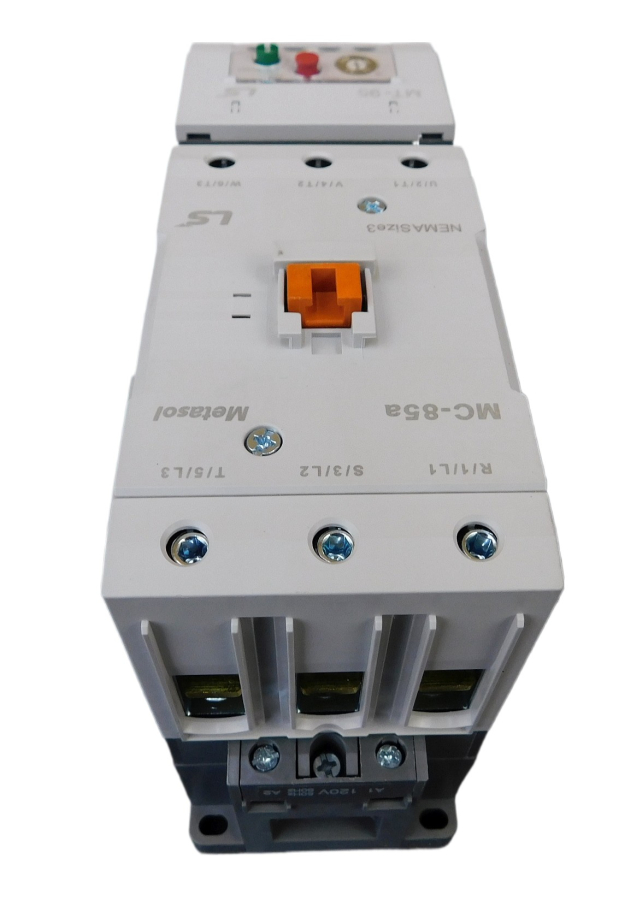

- Contactor - Nema size 3, IEC size 85
- Overload - Class 10 differential type, phase failure protection
- Coil - 230V
- Contactor HP rating UL - 30HP @ 208V, 40HP @ 230V, 3PH
- Overload trip range - 45-65 Amps
- Sized for Normal or Heavy loaded 20HP at 208-230V, 3PH
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 95
