Motor Starter, 54-75 Amp, 230V Coil, 20HP 208V, 3PH, IEC Size 75

Complete motor starter sized for a Normal or Heavy loaded 20HP at 208V. Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

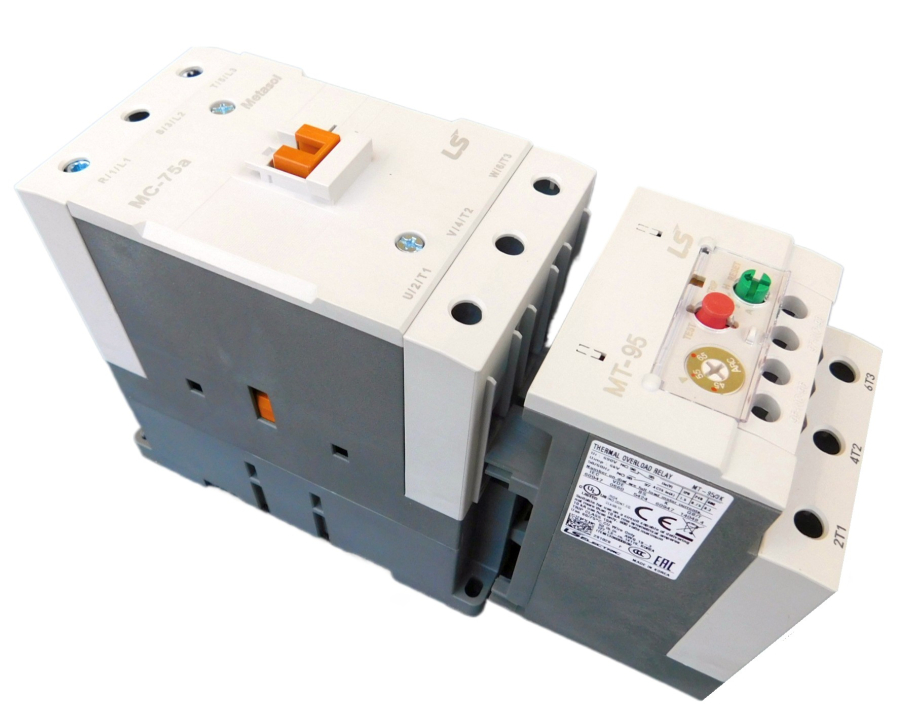

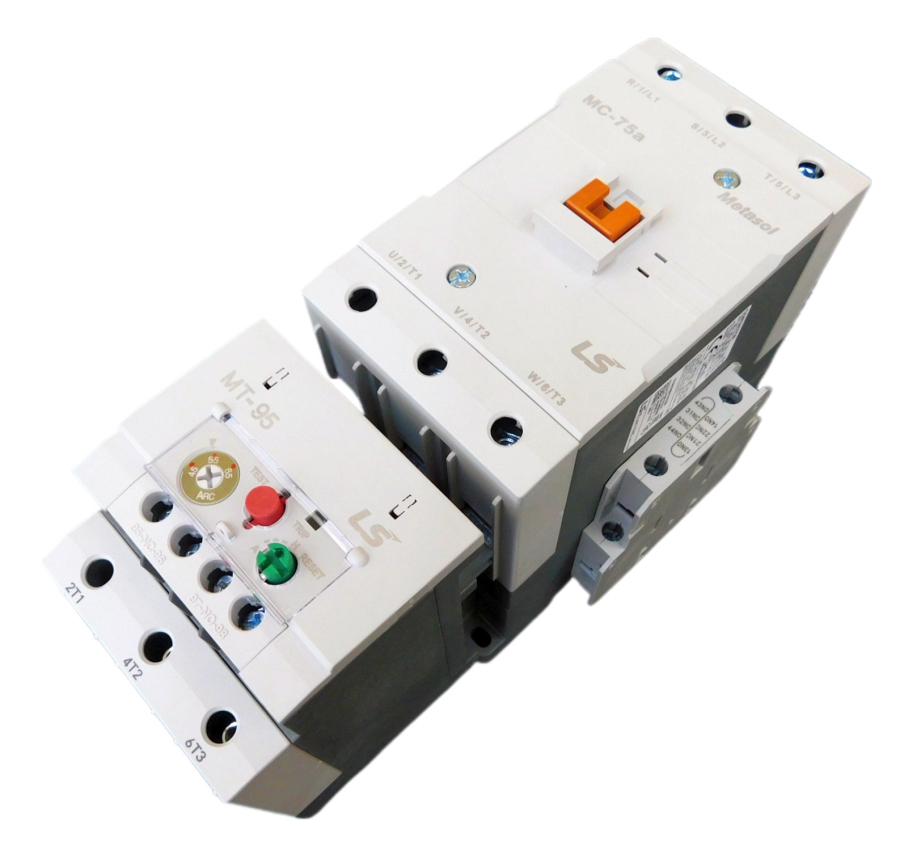

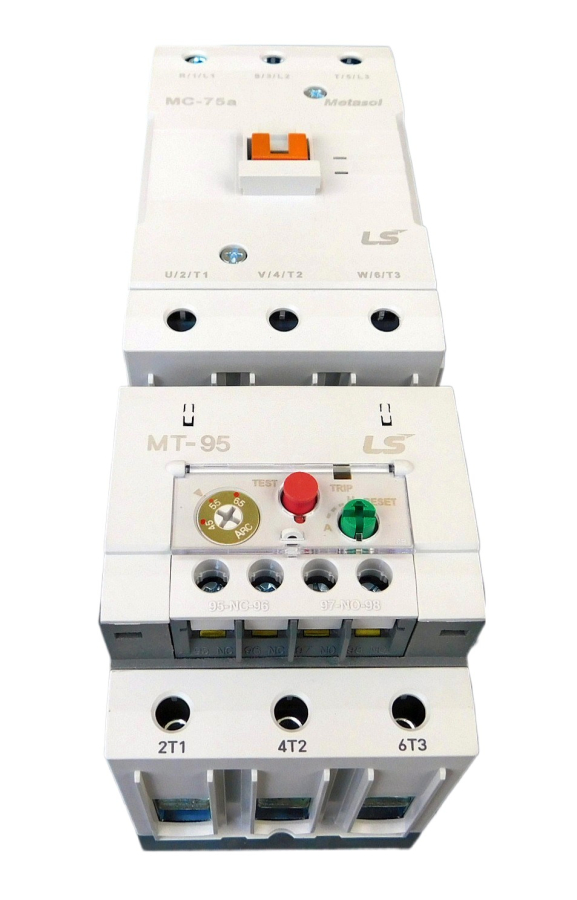

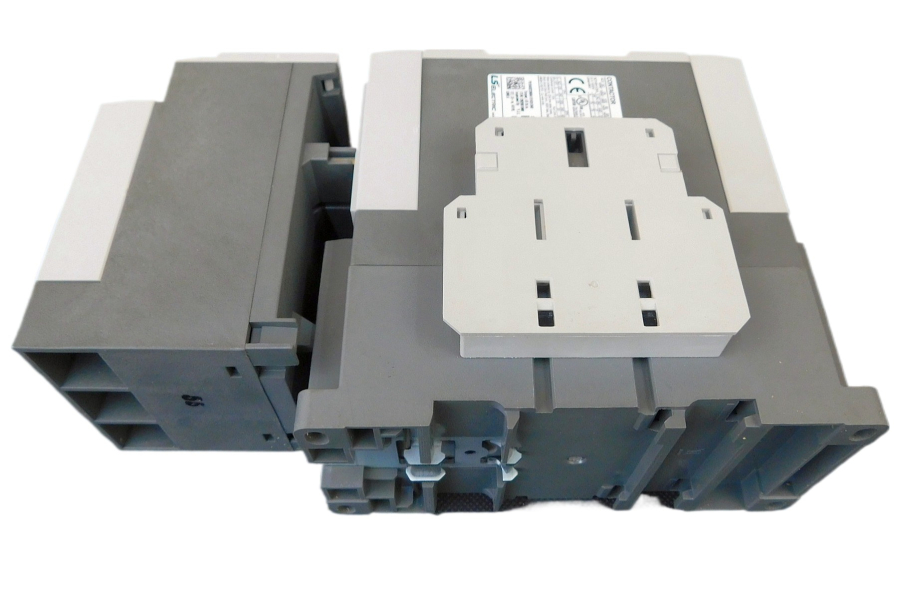

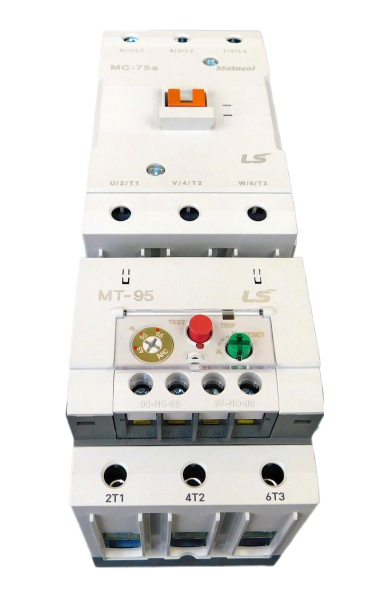

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

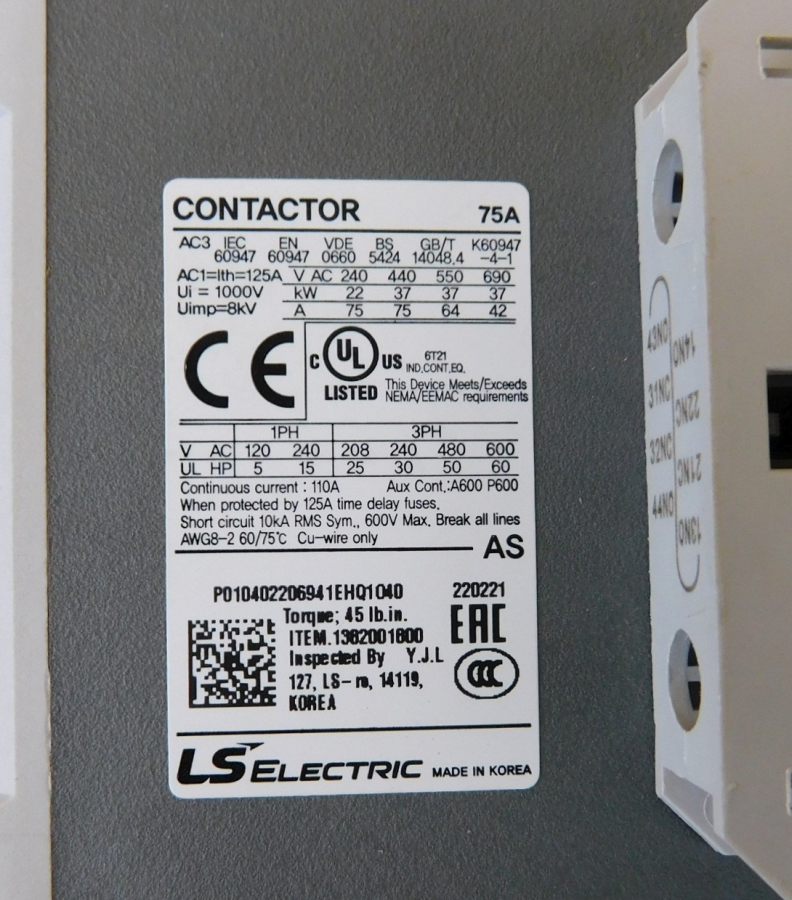

• Contactor - IEC size 75
• Overload - Class 10 differential type, phase failure protection
• Coil - 230V
• Contactor HP rating UL - 25HP @ 208V, 30HP @ 230V, 3PH
• Overload trip range - 54-75 Amps
• Sized for Normal or Heavy loaded 20HP at 208V
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 95
