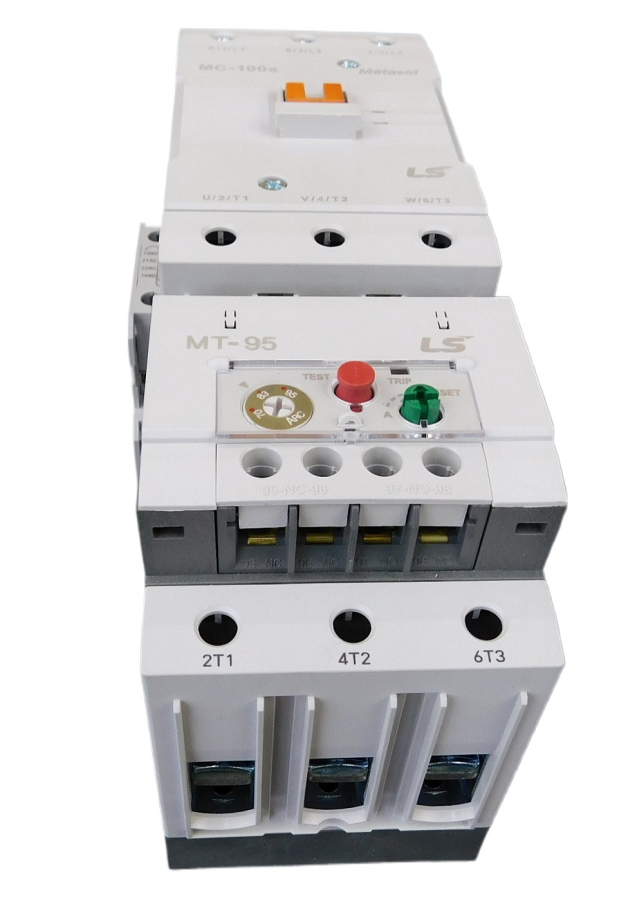

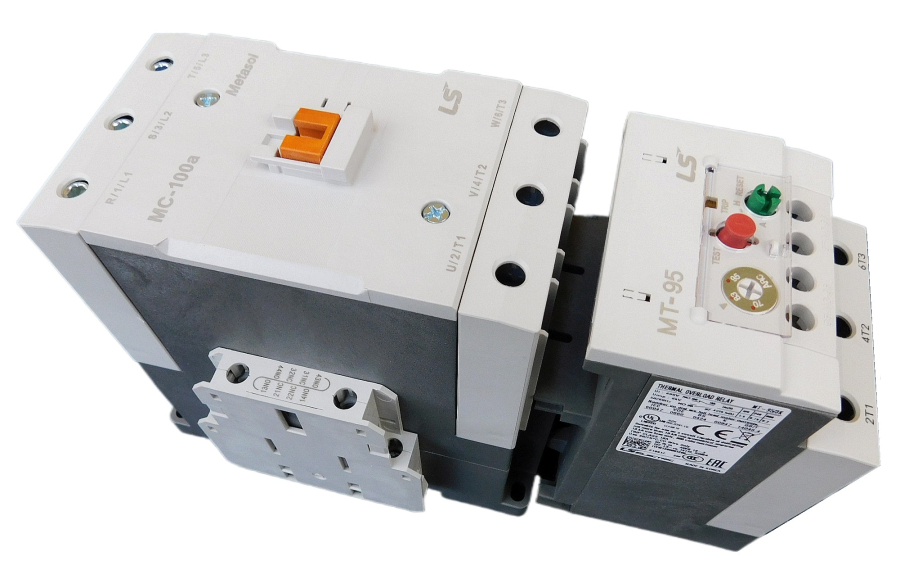

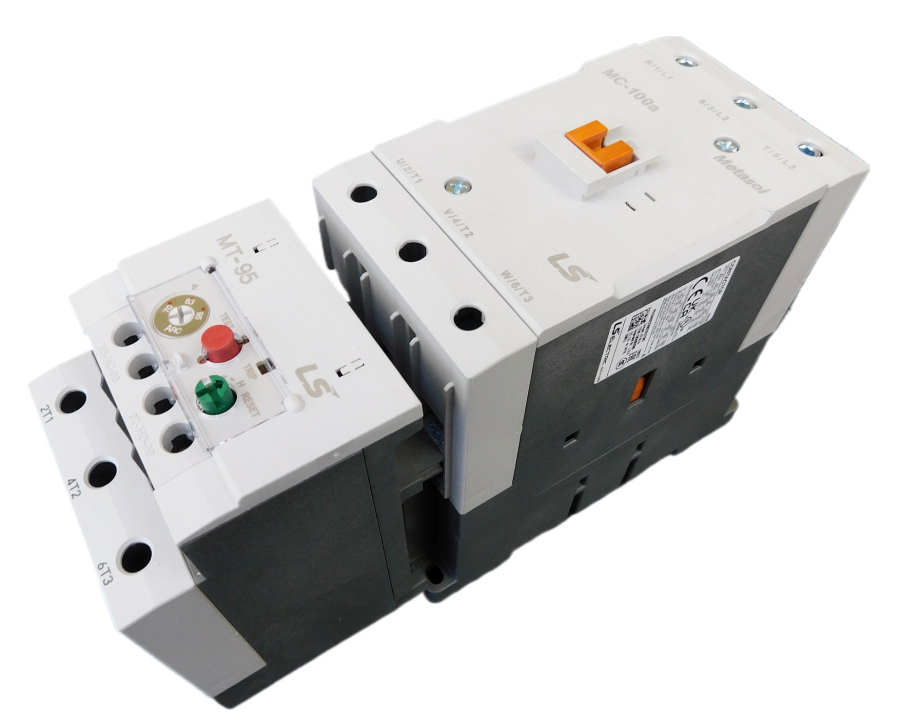

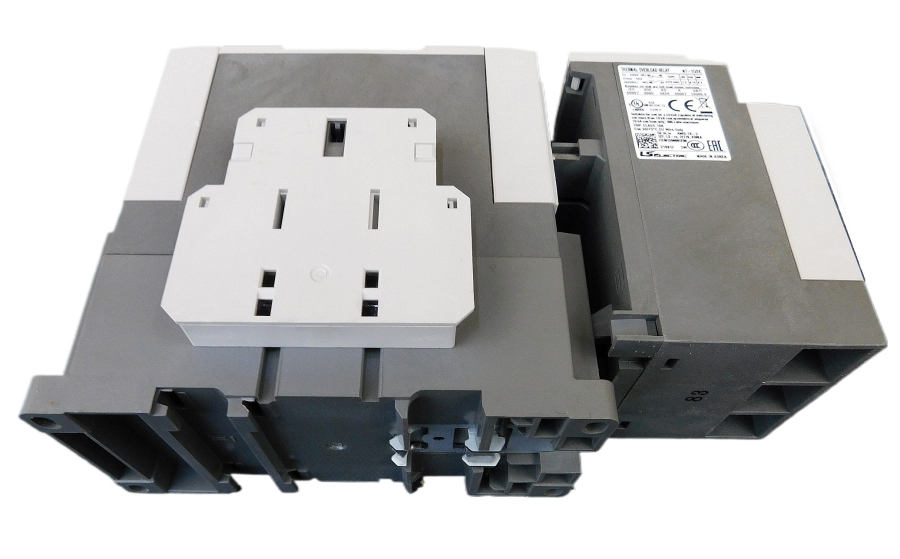

Motor Starter, 54-75 Amp, 230V Coil, 25HP 230V, 3PH, IEC Size 100
Stock:
In Stock
Complete motor starter sized for Heavy loaded 25HP at 230V Operating Voltage is 208-240V.
Contactor, IEC size 100. Overload Frame size 95. Heavy duty set up. Elimia PN: 54-75-230-100
Complete motor starter sized for a Heavy loaded 25HP at 230V. Operating Voltage is 208-240V.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea
- Contactor - IEC size 100
- Overload - Class 10 differential type, phase failure protection
- Coil - 230V

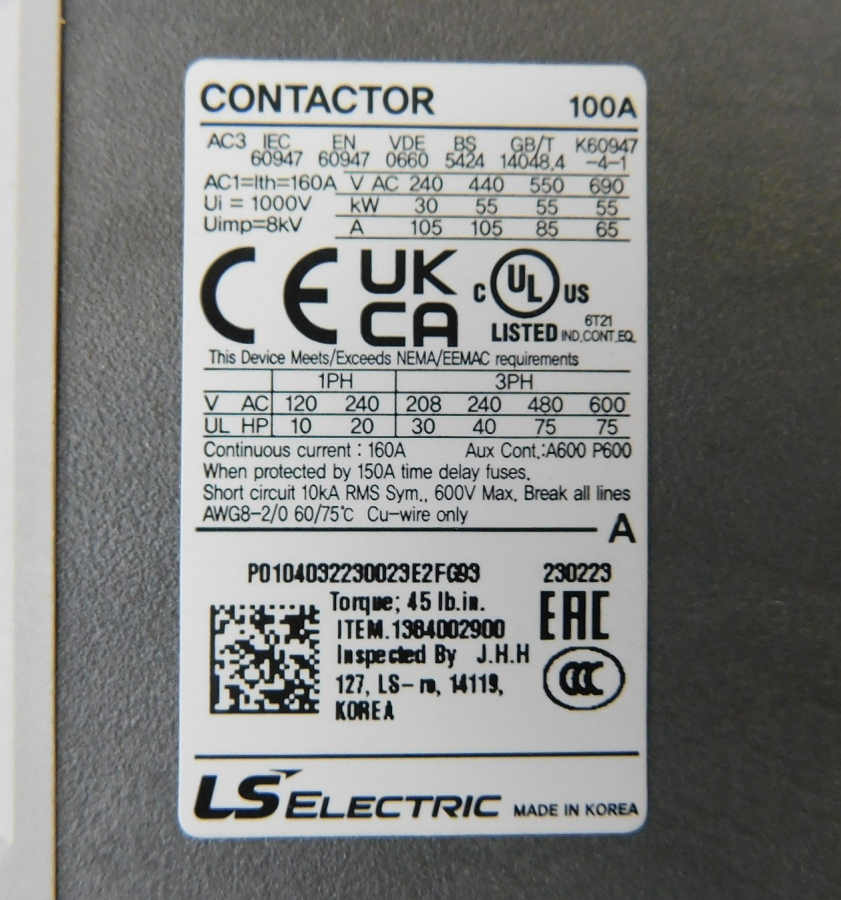

- Contactor HP rating UL - 30HP @ 208V, 40HP @ 230V, 3PH
- Overload trip range - 54-75 Amps
- Sized for Heavy loaded 25HP at 230V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 95
