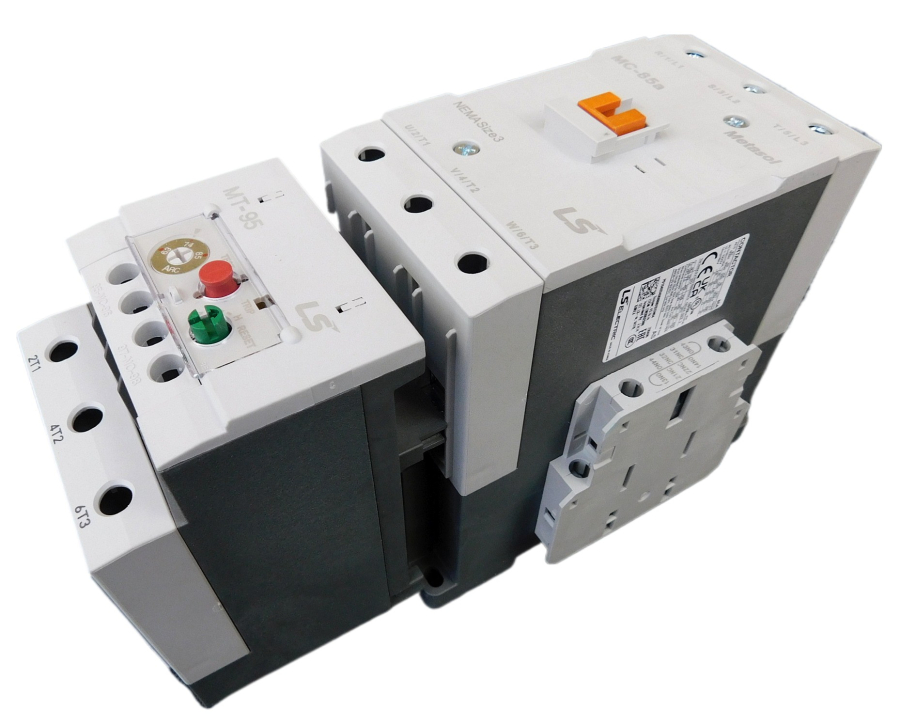

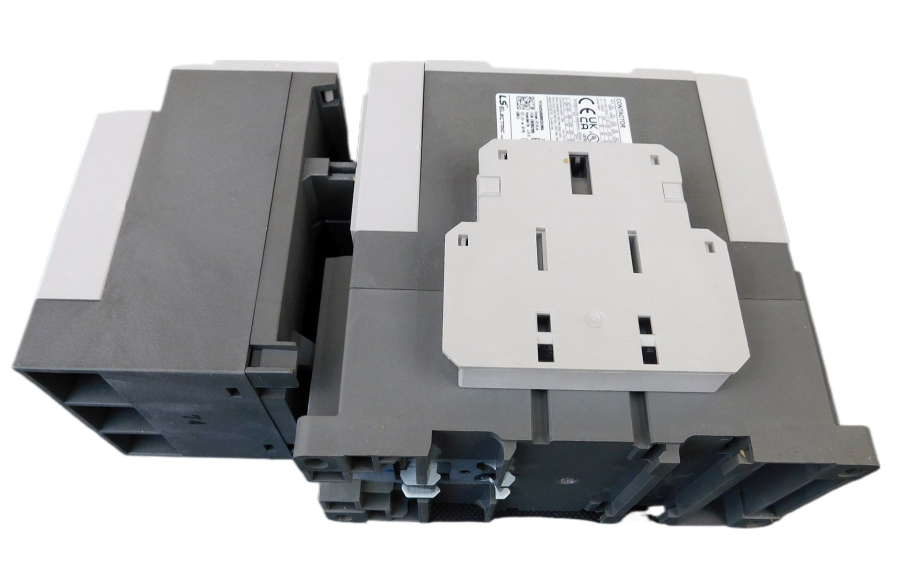

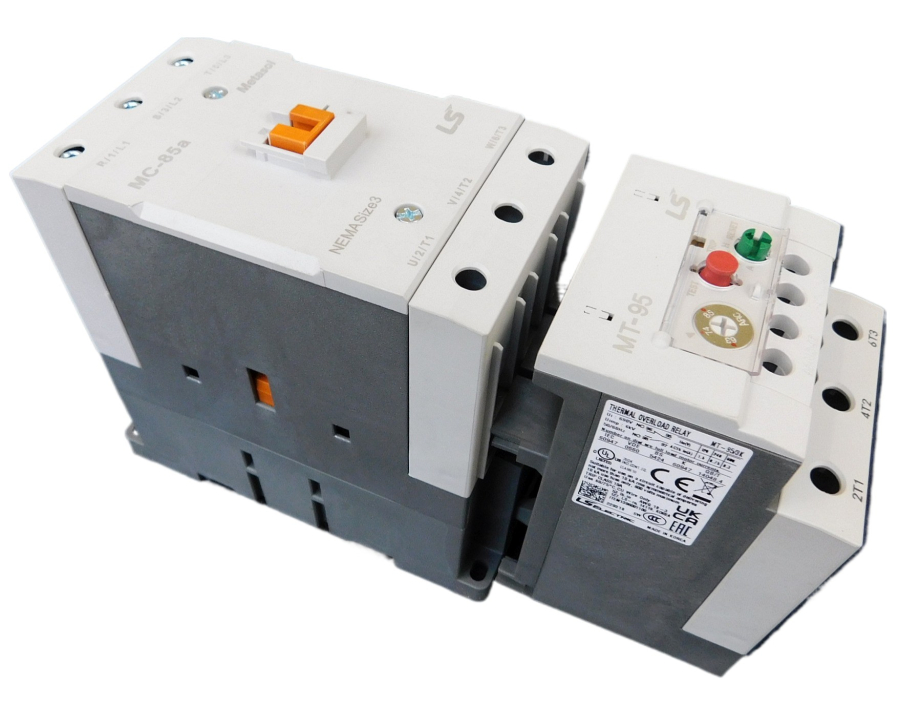

Motor Starter, 63-85 Amp, 230V Coil, 25HP 208-230V, 3PH, Nema Size 3, IEC Size 85

Complete motor starter sized for a Normal or Heavy loaded 25HP at 208-230V, 3PH. Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

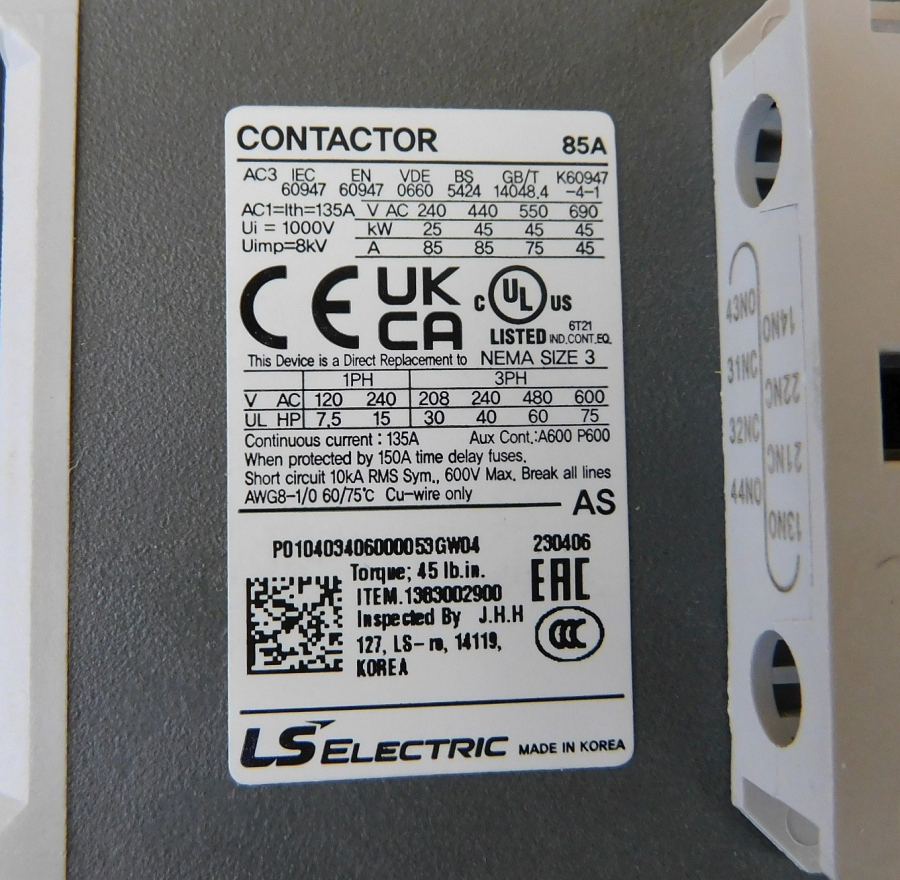

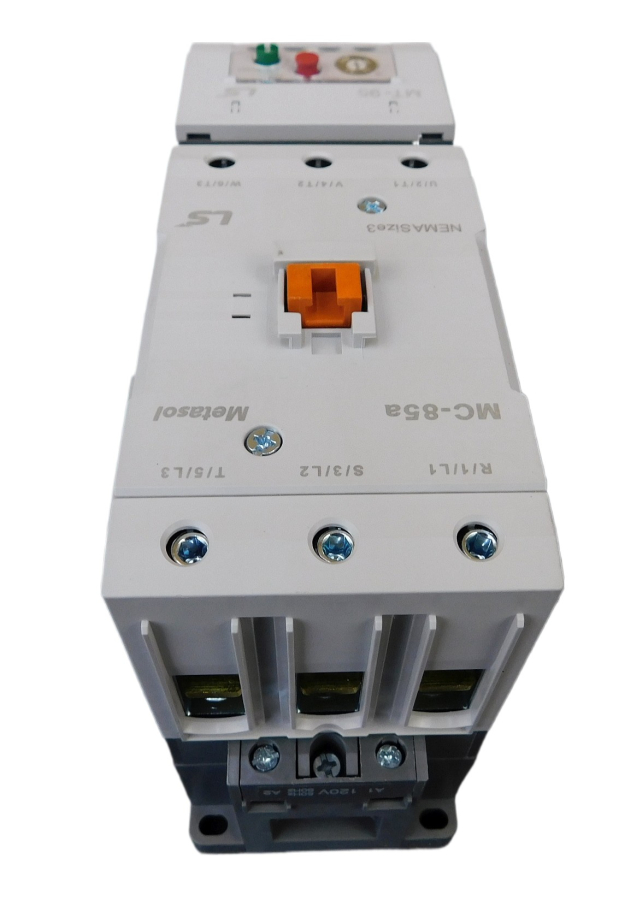

• Contactor - Nema size 3, IEC size 85
• Overload - Class 10 differential type, phase failure protection
• Coil - 230V
• Contactor HP rating UL - 30HP @ 208V, 40HP @ 40HP, 3PH
• Overload trip range - 63-85 Amps
• Sized for Normal or Heavy loaded 25HP at 208-230V, 3PH
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 95
