Motor Starter, 95-130 Amp, 230V Coil, 40HP 208-230V, 3PH, Nema Size 4, IEC Size 150

Complete motor starter sized for a Normal loaded 40HP at 208-230V, 3PH. Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

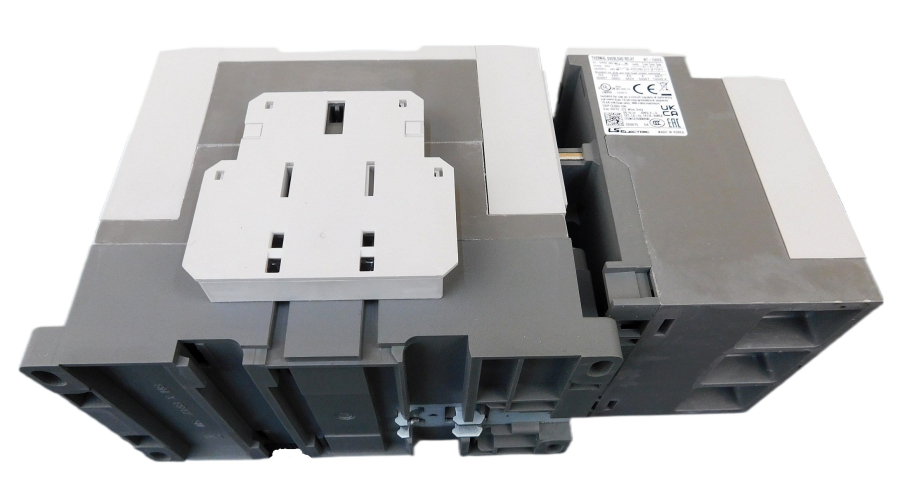

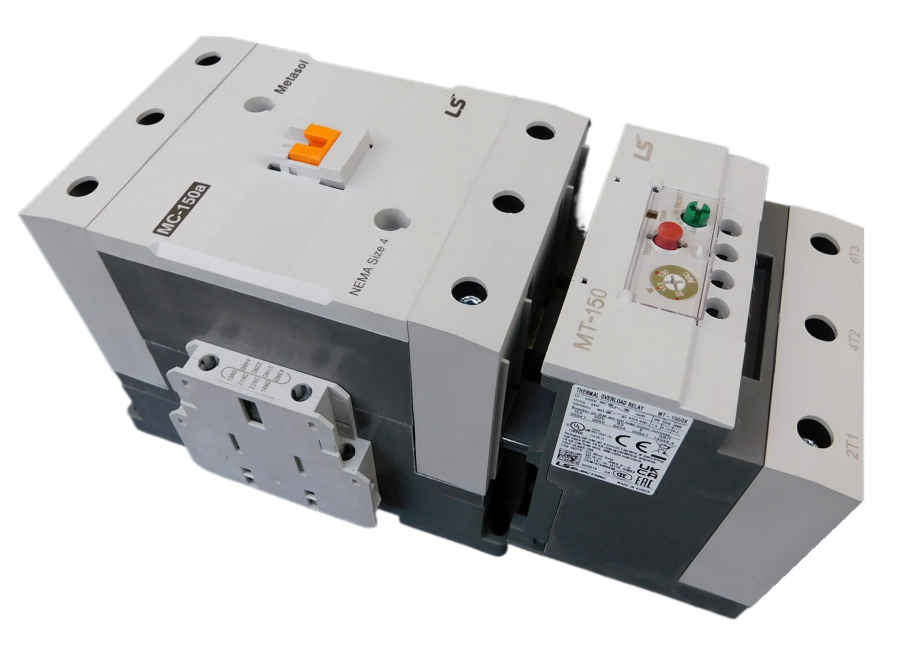

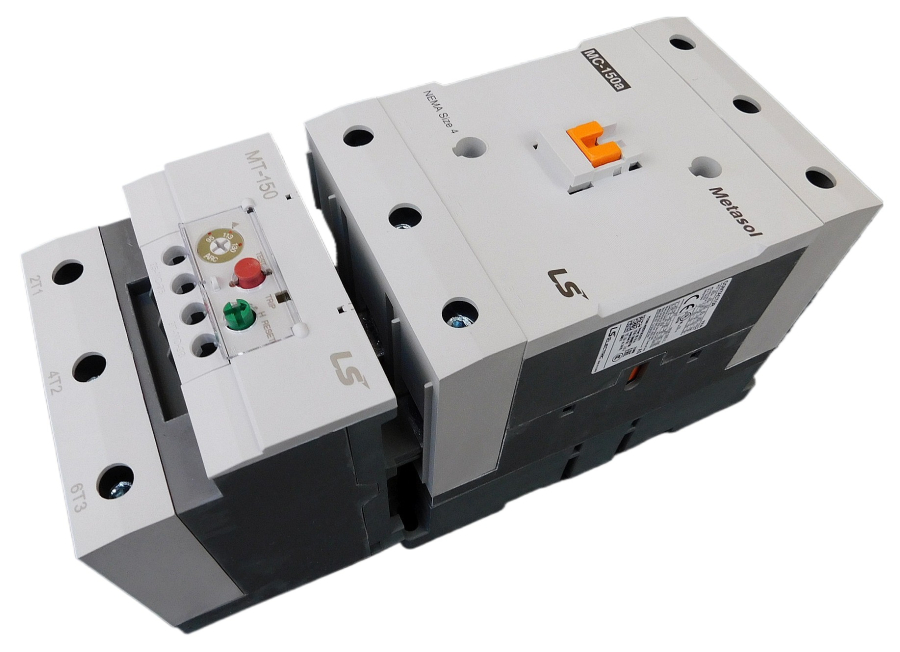

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

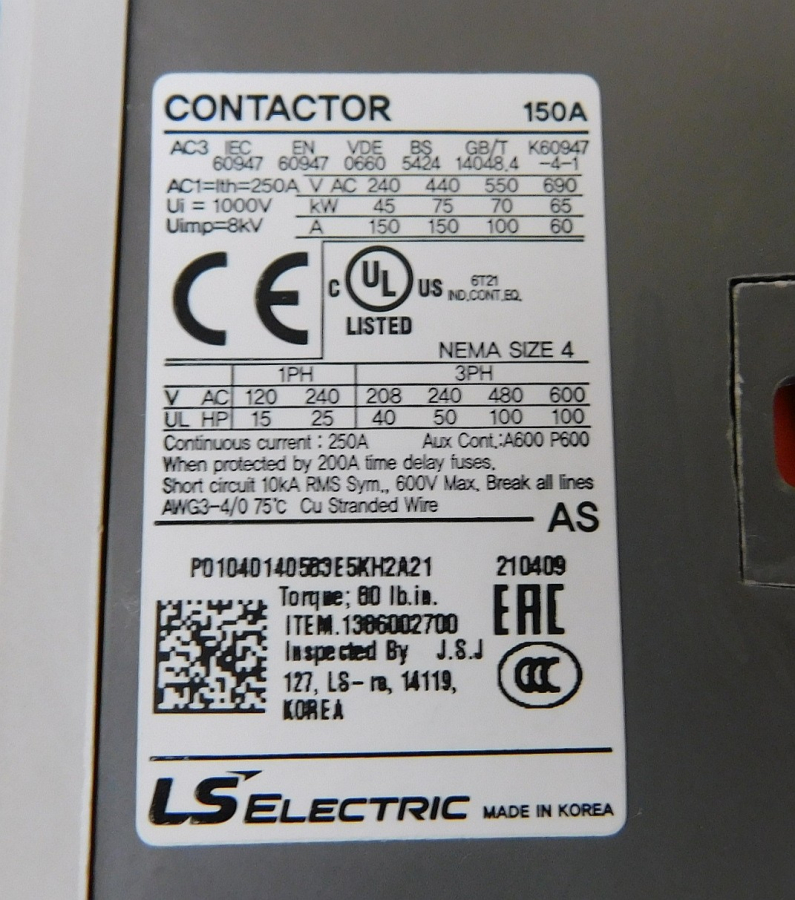

• Contactor - Nema size 4, IEC size 150

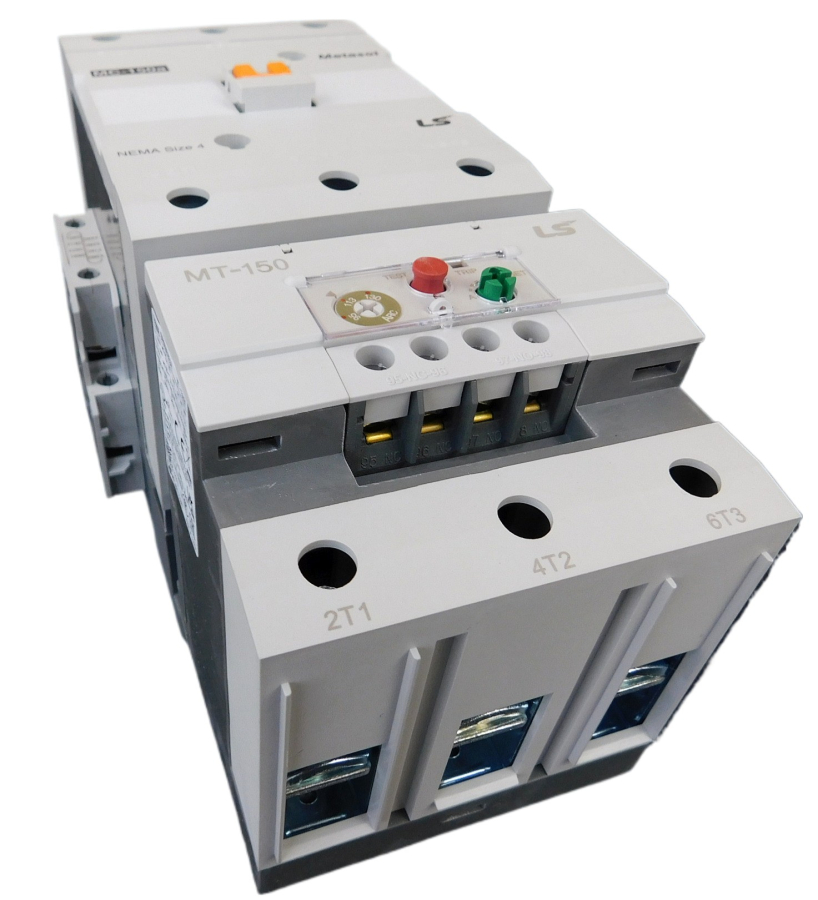

• Overload - Class 10 differential type, phase failure protection
• Coil - 230V
• Contactor HP rating UL - 40HP @ 208V, 50HP @ 230V, 3PH
• Overload trip range - 95-130 Amps
• Sized for Normal loaded 40HP at 208-230V, 3PH
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 150
