Motor Starter, 2.5-4 Amp, 230V Coil, 1/4-1/3 HP 208-240V, 1PH

Complete motor starter sized for Normal loaded 1/4-1/3 HP, 208-240V, 1PH, Single Phase. Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

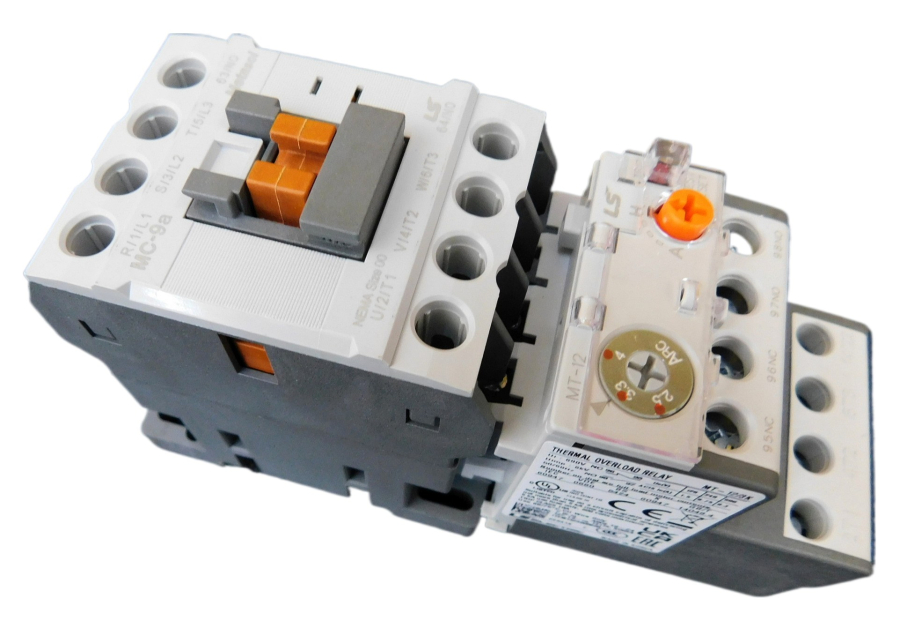

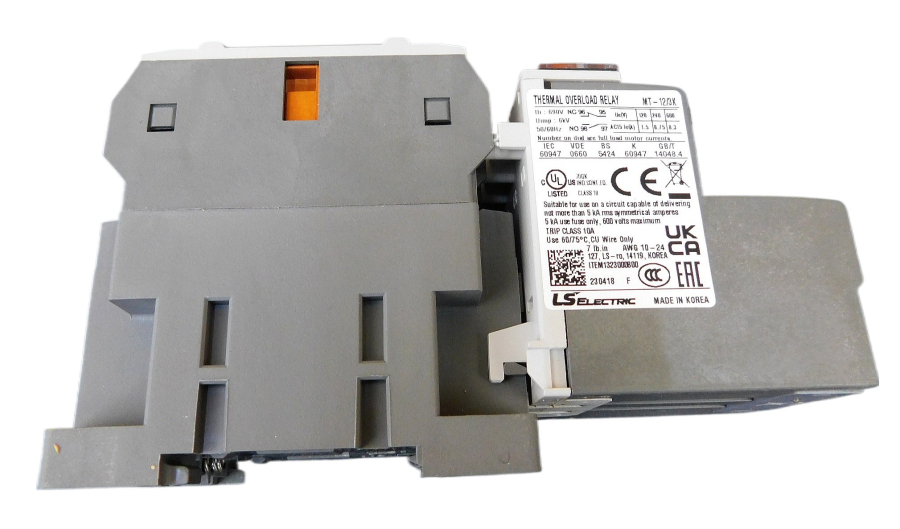

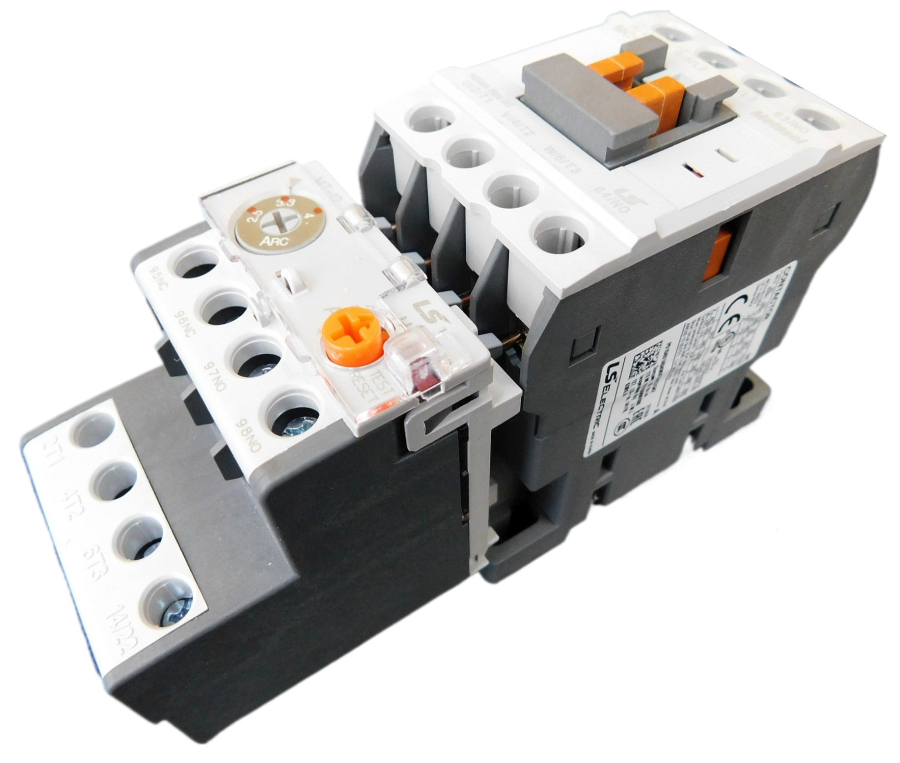

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

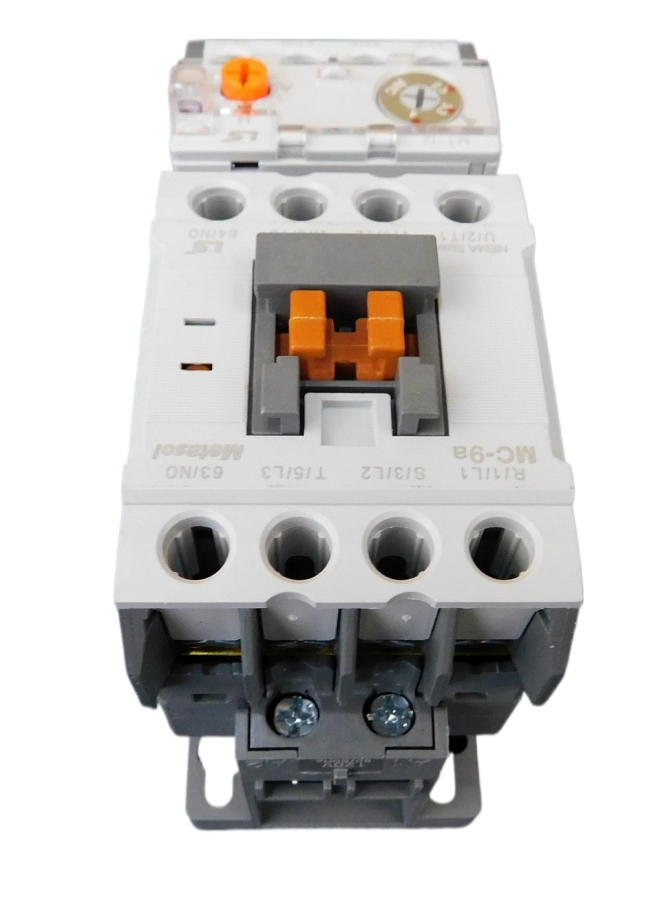

• Contactor - Nema size 00, IEC size 9 (may be subbed with a Nema size 0, IEC size 12)
• Overload - Class 10 differential type, phase failure protection
• Coil - 230V

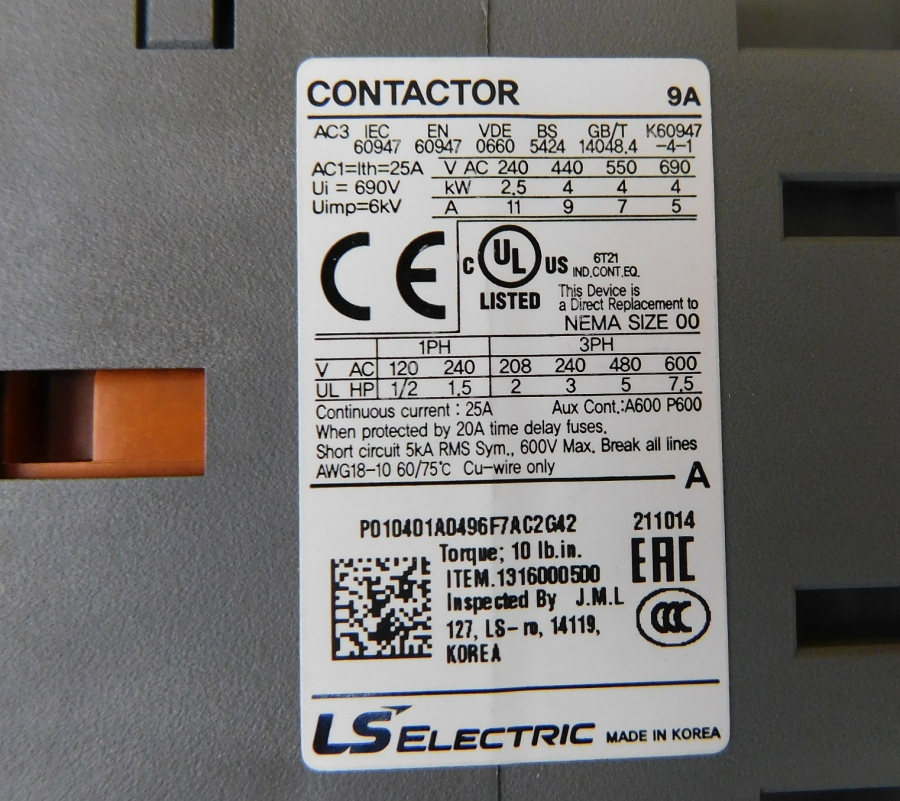

• Contactor HP rating UL - 1.5HP @ 240V, 1PH
• Overload trip range - 2.5-4 Amps
• Sized for Normal loaded 1/4-1/3 HP, 208-240V, 1PH, Single Phase.
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size 12
