Motor Starter, 12-18 Amp, 230V Coil, 3 HP 208-240V, 1PH

Complete motor starter sized for Normal loaded 3 HP, 208-240V, 1PH, Single Phase. Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

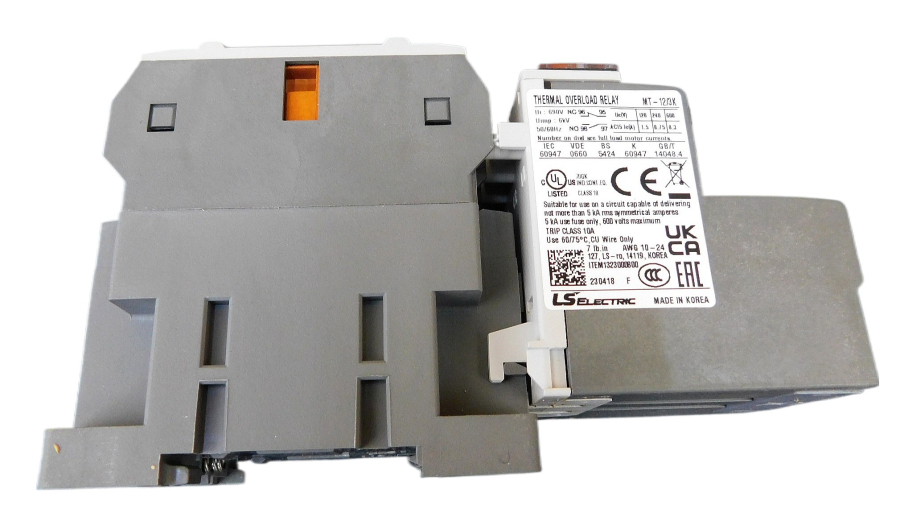

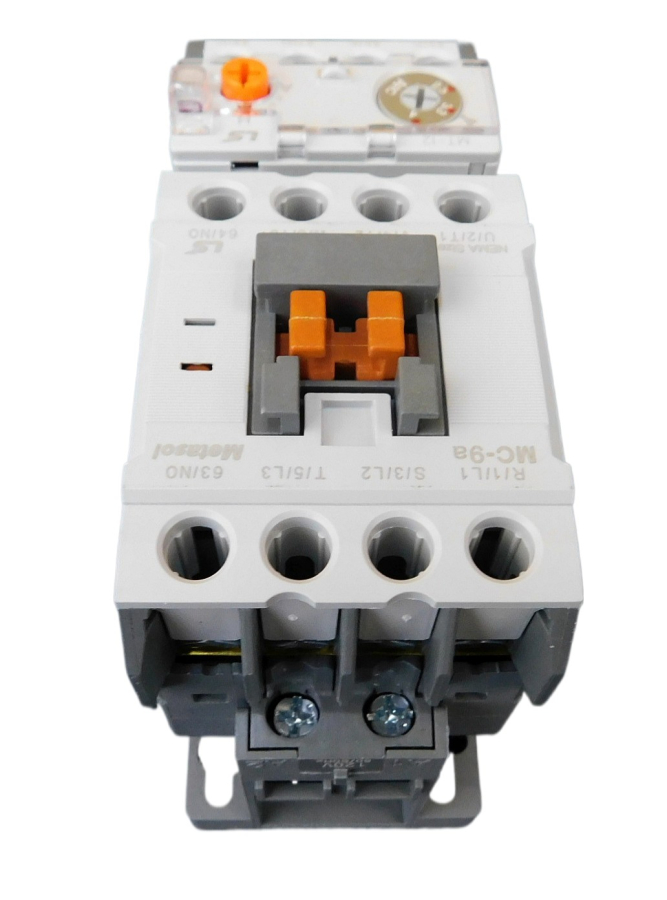

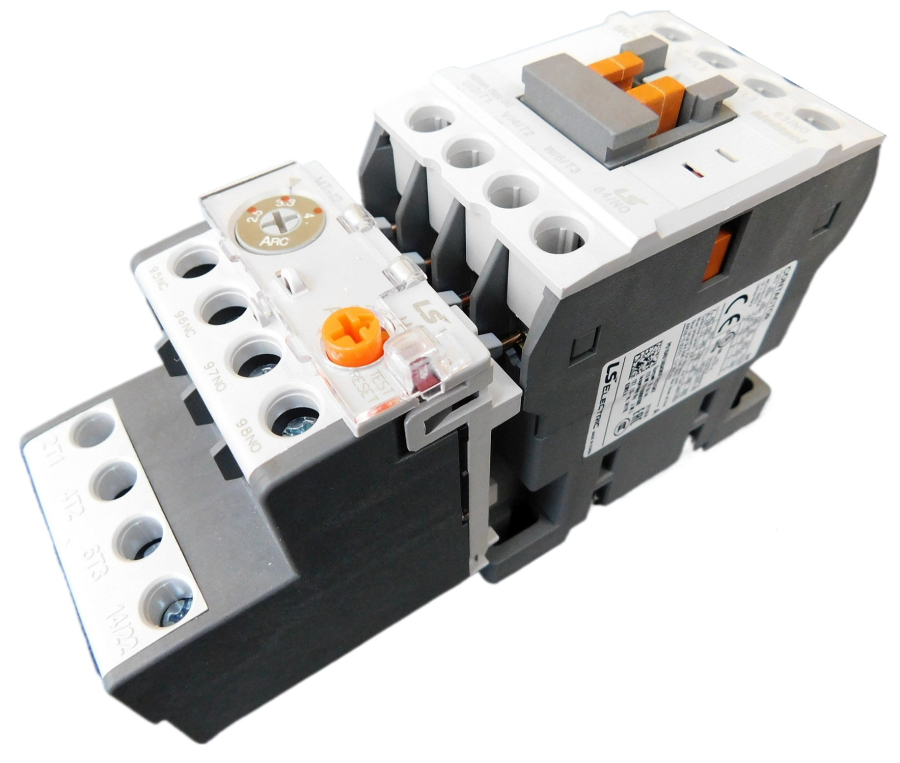

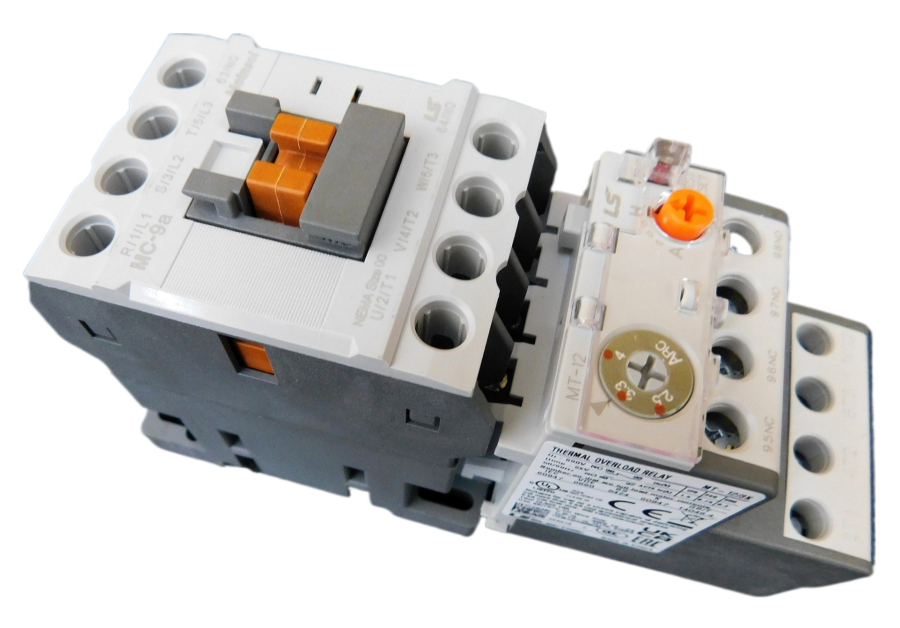

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor - Nema Size 2, IEC Size 18
• Overload - Class 10 differential type, phase failure protection
• Coil - 230V
• Contactor HP rating UL - 3HP @ 240V, 1PH
• Overload trip range - 12-18 Amps
• Sized for Normal loaded 3 HP, 208-240V, 1PH, Single Phase.
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size 12
