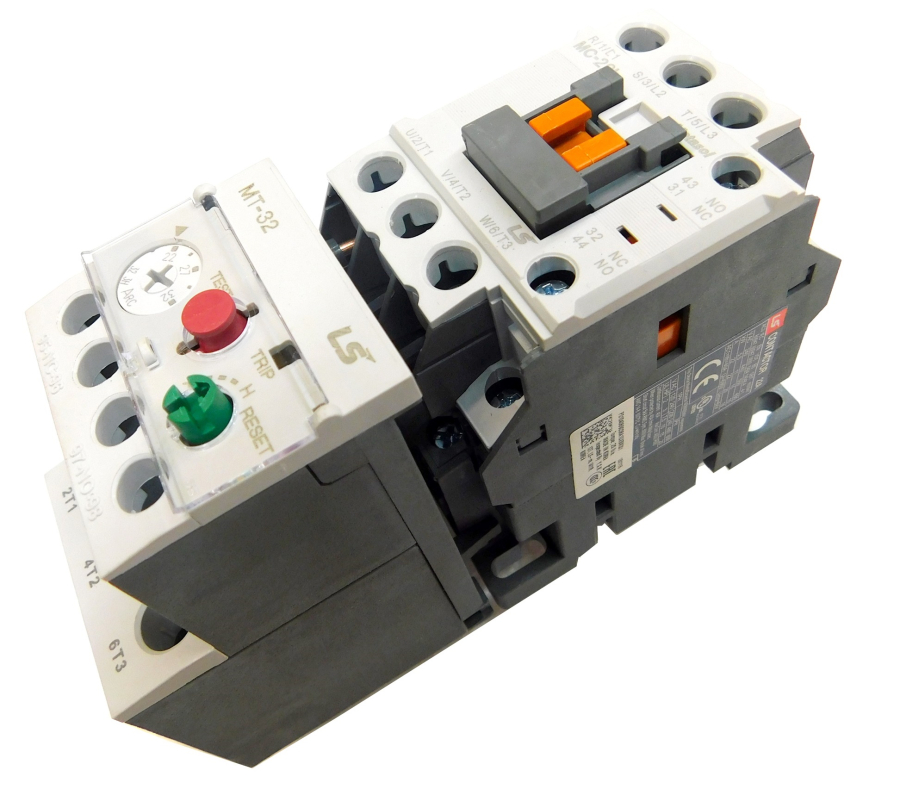

Complete motor starter sized for Normal or Heavy loaded 3 HP, 240V, 1PH, Single Phase. Operating Voltage is 208-240V.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

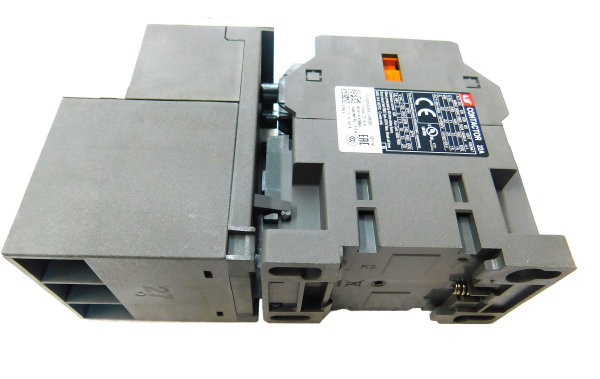

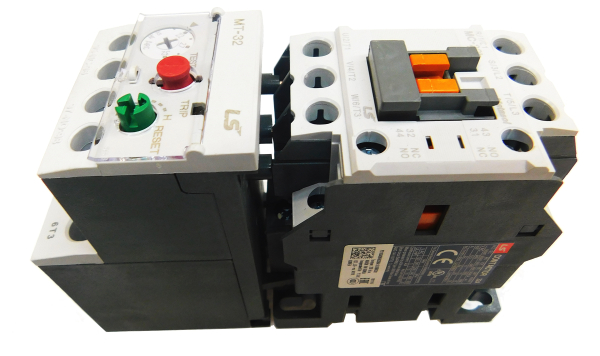

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

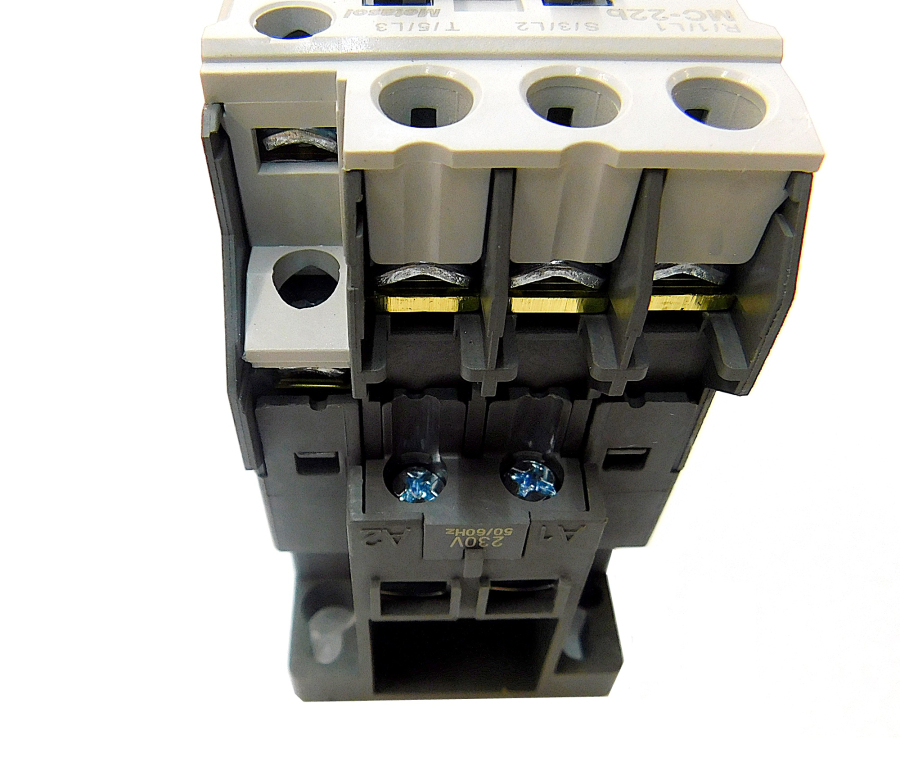

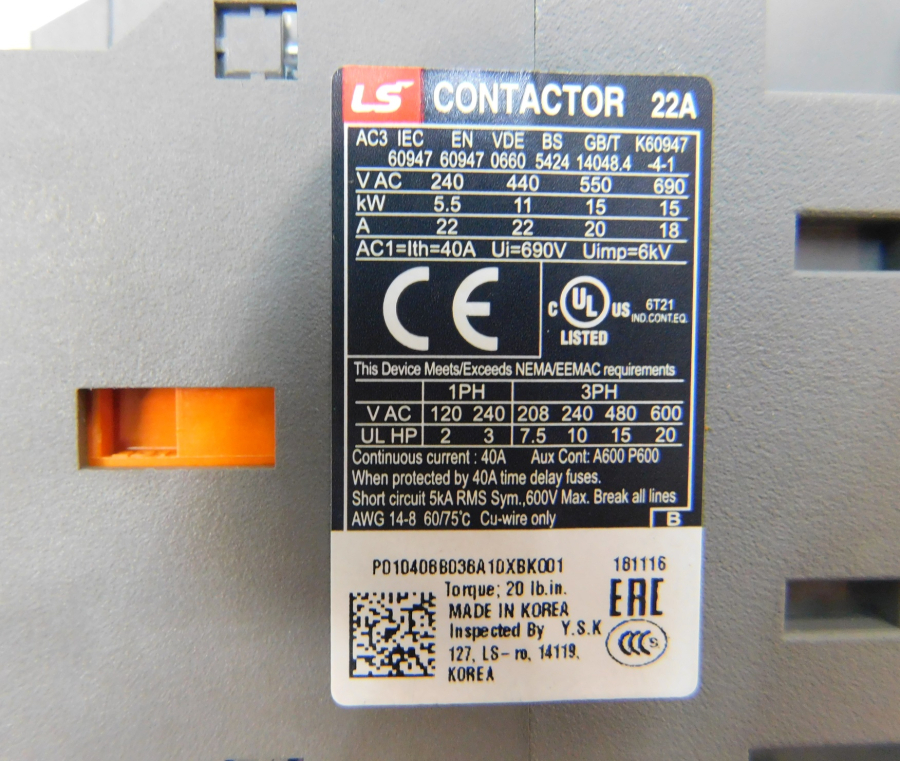

- Contactor - IEC Size 22
- Overload - Class 10 differential type, phase failure protection
- Coil - 230V
- Contactor HP rating UL - 3HP @ 240V, 1PH
- Overload trip range - 12-18 Amps
- Sized for Normal or Heavy loaded 3 HP, 240V, 1PH, Single Phase.
- Includes (1) N/O auxiliary contact built in the contactor
- Overload frame size 32
