Complete motor starter sized for Normal loaded 5 HP, 240V, 1PH, Single Phase. Operating Voltage is 208-240V.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

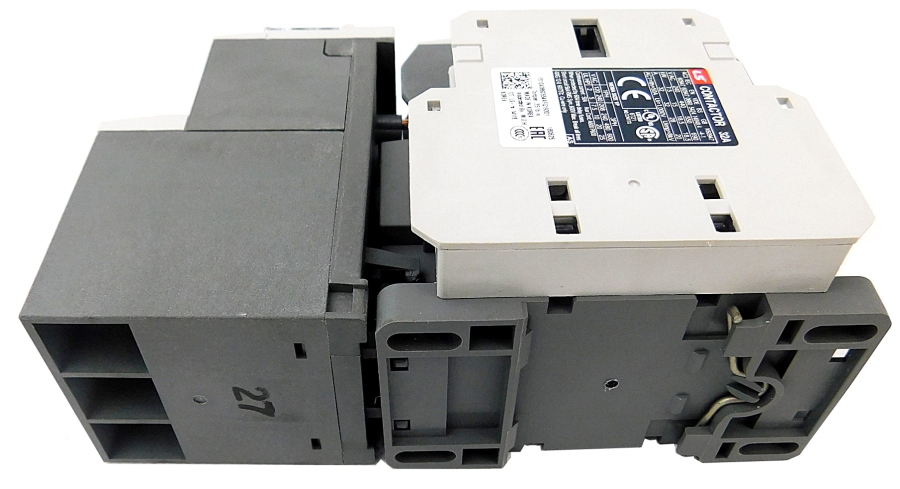

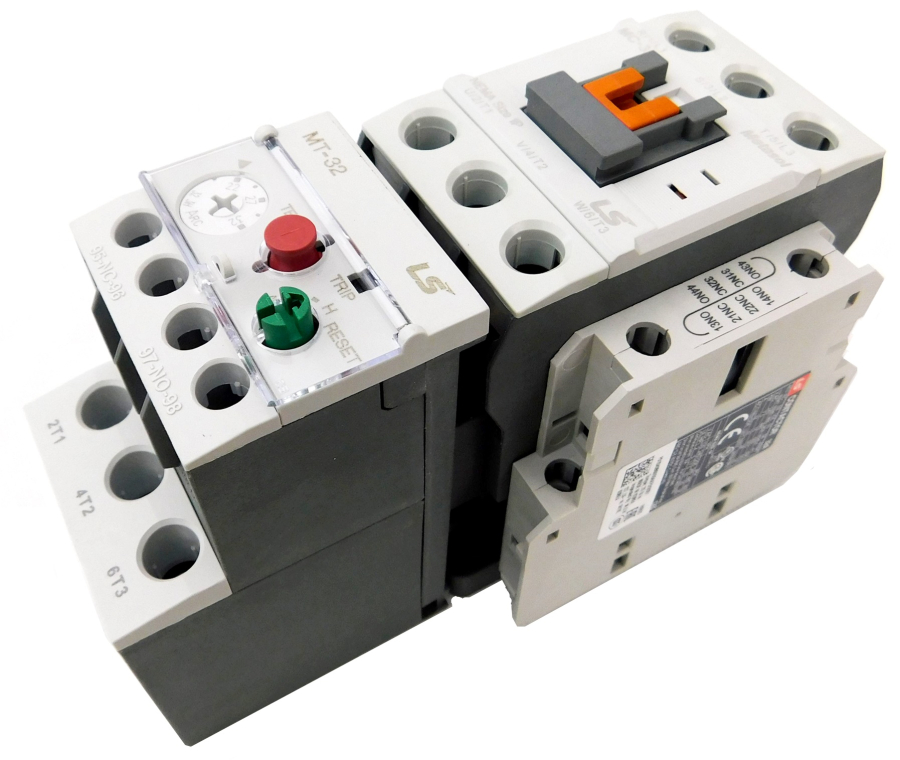

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

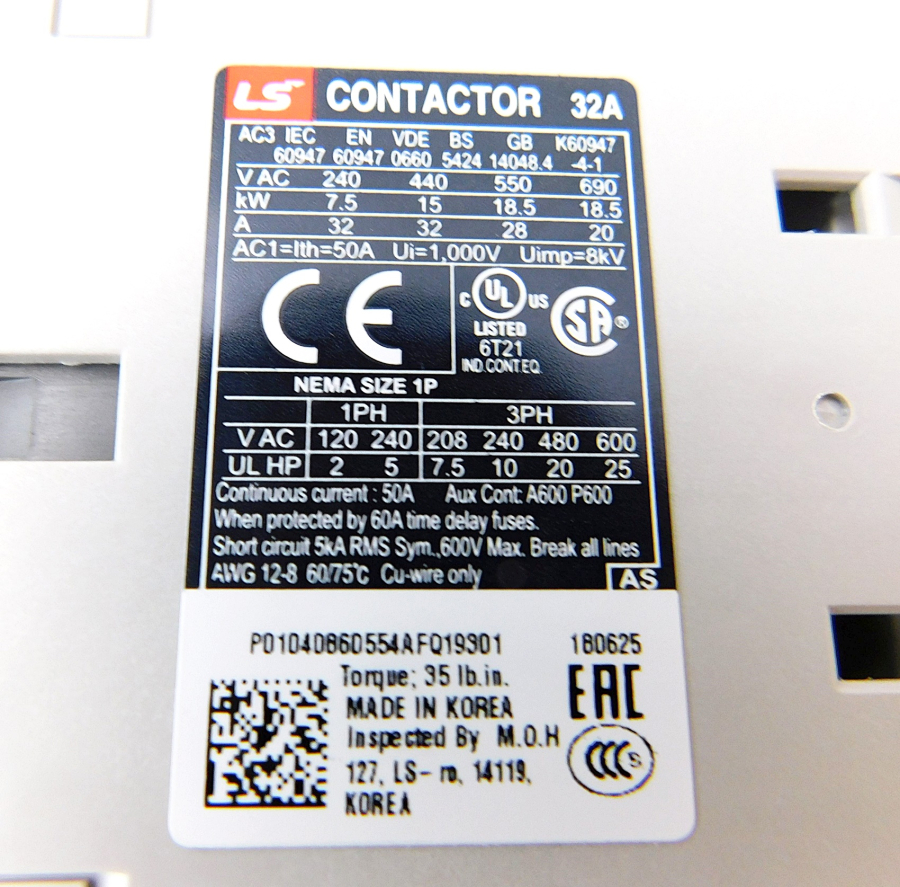

- Contactor - Nema Size 1P, IEC Size 32

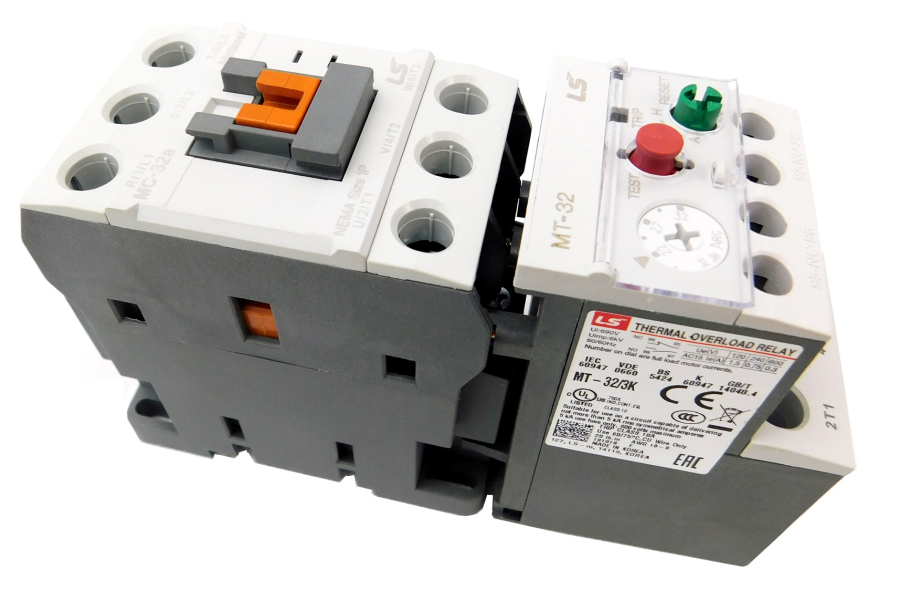

- Overload - Class 10 differential type, phase failure protection

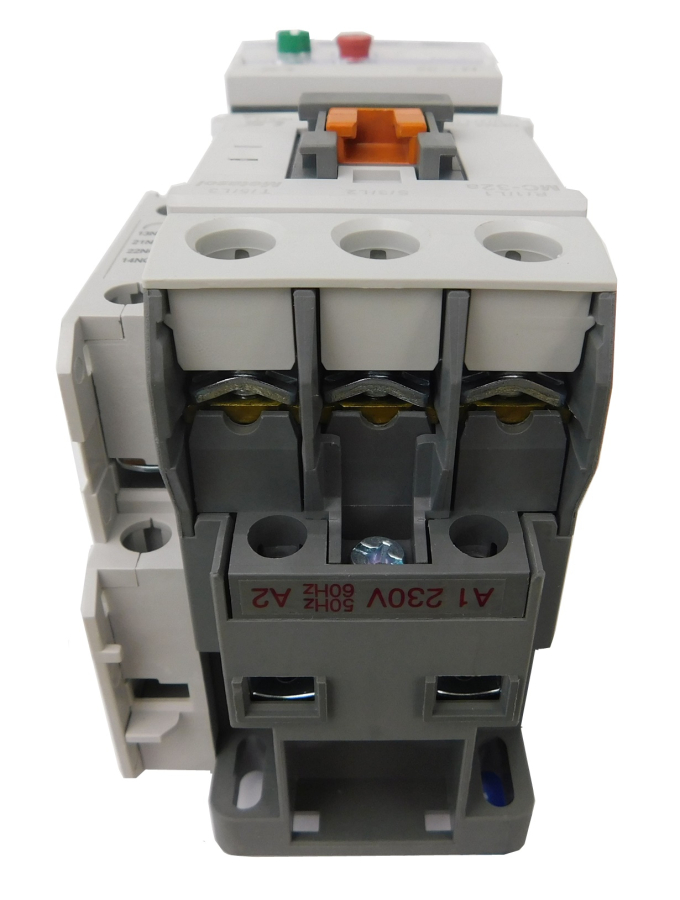

- Coil - 230V
- Contactor HP rating UL - 5HP @ 240V, 1PH
- Overload trip range - 22-32 Amps
- Sized for Normal loaded 5 HP, 240V, 1PH, Single Phase
- Includes (1) N/O auxiliary contact built in the contactor
- Overload frame size 32
