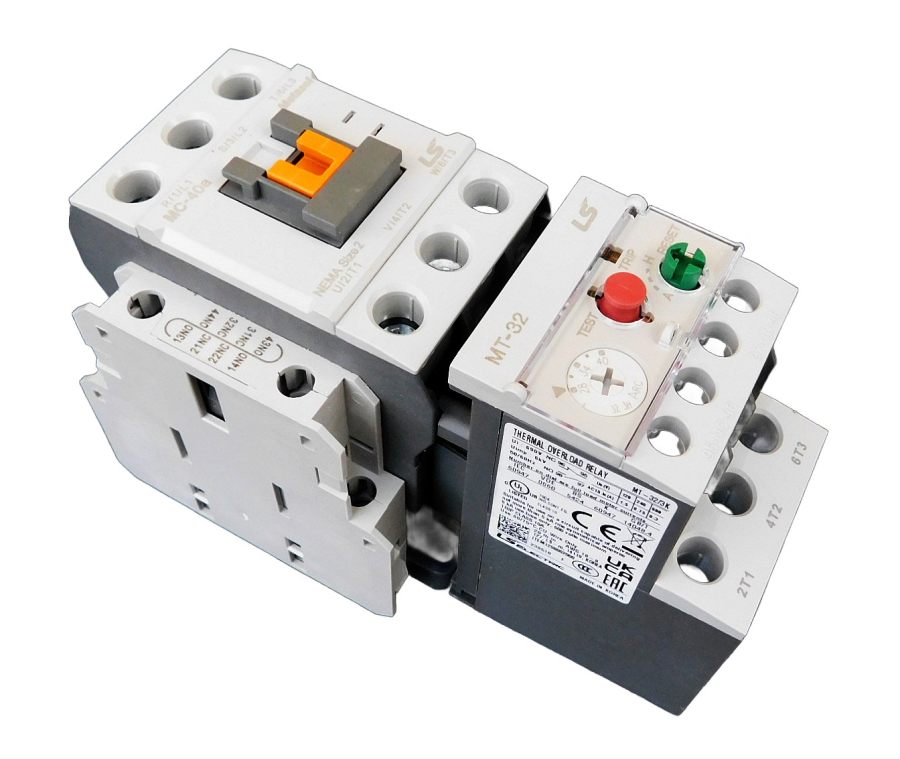

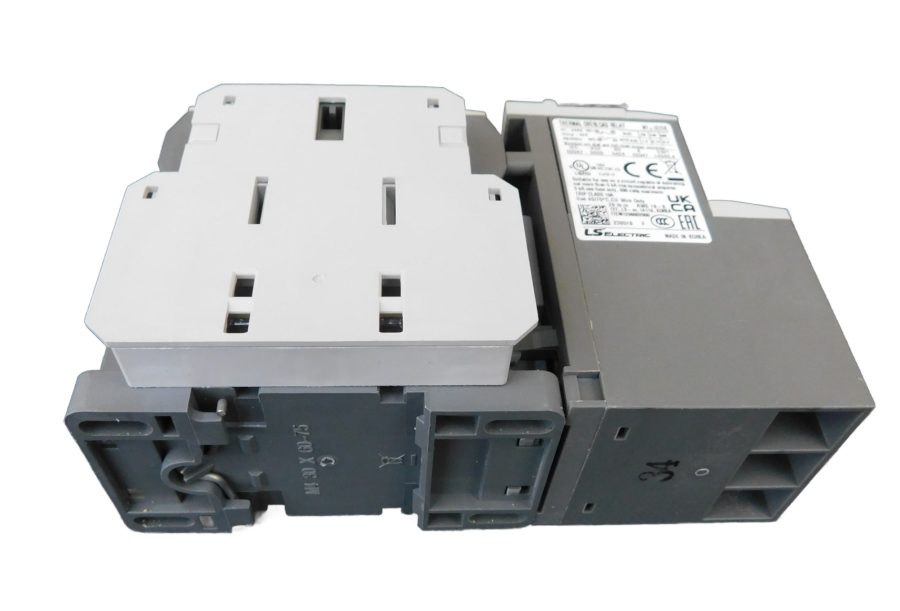

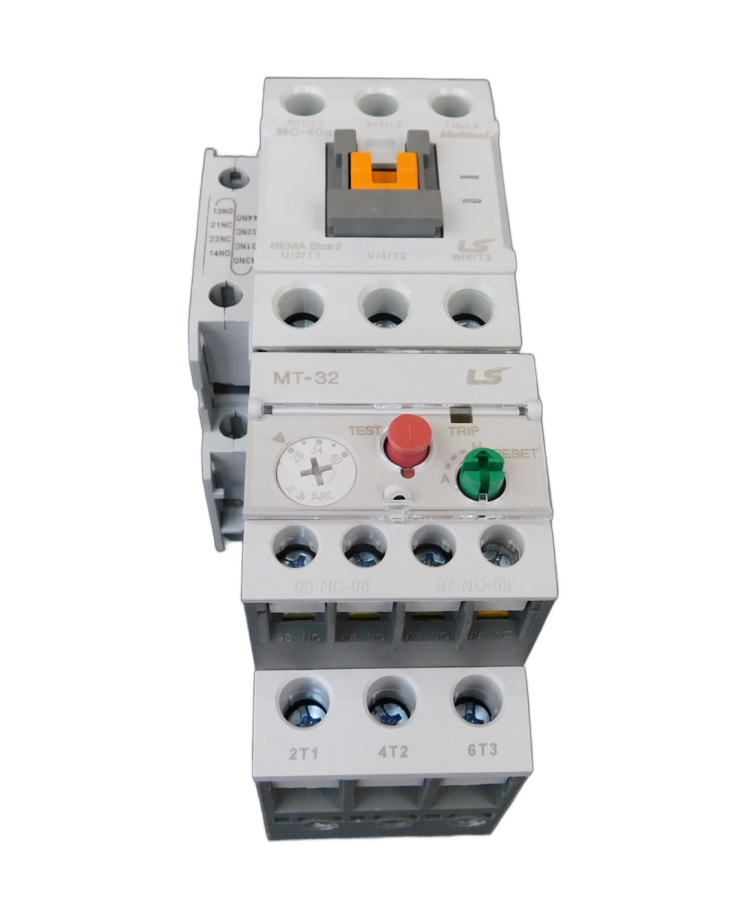

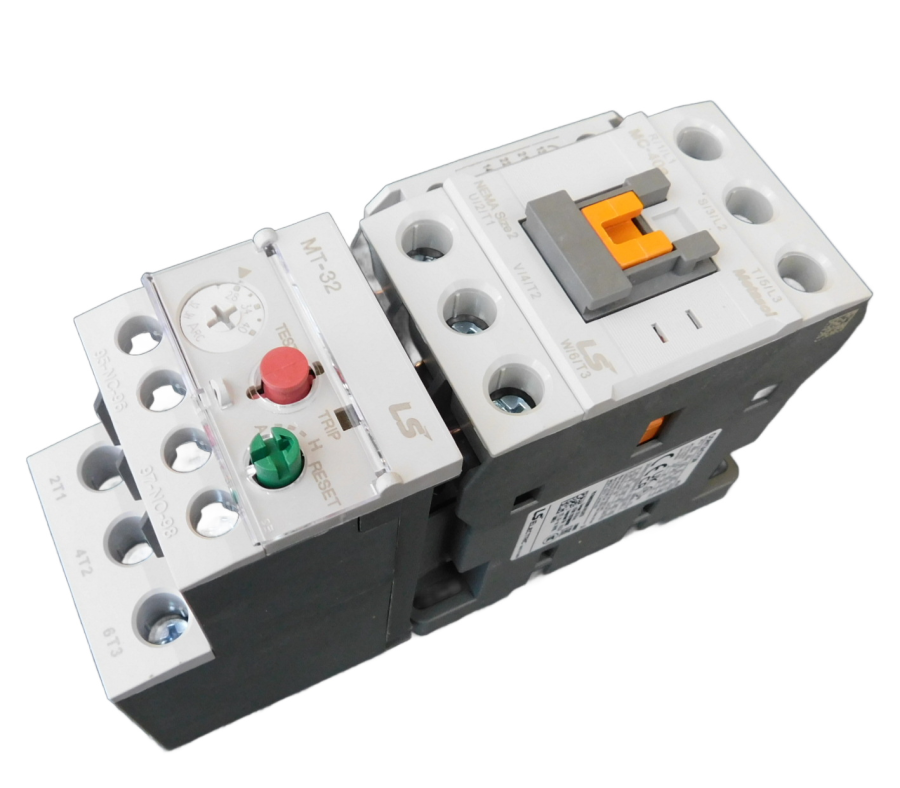

Motor Starter, 22-32 Amp, 230V Coil, 5HP 240V, 1PH, Nema Size 2, IEC Size 40

0 Review(s)
Stock:
In Stock
Complete motor starter sized for Normal or Heavy loaded 5 HP at 240V, 1PH, Single Phase. Operating Voltage is 208-240V. Contactor, Nema Size 2, IEC Size 40. Overload Frame size 32. Heavy duty set up. Elimia PN: 22-32-230-40
$98.00

Complete motor starter sized for a Normal or Heavy loaded 5 HP at 240V, 1PH, Single Phase. Operating Voltage is 208-240V.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

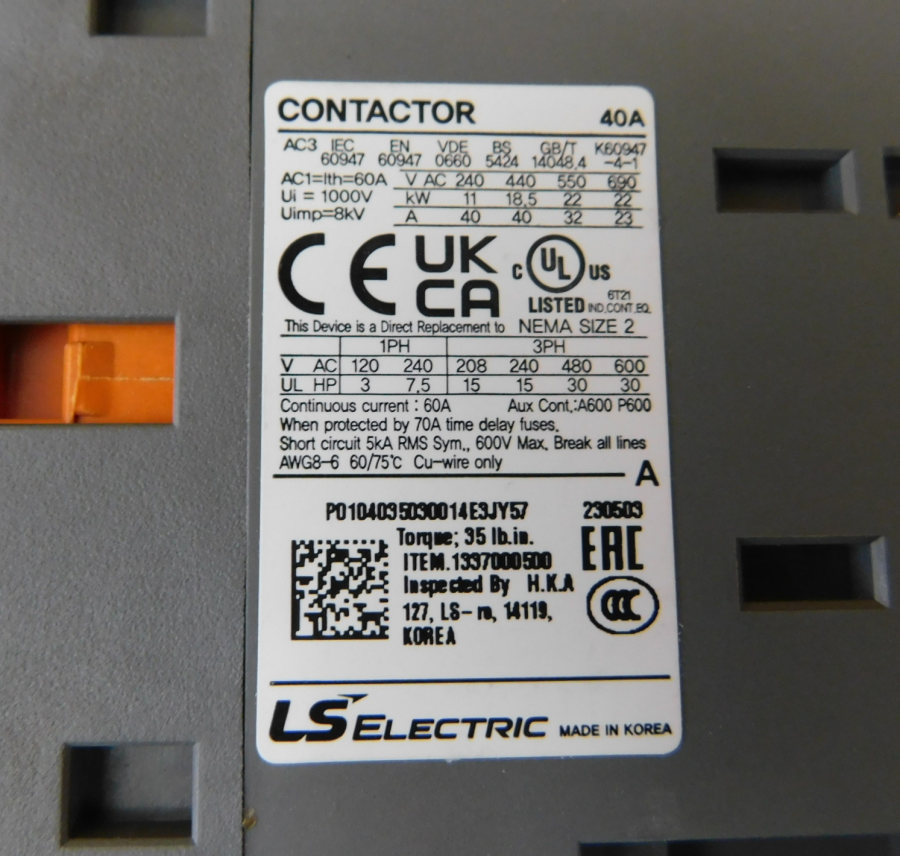

  • Contactor - Nema size 2, IEC size 40
  • Overload - Class 10 differential type, phase failure protection
  • Coil - 230V
  • Contactor HP rating UL - 7.5 HP @ 240V, 1PH
  • Overload trip range - 22-32 Amps
  • Sized for Normal or Heavy loaded 5 HP 240V, 1PH, Single Phase
  • Includes (1) N/O & (1) N/C auxiliary contact
  • Overload Frame size 32
