10 HP 230V Enclosed Motor Starter w/ Main Disconnect, Nema 4X Push Button Controls

Read the descripton fully. Picture may vary from specifications.

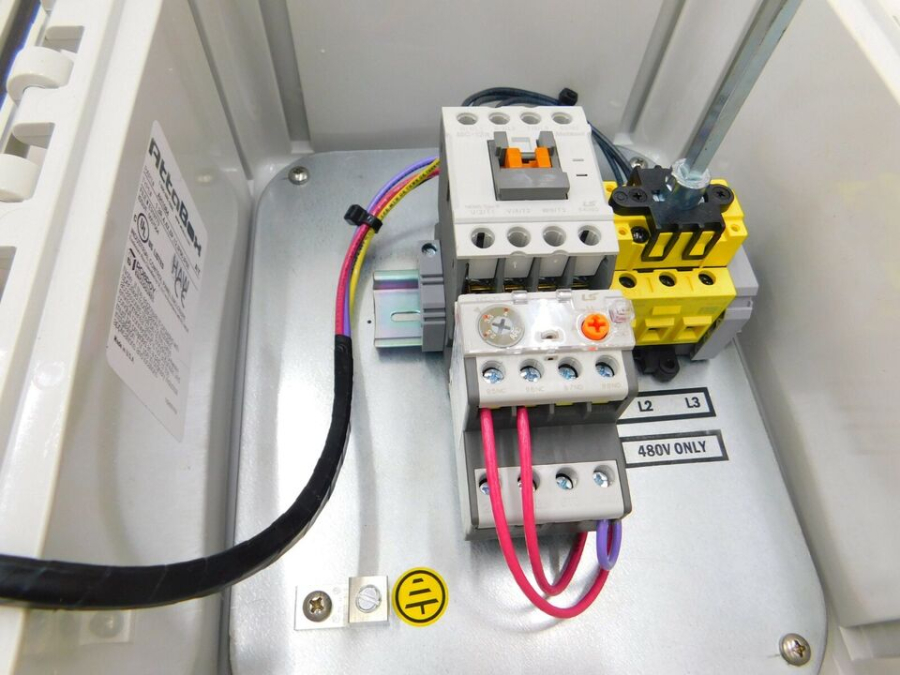

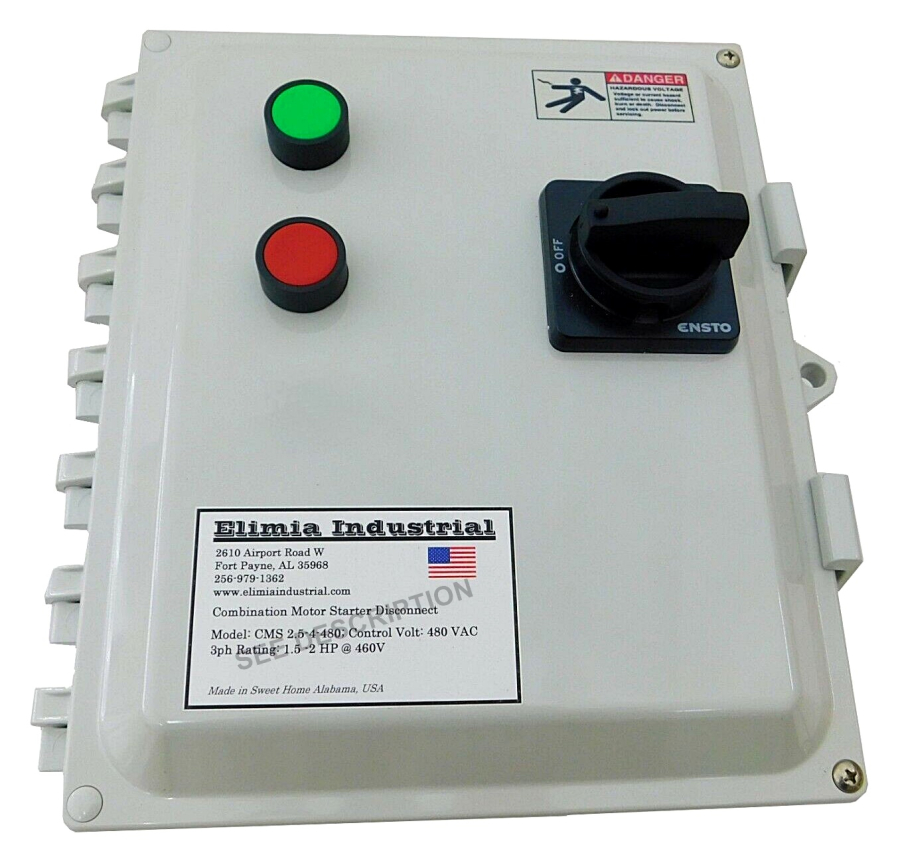

Complete enclosed motor starter control panel with main disconnect.

Meets requirements for a local disconnect with lock out handle.

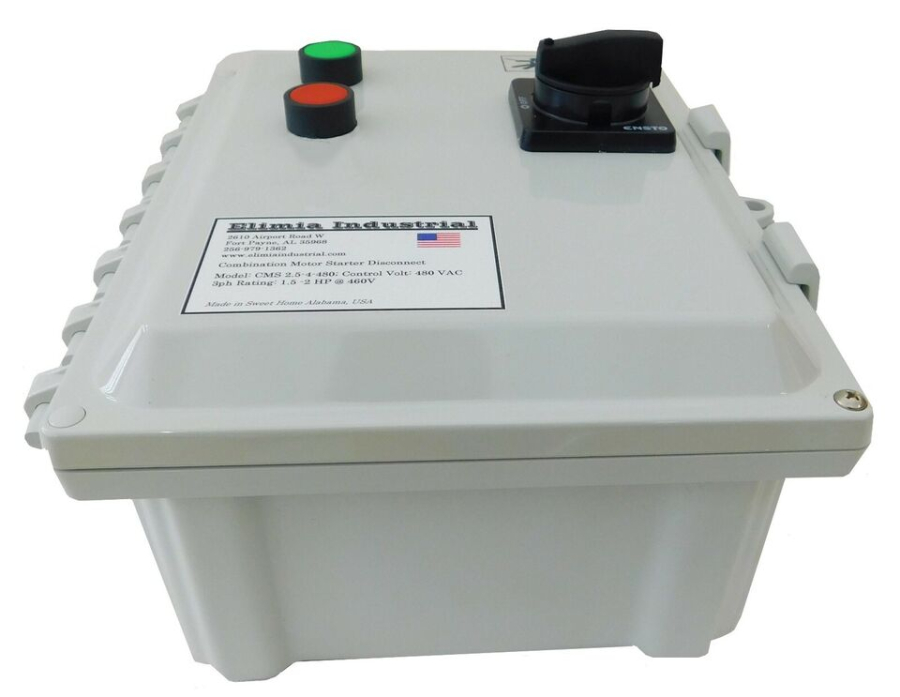

Heavy duty Polycarbonate enclosure with latches.

Pre-wired for easy installation.

Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.

Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.

Specifications:

• Enclosure - Polycarbonate Nema 4X, 10x8x4 (size will be 12x10x6 if certain options are applied)
• Motor Starter - Nema Size 1P, IEC size 32
• Coil - 230V Control Voltage
• Contactor HP rating UL - 10 HP @ 230V, 3PH
• Overload trip range - 22-32 Amps
• Sized for Normal loaded 10 HP @ 230V, 3PH
• Main Disconnect - 40 Amp UL508 with door mounted handle, lock out-tag out
• Controls - Momentary push buttons with A600 contacts
• UL508A certified

Sized for Normal loaded 10 HP @ 230V Motor, 3PH, 208-240V Controls

Use 28-40 Amp Unit for 10HP 208V, 3PH.

Contact us if you have any questions - 256-979-1362
