10 HP 208V Enclosed Motor Starter w/ Main Disconnect, Nema 4X Push Button Controls
Stock:
In Stock
Combines a motor starter and disconnect in one easy to install control panel.
Lots of options can be added to customize to your needs.

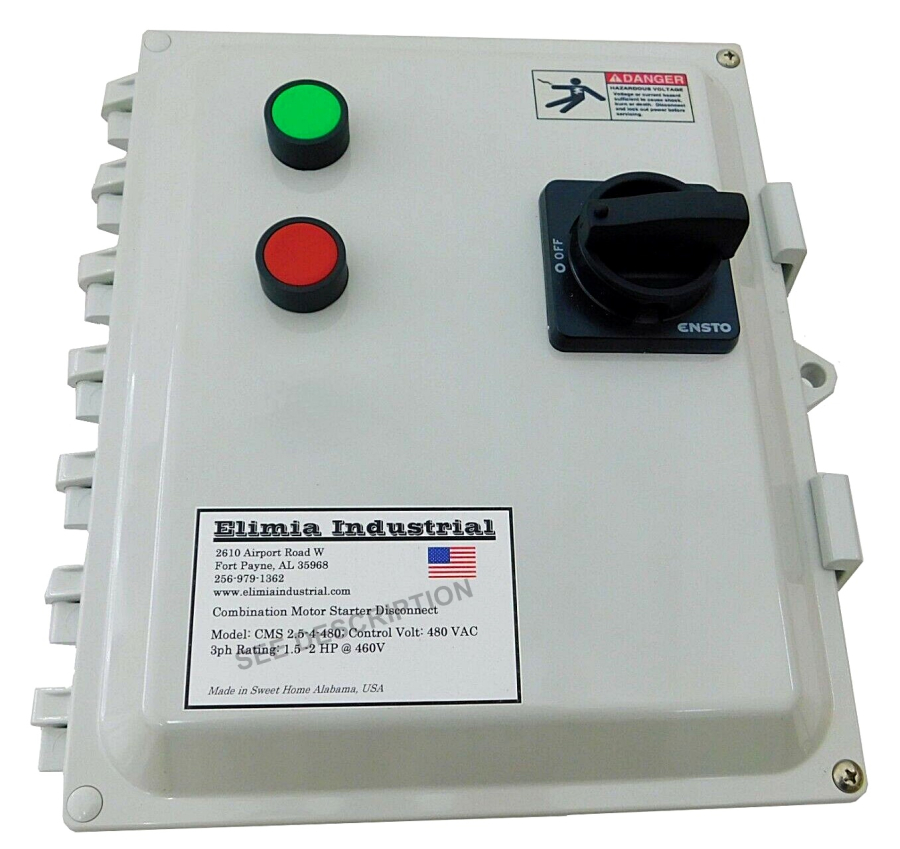

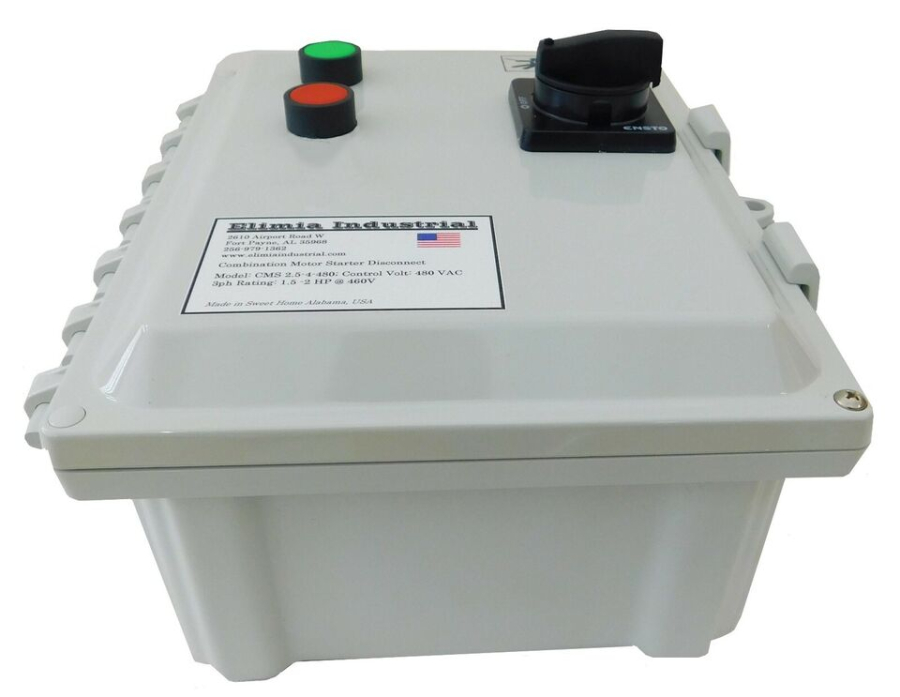

Read the descripton fully. Picture may vary from specifications.

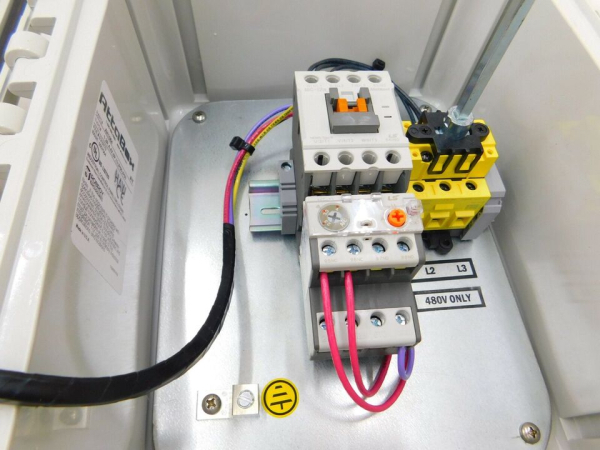

Complete enclosed motor starter control panel with main disconnect.
Meets requirements for a local disconnect with lock out handle.
Heavy duty Polycarbonate enclosure with latches.
Pre-wired for easy installation.
Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.
Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.
Specifications:
- Enclosure - Polycarbonate Nema 4X, 10x8x4 (size will be 12x10x6 if certain options are applied)
- Motor Starter - Nema Size 2, IEC size 40
- Coil - 230V Control Voltage
- Contactor HP rating UL - 10 HP @ 208V, 3PH
- Overload trip range - 28-40 Amps
- Sized for Normal loaded 10 HP @ 208V, 3PH
- Main Disconnect - 40 Amp UL508 with door mounted handle, lock out-tag out
- Controls - Momentary push buttons with A600 contacts
- UL508A certified
Sized for Normal loaded 10 HP @ 208V Motor, 3PH, 208-240V Controls
Contact us if you have any questions - 256-979-1362
