15 HP 480V Enclosed Motor Starter, Nema 4X, Push Button

Read the descripton fully. Picture may vary from specifications.

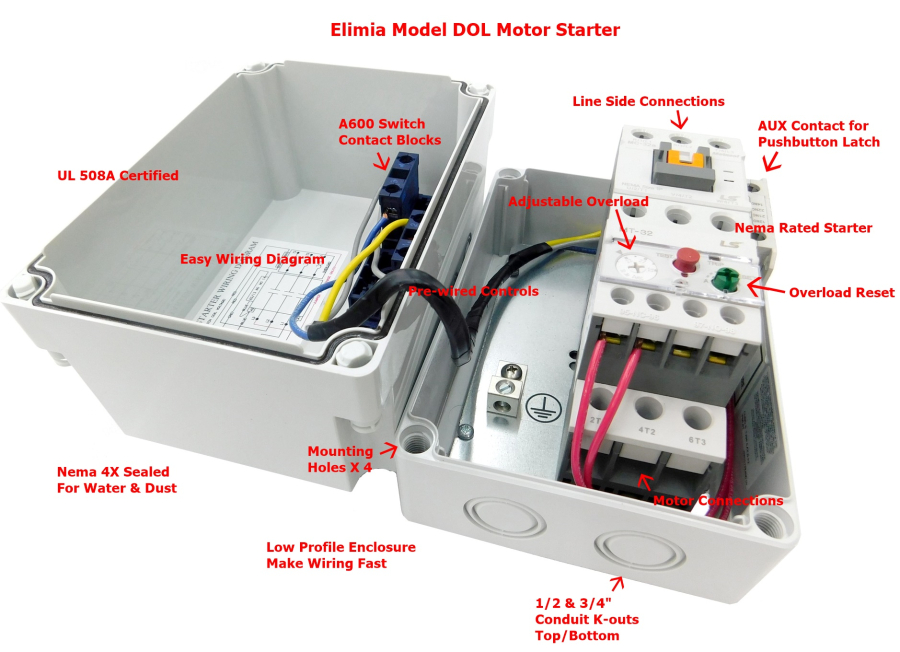

Complete enclosed motor starter.

All units unless noted are certified UL 508A and labeled.

Nema 4X Polycarbonate enclosure with screw cover lid.

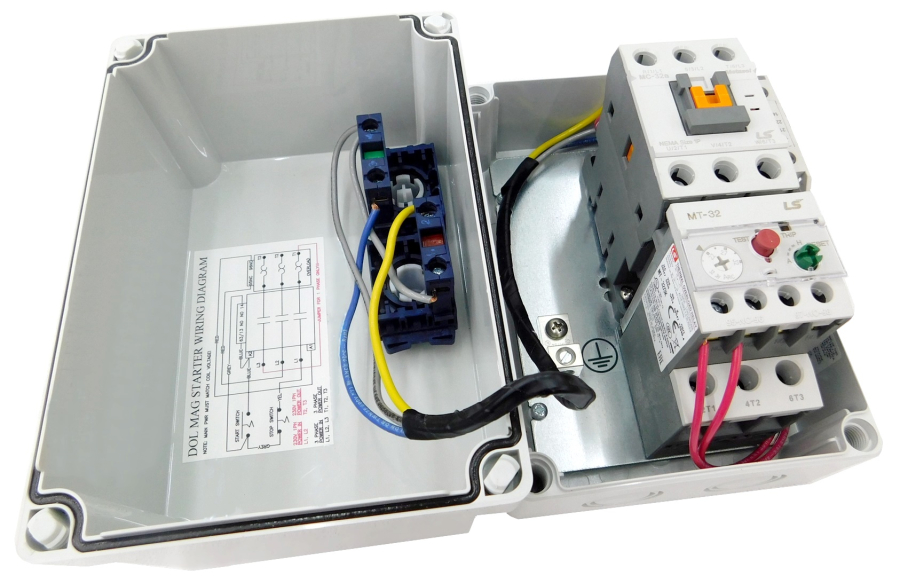

Pre-wired for easy installation.

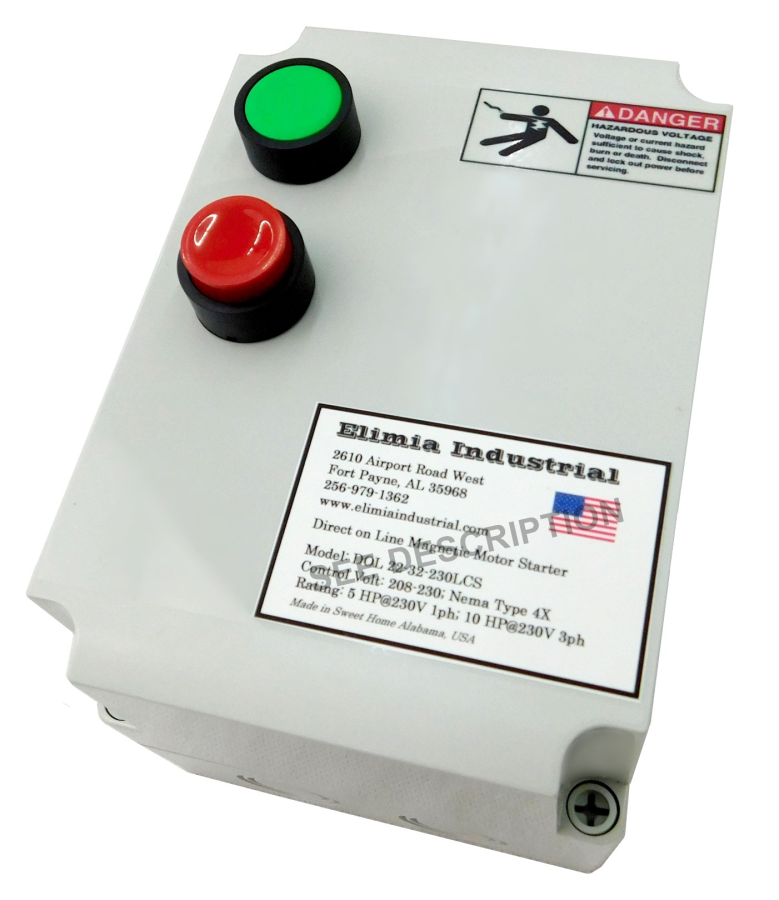

Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.

Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.

Specifications:

• Enclosure - Polycarbonate Nema 4X, 7x5x5
• Motor Starter - IEC size 32
• Coil - 480V Control Voltage
• Contactor HP rating UL - 20 HP @ 480V, 3PH
• Overload trip range - 18 - 25 Amps
• Sized for Normal loaded 15 HP @ 480V, 3PH
• Controls - Momentary push buttons with A600 contacts
• UL508A certified

Sized for Normal or Heavy loaded 15 HP @ 480V Motor, 3PH, 480V Controls

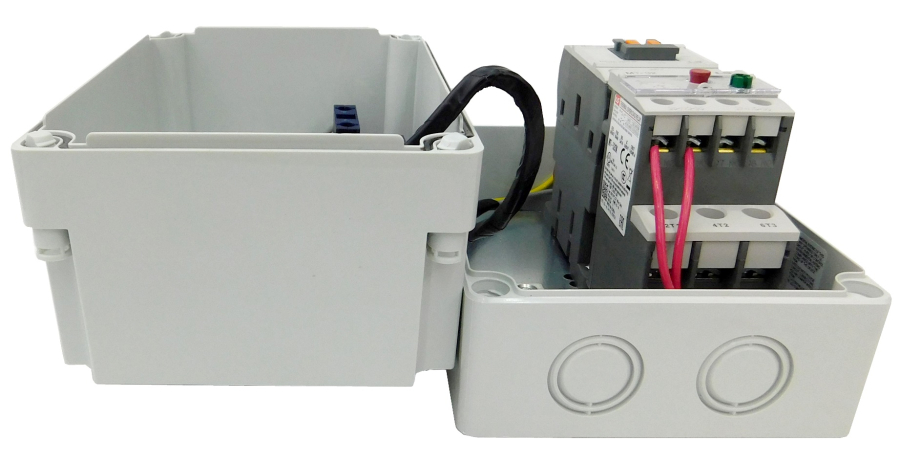

This is the largest motor starter frame size used in this compact, low cost, enclosure. There is no extra space for additional components. Additionally, wiring connectors in the enclosure will need to utilize the top left and bottom left areas.

Contact us if you have any questions - 256-979-1362
