3 HP 208-230V Enclosed Motor Starter, Nema 4X, Push Button
Stock:
In Stock
Pre-wired motor starter with push button controls in a heavy duty polycarbonate hinged enclosure.
Read the descripton fully. Picture may vary from specifications.

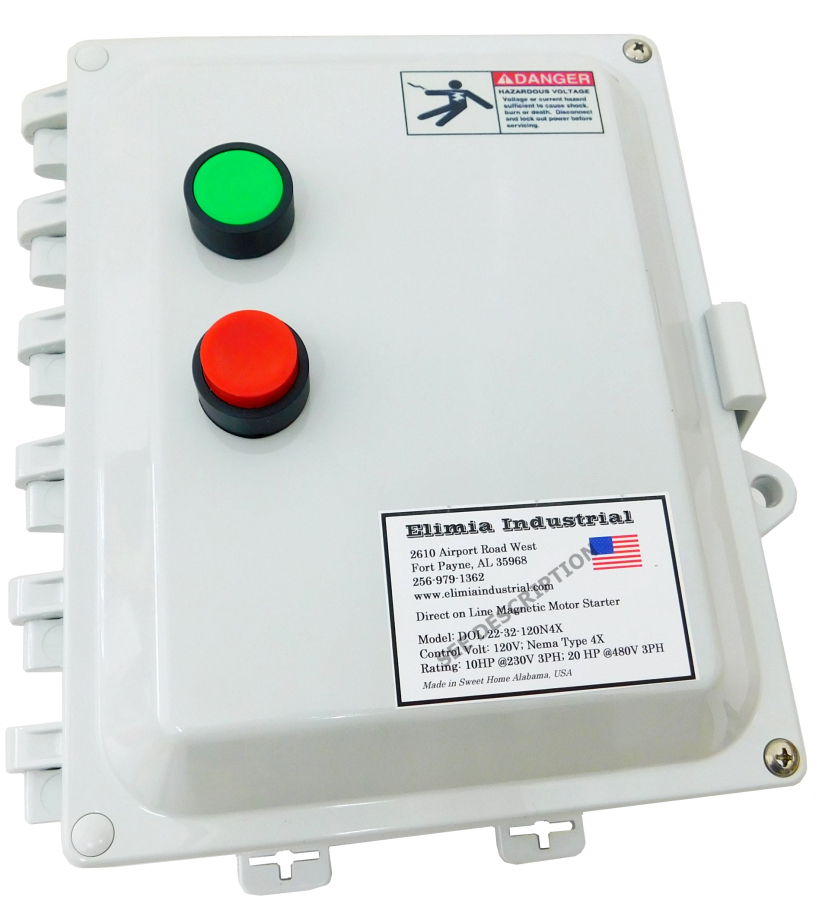

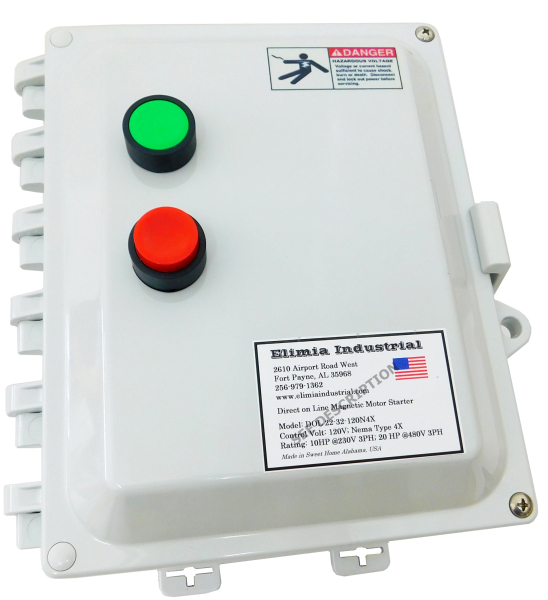

Complete enclosed motor starter.
All units unless noted are certified UL 508A and labeled.

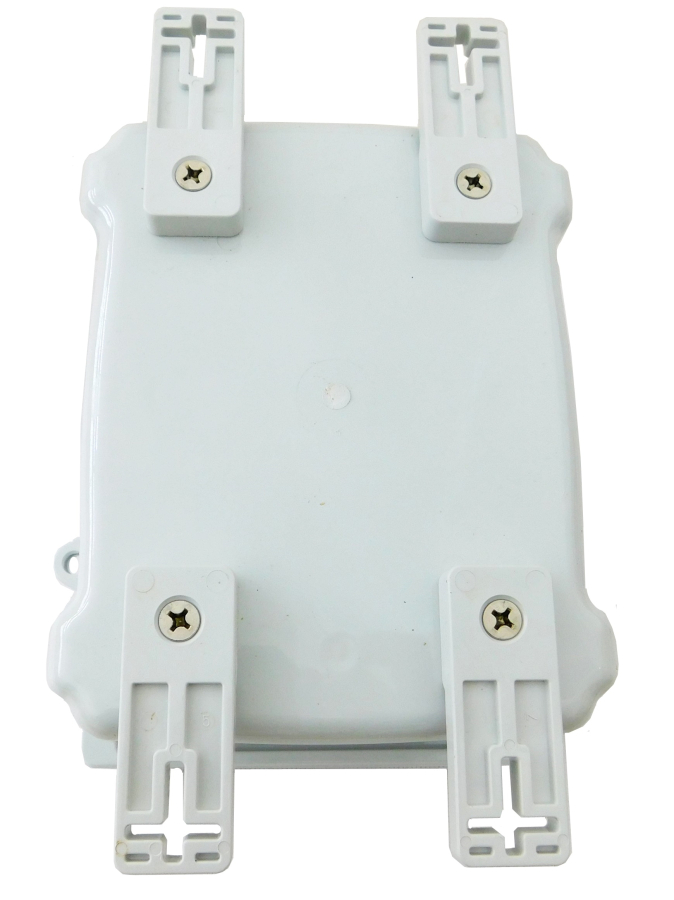

Nema 4X Polycarbonate enclosure with Hinged Door and Latches.

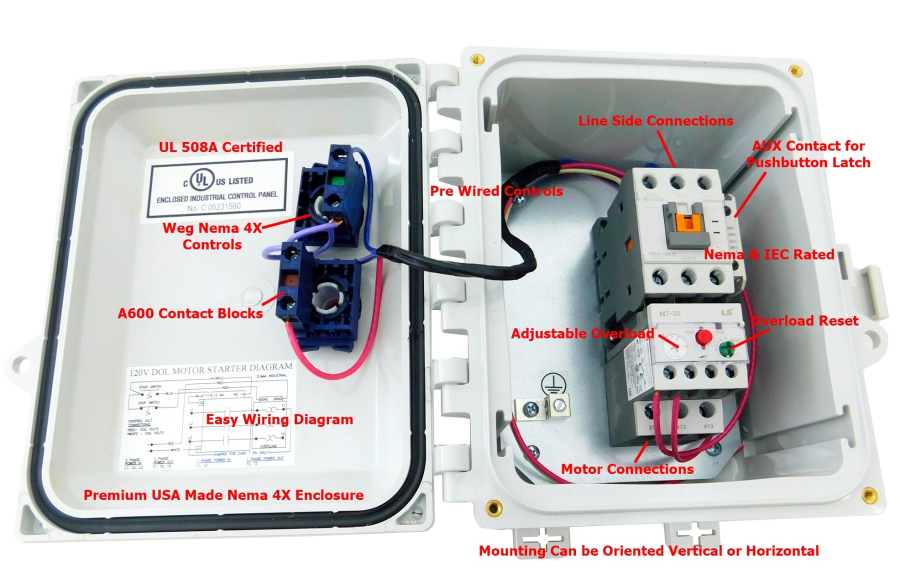

Pre-wired for easy installation.
Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.
Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.
Specifications:
- Enclosure - Polycarbonate with Hinged Door, Nema 4X, 8x6x4

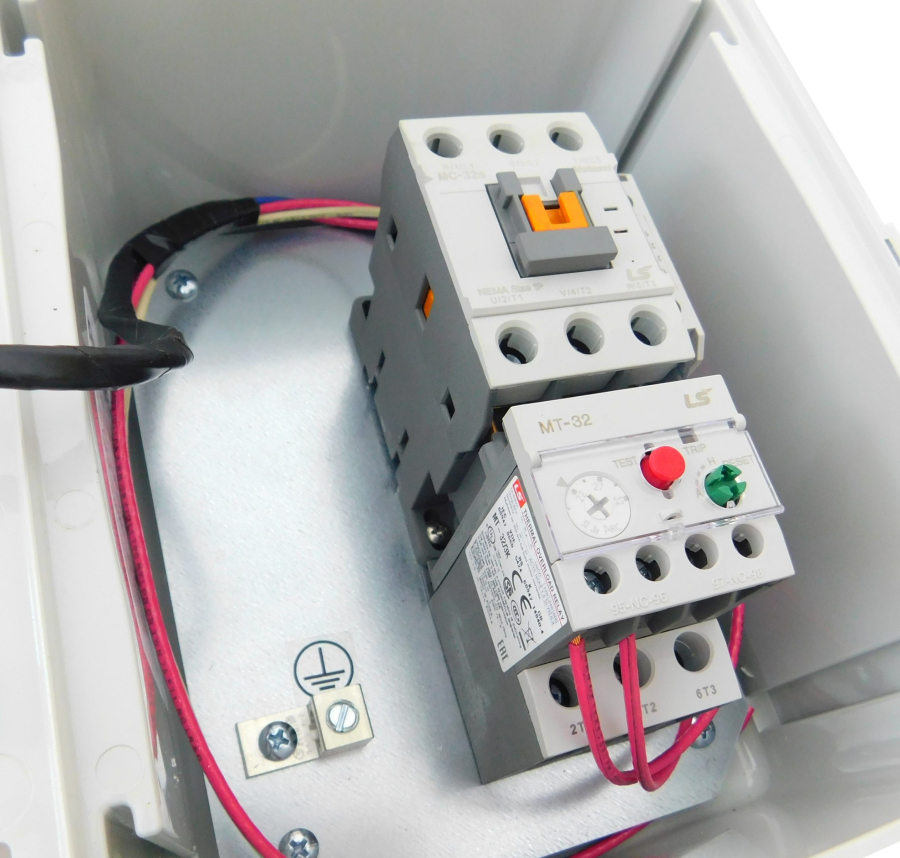

- Motor Starter - Nema size 1, IEC size 18
- Coil - 230V Control Voltage
- Contactor HP rating UL - 5HP @ 208V, 7.5HP @ 230V, 3PH
- Overload trip range - 9 - 13 Amps
- Sized for Normal loaded 3 HP @ 208-230V
- Controls - Momentary push buttons with A600 contacts
- UL508A certified
Sized for Normal loaded 3 HP @ 208-230V Motor, 3PH, 208-240V Controls
Contact us if you have any questions - 256-979-1362
