Motor Starter, 63-85 Amp, 230V Coil, 15HP 240V, 1PH, IEC Size 100
Stock:
In Stock
Complete motor starter sized for Heavy loaded 15HP at 240V, 1PH, Single Phase. Operating Voltage is 230VAC
Contactor, IEC Size 100. Overload Frame size 95. Heavy Duty set up. Elimia PN: 63-85-230-100
Complete motor starter sized for a Heavy loaded 15HP at 240V, 1PH, Single Phase. Operating Voltage is 230VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

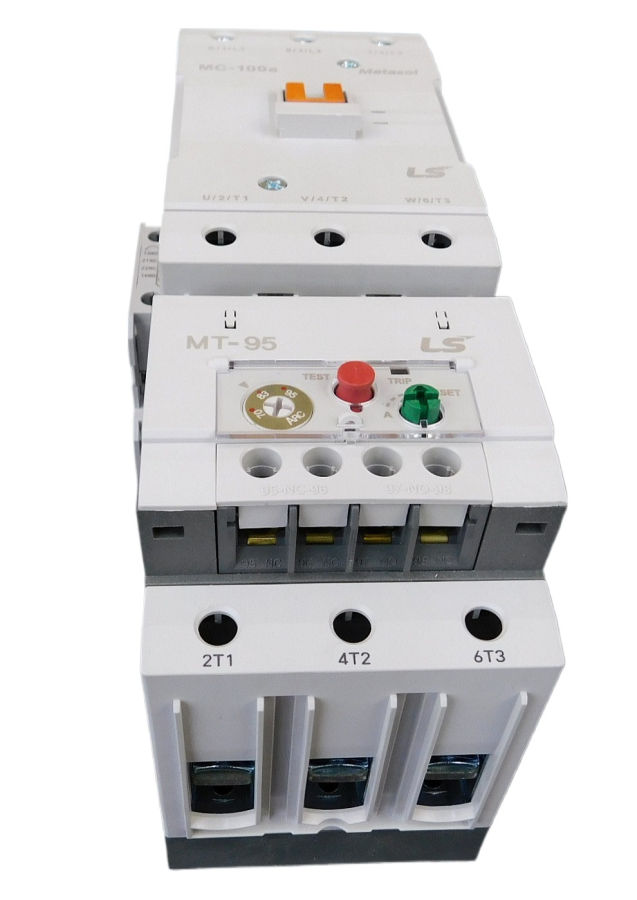

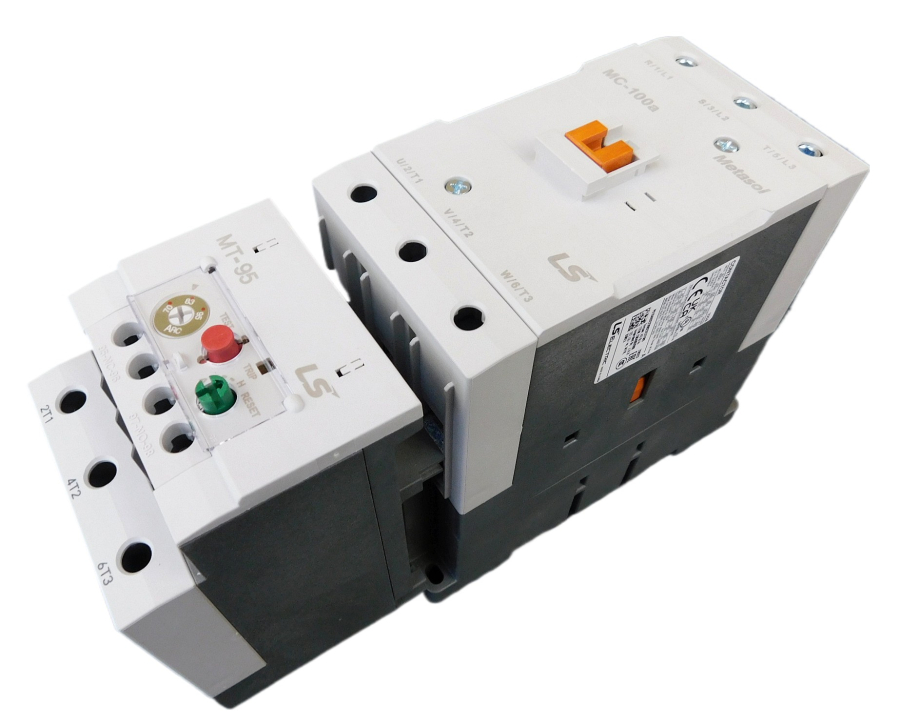

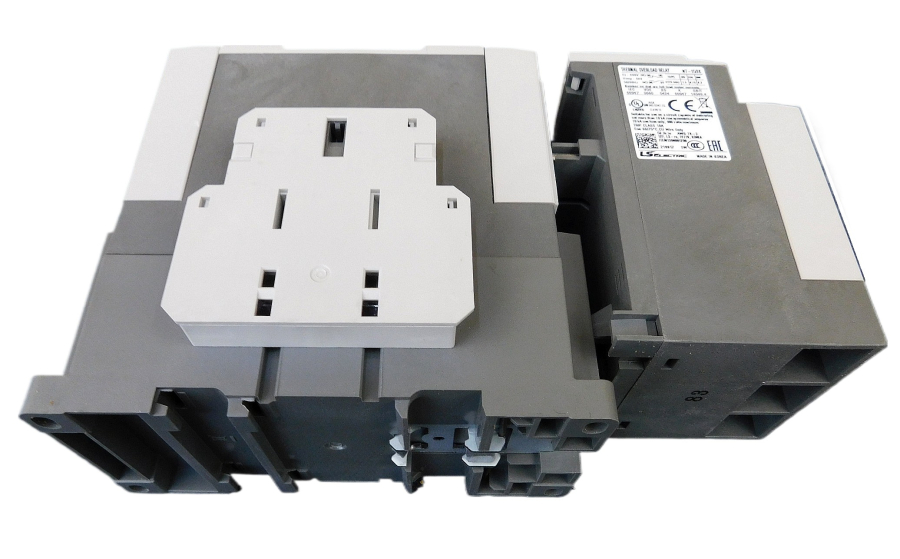

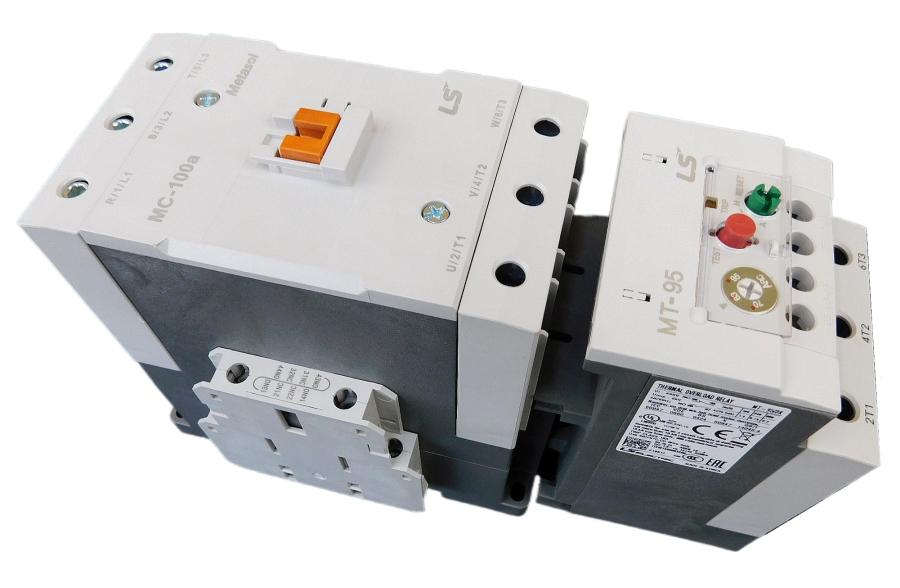

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

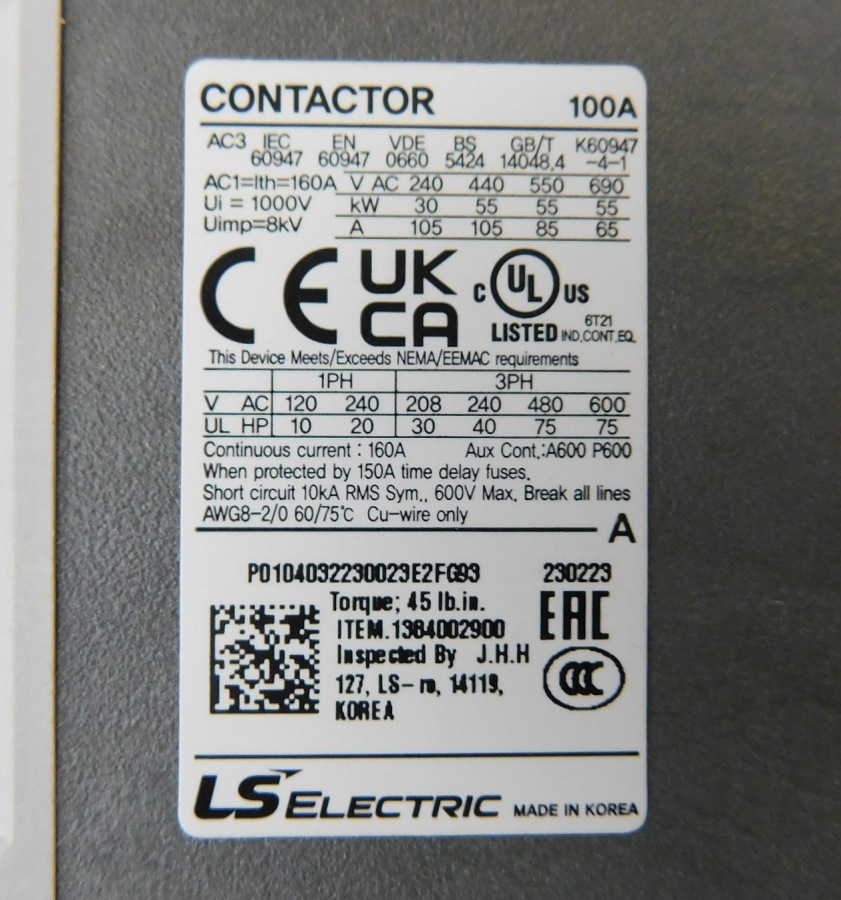

- Contactor IEC size 100
- Overload - Class 10 differential type, phase failure protection
- Coil - 230V
- Contactor HP rating UL - 20 HP @ 240V, 1PH
- Overload trip range - 63-85 Amps
- Sized for Heavy loaded 15HP at 240V, 1PH, Single Phase
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 95
