Motor Starter, 63-85 Amp, 230V Coil, 15HP 240V, 1PH, Nema Size 3, IEC Size 85
Stock:
In Stock

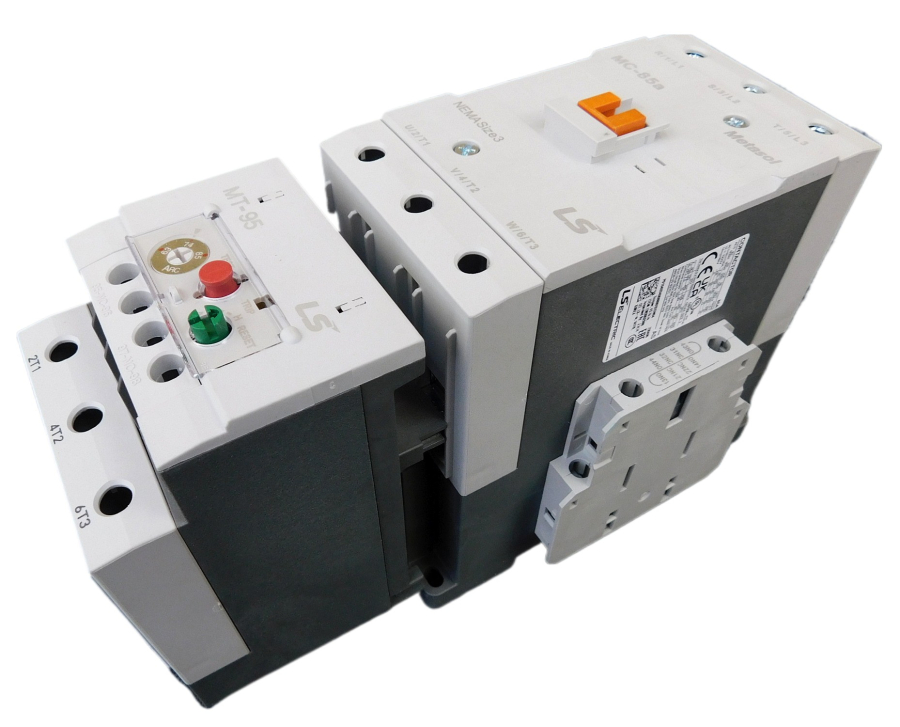

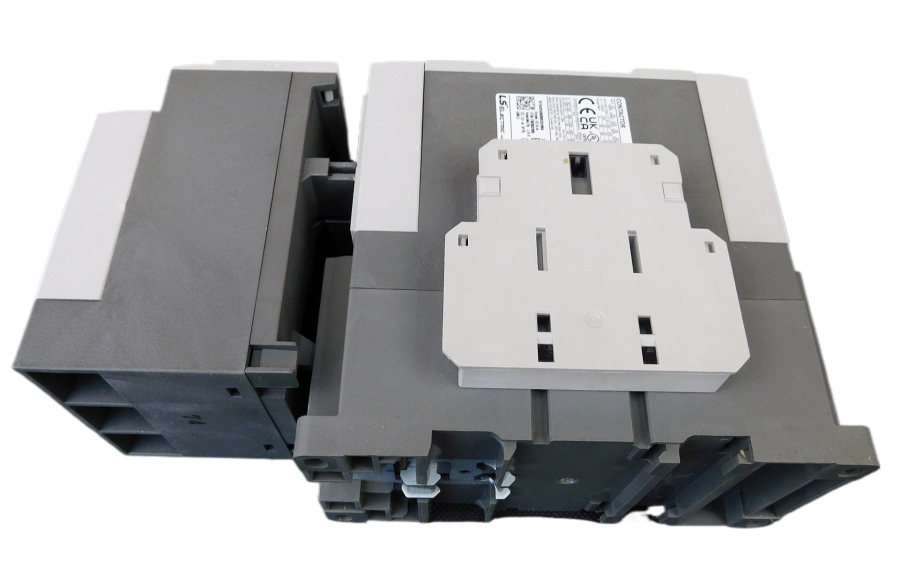

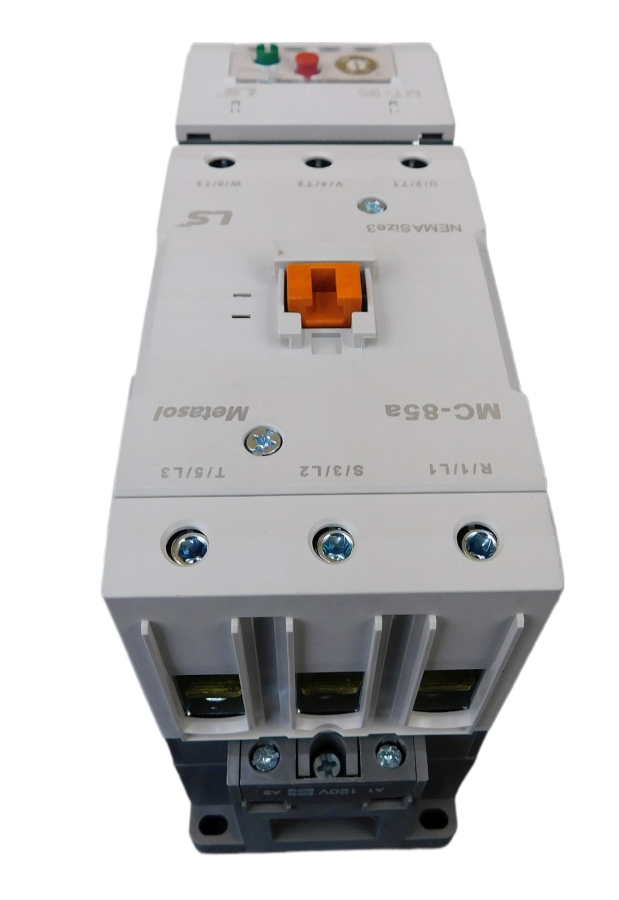

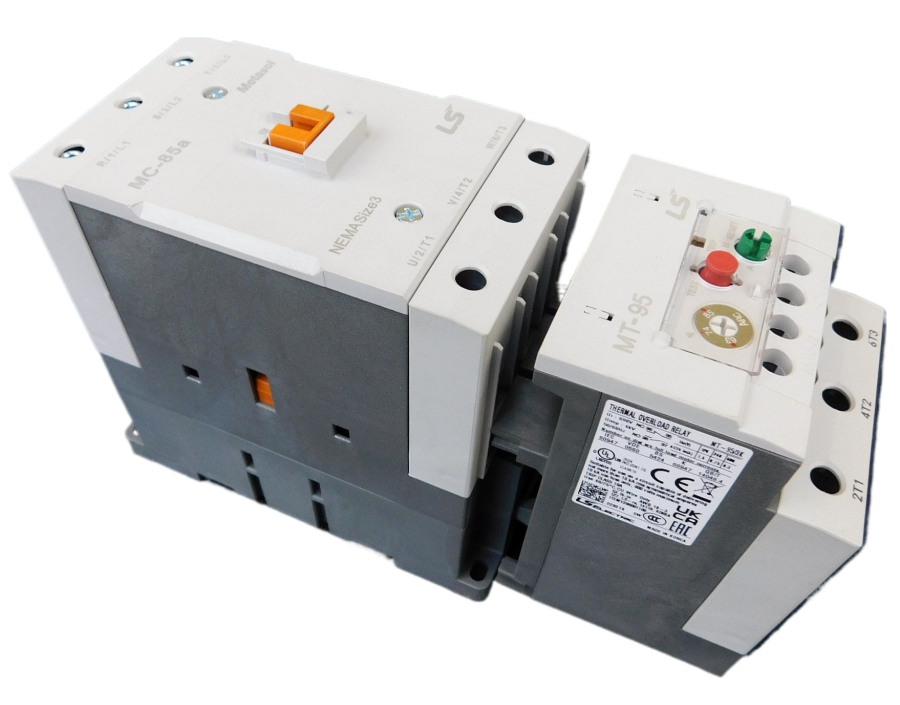

Complete motor starter sized for Normal loaded 15HP at 240V, 1PH, Single Phase. Operating Voltage is 230VAC
Contactor, Nema Size 3, IEC Size 85. Overload Frame size 95. Heavy Duty set up. Elimia PN: 63-85-23-85
Complete motor starter sized for a Normal loaded 15HP at 240V, 1PH, Single Phase. Operating Voltage is 230VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

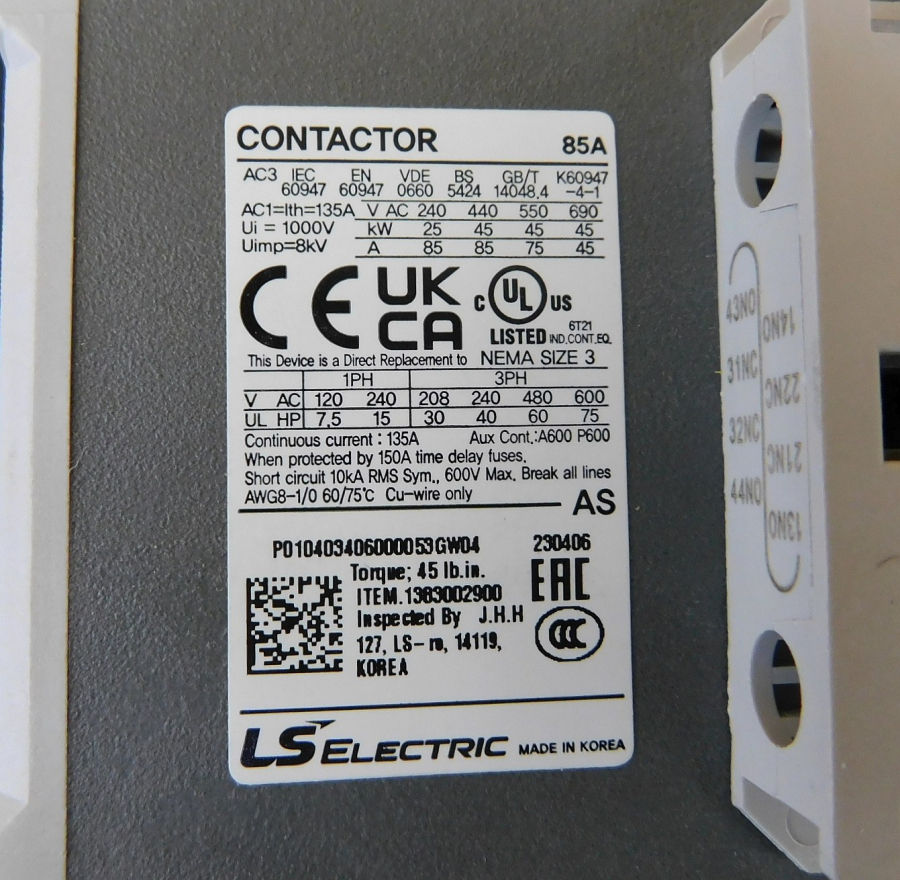

- Contactor - Nema Size 3, IEC size 85
- Overload - Class 10 differential type, phase failure protection
- Coil - 230V
- Contactor HP rating UL - 15 HP @ 240V, 1PH
- Overload trip range - 63-85 Amps
- Sized for Normal loaded 15HP at 240V, 1PH, Single Phase
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 95
