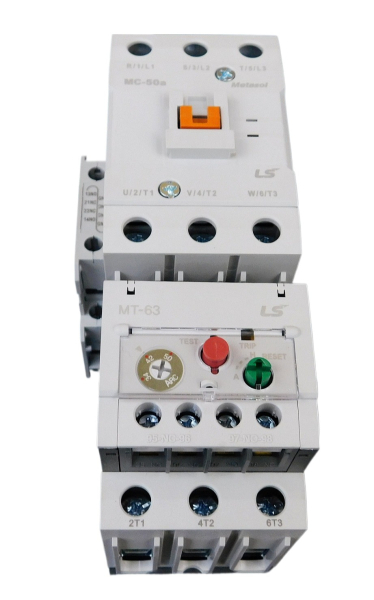

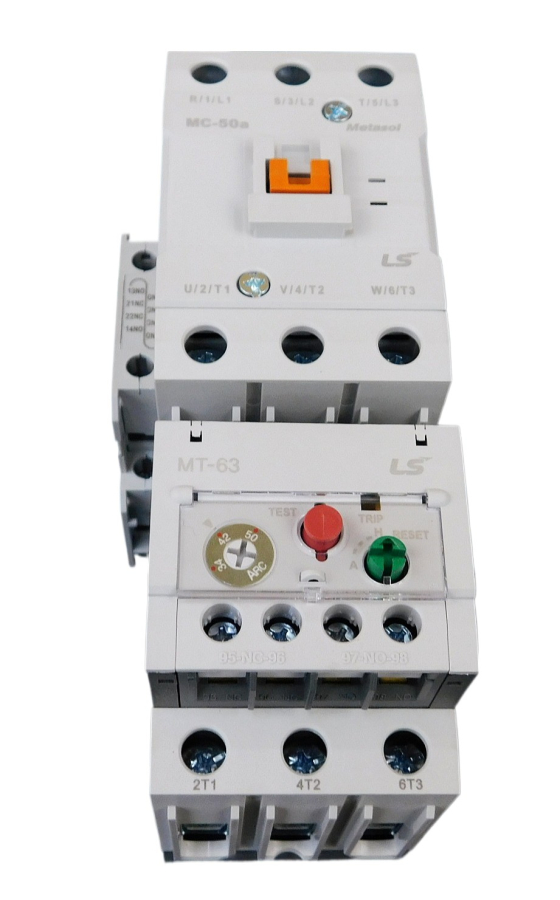

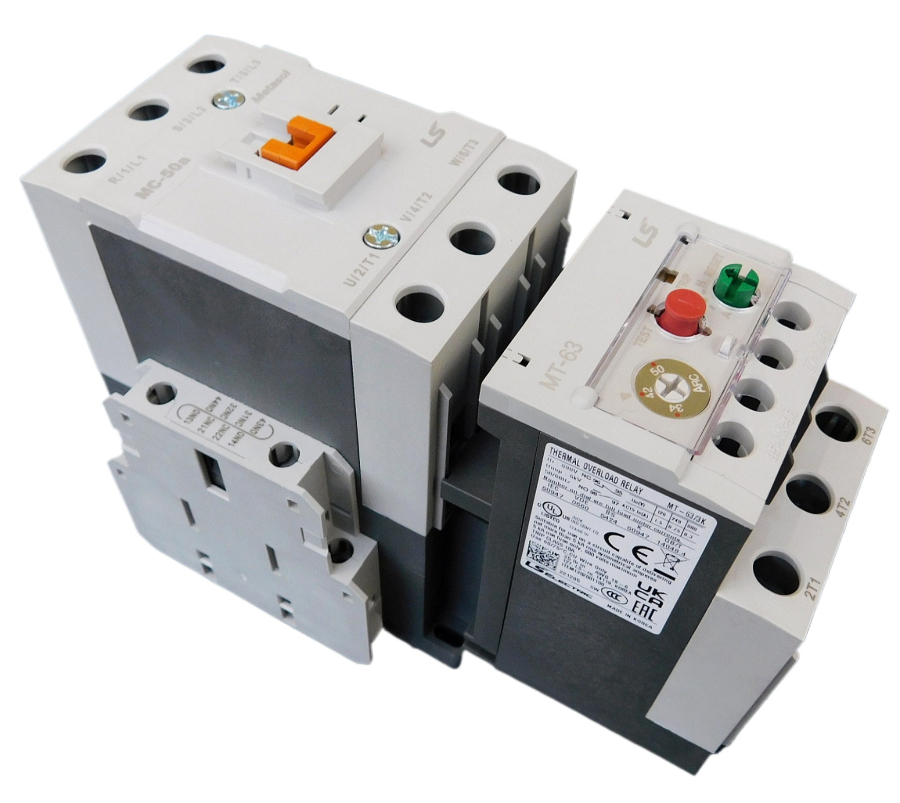

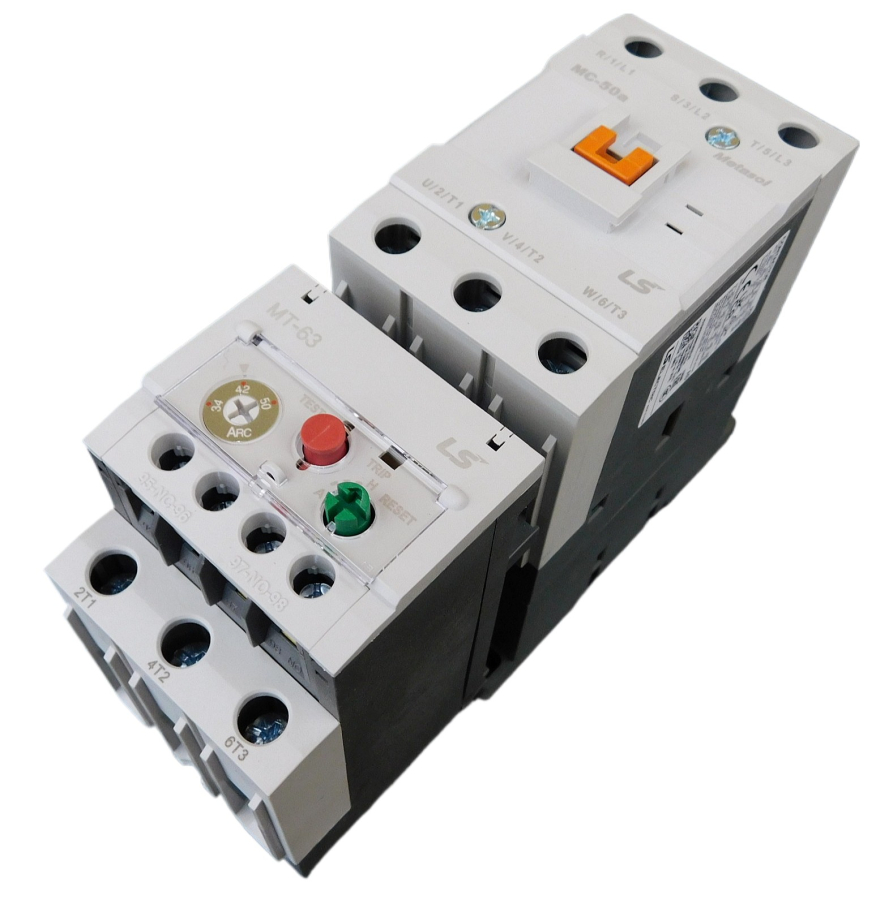

Motor Starter, 28-40 Amp, 230V Coil, 7.5HP 240V, 1PH, IEC Size 50

Complete motor starter sized for a Normal or Heavy loaded 7.5HP at 240V, 1PH, Single Phase. Operating Voltage is 230VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

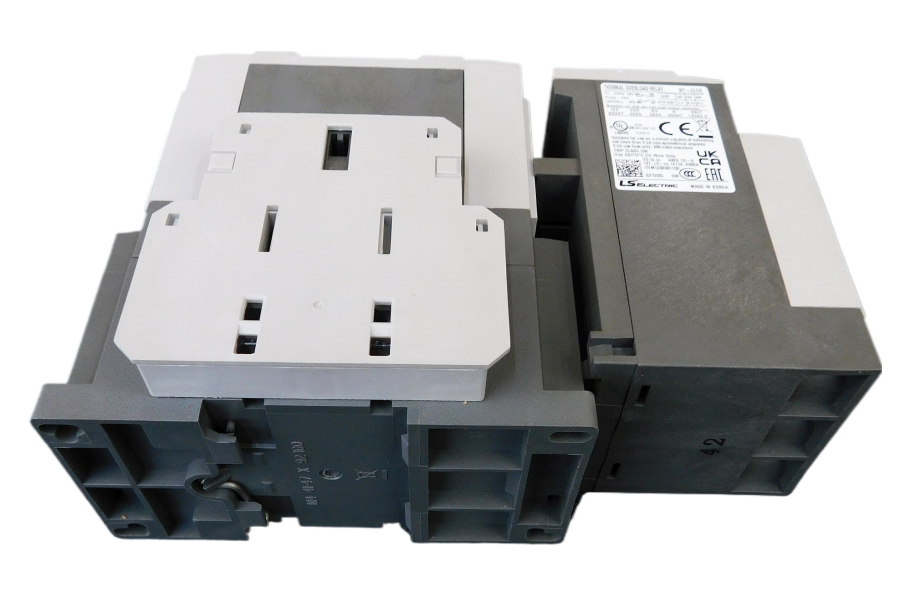

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor IEC size 50
• Overload - Class 10 differential type, phase failure protection
• Coil - 230V

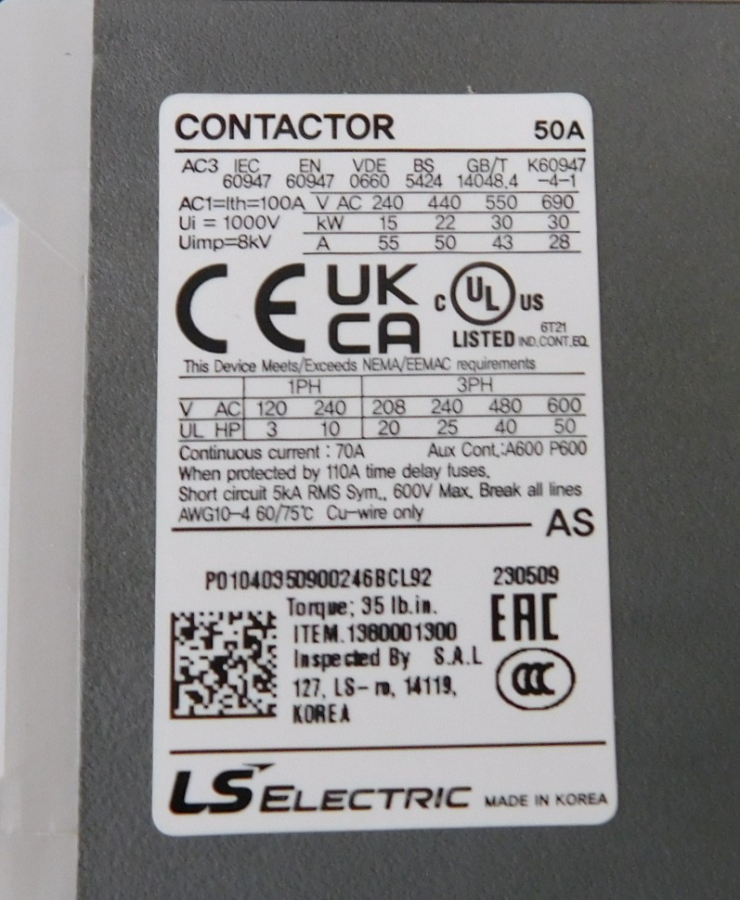

• Contactor HP rating UL - 10 HP @ 240V, 1PH
• Overload trip range - 28-40 Amps
• Sized for Normal or Heavy loaded 7.5HP at 240V, 1PH, Single Phase
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 63
