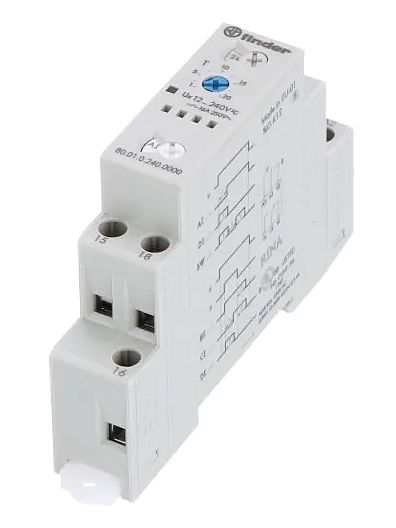

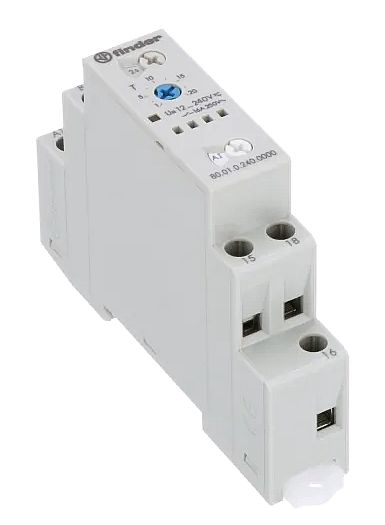

Multi-function, Multi-Voltage Timer

Finder PN: 80.01.0.240.0000

Features:

• 12-240VAC or 12-240VDC operating Voltage
• 17.5 mm wide
• Six time scales from 0.1s to 24h
• High input/output isolation
• 35 mm rail (EN 60715) mount
• Screw Terminals
• SPDT contact rating 16A

Functions:

• AI: On-delay
• DI: Interval
• SW: Symmetrical flasher (starting pulse on)
• BE: Off-delay with control signal
• CE: On- and off-delay with control signal
• DE: Interval with control signal on  PDF Datasheet

PDF Datasheet

Set up information
