100 HP 480V, 3PH, Enclosed Motor Starter, Nema 4X, Push Button
Stock:
In Stock

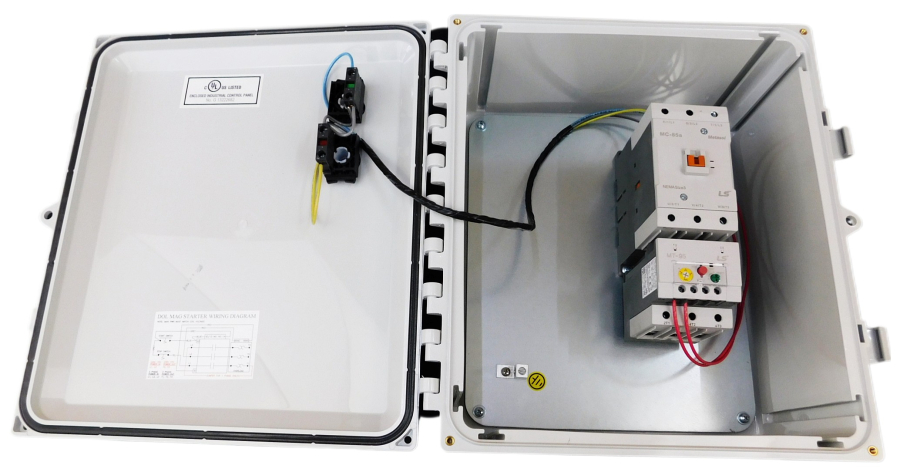

Pre-wired motor starter with push button controls in a heavy duty polycarbonate hinged enclosure.
Read the descripton fully. Picture may vary from specifications.
Complete enclosed motor starter.
All units unless noted are certified UL 508A and labeled.

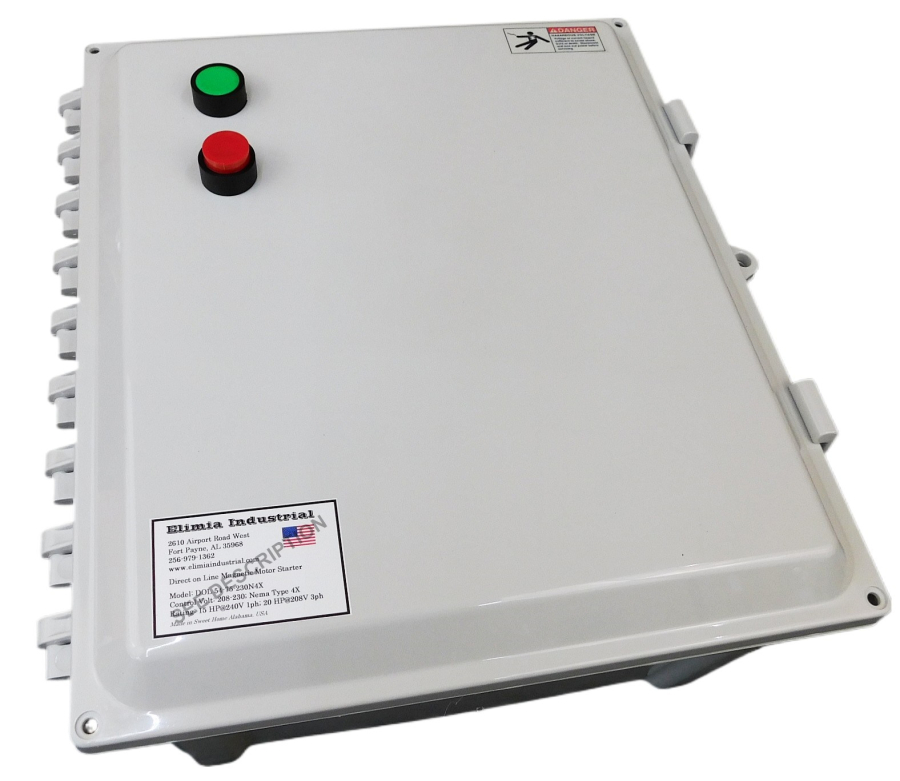

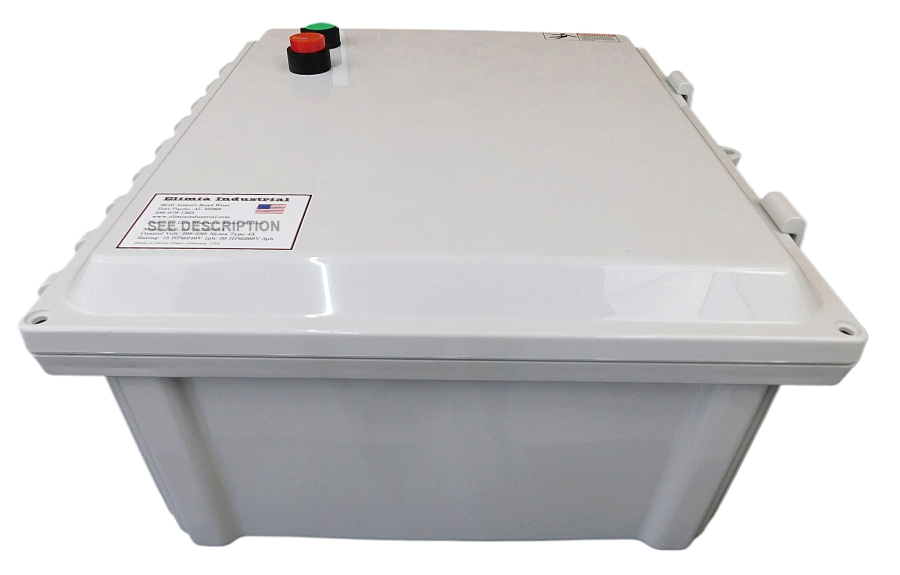

Nema 4X Polycarbonate enclosure with Hinged Door and Latches.
Pre-wired for easy installation.
Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.
Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.
Specifications:

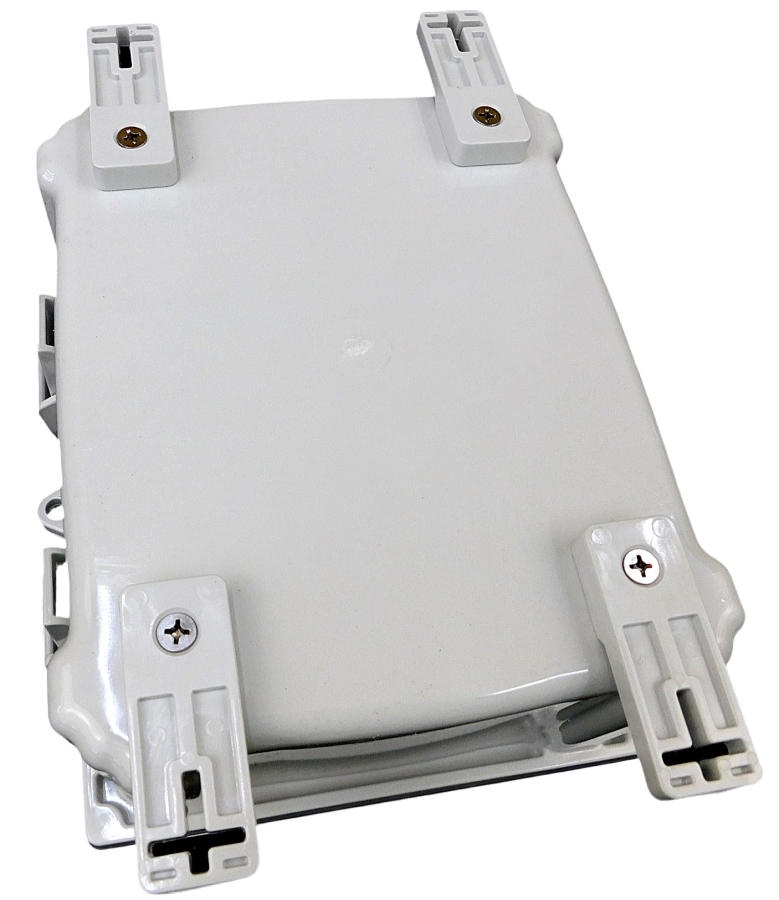

- Enclosure - Polycarbonate with Hinged Door, Nema 4X, 14X12X6

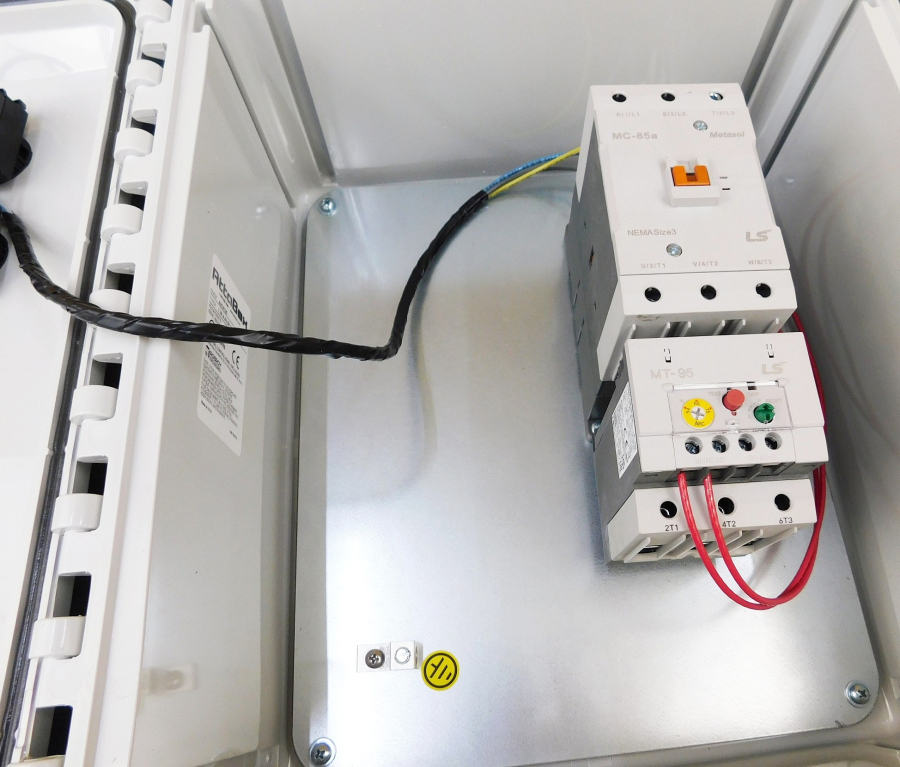

- Motor Starter - IEC size 150
- Coil - 480V Control Voltage
- Contactor HP rating UL - 100HP @ 480V, 3PH
- Overload trip range - 95 - 130 Amps
- Sized for Lightly or Normal loaded 100 HP @ 480V, 3PH
- Controls - Momentary push buttons with A600 contacts
- UL508A certified
Sized for Lightly or Normal loaded 100 HP @ 480V Motor, 3PH, 480V Controls
Three Phase 480V
Contact us if you have any questions - 256-979-1362
