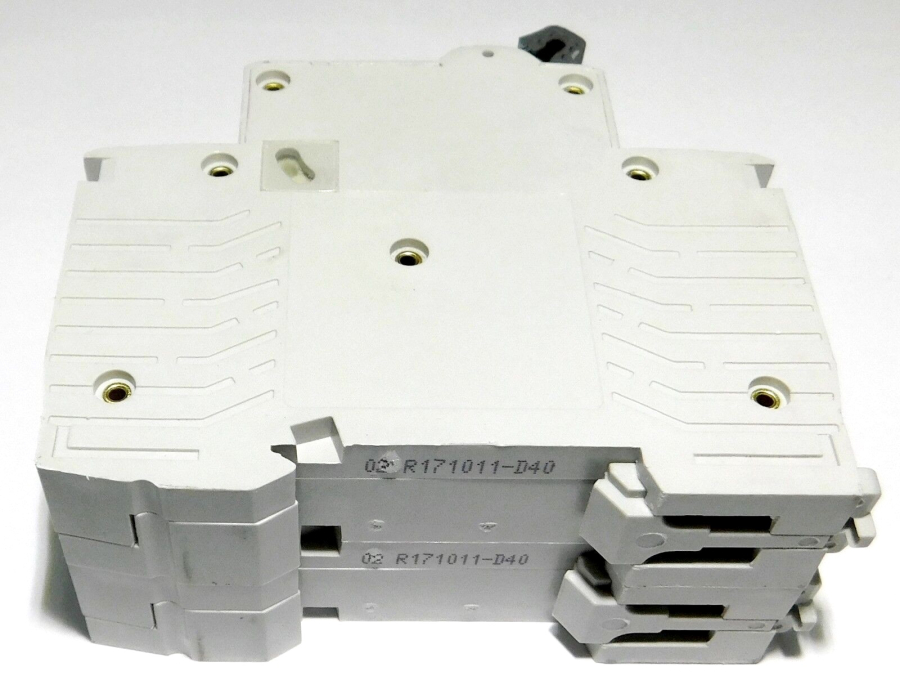

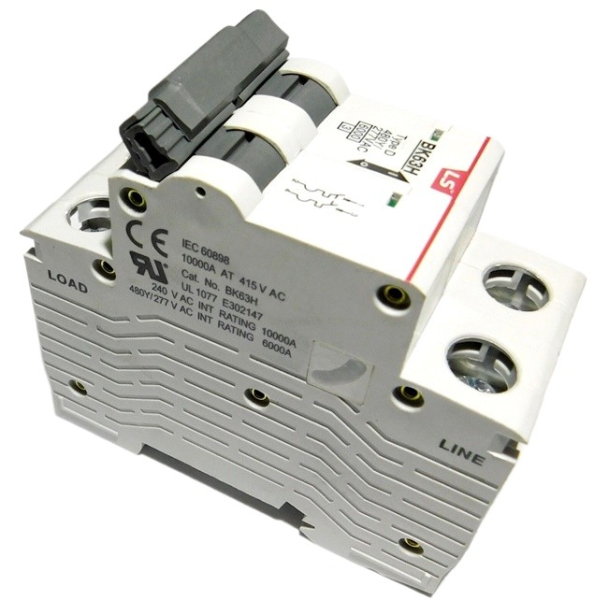

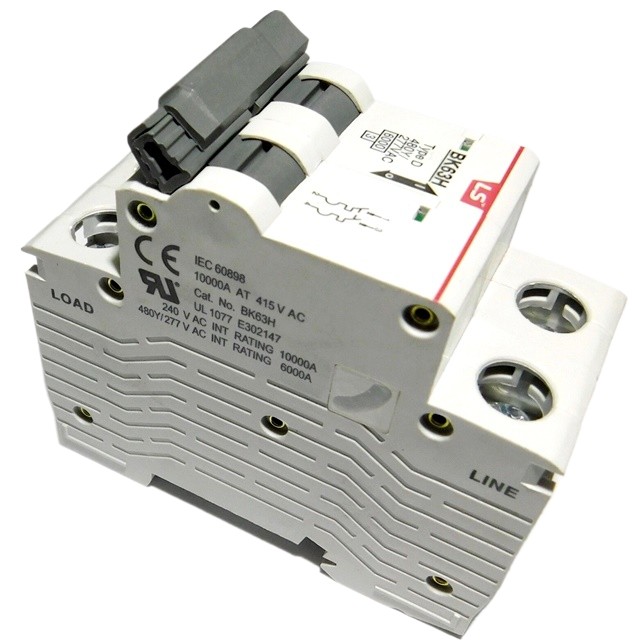

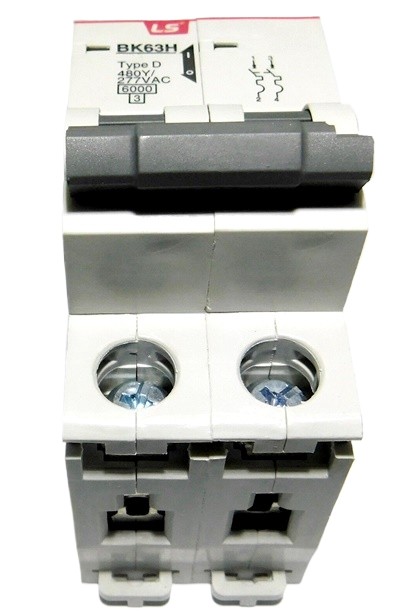

25 Amp 2 Pole UL1077 Circuit Breaker
Stock:
In Stock
UL1077, Thermal Magnetic Trip, Cable Size 14 - 4 AWG, Din Rail 35mm, Trip Class D
Read the descripton fully. Picture may vary from specifications.
UL1077 breakers are certified as supplemental protectors.
LS America brand. Made in Korea or China.
Specifications:
- Certified UL1077
- AC Voltage 120/240 @ 10kA or 480Y/277VAC @ 6kA
- DC Voltage 125VDC @ 10kA
- Electrical Life - 6000 trips
- 35mm Din Rail mount only
- Cable size 4 - 14 AWG
- Class D trip curve
25 Amp 2 Pole Class D
Contact us if you have any questions - 256-979-1362
