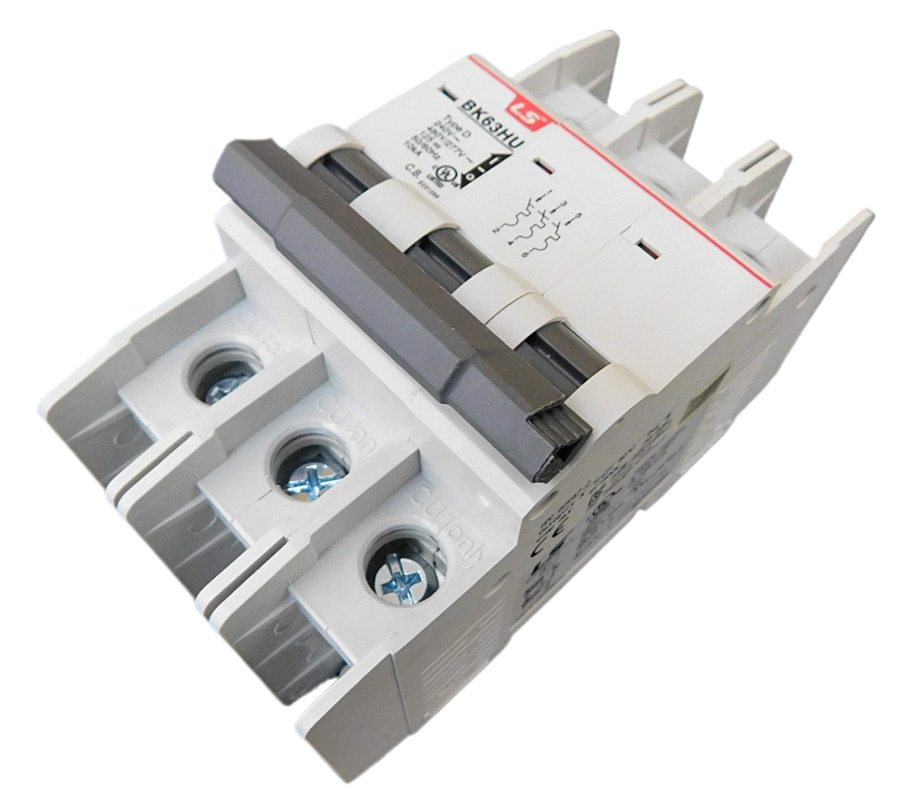

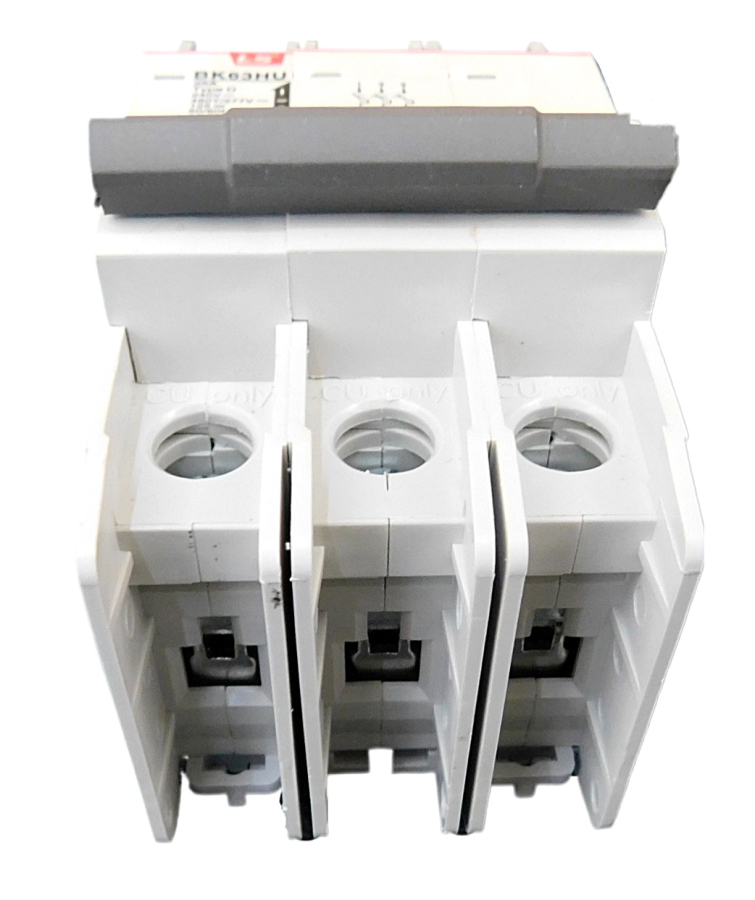

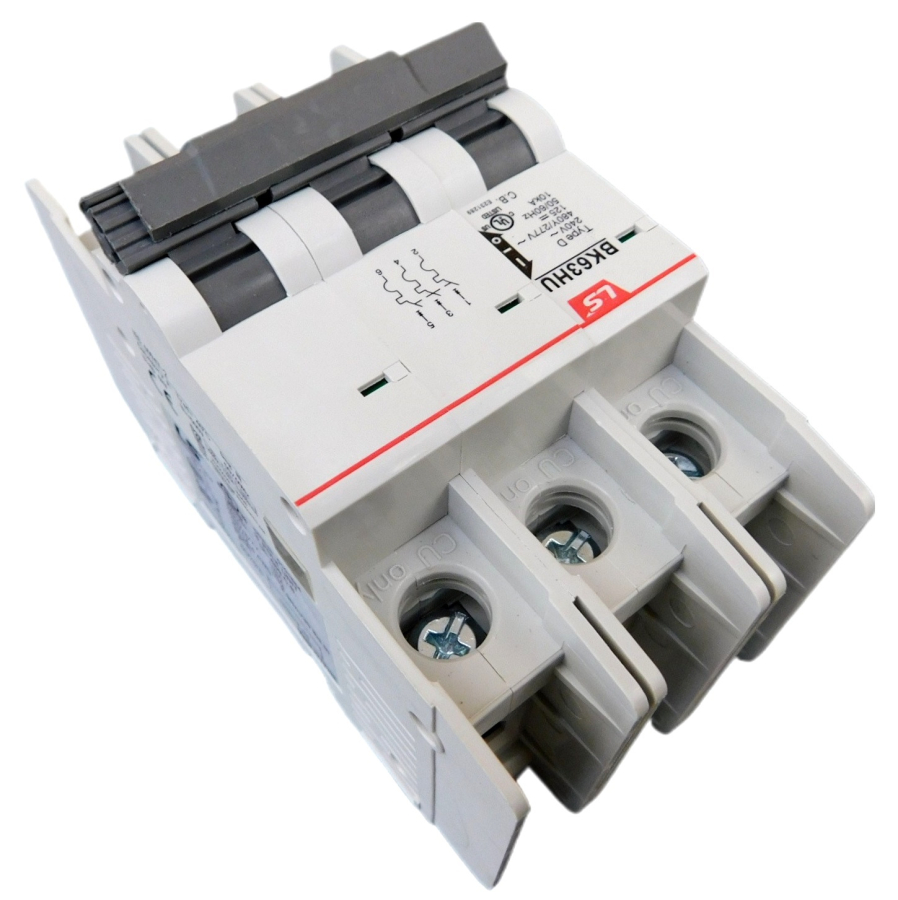

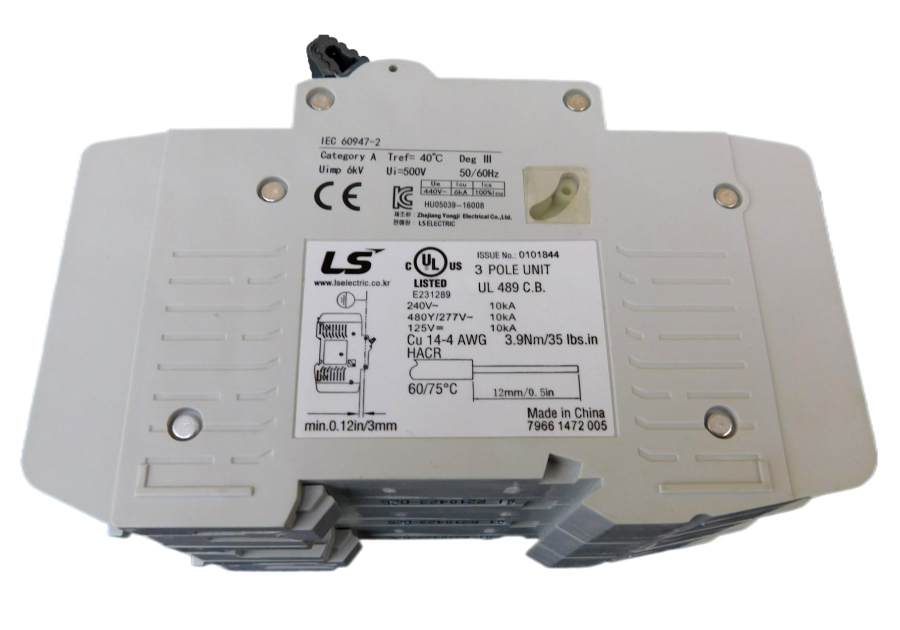

10 Amp 3 Pole UL489 Circuit Breaker
Stock:
Out of Stock
UL489, Thermal Magnetic Trip, Cable Size 14 - 4 AWG, Din Rail 35mm, Trip Class D
Read the descripton fully. Picture may vary from specifications.
UL489 breakers are certified as supplemental protectors.
Service rated breaker.
LS America brand. Made in Korea or China.
Specifications:
- Certified UL489
- AC Voltage 120/240 @ 10kA or 480Y/277VAC @ 10kA
- DC Voltage 125VDC @ 10kA
- Electrical Life - 6000 trips
- 35mm Din Rail mount only
- Cable size 4 - 14 AWG
- Class D trip curve
10 Amp 3 Pole Class D
Contact us if you have any questions - 256-979-1362
