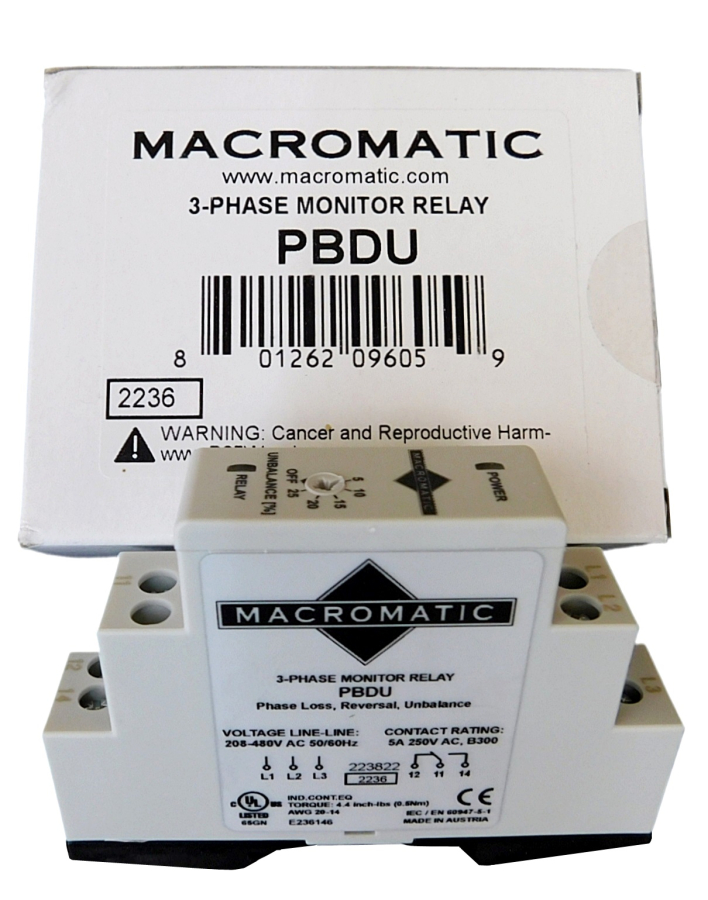

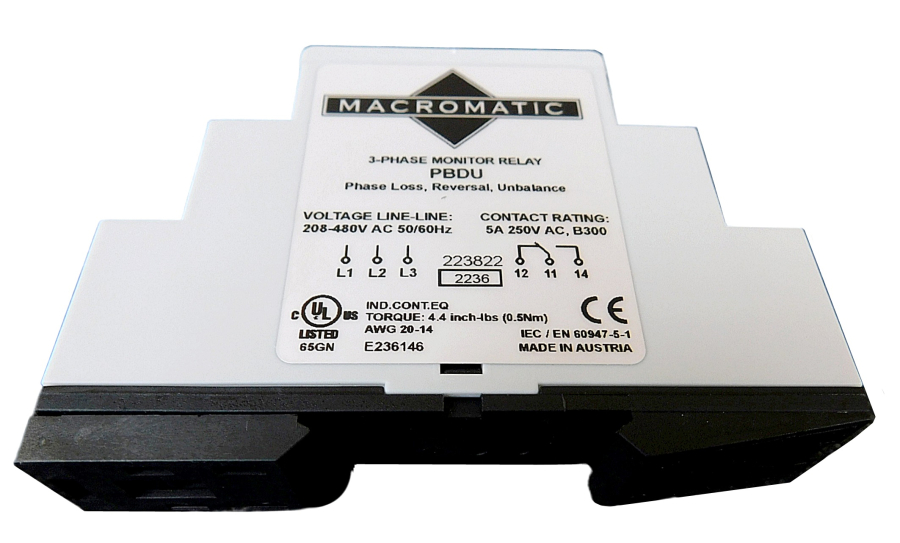

Macromatic Phase Monitor Relay, PBDU, 208-480VAC
Stock:
In Stock
Three phase line Voltage monitor relay. Direct din rail mount.
Macromatic brand phase monitor relay. Designed to protect equipment from faulty Voltage.
Directly mounts to din rail.
N/O and N/C relay contacts. Typically, the N/C contact is wired in series with a motor starter overload relay. During a fault the relay opens the connection. The connection returns to closed position automatically once the fault is clear.

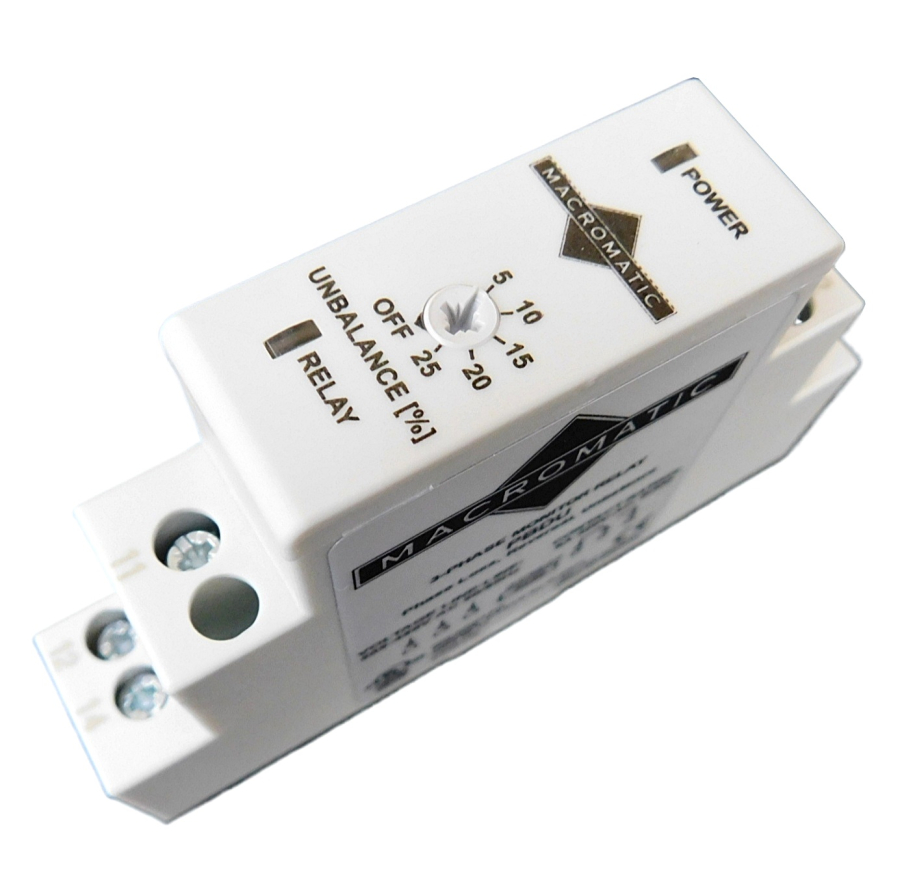

Phase voltage unbalance setting range 5 - 25%.
Specifications:
- Phase rotation
- Phase Voltage imbalance
- Phase loss
PBDU
