15 HP 230V Steel Enclosed Motor Starter, Nema 4, Push Button
Stock:
In Stock

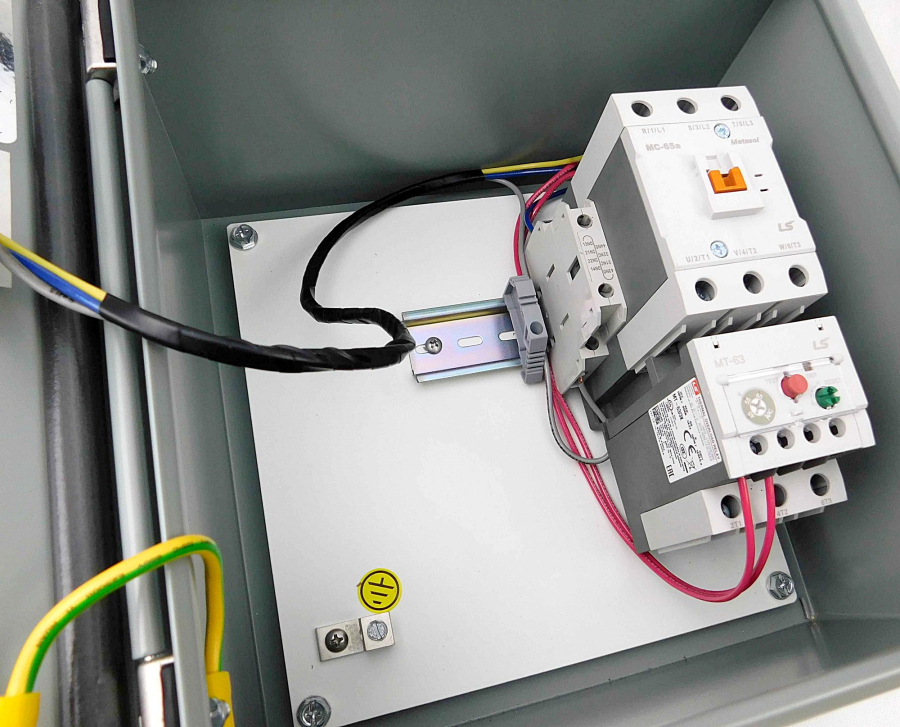

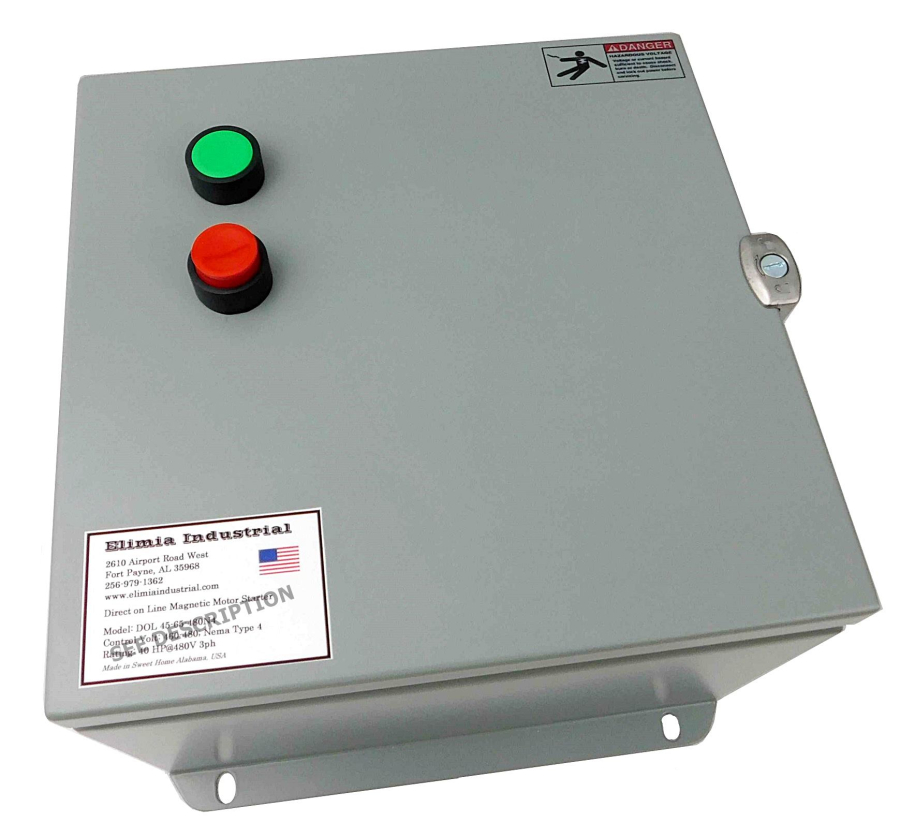

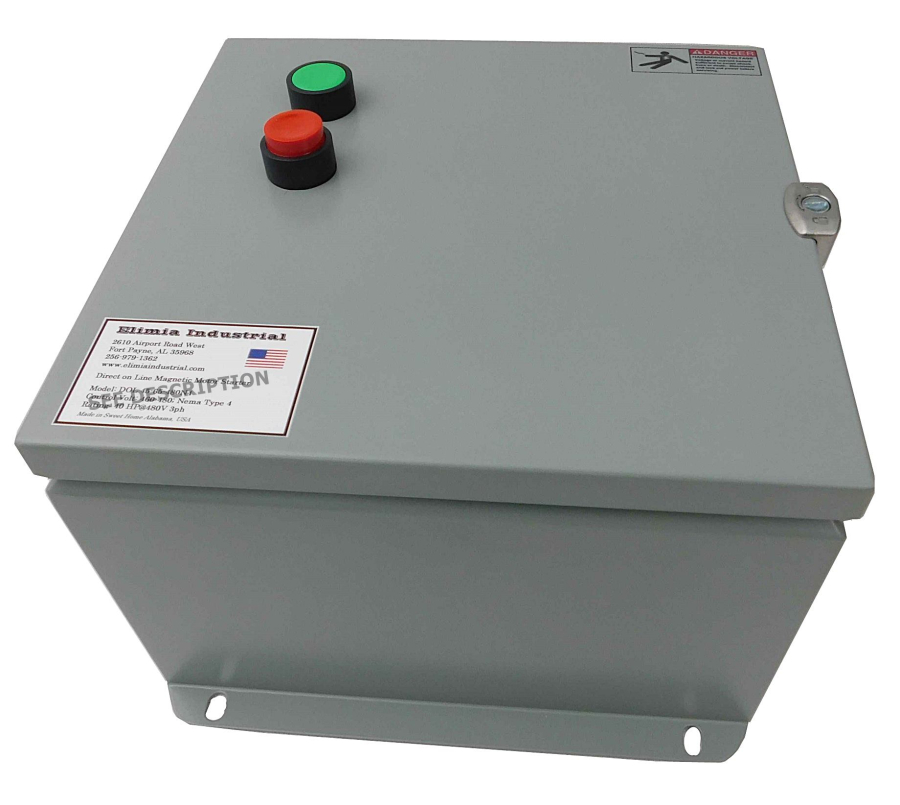

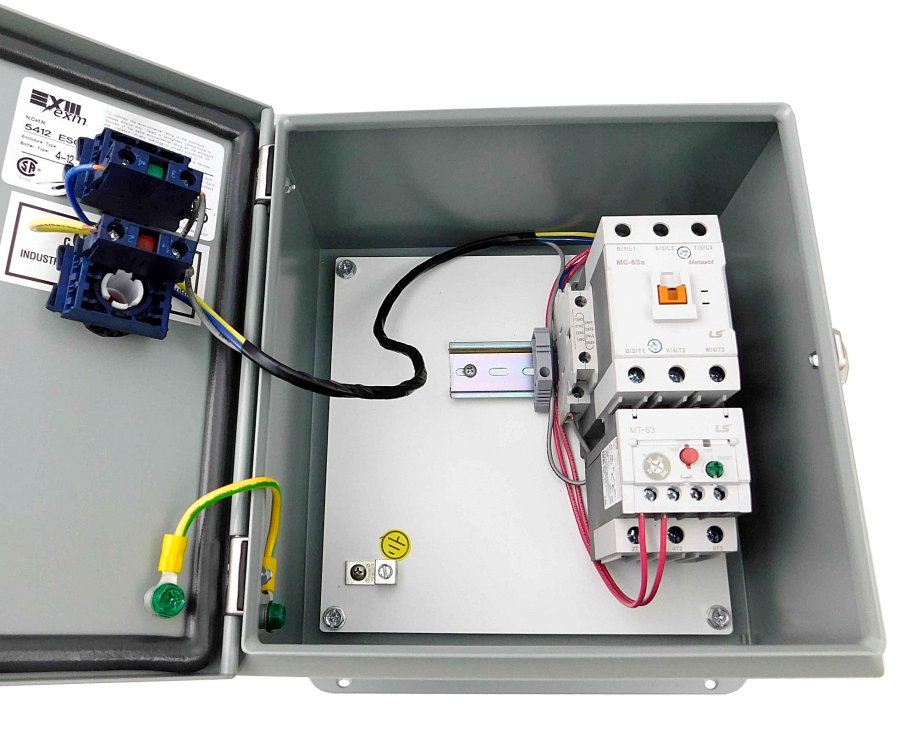

Pre-wired motor starter with push button controls in a heavy duty, Nema 4, Steel Hinged enclosure.
Read the descripton fully. Picture may vary from specifications.
Complete enclosed motor starter.
All units unless noted are certified UL 508A and labeled.
Nema 4 Steel Hinged enclosure.
Pre-wired for easy installation.
Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.
Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.
Specifications:
- Enclosure - Nema 4, 10 x 10 x 6
- Motor Starter - IEC Size 65
- Coil - 230V Control Voltage
- Contactor HP rating UL - 25 HP @ 208V, 30 HP @ 230V, 3PH
- Overload trip range - 34-50 Amps
- Sized for Normal or Heavy loaded 15 HP @ 208V or 230V, 3PH
- Controls - Momentary push buttons with A600 contacts
- UL508A certified
Sized for Normal or Heavy loaded 15 HP @ 208 or 230V Motor, 3PH; 208-240V Controls
