UL508 Equipment Disconnect Switch, 40A, Nema 4X, DS40LC-W-UL
Stock:
In Stock
Equipment Disconnect Switch, Motor Rated, Nema 4X, Water and Dust proof.
Read the descripton fully. Picture may vary from specifications.
40A general purpose and 27A motor rated disconnect.
Provides a means to locally disconnect equipment for servicing and safety.

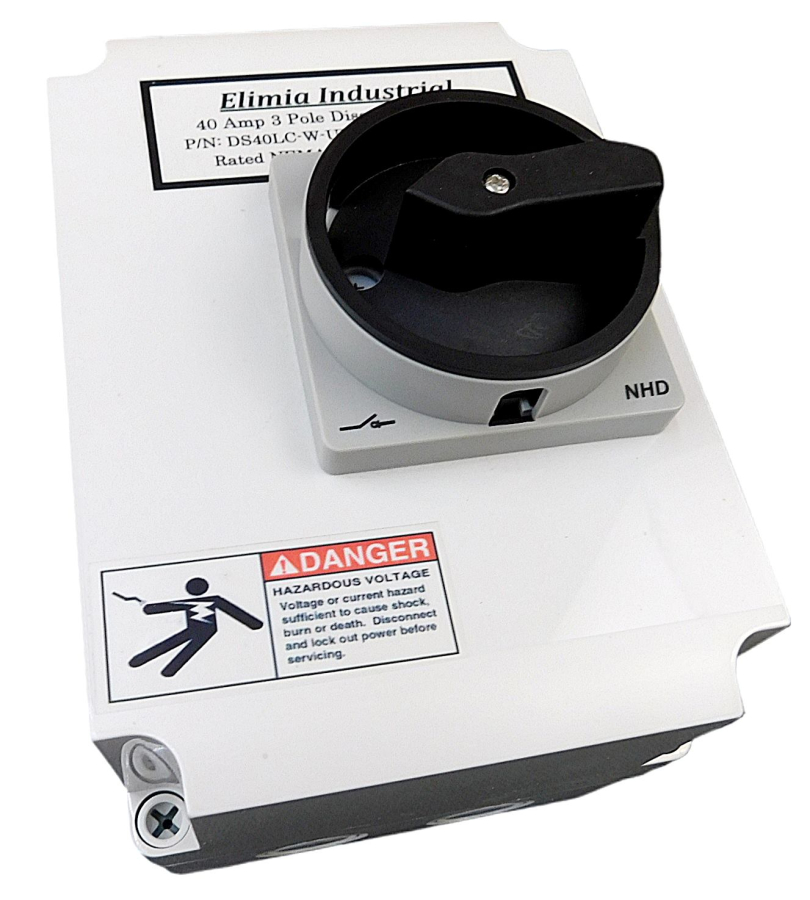

The Rotary Handle meets requirments of OSHA to Lock out and Tag out the equipment servicing.
Meets NEC requirements for local disconnect.

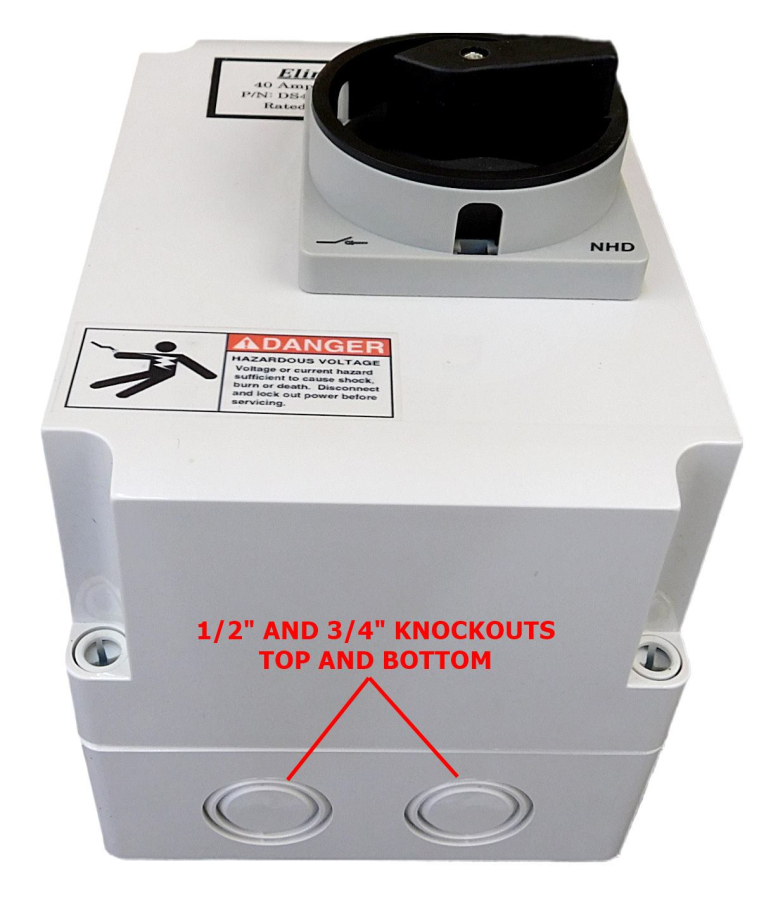

1/2" and 3/4" conduit knockouts are provided.
All units unless noted are certified UL and labeled.

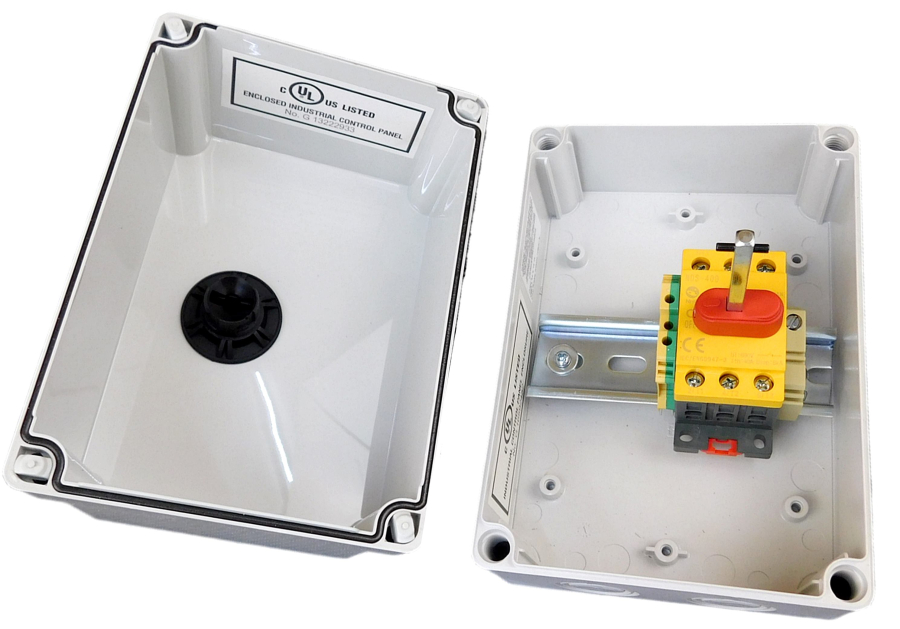

Nema 4X Polycarbonate enclosure with deep screw cover provides easy access to terminal connections.

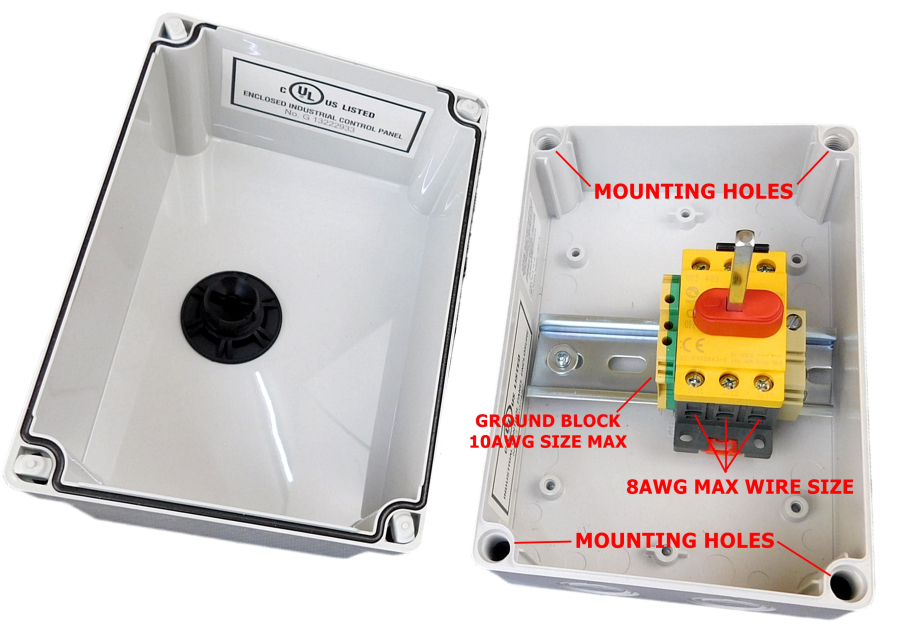

Provides self grounding din rail ground block, 10 AWG maxi wire size.
Specifications:

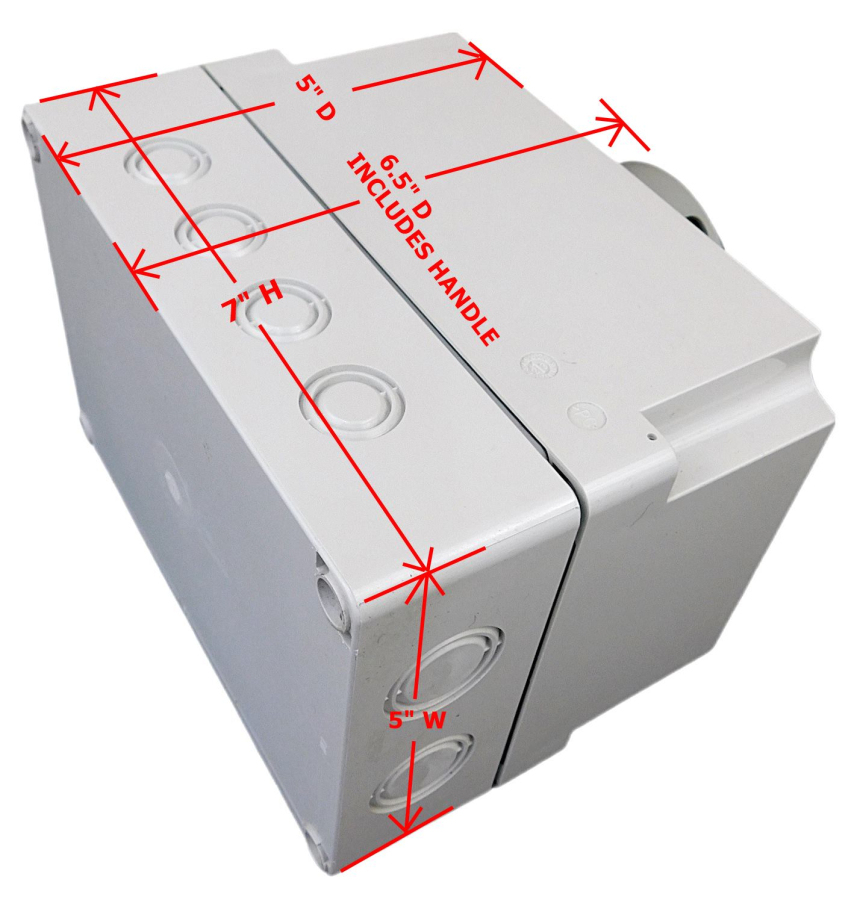

- Enclosure - Polycarbonate Nema 4X, 7x5x5, 6.5 deep including handle
- Nema 4X Polycarbonate
- HP Switch Ratings: 2HP @ 120V 1ph; 5HP @ 240V 1ph; 10HP @ 240V 3ph; 20HP @ 480V 3ph; 20HP @ 600V 3ph
- Switch Terminals: 18 - 8 AWG
- Ground: Din rail type: 18 - 10 AWG
Contact us if you have any questions - 256-979-1362
