UL508 Equipment Disconnect Switch, 80A, Nema 4X Hinged, DS80N4X
Stock:
In Stock
Equipment Disconnect Switch, Motor Rated, Nema 4X with Hinged Door, Water and Dust proof.
Read the descripton fully. Picture may vary from specifications.
80A general purpose and 52A motor rated disconnect.
Provides a means to locally disconnect equipment for servicing and safety.

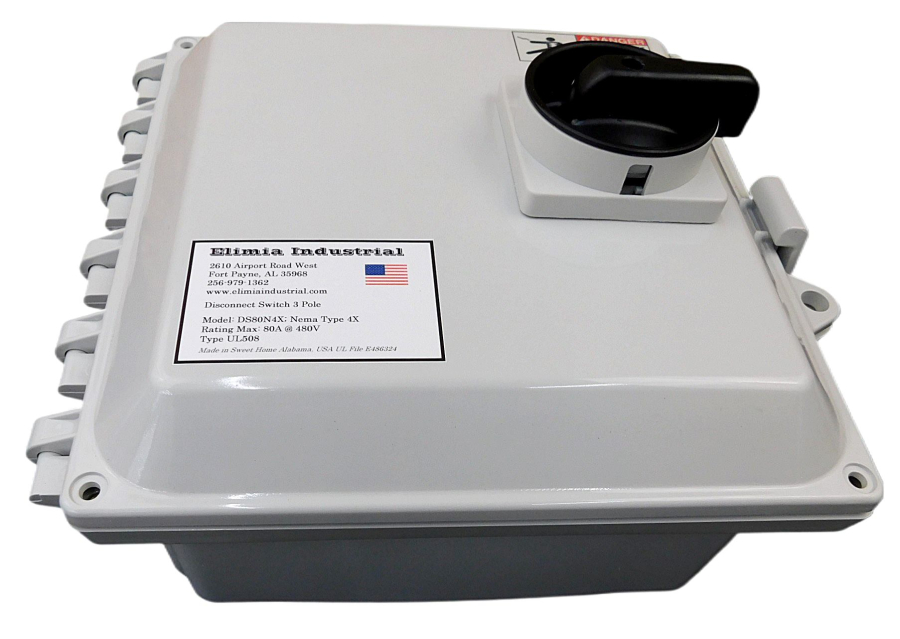

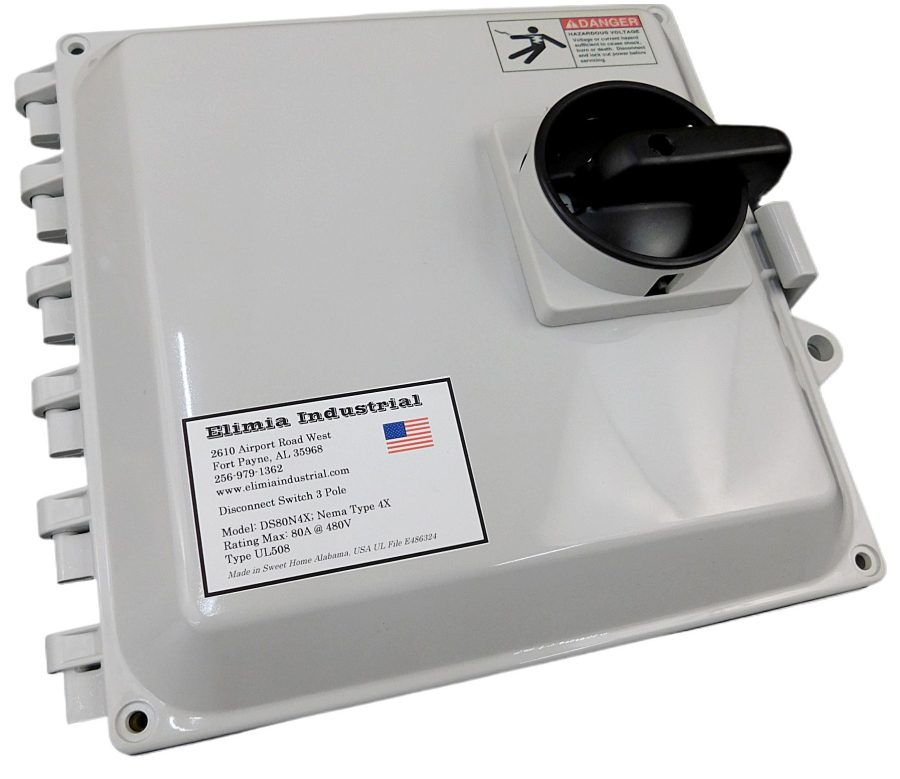

The Rotary Handle meets requirments of OSHA to Lock out and Tag out the equipment servicing.
Meets NEC requirements for local disconnect.
All units unless noted are certified UL and labeled.

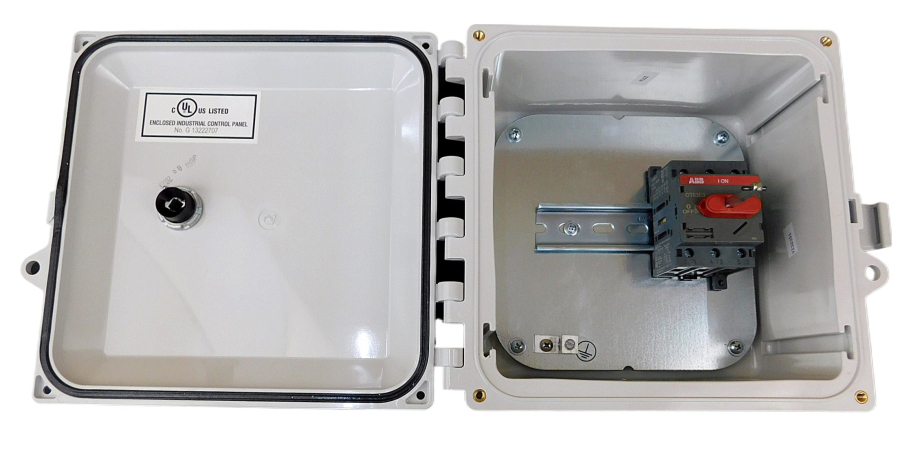

Nema 4X Polycarbonate enclosure with hinged door.
Provides a mechanical ground lug, 4 AWG wire size max.
Specifications:
- Enclosure - Polycarbonate Nema 4X, approximate size 8x8x4
- Nema 4X Polycarbonate
- HP Switch Ratings: 10HP @ 240V 1ph; 20HP @ 240V 3ph; 40HP @ 480V 3ph; 40HP @ 600V 3ph
- Switch Terminals: 12 - 4 AWG
- Ground: Mechanical Lug
Contact us if you have any questions - 256-979-1362
