UL508 Circuit Breaker Disconnect Switch, Nema 4X Hinged, DS40N4X-CB
Stock:
In Stock

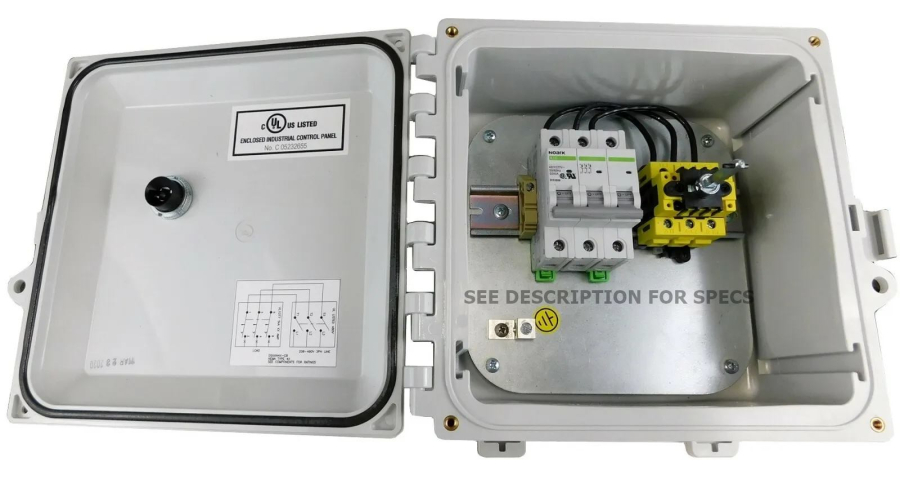

Choose from the drop down list of breakers. This unit includes a UL508 motor rated disconnect switch and UL1077 type circuit breaker. Enclosure is Nema 4X, Water and Dust proof.
Use the formula of max Amps times 1.25 to size your breaker.
Read the descripton fully. Picture may vary from specifications.
40A general purpose and 27A motor rated disconnect.
Provides a means to locally disconnect equipment for servicing and safety.
Provides added protection with a supplemental circuit breaker type UL1077.
Circuit breaker is suitable for use on 208 - 480V. This unit cannot be used on 600V applications.

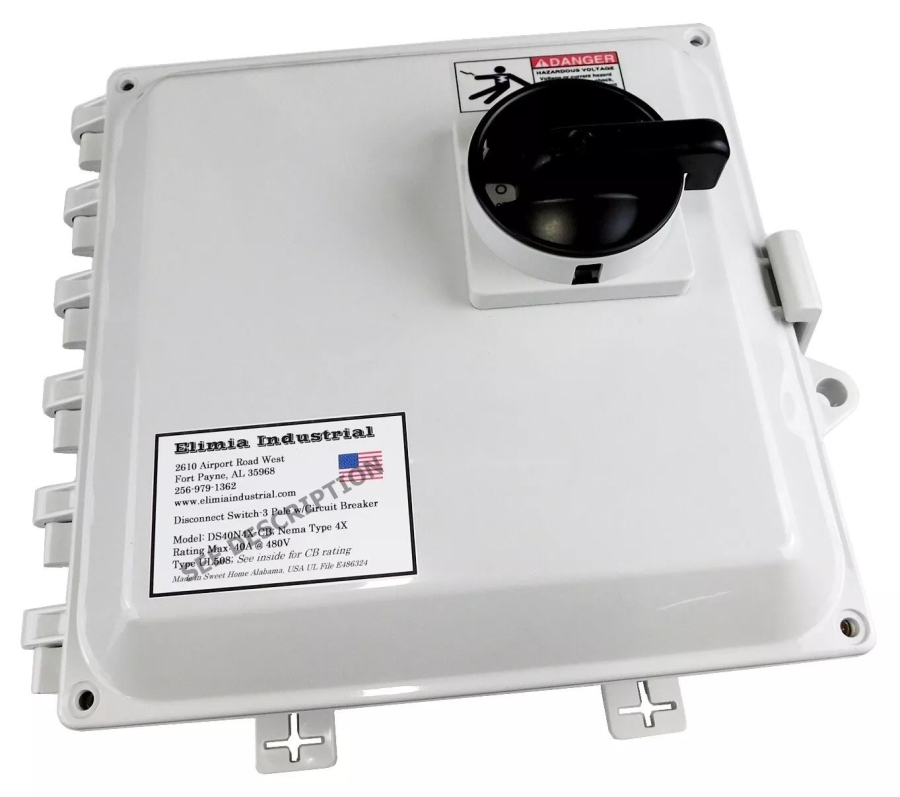

The Rotary Handle meets requirments of OSHA to Lock out and Tag out the equipment servicing.
Meets NEC requirements for local disconnect.
All units unless noted are certified UL and labeled.

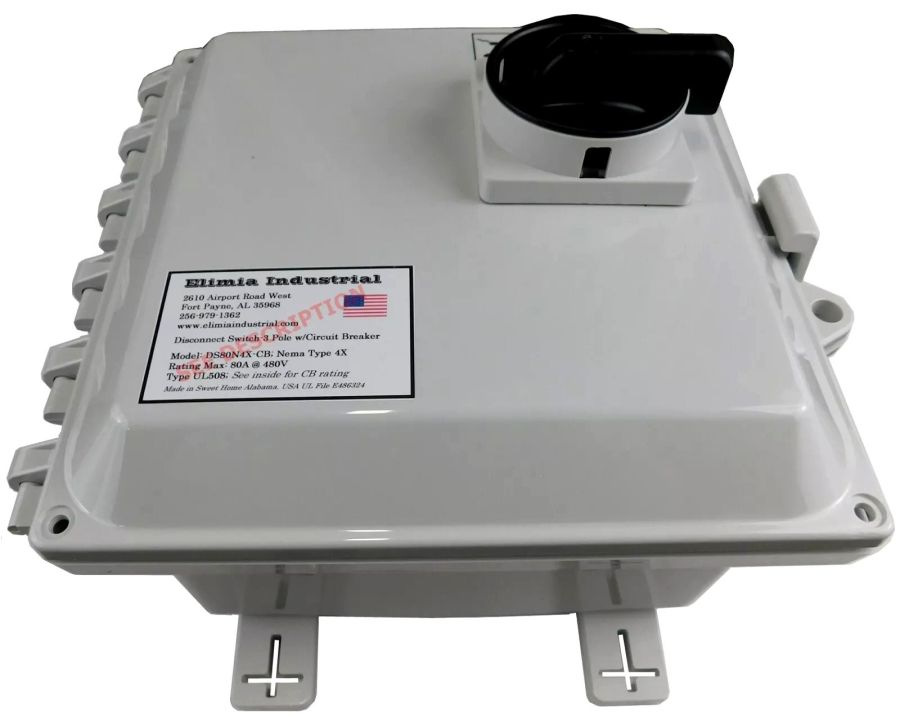

Nema 4X Polycarbonate enclosure with hinged door.
Provides a mechanical ground lug, 4 AWG wire size max.
Specifications:
- Enclosure - Polycarbonate Nema 4X, approximate size 8x8x4
- Nema 4X Polycarbonate
- HP Switch Ratings: 2HP @ 120V 1ph; 5HP @ 240V 1ph; 10HP @ 240V 3ph; 20HP @ 480V 3ph; 20HP @ 600V 3ph
- Switch Terminals: 18 - 8 AWG
- Circuit Breaker Terminals: 14 - 4 AWG
- Circuit Breaker Trip Class D (Suitable for Motors and Transformers)
- Ground: Mechanical Lug
