5 HP 240V Enclosed Motor Starter, Single Phase, 1ph, Nema 4X, Push Button

Read the descripton fully. Picture may vary from specifications.

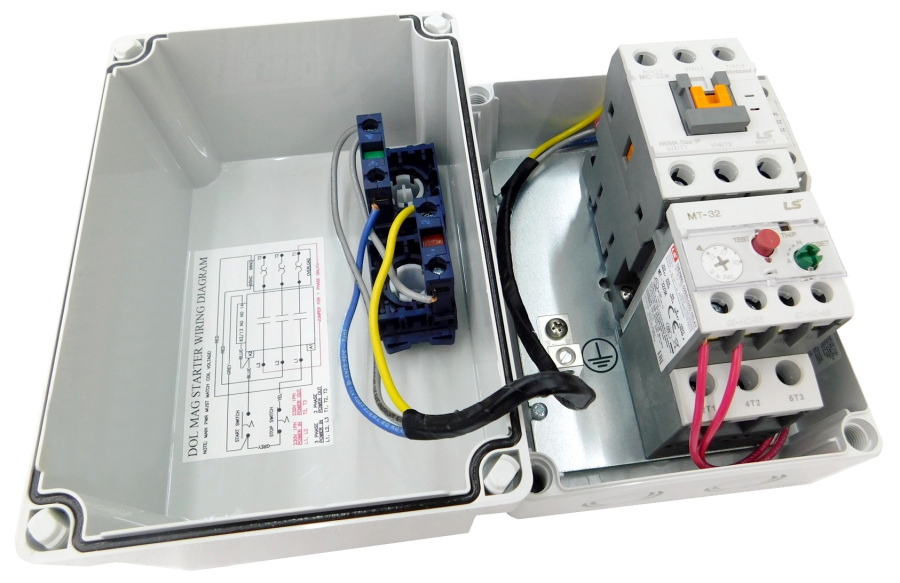

Complete enclosed motor starter.

All units unless noted are certified UL 508A and labeled.

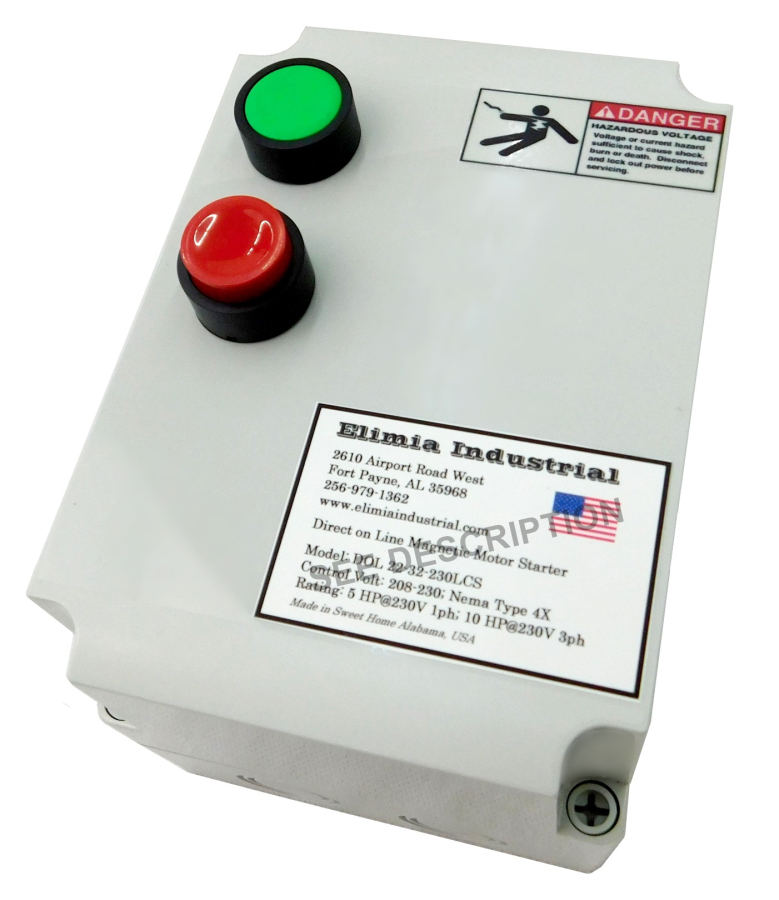

Nema 4X Polycarbonate enclosure with screw cover lid.

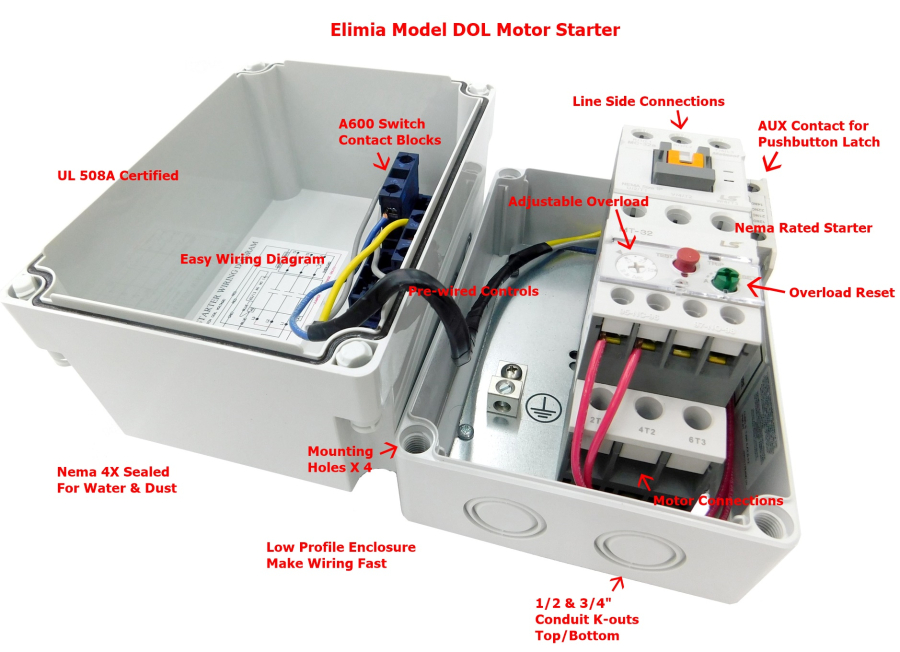

Pre-wired for easy installation.

Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.

Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.

Specifications:

• Enclosure - Polycarbonate Nema 4X, 7x5x5
• Motor Starter - IEC size 32, Nema size 1P
• Coil - 230V Control Voltage, 208-240V is acceptable
• Contactor HP rating UL - 5 HP @ 240V, 1PH
• Overload trip range - 22-32 Amps
• Sized for Normal loaded 5 HP @ 240V, 1PH
• Controls - Momentary push buttons with A600 contacts
• UL508A certified

Sized for Normal loaded 5 HP @ 240V Motor, 1PH, 208-240V Controls

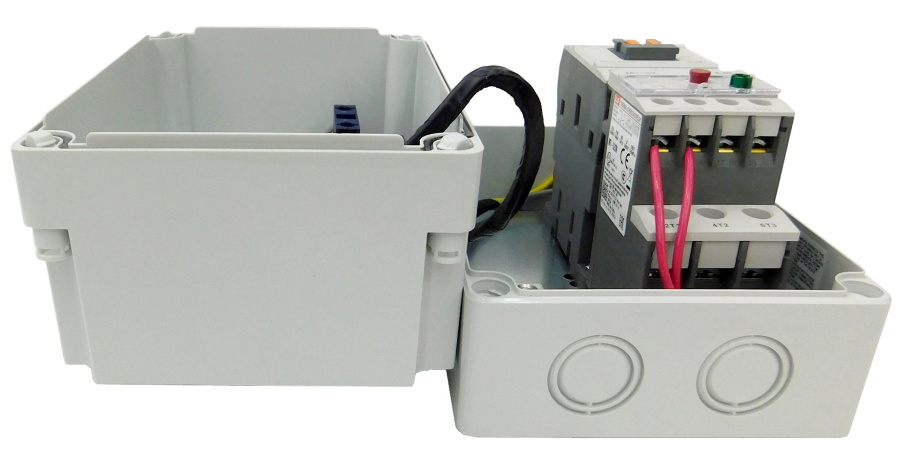

This is the largest motor starter frame size used in this compact, low cost, enclosure. There is no extra space for additional components. Additionally, wiring connectors in the enclosure will need to utilize the top left and bottom left areas. We offer other models with a larger enclosure if desired.

Contact us if you have any questions - 256-979-1362
