3/4 HP 240V Enclosed Motor Starter, Single Phase, 1PH, Nema 4X, Push Button
Stock:
In Stock
Pre-wired motor starter with push button controls in a light duty polycarbonate enclosure.
Read the descripton fully. Picture may vary from specifications.

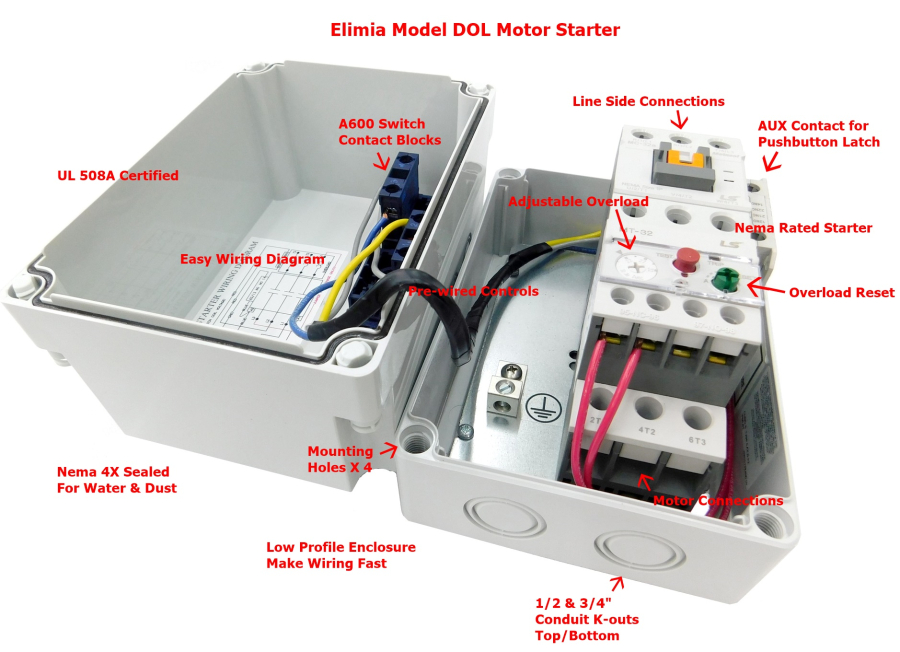

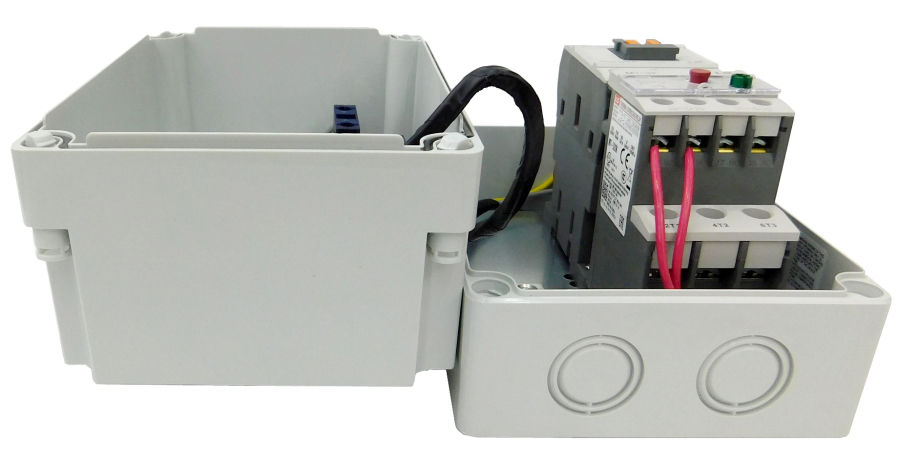

Complete enclosed motor starter.
All units unless noted are certified UL 508A and labeled.

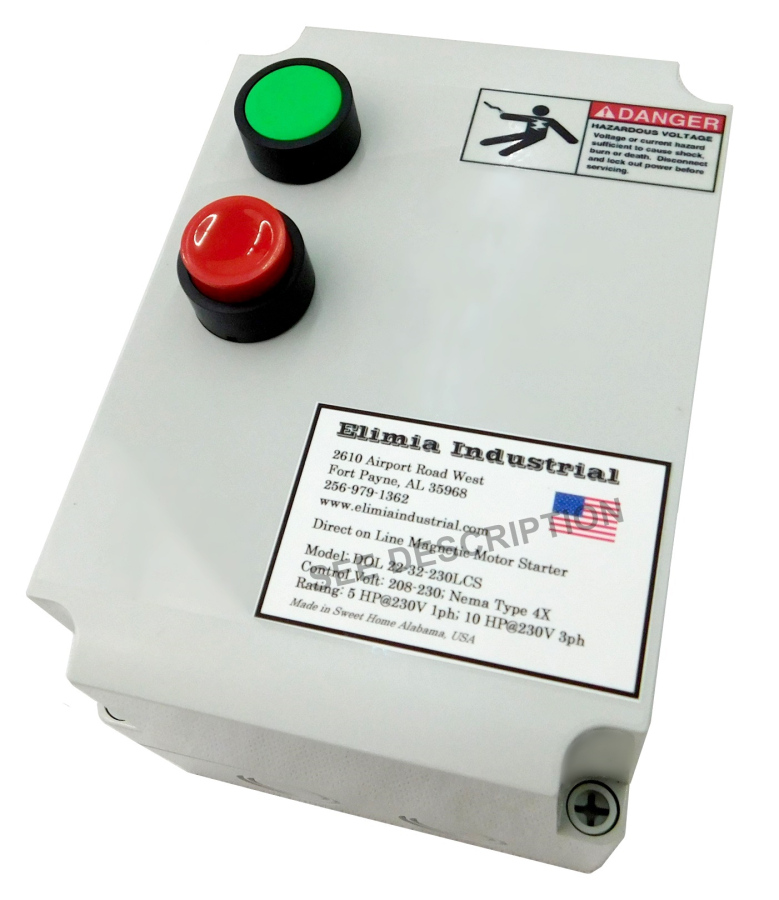

Nema 4X Polycarbonate enclosure with screw cover lid.

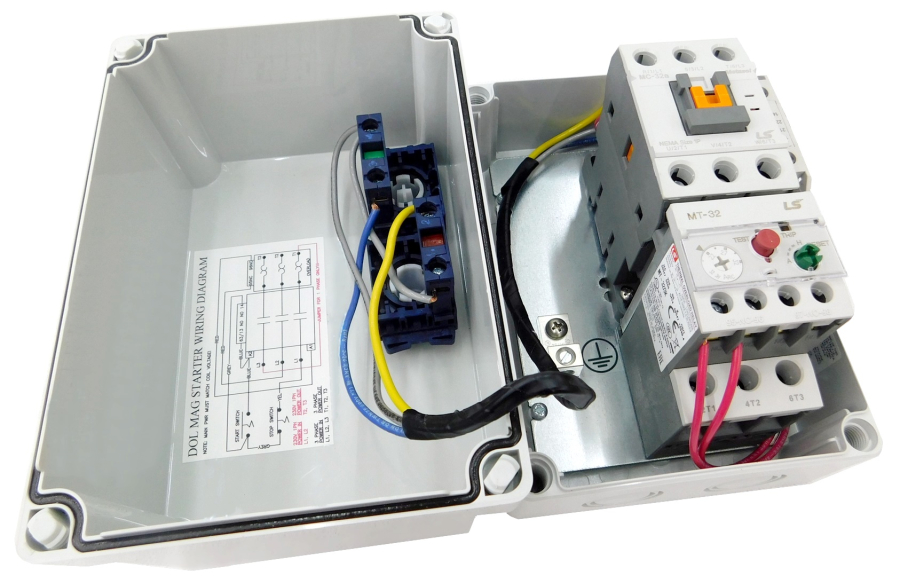

Pre-wired for easy installation.
Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.
Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.
Specifications:
- Enclosure - Polycarbonate Nema 4X, 7x5x5
- Motor Starter - IEC size 9, Nema size 00
- Coil - 230V Control Voltage, 208-240V is acceptable
- Contactor HP rating UL - 1.5 HP @ 240V, 1PH
- Overload trip range - 5-8 Amps
- Sized for Normal or Heavy loaded 3/4 HP @ 240V, 1PH
- Controls - Momentary push buttons with A600 contacts
- UL508A certified
Sized for Normal loaded 3/4 HP @ 240V Motor, 1PH, 208-240V Controls
Contact us if you have any questions - 256-979-1362
