3 HP 480V Enclosed Motor Starter w/ Main Disconnect, Nema 4 Push Button Controls

0 Review(s)
Stock:
In Stock
Combines a motor starter and disconnect in one easy to install control panel. Lots of options can be added to customize to your needs.
$350.00
Circuit Breaker:
Lights:
Control Voltage:
E-Stop:
Enclosure Size:

Read the descripton fully. Picture may vary from specifications.

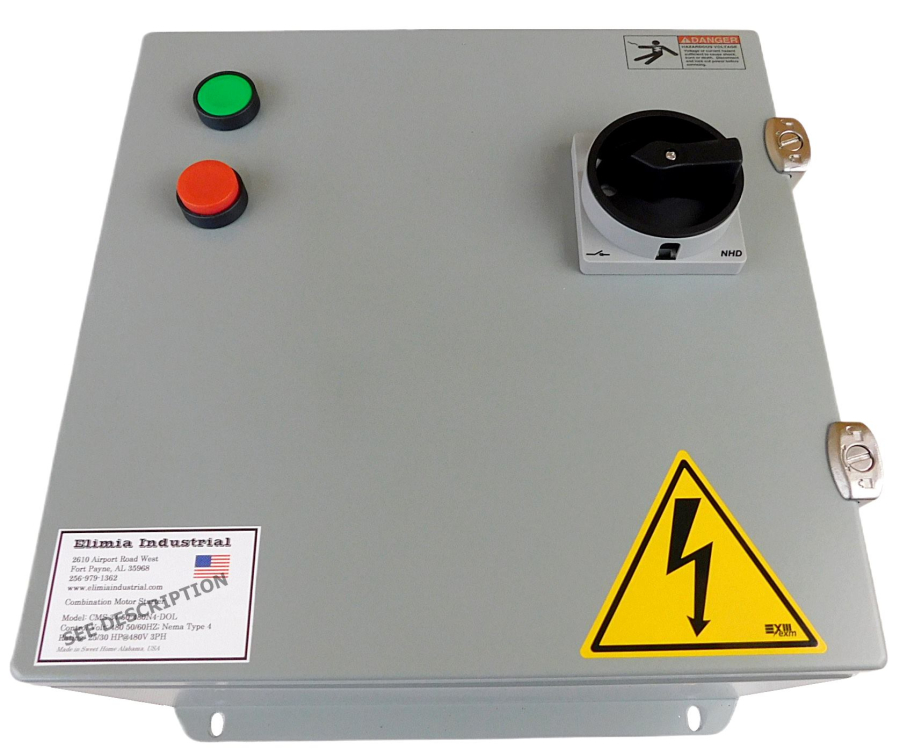

Complete enclosed motor starter control panel with main disconnect.

Meets requirements for a local disconnect with lock out-tag out handle.

Heavy duty steel enclosure, rated Nema 12 and Nema 4.

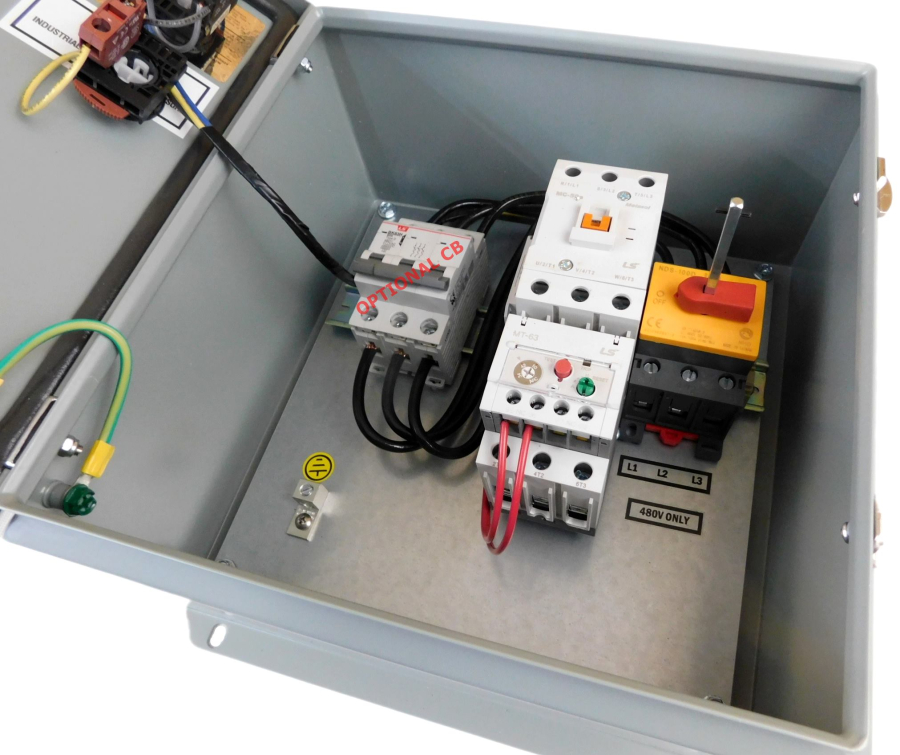

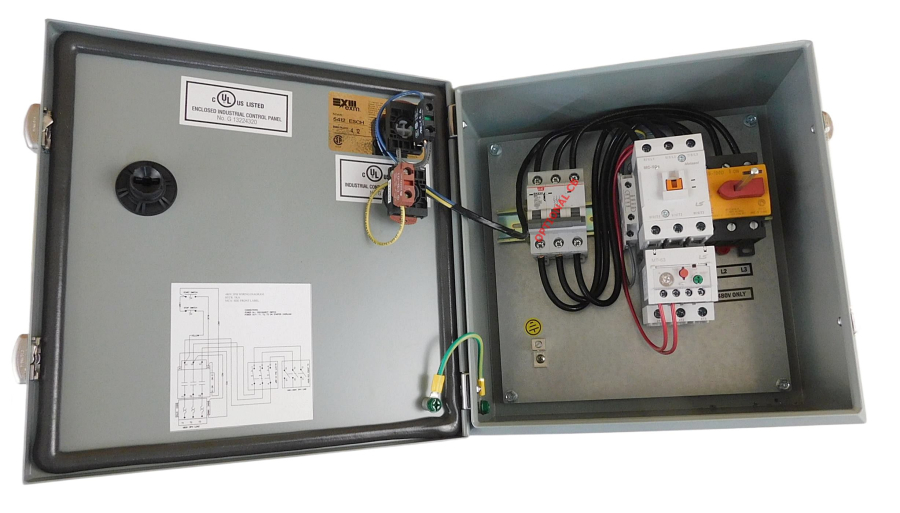

Pre-wired for easy installation.

Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.

Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.

Specifications:

  • Enclosure - Steel Nema 4, 10x8x4 (size will be larger if certain options are specified)
  • Motor Starter - Nema size 00, IEC size 9
  • Coil - 480V Control Voltage
  • Contactor HP rating UL - 5 HP @ 480V
  • Overload trip range - 4 - 6 Amps
  • Sized for Normal loaded 3 HP @ 480V
  • Main Disconnect - 25 Amp UL508 with door mounted handle, lock out-tag out
  • Controls - Momentary push buttons with A600 contacts
  • UL508A certified

Sized for Normal loaded 3 HP @ 480V, 480V Controls
